3VHB - JenaLib

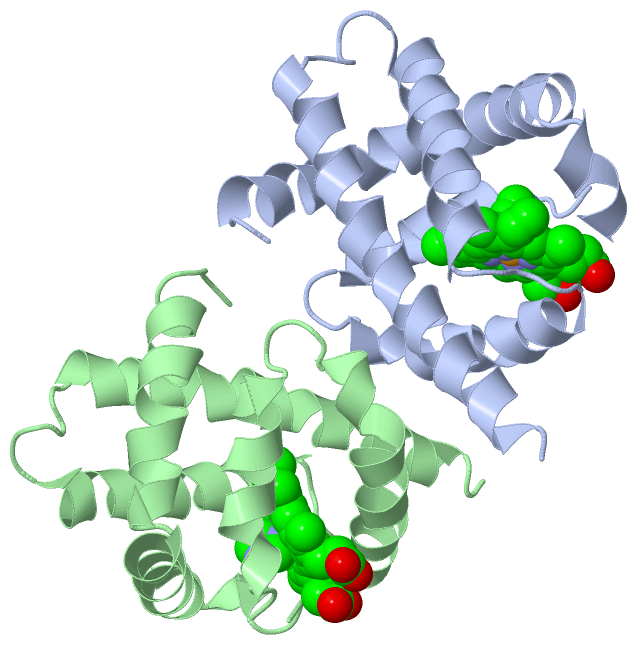

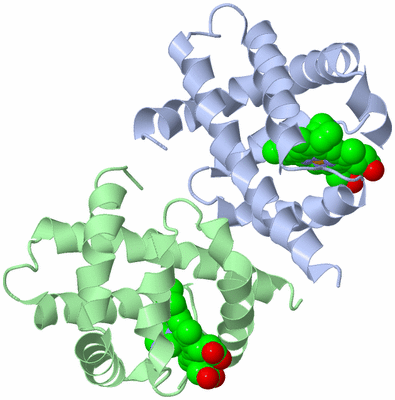

Asym./Biol. Unit (Jmol Viewer)

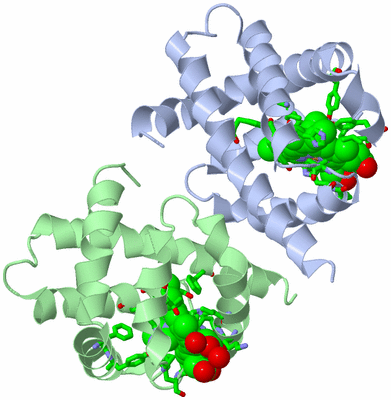

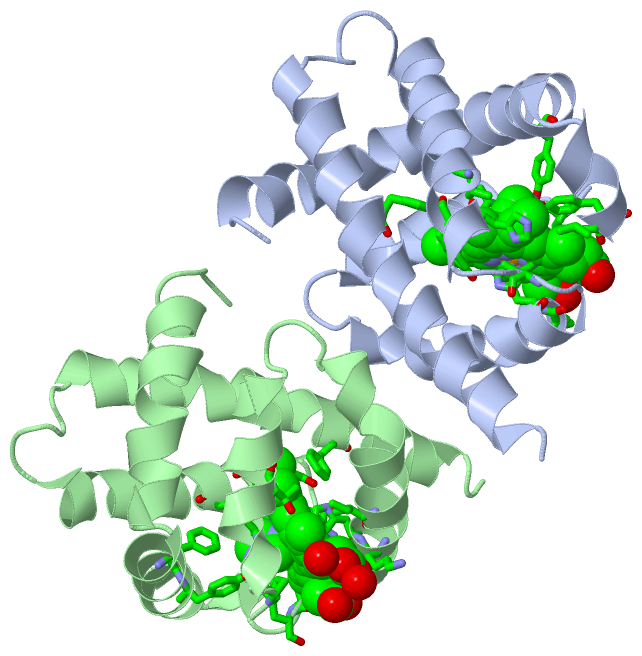

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   IMIDAZOLE ADDUCT OF THE BACTERIAL HEMOGLOBIN FROM VITREOSCILLA SP.

Authors :   M. Bolognesi, A. Boffi, M. Coletta, A. Mozzarelli, A. Pesce, C. Tarricone, P. Ascenzi

Date :   17 Mar 99 (Deposition) - 18 Aug 99 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym./Biol. Unit : A,B

Keywords :   Hemoprotein, Oxygen Transport, Oxygen Storage/Transport Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Bolognesi, A. Boffi, M. Coletta, A. Mozzarelli, A. Pesce, C. Tarricone, P. Ascenzi
Anticooperative Ligand Binding Properties Of Recombinant Ferric Vitreoscilla Homodimeric Hemoglobin: A Thermodynamic, Kinetic And X-Ray Crystallographic Study.
J. Mol. Biol. V. 291 637 1999
PubMed-ID: 10448042 | Reference-DOI: 10.1006/JMBI.1999.2975
(for further references see the PDB file header)

Molecule 1 - PROTEIN (HEMOGLOBIN)
	Atcc	:	ATCC 15218
	Chains	:	A, B
	Collection	:	ATCC 15218
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Gene	:	VGB
	Expression System Plasmid	:	PDH88
	Expression System Strain	:	DH5-ALPHA
	Expression System Taxid	:	562
	Organism Scientific	:	VITREOSCILLA STERCORARIA
	Organism Taxid	:	61
	Strain	:	C1
	Synonym	:	SOLUBLE CYTOCHROME O

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 4)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	IMD	2	Ligand/Ion	IMIDAZOLE

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	LEU A:42 , PHE A:43 , LEU A:57 , THR A:60 , LYS A:84 , HIS A:85 , VAL A:90 , HIS A:94 , TYR A:95 , VAL A:98 , TYR A:126 , IMD A:160 , HOH A:214	BINDING SITE FOR RESIDUE HEM A 150
2	AC2	SOFTWARE	TYR A:29 , PRO A:54 , LEU A:57 , HEM A:150	BINDING SITE FOR RESIDUE IMD A 160
3	AC3	SOFTWARE	LEU B:42 , PHE B:43 , LEU B:57 , THR B:60 , ILE B:81 , LYS B:84 , HIS B:85 , ALA B:88 , VAL B:90 , HIS B:94 , TYR B:95 , VAL B:98 , PHE B:133 , IMD B:170 , HOH B:200 , HOH B:229	BINDING SITE FOR RESIDUE HEM B 150
4	AC4	SOFTWARE	PHE B:28 , TYR B:29 , PRO B:54 , LEU B:57 , HEM B:150	BINDING SITE FOR RESIDUE IMD B 170

(no "SS Bond" information available for 3VHB)

Asymmetric/Biological Unit

No.	Residues
1	Ala B:144	-	Val B:145

(no "SAP(SNP)/Variant" information available for 3VHB)

(no "PROSITE Motif" information available for 3VHB)

(no "Exon" information available for 3VHB)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:135
 aligned with BAHG_VITST | P04252 from UniProtKB/Swiss-Prot  Length:146

    Alignment length:144
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           BAHG_VITST     2 LDQQTINIIKATVPVLKEHGVTITTTFYKNLFAKHPEVRPLFDMGRQESLEQPKALAMTVLAAAQNIENLPAILPAVKKIAVKHCQAGVAAAHYPIVGQELLGAIKEVLGDAATDDILDAWGKAYGVIADVFIQVEADLYAQAV 145
               SCOP domains d3vhba_ A: Bacterial dimeric hemoglobin                                                                                                          SCOP domains
               CATH domains 3vhbA00 A:2-145 Globins                                                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh.---------....hhhhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3vhb A   2 LDQQTINIIKATVPVLKEHGVTITTTFYKNLFAKHPEVRPLF---------QPKALAMTVLAAAQNIENLPAILPAVKKIAVKHCQAGVAAAHYPIVGQELLGAIKEVLGDAATDDILDAWGKAYGVIADVFIQVEADLYAQAV 145
                                    11        21        31        41 |       - |      61        71        81        91       101       111       121       131       141
                                                                    43        53

Chain B from PDB  Type:PROTEIN  Length:135
 aligned with BAHG_VITST | P04252 from UniProtKB/Swiss-Prot  Length:146

    Alignment length:144
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           BAHG_VITST     2 LDQQTINIIKATVPVLKEHGVTITTTFYKNLFAKHPEVRPLFDMGRQESLEQPKALAMTVLAAAQNIENLPAILPAVKKIAVKHCQAGVAAAHYPIVGQELLGAIKEVLGDAATDDILDAWGKAYGVIADVFIQVEADLYAQAV 145
               SCOP domains d3vhbb_ B: Bacterial dimeric hemoglobin                                                                                                          SCOP domains
               CATH domains 3vhbB00 B:2-145 Globins                                                                                                                          CATH domains
           Pfam domains (1) ----Globin-3vhbB01 B:6-103                                                                            ------------------------------------------ Pfam domains (1)
           Pfam domains (2) ----Globin-3vhbB02 B:6-103                                                                            ------------------------------------------ Pfam domains (2)
         Sec.struct. author ....hhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.hhh....---------..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3vhb B   2 LDQQTINIIKATVPVLKEHGVTITTTFYKNLFAKHPEVRPLF---------QPKALAMTVLAAAQNIENLPAILPAVKKIAVKHCQAGVAAAHYPIVGQELLGAIKEVLGDAATDDILDAWGKAYGVIADVFIQVEADLYAQAV 145
                                    11        21        31        41 |       - |      61        71        81        91       101       111       121       131       141
                                                                    43        53

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Globin-like (1351)

Superfamily: Globin-like (1308)

Family: Globins (1157)

Protein domain: Bacterial dimeric hemoglobin (4)

Vitreoscilla stercoraria [TaxId: 61] (4)

1a	d3vhba_	A:
1b	d3vhbb_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Globin-like (786)

Homologous Superfamily: Globins (743)

Vitreoscilla stercoraria. Organism_taxid: 61. Strain: c1. (4)

1a	3vhbA00	A:2-145
1b	3vhbB00	B:2-145

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Globin (291)

Family: Globin (264)

Vitreoscilla stercoraria (3)

1a	Globin-3vhbB01	B:6-103
1b	Globin-3vhbB02	B:6-103

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (BAHG_VITST | P04252)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IMD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala B:144 - Val B:145	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3vhb
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	BAHG_VITST \| P04252
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	BAHG_VITST \| P04252
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	BAHG_VITST \| P04252	:	1vhb 2vhb 3tld 3tm3 3tm9 4vhb
