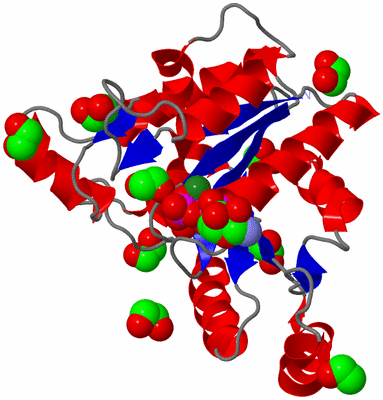

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

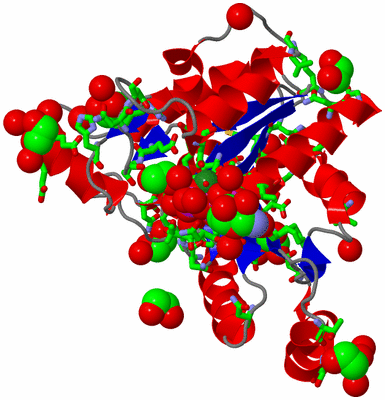

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

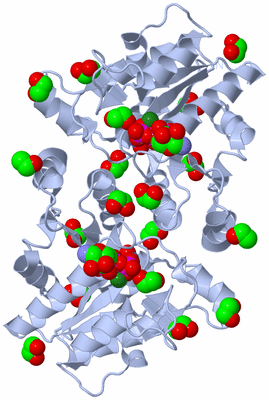

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

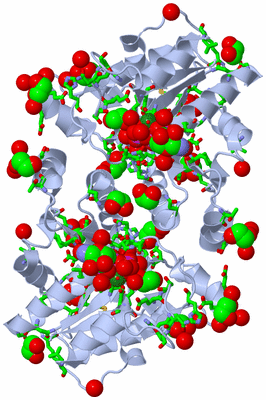

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH GTP

Authors :  M. M. Klimecka, P. J. Porebski, M. Chruszcz, K. Murzyn, A. Joachimiak, W Midwest Center For Structural Genomics (Mcsg)
Date :  01 Mar 11  (Deposition) - 30 Mar 11  (Release) - 27 Mar 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.38
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Dtbs, Dethiobiotin Synthetase, Adp Binding, Structural Genomics, Psi- Biology, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, , Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. J. Porebski, M. Klimecka, M. Chruszcz, R. A. Nicholls, K. Murzyn, M. E. Cuff, X. Xu, M. Cymborowski, G. N. Murshudov, A. Savchenko, A. Edwards, W. Minor
Structural Characterization Of Helicobacter Pylori Dethiobiotin Synthetase Reveals Differences Between Family Members.
Febs J. V. 279 1093 2012
PubMed-ID: 22284390  |  Reference-DOI: 10.1111/J.1742-4658.2012.08506.X

(-) Compounds

Molecule 1 - DETHIOBIOTIN SYNTHETASE
    Chains: A
    EC Number: 6.3.3.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: P11
    Expression System Strain: BL21 GOLD(DE3) MAGIC
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: BIOD, HP0029, HP_0029
    Organism Common: CAMPYLOBACTER PYLORI
    Organism Scientific: HELICOBACTER PYLORI
    Organism Taxid: 85962
    Strain: 26695
    Synonym: DTB SYNTHETASE, DTBS, DETHIOBIOTIN SYNTHASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 12)

Asymmetric Unit (4, 12)
No.NameCountTypeFull Name
1EDO9Ligand/Ion1,2-ETHANEDIOL
2GTP1Ligand/IonGUANOSINE-5'-TRIPHOSPHATE
3MG1Ligand/IonMAGNESIUM ION
4NO31Ligand/IonNITRATE ION
Biological Unit 1 (3, 22)
No.NameCountTypeFull Name
1EDO18Ligand/Ion1,2-ETHANEDIOL
2GTP2Ligand/IonGUANOSINE-5'-TRIPHOSPHATE
3MG-1Ligand/IonMAGNESIUM ION
4NO32Ligand/IonNITRATE ION

(-) Sites  (12, 12)

Asymmetric Unit (12, 12)
No.NameEvidenceResiduesDescription
01AC1SOFTWARETHR A:9 , ASN A:10 , ALA A:11 , GLY A:12 , LYS A:13 , THR A:14 , THR A:15 , LYS A:35 , ASP A:50 , GLU A:116 , GLN A:167 , MG A:224 , EDO A:232 , HOH A:279 , HOH A:283 , HOH A:284 , HOH A:374 , HOH A:468 , HOH A:492 , HOH A:520BINDING SITE FOR RESIDUE GTP A 221
02AC2SOFTWAREASN A:42 , ASP A:43 , ARG A:74 , HIS A:76 , HOH A:364 , HOH A:451BINDING SITE FOR RESIDUE EDO A 222
03AC3SOFTWAREASN A:130 , ASP A:133 , HIS A:166 , HOH A:523BINDING SITE FOR RESIDUE EDO A 223
04AC4SOFTWARETHR A:14 , ASP A:50 , GLU A:116 , GTP A:221 , HOH A:374BINDING SITE FOR RESIDUE MG A 224
05AC5SOFTWAREASN A:25 , GLY A:28 , LYS A:30 , LEU A:61 , HOH A:310BINDING SITE FOR RESIDUE EDO A 225
06AC6SOFTWAREHIS A:0 , MET A:1 , LYS A:139 , LYS A:141 , SER A:220BINDING SITE FOR RESIDUE EDO A 226
07AC7SOFTWARELYS A:171 , THR A:181 , SER A:185 , VAL A:211 , HOH A:369 , HOH A:413 , HOH A:512BINDING SITE FOR RESIDUE EDO A 227
08AC8SOFTWARESER A:5 , ALA A:6 , LYS A:13 , GLY A:117 , ALA A:118 , GLY A:119 , GLY A:120 , LEU A:121 , MET A:131 , HOH A:391BINDING SITE FOR RESIDUE NO3 A 228
09AC9SOFTWARELEU A:168 , ASP A:169 , TYR A:170 , ASN A:200 , HOH A:493BINDING SITE FOR RESIDUE EDO A 229
10BC1SOFTWAREGLU A:87 , GLU A:88 , LEU A:217 , HOH A:448 , HOH A:481 , HOH A:484BINDING SITE FOR RESIDUE EDO A 230
11BC2SOFTWAREASN A:8 , ASN A:149BINDING SITE FOR RESIDUE EDO A 231
12BC3SOFTWARELYS A:35 , GLU A:38 , THR A:39 , ALA A:118 , GTP A:221 , HOH A:492 , HOH A:520BINDING SITE FOR RESIDUE EDO A 232

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3QXJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3QXJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3QXJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3QXJ)

(-) Exons   (0, 0)

(no "Exon" information available for 3QXJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:224
 aligned with BIOD_HELPY | O24872 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:224
                                1                                                                                                                                                                                                                      218
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216 |
           BIOD_HELPY     - ----MLFISATNTNAGKTTCARLLAQYCNACGVKTILLKPIETGVNDAINHSSDAHLFLQDNRLLDRSLTLKDISFYRYHKVSAPLIAQQEEDPNAPIDTDNLTQRLHNFTKTYDLVIVEGAGGLCVPITLEENMLDFALKLKAKMLLISHDNLGLINDCLLNDFLLKSHQLDYKIAINLKGNNTAFHSISLPYIELFNTRSNNPIVIFQQSLKVLMSFALK--   -
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----AAA_26-3qxjA01 A:1-208                                                                                                                                                                                          ------------ Pfam domains
         Sec.struct. author ...eeeeeee.....hhhhhhhhhhhhhhhh...eeee..ee..........hhhhhhhhhhh......hhhhhh.ee.....hhhhhhhhhh.....hhhhhhhhhhhhhhh..eeeee.............hhhhhhhhhh.eeeeee....hhhhhhhhhhhhhhh....eeeee......hhhhhhhhhhhhhhhhhh....ee...hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qxj A  -3 FQGHMLFISATNTNAGKTTCARLLAQYCNACGVKTILLKPIETGVNDAINHSSDAHLFLQDNRLLDRSLTLKDISFYRYHKVSAPLIAQQEEDPNAPIDTDNLTQRLHNFTKTYDLVIVEGAGGLCVPITLEENMLDFALKLKAKMLLISHDNLGLINDCLLNDFLLKSHQLDYKIAINLKGNNTAFHSISLPYIELFNTRSNNPIVIFQQSLKVLMSFALKGS 220
                                     6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3QXJ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3QXJ)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A   (BIOD_HELPY | O24872)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004141    dethiobiotin synthase activity    Catalysis of the reaction: 7,8-diaminononanoate + ATP + CO(2) = ADP + dethiobiotin + 4 H(+) + phosphate.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0009102    biotin biosynthetic process    The chemical reactions and pathways resulting in the formation of biotin, cis-tetrahydro-2-oxothieno(3,4-d)imidazoline-4-valeric acid.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GTP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NO3  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3qxj)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

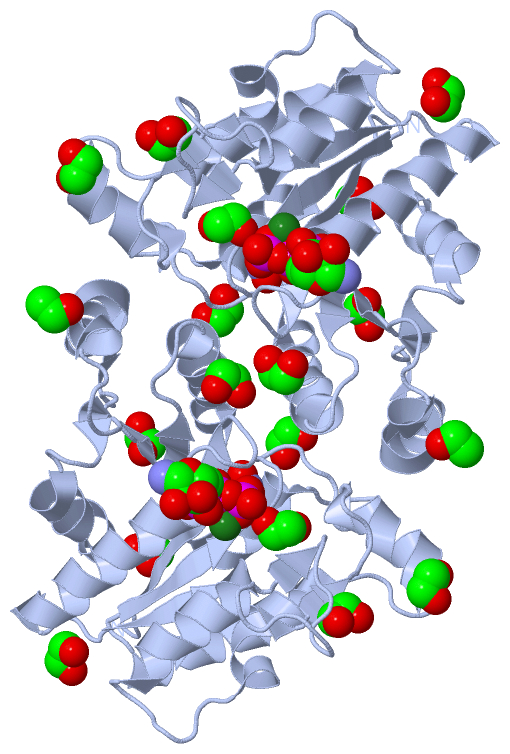

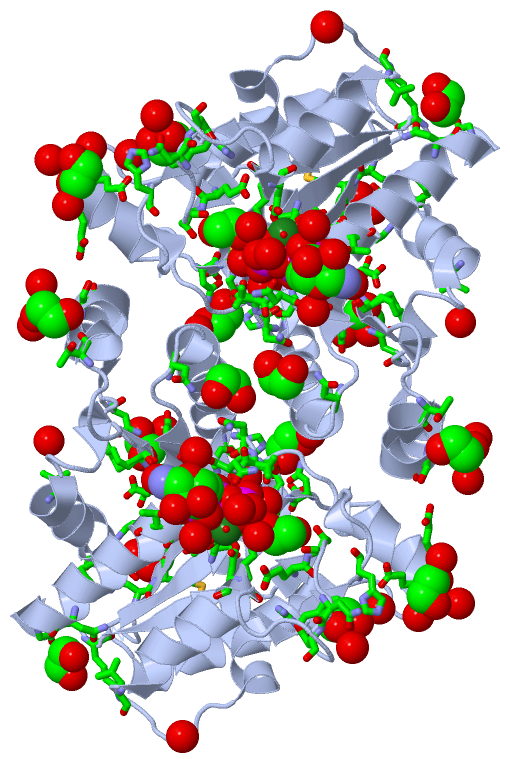

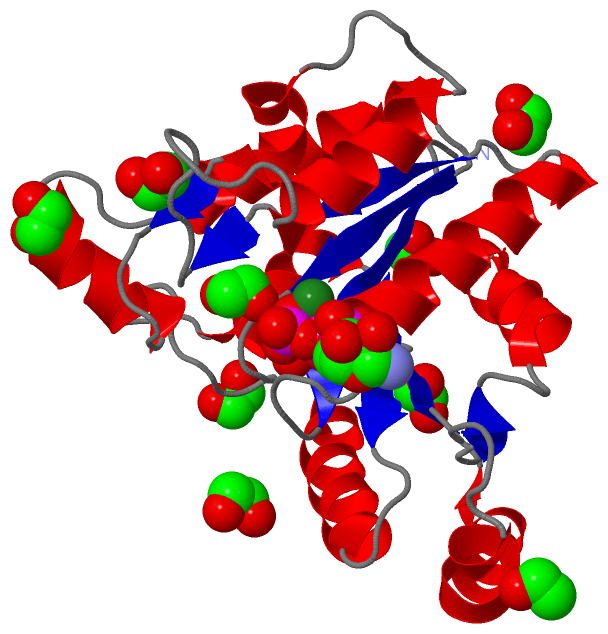

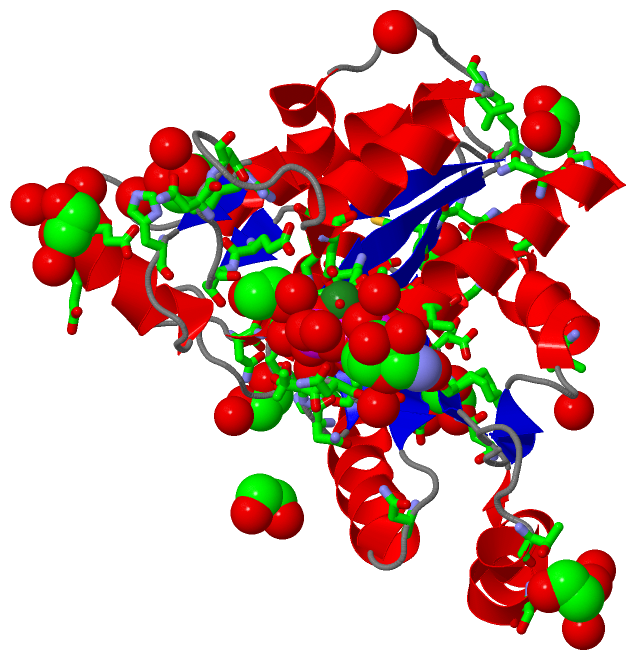

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
