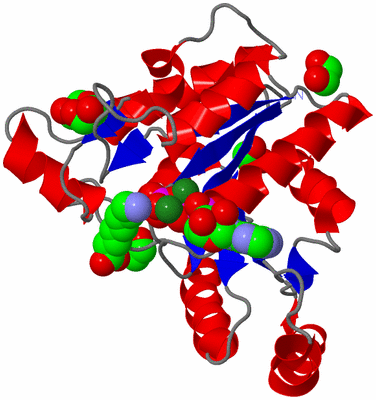

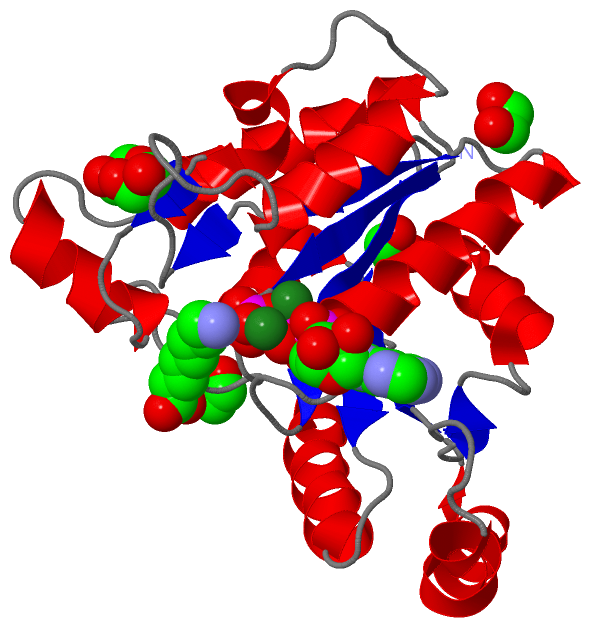

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

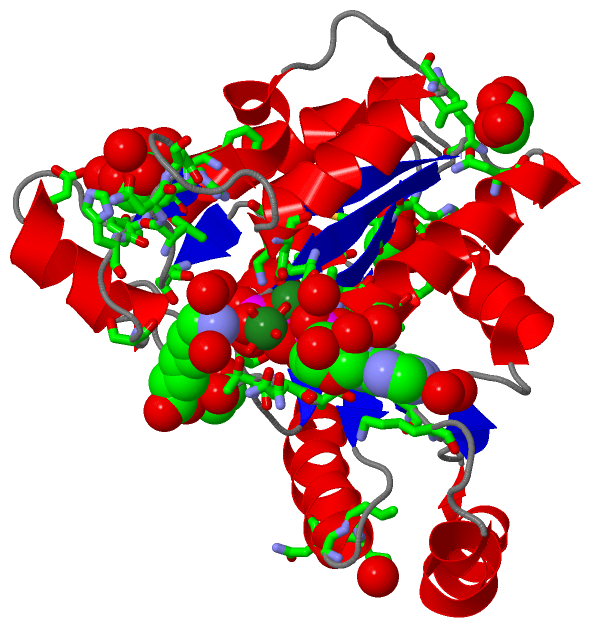

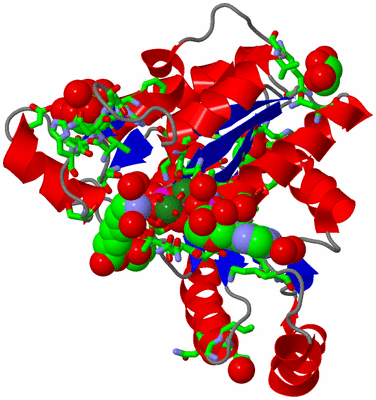

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

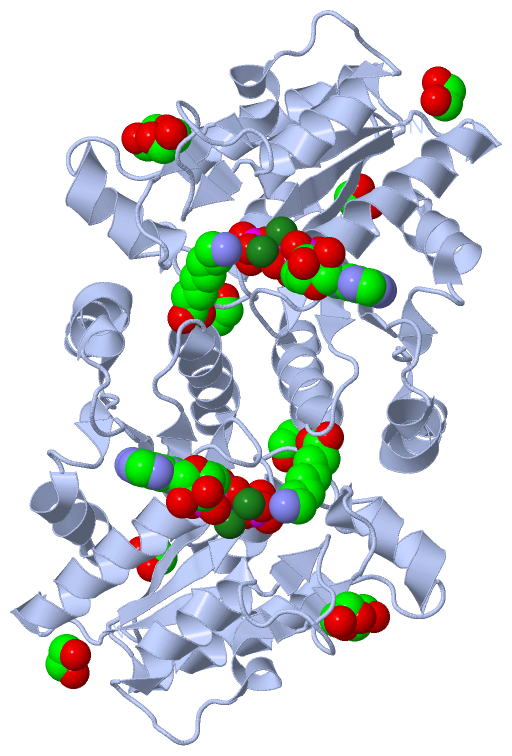

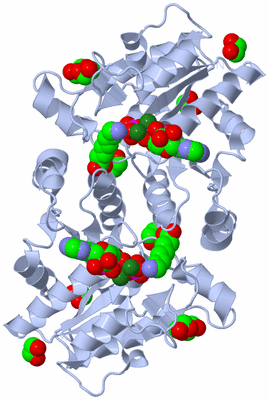

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

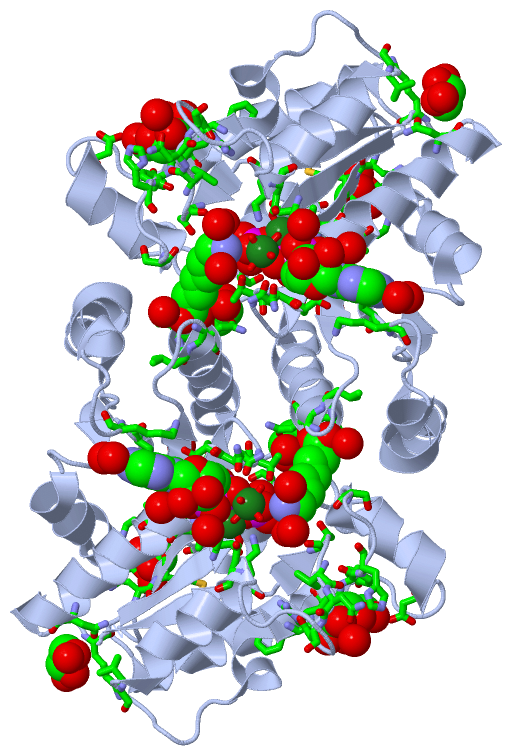

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH ADP AND 8-AMINOCAPRYLIC ACID

Authors :  P. J. Porebski, M. M. Klimecka, M. Chruszcz, K. Murzyn, C. Minor, A. Joac W. Minor, Midwest Center For Structural Genomics (Mcsg)
Date :  01 Mar 11  (Deposition) - 30 Mar 11  (Release) - 27 Mar 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.36
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Dtbs, Dethiobiotin Synthetase, Atp Binding, Structural Genomics, Psi- Biology, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. J. Porebski, M. Klimecka, M. Chruszcz, R. A. Nicholls, K. Murzyn, M. E. Cuff, X. Xu, M. Cymborowski, G. N. Murshudov, A. Savchenko, A. Edwards, W. Minor
Structural Characterization Of Helicobacter Pylori Dethiobiotin Synthetase Reveals Differences Between Family Members.
Febs J. V. 279 1093 2012
PubMed-ID: 22284390  |  Reference-DOI: 10.1111/J.1742-4658.2012.08506.X

(-) Compounds

Molecule 1 - DETHIOBIOTIN SYNTHETASE
    Chains: A
    EC Number: 6.3.3.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: P11
    Expression System Strain: BL21 GOLD(DE3) MAGIC
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: BIOD, HP0029, HP_0029
    Organism Common: CAMPYLOBACTER PYLORI
    Organism Scientific: HELICOBACTER PYLORI
    Organism Taxid: 85962
    Strain: 26695
    Synonym: DTB SYNTHETASE, DTBS, DETHIOBIOTIN SYNTHASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 10)

Asymmetric Unit (5, 10)
No.NameCountTypeFull Name
18AC1Ligand/Ion8-AMINOOCTANOIC ACID
2ADP1Ligand/IonADENOSINE-5'-DIPHOSPHATE
3EDO5Ligand/Ion1,2-ETHANEDIOL
4MG2Ligand/IonMAGNESIUM ION
5PO41Ligand/IonPHOSPHATE ION
Biological Unit 1 (4, 16)
No.NameCountTypeFull Name
18AC2Ligand/Ion8-AMINOOCTANOIC ACID
2ADP2Ligand/IonADENOSINE-5'-DIPHOSPHATE
3EDO10Ligand/Ion1,2-ETHANEDIOL
4MG-1Ligand/IonMAGNESIUM ION
5PO42Ligand/IonPHOSPHATE ION

(-) Sites  (10, 10)

Asymmetric Unit (10, 10)
No.NameEvidenceResiduesDescription
01AC1SOFTWARETHR A:9 , THR A:39 , SER A:79 , VAL A:123 , GLY A:151 , LEU A:152 , ILE A:153 , ASN A:154 , PO4 A:225 , HOH A:308 , HOH A:356 , HOH A:493 , HOH A:556BINDING SITE FOR RESIDUE 8AC A 221
02AC2SOFTWAREASN A:10 , ALA A:11 , GLY A:12 , LYS A:13 , THR A:14 , THR A:15 , GLU A:116 , GLN A:167 , ASN A:175 , LYS A:177 , MG A:223 , MG A:224 , PO4 A:225 , HOH A:335 , HOH A:337 , HOH A:340 , HOH A:392 , HOH A:503 , HOH A:520 , HOH A:539 , HOH A:540 , HOH A:558 , HOH A:563BINDING SITE FOR RESIDUE ADP A 222
03AC3SOFTWARETHR A:14 , LYS A:35 , ASP A:50 , GLU A:116 , ADP A:222 , MG A:224 , PO4 A:225 , HOH A:337BINDING SITE FOR RESIDUE MG A 223
04AC4SOFTWAREADP A:222 , MG A:223 , PO4 A:225 , HOH A:307 , HOH A:337 , HOH A:539 , HOH A:540BINDING SITE FOR RESIDUE MG A 224
05AC5SOFTWARETHR A:9 , LYS A:13 , LYS A:35 , ASP A:50 , GLU A:116 , ALA A:118 , GLY A:119 , 8AC A:221 , ADP A:222 , MG A:223 , MG A:224 , HOH A:307 , HOH A:337 , HOH A:496 , HOH A:539BINDING SITE FOR RESIDUE PO4 A 225
06AC6SOFTWAREASN A:130 , ASP A:133 , HOH A:530BINDING SITE FOR RESIDUE EDO A 226
07AC7SOFTWAREPHE A:72 , TYR A:73 , ARG A:74 , TYR A:75 , ASP A:89 , HOH A:568 , HOH A:569BINDING SITE FOR RESIDUE EDO A 227
08AC8SOFTWAREVAL A:41 , ASN A:42 , ASP A:43 , ARG A:74 , HIS A:76 , HOH A:577BINDING SITE FOR RESIDUE EDO A 228
09AC9SOFTWAREASN A:25 , LYS A:30 , LEU A:61 , HOH A:514 , HOH A:534BINDING SITE FOR RESIDUE EDO A 229
10BC1SOFTWAREHIS A:0 , MET A:1 , LYS A:139 , LYS A:141 , SER A:220 , HOH A:578BINDING SITE FOR RESIDUE EDO A 230

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3QXH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3QXH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3QXH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3QXH)

(-) Exons   (0, 0)

(no "Exon" information available for 3QXH)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:224
 aligned with BIOD_HELPY | O24872 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:224
                                1                                                                                                                                                                                                                      218
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216 |
           BIOD_HELPY     - ----MLFISATNTNAGKTTCARLLAQYCNACGVKTILLKPIETGVNDAINHSSDAHLFLQDNRLLDRSLTLKDISFYRYHKVSAPLIAQQEEDPNAPIDTDNLTQRLHNFTKTYDLVIVEGAGGLCVPITLEENMLDFALKLKAKMLLISHDNLGLINDCLLNDFLLKSHQLDYKIAINLKGNNTAFHSISLPYIELFNTRSNNPIVIFQQSLKVLMSFALK--   -
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----AAA_26-3qxhA01 A:1-208                                                                                                                                                                                          ------------ Pfam domains
         Sec.struct. author ...eeeeeee.....hhhhhhhhhhhhhhhh...eeee..ee..........hhhhhhhhhhh......hhhhhh.ee.....hhhhhhhhhh.....hhhhhhhhhhhhhhh..eeeee.............hhhhhhhhhh.eeeeee....hhhhhhhhhhhhhhh....eeeee......hhhhhhhhhhhhhhhhhh....ee...hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qxh A  -3 FQGHMLFISATNTNAGKTTCARLLAQYCNACGVKTILLKPIETGVNDAINHSSDAHLFLQDNRLLDRSLTLKDISFYRYHKVSAPLIAQQEEDPNAPIDTDNLTQRLHNFTKTYDLVIVEGAGGLCVPITLEENMLDFALKLKAKMLLISHDNLGLINDCLLNDFLLKSHQLDYKIAINLKGNNTAFHSISLPYIELFNTRSNNPIVIFQQSLKVLMSFALKGS 220
                                     6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3QXH)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3QXH)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A   (BIOD_HELPY | O24872)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004141    dethiobiotin synthase activity    Catalysis of the reaction: 7,8-diaminononanoate + ATP + CO(2) = ADP + dethiobiotin + 4 H(+) + phosphate.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0009102    biotin biosynthetic process    The chemical reactions and pathways resulting in the formation of biotin, cis-tetrahydro-2-oxothieno(3,4-d)imidazoline-4-valeric acid.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    8AC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3qxh)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3qxh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  BIOD_HELPY | O24872
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  6.3.3.3
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  BIOD_HELPY | O24872
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        BIOD_HELPY | O24872: 2qmo 3mle 3qxc 3qxj 3qxs 3qxx 3qy0

(-) Related Entries Specified in the PDB File

2qmo CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI
3mle CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COCRYSTALLIZED WITH ATP
3qxc CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH ATP
3qxj CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH GTP
3qxs CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH ANP
3qxx CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH GDP AND 8-AMINOCAPRYLIC ACID
3qy0 CRYSTAL STRUCTURE OF DETHIOBIOTIN SYNTHETASE (BIOD) FROM HELICOBACTER PYLORI COMPLEXED WITH GDP
