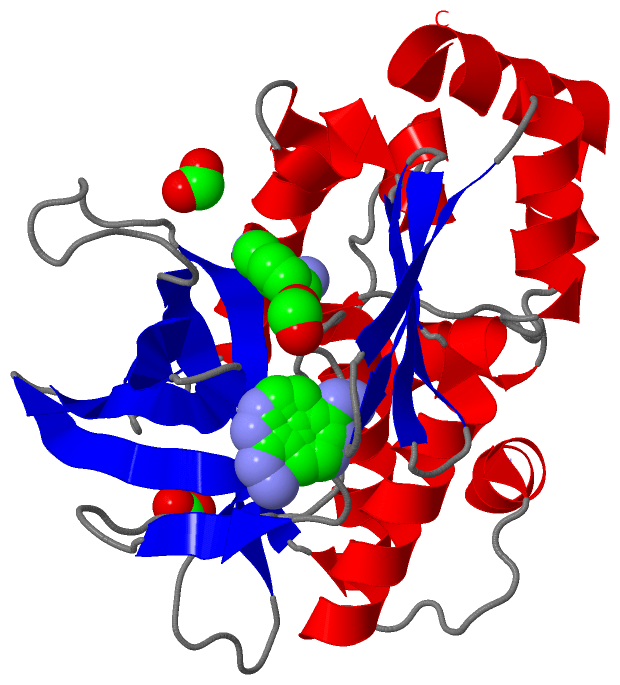

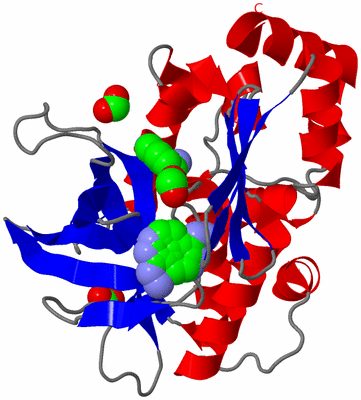

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

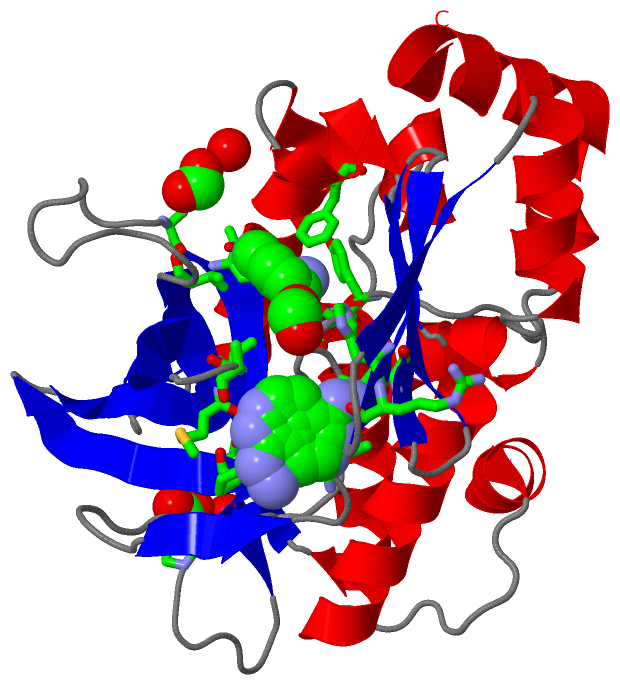

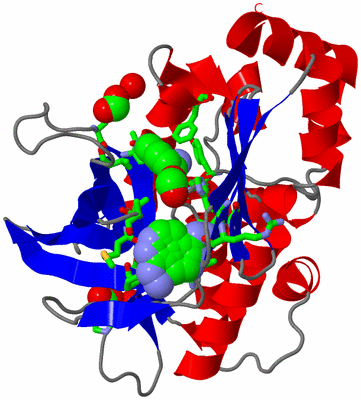

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

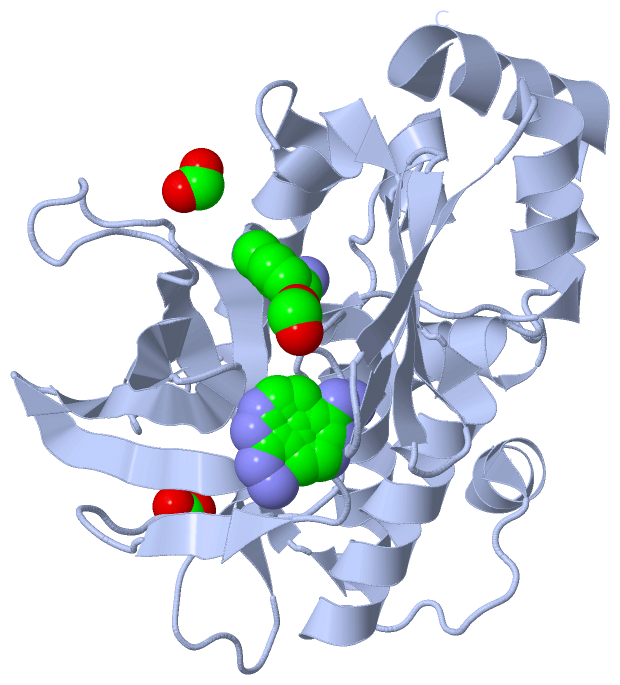

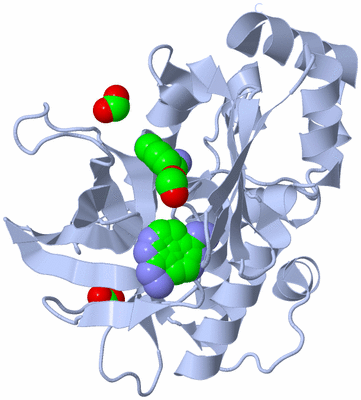

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

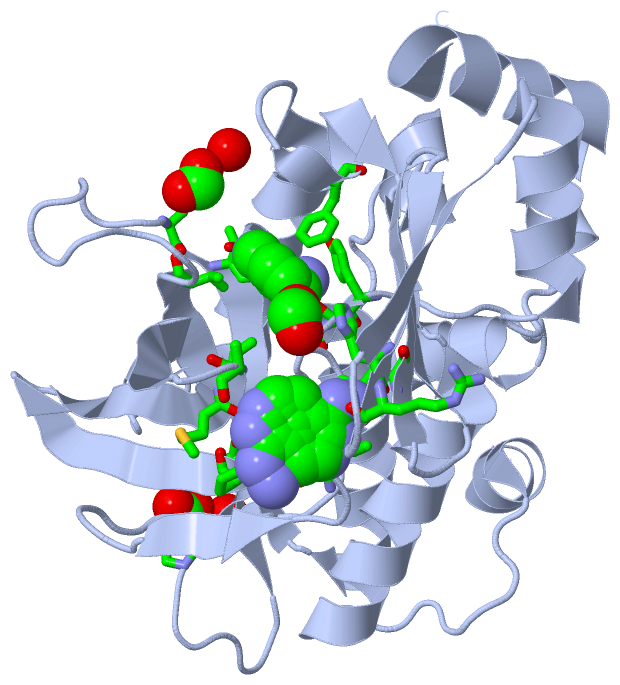

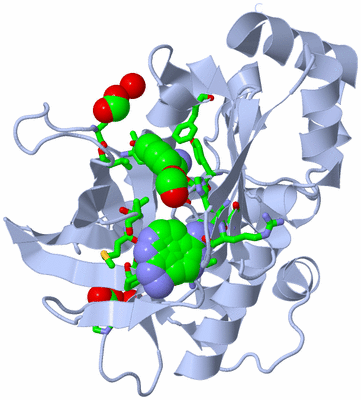

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

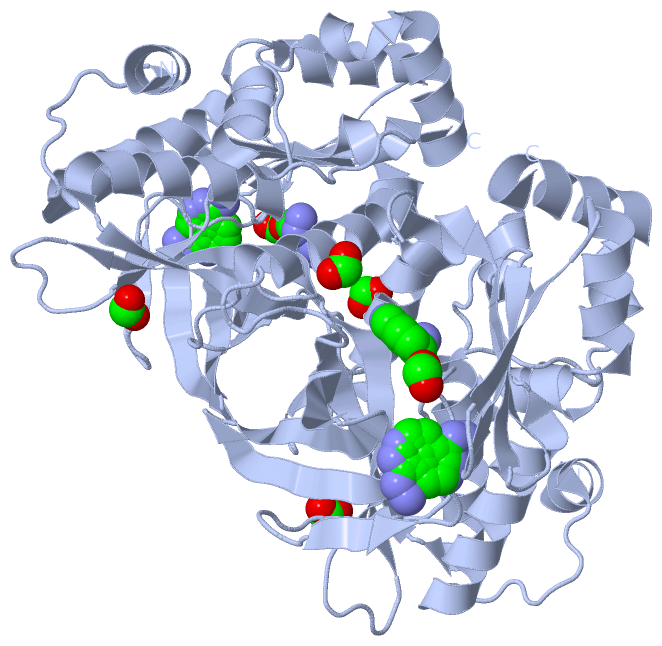

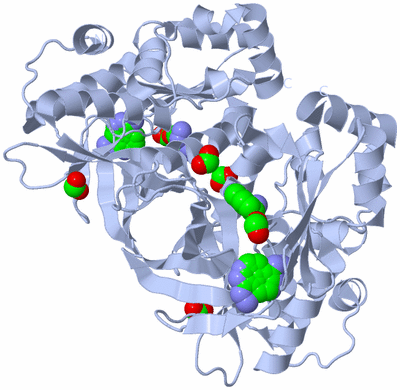

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF MYCOBACTERIUM MARINUM ARYLAMINE N-ACETYLTRANSFERASE IN COMPLEX WITH HYDRALAZINE

Authors :  A. M. Abuhammad, E. D. Lowe, E. Fullam, M. Noble, E. F. Garman, E. Sim
Date :  16 Feb 10  (Deposition) - 07 Jul 10  (Release) - 28 Mar 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Mycobacterium Marinum, Aryalmine N-Acetyl Transferase, Mmnat, Hydralazine, Mycobacterium Tuberculosis, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. M. Abuhammad, E. D. Lowe, E. Fullam, M. Noble, E. F. Garman, E. Sim
Probing The Architecture Of The Mycobacterium Marinum Arylamine N-Acetyltransferase Active Site
Protein Cell V. 1 384 2010
PubMed-ID: 21203950  |  Reference-DOI: 10.1007/S13238-010-0037-7

(-) Compounds

Molecule 1 - ARYLAMINE N-ACETYLTRANSFERASE NAT
    Chains: A
    EC Number: 2.3.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21(DE3) PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: NAT, MMAR_5055
    Organism Scientific: MYCOBACTERIUM MARINUM
    Organism Taxid: 216594
    Strain: ATCC BAA-535 / M

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1FMT3Ligand/IonFORMIC ACID
2HLZ2Ligand/Ion1-HYDRAZINOPHTHALAZINE
Biological Unit 1 (2, 5)
No.NameCountTypeFull Name
1FMT3Ligand/IonFORMIC ACID
2HLZ2Ligand/Ion1-HYDRAZINOPHTHALAZINE
Biological Unit 2 (2, 10)
No.NameCountTypeFull Name
1FMT6Ligand/IonFORMIC ACID
2HLZ4Ligand/Ion1-HYDRAZINOPHTHALAZINE

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:69 , CYS A:70 , VAL A:95 , THR A:109 , GLY A:131 , PHE A:204BINDING SITE FOR RESIDUE HLZ A 300
2AC2SOFTWARELEU A:151 , GLU A:152 , PRO A:153 , MET A:168 , ARG A:170 , ARG A:218 , HIS A:229 , ARG A:230BINDING SITE FOR RESIDUE HLZ A 302
3AC3SOFTWAREARG A:89 , PRO A:123 , HOH A:374BINDING SITE FOR RESIDUE FMT A 999
4AC4SOFTWAREALA A:107 , HOH A:306BINDING SITE FOR RESIDUE FMT A 281
5AC5SOFTWAREVAL A:169 , HIS A:229BINDING SITE FOR RESIDUE FMT A 282

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3LTW)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ala A:214 -Asp A:215

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3LTW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3LTW)

(-) Exons   (0, 0)

(no "Exon" information available for 3LTW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:272
 aligned with B2HIZ6_MYCMM | B2HIZ6 from UniProtKB/TrEMBL  Length:280

    Alignment length:272
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
         B2HIZ6_MYCMM     4 DLTGYLDRINYRGATDPTLDVLRDLVSAHTGAIAFENLDPLMGVPVDDLSAEALADKLVDRRRGGYCYEHNGLIGYVLAELGYRVRRLAGRVVWLAPPDAPTPAQTHTVLAVTFPGCQGPYLVDVGFGGMTPTAPLRLETGTVQQTALEPYRLDDRGDGLVLQAMVRDEWQALYEFSTLTRPQVDLRVGSWFVSTHPTSHFVTGLMAATVADDARWNLMGRNLAIHRRGGTEKILLEDAAAVVDTLGDRFGINVADVGERGRLEARIDKVCF 275
               SCOP domains d3ltwa_ A: automated matches                                                                                                                                                                                                                                                     SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------------Acetyltransf_2-3ltwA01 A:21-260                                                                                                                                                                                                                 --------------- Pfam domains
         Sec.struct. author hhhhhhhhh........hhhhhhhhhhhhhhhh.eehhhhhh.......hhhhhhhhhh......hhhhhhhhhhhhhhhhh.eeeeeeeee............eeeeeeeee.......eee............ee.....eee....eeeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhhh.eeeee...eeeeee..eeeeee...eeeee..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ltw A   4 DLTGYLDRINYRGATDPTLDVLRDLVSAHTGAIAFENLDPLMGVPVDDLSAEALADKLVDRRRGGYCYEHNGLIGYVLAELGYRVRRLAGRVVWLAPPDAPTPAQTHTVLAVTFPGCQGPYLVDVGFGGMTPTAPLRLETGTVQQTALEPYRLDDRGDGLVLQAMVRDEWQALYEFSTLTRPQVDLRVGSWFVSTHPTSHFVTGLMAATVADDARWNLMGRNLAIHRRGGTEKILLEDAAAVVDTLGDRFGINVADVGERGRLEARIDKVCF 275
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3LTW)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: Peptidase_CA (169)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A   (B2HIZ6_MYCMM | B2HIZ6)
molecular function
    GO:0016407    acetyltransferase activity    Catalysis of the transfer of an acetyl group to an acceptor molecule.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    FMT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    HLZ  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:214 - Asp A:215   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3ltw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  B2HIZ6_MYCMM | B2HIZ6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  2.3.1.5
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  B2HIZ6_MYCMM | B2HIZ6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        B2HIZ6_MYCMM | B2HIZ6: 2vfb 2vfc 4b55 4c5p

(-) Related Entries Specified in the PDB File

2vfb THE STRUCTURE OF APO-MMNAT
2vfc THE STRUCTURE OF MMNAT-COA COMPLEX
