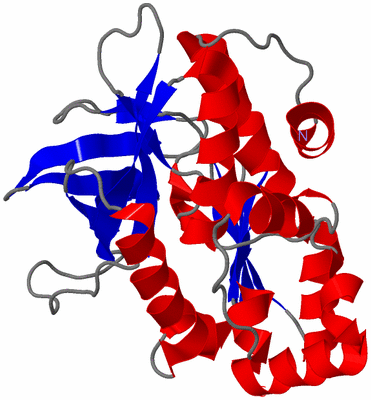

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF MYCOBACTERIUM MARINUM ARYLAMINE N-ACETYLTRANSFERASE

Authors :  E. Fullam, I. M. Westwood, M. C. Anderton, E. D. Lowe, E. Sim, M. E. M. Nob
Date :  02 Nov 07  (Deposition) - 18 Dec 07  (Release) - 28 Mar 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Arylamine N-Acetyltransferase, Transferase, Nat, Acetyl Coa, Mycobacteria, Actyltransferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Fullam, I. M. Westwood, M. C. Anderton, E. D. Lowe, E. Sim, M. E. M. Noble
Divergence Of Cofactor Recognition Across Evolution: Coenzyme A Binding In A Prokaryotic Arylamine N-Acetyltransferase.
J. Mol. Biol. V. 375 178 2008
PubMed-ID: 18005984  |  Reference-DOI: 10.1016/J.JMB.2007.10.019

(-) Compounds

Molecule 1 - ARYLAMINE N-ACETYLTRANSFERASE
    Chains: A
    EC Number: 2.3.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 469008
    Expression System Vector: PET28B
    Organism Scientific: MYCOBACTERIUM MARINUM
    Organism Taxid: 1781

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2VFB)

(-) Sites  (0, 0)

(no "Site" information available for 2VFB)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2VFB)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Gly A:160 -Asp A:161
2Asp A:215 -Asp A:216

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2VFB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2VFB)

(-) Exons   (0, 0)

(no "Exon" information available for 2VFB)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:272
 aligned with B2HIZ6_MYCMM | B2HIZ6 from UniProtKB/TrEMBL  Length:280

    Alignment length:272
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
         B2HIZ6_MYCMM     4 DLTGYLDRINYRGATDPTLDVLRDLVSAHTGAIAFENLDPLMGVPVDDLSAEALADKLVDRRRGGYCYEHNGLIGYVLAELGYRVRRLAGRVVWLAPPDAPTPAQTHTVLAVTFPGCQGPYLVDVGFGGMTPTAPLRLETGTVQQTALEPYRLDDRGDGLVLQAMVRDEWQALYEFSTLTRPQVDLRVGSWFVSTHPTSHFVTGLMAATVADDARWNLMGRNLAIHRRGGTEKILLEDAAAVVDTLGDRFGINVADVGERGRLEARIDKVCF 275
               SCOP domains d2vfba_ A: automated matches                                                                                                                                                                                                                                                     SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhh........hhhhhhhhhhhhhhhh.eehhhhhh.......hhhhhhhhhh......hhhhhhhhhhhhhhhhh.eeeeeeeee..............eeeeeee.......eee...hhhhh....ee......ee....eeeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhhh.eeeee....eeeee..eeeeee..eeeeee..hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vfb A   4 DLTGYLDRINYRGATDPTLDVLRDLVSAHTGAIAFENLDPLMGVPVDDLSAEALADKLVDRRRGGYCYEHNGLIGYVLAELGYRVRRLAGRVVWLAPPDAPTPAQTHTVLAVTFPGCQGPYLVDVGFGGMTPTAPLRLETGTVQQTALEPYRLDDRGDGLVLQAMVRDEWQALYEFSTLTRPQVDLRVGSWFVSTHPTSHFVTGLMAATVADDARWNLMGRNLAIHRRGGTEKILLEDAAAVVDTLGDRFGINVADVGERGRLEARIDKVCF 275
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2VFB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2VFB)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (B2HIZ6_MYCMM | B2HIZ6)
molecular function
    GO:0016407    acetyltransferase activity    Catalysis of the transfer of an acetyl group to an acceptor molecule.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2vfb)

  Sites
(no "Sites" information available for 2vfb)

  Cis Peptide Bonds
    Asp A:215 - Asp A:216   [ RasMol ]
    Gly A:160 - Asp A:161   [ RasMol ]


(-) Still Images

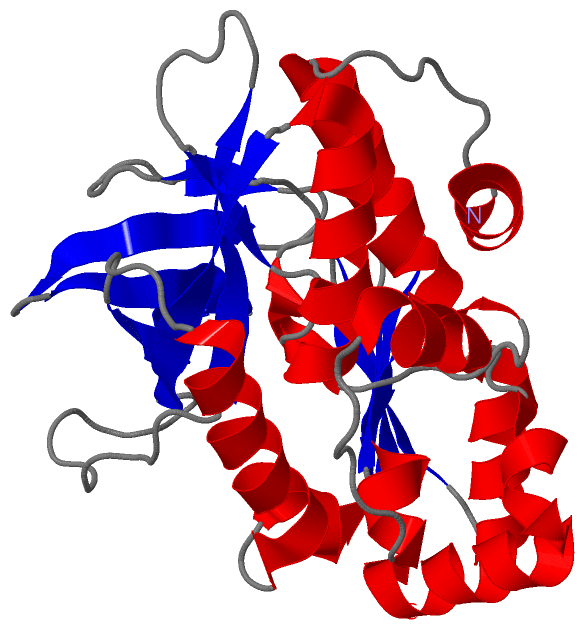

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
