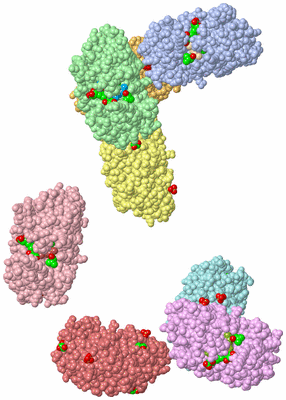

Asymmetric Unit (Jmol Viewer)

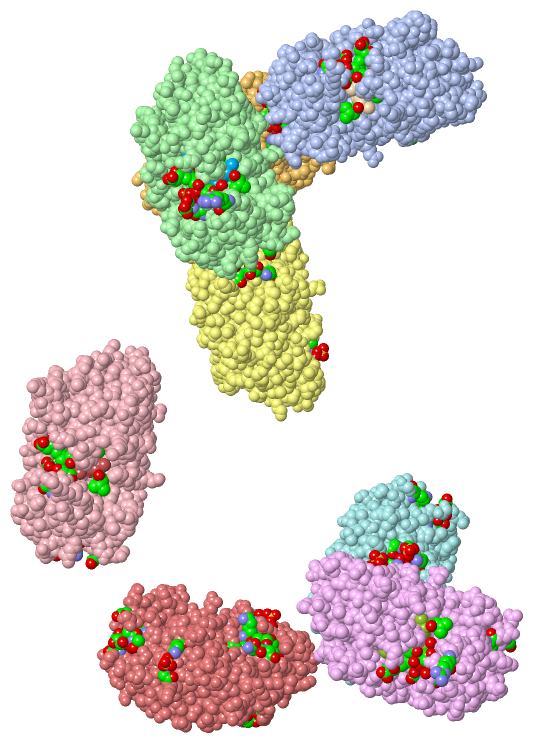

Asym. Unit - sites (Jmol Viewer)

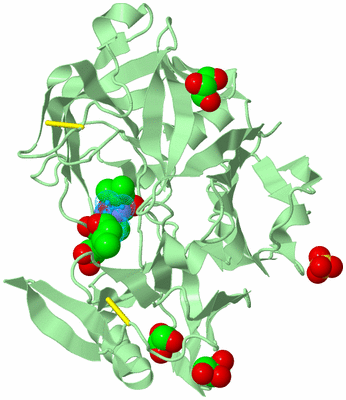

Biological Unit 1 (Jmol Viewer)

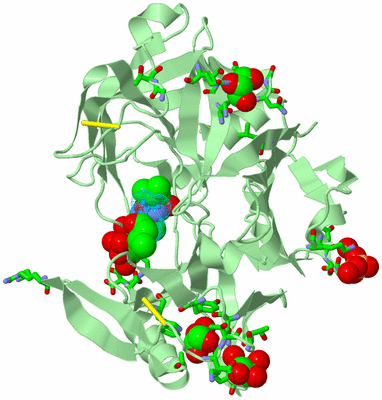

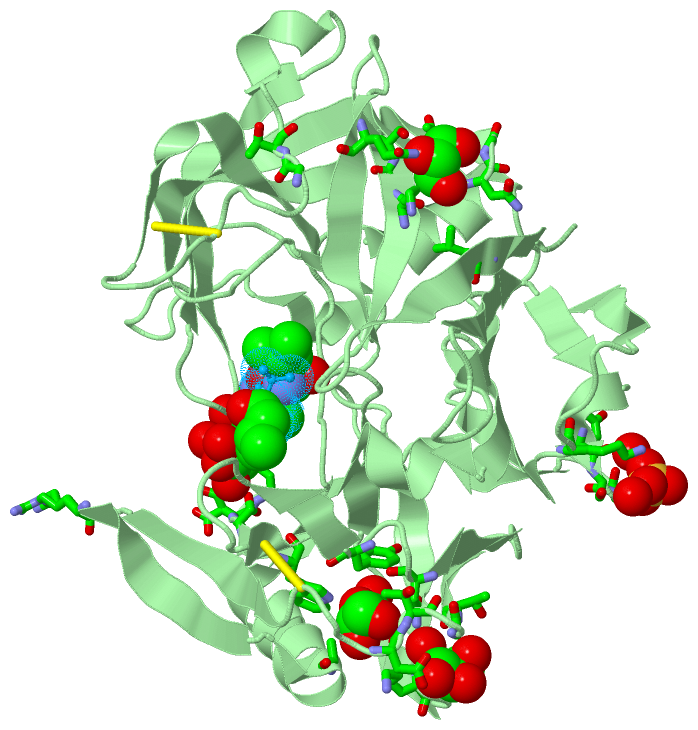

Biol. Unit 1 - sites (Jmol Viewer)

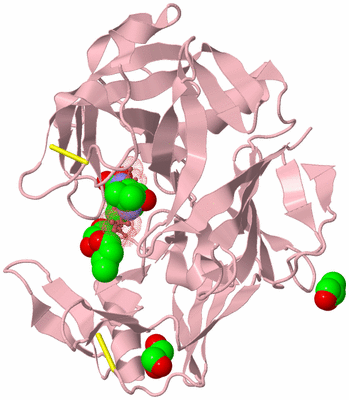

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

Biological Unit 4 (Jmol Viewer)

Biological Unit 5 (Jmol Viewer)

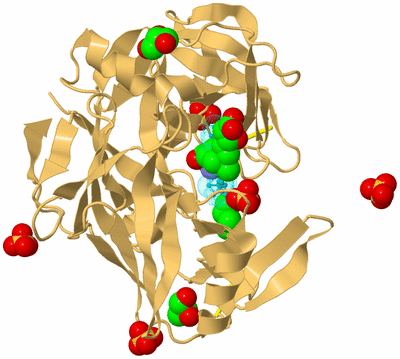

Biological Unit 6 (Jmol Viewer)

Biological Unit 7 (Jmol Viewer)

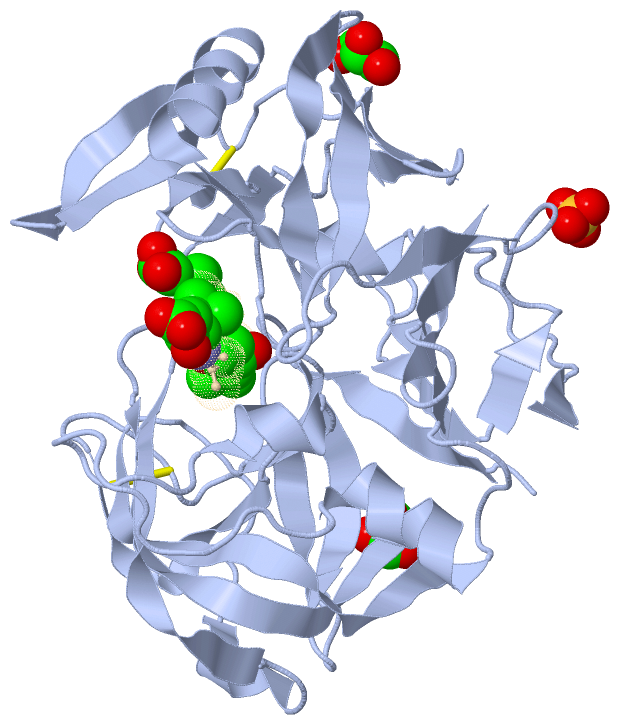

Biological Unit 8 (Jmol Viewer)

Title :   SECRETED ASPARTIC PROTEASE 1 FROM CANDIDA PARAPSILOSIS IN COMPLEX WITH PEPSTATIN A

Authors :   J. Dostal, J. Brynda, O. Hruskova-Heidingsfeldova, I. Sieglova, I. Pi P. Rezacova

Date :   15 Jan 09 (Deposition) - 19 May 09 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.85

Chains :   Asym. Unit : A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P
Biol. Unit 1: B,J  (1x)
Biol. Unit 2: C,K  (1x)
Biol. Unit 3: D,L  (1x)
Biol. Unit 4: E,M  (1x)
Biol. Unit 5: F,N  (1x)
Biol. Unit 6: G,O  (1x)
Biol. Unit 7: H,P  (1x)
Biol. Unit 8: A,I  (1x)

Keywords :   Pepstatin A, Secreted Aspartic Protease, Virulence Factor, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Dostal, J. Brynda, O. Hruskova-Heidingsfeldova, I. Sieglova, I. Pichova, P. Rezacova
The Crystal Structure Of The Secreted Aspartic Protease 1 From Candida Parapsilosis In Complex With Pepstatin A
J. Struct. Biol. V. 167 145 2009
PubMed-ID: 19401235 | Reference-DOI: 10.1016/J.JSB.2009.04.004

Molecule 1 - SAPP1P-SECRETED ASPARTIC PROTEASE 1
	Chains	:	A, B, C, D, E, F, G, H
	EC Number	:	3.4.23.24
	Organism Scientific	:	CANDIDA PARAPSILOSIS
	Organism Taxid	:	5480
	Other Details	:	GENE SAPP1
	Strain	:	P-69

Molecule 2 - PEPSTATIN A
	Chains	:	I, J, K, L, M, N, O, P
	Engineered	:	YES
	Other Details	:	SYNTHETIC PEPTIDE
	Synthetic	:	YES

		1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Asymmetric Unit	:	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P
Biological Unit 1 (1x)	:		B								J
Biological Unit 2 (1x)	:			C								K
Biological Unit 3 (1x)	:				D								L
Biological Unit 4 (1x)	:					E								M
Biological Unit 5 (1x)	:						F								N
Biological Unit 6 (1x)	:							G								O
Biological Unit 7 (1x)	:								H								P
Biological Unit 8 (1x)	:	A								I

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 64)

No.	Name	Count	Type	Full Name
1	GOL	25	Ligand/Ion	GLYCEROL
2	IVA	8	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	15	Ligand/Ion	SULFATE ION
4	STA	16	Mod. Amino Acid	STATINE

Biological Unit 1 (4, 8)

No.	Name	Count	Type	Full Name
1	GOL	4	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	1	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 2 (3, 6)

No.	Name	Count	Type	Full Name
1	GOL	3	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	-1	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 3 (4, 8)

No.	Name	Count	Type	Full Name
1	GOL	3	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	2	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 4 (4, 9)

No.	Name	Count	Type	Full Name
1	GOL	4	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	2	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 5 (4, 6)

No.	Name	Count	Type	Full Name
1	GOL	1	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	2	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 6 (4, 10)

No.	Name	Count	Type	Full Name
1	GOL	2	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	5	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 7 (4, 10)

No.	Name	Count	Type	Full Name
1	GOL	5	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	2	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Biological Unit 8 (4, 7)

No.	Name	Count	Type	Full Name
1	GOL	3	Ligand/Ion	GLYCEROL
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	SO4	1	Ligand/Ion	SULFATE ION
4	STA	2	Mod. Amino Acid	STATINE

Asymmetric Unit (40, 40)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	TYR B:182 , SER B:183 , GLY B:184 , LYS B:329 , HOH B:693 , HOH B:730	BINDING SITE FOR RESIDUE SO4 B 340
02	AC2	SOFTWARE	LYS B:207 , GLY B:264 , THR B:265 , HOH B:512	BINDING SITE FOR RESIDUE GOL B 341
03	AC3	SOFTWARE	SER B:299 , ASP B:300 , ASP B:301 , HOH B:1387 , HOH B:1996 , STA J:506	BINDING SITE FOR RESIDUE GOL B 342
04	AC4	SOFTWARE	LEU B:5 , LYS B:17 , VAL B:18 , SER B:19 , GLN B:26 , THR B:94 , ASN B:96 , GLY B:97	BINDING SITE FOR RESIDUE GOL B 343
05	AC5	SOFTWARE	LYS B:207 , ALA B:240 , ASP B:261 , THR B:262 , ASN B:280 , TYR B:283 , TRP B:294 , HOH B:391	BINDING SITE FOR RESIDUE GOL B 344
06	AC6	SOFTWARE	LYS C:207 , ASP C:261 , THR C:262 , ASN C:280 , TRP C:294 , HOH C:957	BINDING SITE FOR RESIDUE GOL C 340
07	AC7	SOFTWARE	GLY C:79 , SER C:299 , ASP C:301 , HOH C:1884 , STA K:506	BINDING SITE FOR RESIDUE GOL C 341
08	AC8	SOFTWARE	GLY C:184 , LYS C:329	BINDING SITE FOR RESIDUE GOL C 342
09	AC9	SOFTWARE	LYS D:207 , GLY D:208 , GLY D:264 , THR D:265 , HOH D:1700	BINDING SITE FOR RESIDUE SO4 D 340
10	BC1	SOFTWARE	GLY D:57 , THR D:58 , HOH D:1626	BINDING SITE FOR RESIDUE SO4 D 341
11	BC2	SOFTWARE	GLY D:79 , SER D:299 , ASP D:301 , HOH D:377 , HOH D:1553 , HOH D:1797 , HOH D:1879 , STA L:506	BINDING SITE FOR RESIDUE GOL D 342
12	BC3	SOFTWARE	THR D:260 , ASP D:261 , ASN D:280 , TYR D:283 , TRP D:294 , HOH D:684	BINDING SITE FOR RESIDUE GOL D 343
13	BC4	SOFTWARE	GLY D:184 , LYS D:329	BINDING SITE FOR RESIDUE GOL D 344
14	BC5	SOFTWARE	TYR E:182 , SER E:183 , GLY E:184 , LYS E:329 , HOH E:736 , HOH E:1545	BINDING SITE FOR RESIDUE SO4 E 340
15	BC6	SOFTWARE	GLY E:57 , THR E:58 , HOH E:1668 , ARG F:249	BINDING SITE FOR RESIDUE SO4 E 341
16	BC7	SOFTWARE	LYS E:207 , GLY E:264 , THR E:265 , HOH E:1383 , HOH E:1724	BINDING SITE FOR RESIDUE GOL E 342
17	BC8	SOFTWARE	GLY E:79 , SER E:299 , ASP E:301 , HOH E:1023 , HOH E:1327 , HOH E:1488 , HOH E:2040 , STA M:506	BINDING SITE FOR RESIDUE GOL E 343
18	BC9	SOFTWARE	LEU E:5 , LYS E:17 , VAL E:18 , SER E:19 , GLN E:26 , THR E:94 , ASN E:96 , GLY E:97 , HOH E:902	BINDING SITE FOR RESIDUE GOL E 344
19	CC1	SOFTWARE	LYS E:207 , ALA E:240 , ILE E:256 , ASP E:261 , ASN E:280 , TYR E:283 , TRP E:294 , HOH E:403	BINDING SITE FOR RESIDUE GOL E 345
20	CC2	SOFTWARE	TYR F:182 , SER F:183 , GLY F:184 , LYS F:329 , HOH F:477	BINDING SITE FOR RESIDUE SO4 F 340
21	CC3	SOFTWARE	ARG E:249 , GLY F:57 , THR F:58 , HOH F:889 , HOH F:1930	BINDING SITE FOR RESIDUE SO4 F 341
22	CC4	SOFTWARE	LYS F:207 , ALA F:240 , THR F:260 , ASP F:261 , THR F:262 , ASN F:280 , TYR F:283 , TRP F:294 , HOH F:536	BINDING SITE FOR RESIDUE GOL F 342
23	CC5	SOFTWARE	GLY B:57 , THR B:58 , ARG G:249	BINDING SITE FOR RESIDUE SO4 G 340
24	CC6	SOFTWARE	ARG B:249 , GLY G:57 , THR G:58 , HOH G:385 , HOH G:1790	BINDING SITE FOR RESIDUE SO4 G 341
25	CC7	SOFTWARE	LYS G:207 , GLY G:264 , HOH G:386	BINDING SITE FOR RESIDUE SO4 G 342
26	CC8	SOFTWARE	GLY G:184 , LYS G:329 , HOH G:1010 , HOH G:1421	BINDING SITE FOR RESIDUE SO4 G 343
27	CC9	SOFTWARE	GLY G:79 , TYR G:227 , SER G:299 , HOH G:1319 , HOH G:1382	BINDING SITE FOR RESIDUE SO4 G 344
28	DC1	SOFTWARE	LYS G:207 , ALA G:240 , ASP G:261 , THR G:262 , ASN G:280 , TYR G:283 , TRP G:294 , HOH G:357	BINDING SITE FOR RESIDUE GOL G 345
29	DC2	SOFTWARE	THR G:123 , ASN G:139 , TYR G:140 , ASP G:141 , HOH G:368	BINDING SITE FOR RESIDUE GOL G 346
30	DC3	SOFTWARE	GLY H:184 , LYS H:329	BINDING SITE FOR RESIDUE SO4 H 340
31	DC4	SOFTWARE	GLY H:57 , THR H:58 , HOH H:813 , HOH H:2133	BINDING SITE FOR RESIDUE SO4 H 341
32	DC5	SOFTWARE	LYS H:207 , GLY H:264 , THR H:265 , HOH H:899 , HOH H:1179	BINDING SITE FOR RESIDUE GOL H 342
33	DC6	SOFTWARE	LYS H:207 , ALA H:240 , ILE H:256 , ASP H:261 , ASN H:280 , TYR H:283 , TRP H:294 , HOH H:387	BINDING SITE FOR RESIDUE GOL H 343
34	DC7	SOFTWARE	LEU H:5 , LYS H:17 , VAL H:18 , SER H:19 , THR H:94 , ASN H:96 , GLY H:97	BINDING SITE FOR RESIDUE GOL H 344
35	DC8	SOFTWARE	GLY H:79 , SER H:299 , ASP H:301 , HOH H:812 , HOH H:932 , STA P:506	BINDING SITE FOR RESIDUE GOL H 345
36	DC9	SOFTWARE	THR H:123 , ASN H:139 , TYR H:140 , ASP H:141 , HOH H:384	BINDING SITE FOR RESIDUE GOL H 346
37	EC1	SOFTWARE	SER A:183 , GLY A:184 , LYS A:329	BINDING SITE FOR RESIDUE SO4 A 340
38	EC2	SOFTWARE	GLY A:79 , SER A:299 , ASP A:301 , HOH A:1378 , STA I:506	BINDING SITE FOR RESIDUE GOL A 341
39	EC3	SOFTWARE	LYS A:17 , SER A:19 , THR A:94 , ASN A:96 , GLY A:97	BINDING SITE FOR RESIDUE GOL A 342
40	EC4	SOFTWARE	LYS A:207 , GLY A:208 , GLY A:264 , THR A:265	BINDING SITE FOR RESIDUE GOL A 343

Asymmetric Unit

No.	Residues
1	A:47	-	A:53
2	A:258	-	A:292
3	B:47	-	B:53
4	B:258	-	B:292
5	C:47	-	C:53
6	C:258	-	C:292
7	D:47	-	D:53
8	D:258	-	D:292
9	E:47	-	E:53
10	E:258	-	E:292
11	F:47	-	F:53
12	F:258	-	F:292
13	G:47	-	G:53
14	G:258	-	G:292
15	H:47	-	H:53
16	H:258	-	H:292

Asymmetric Unit

No.	Residues
1	Thr C:260	-	Asp C:261

(no "SAP(SNP)/Variant" information available for 3FV3)

Asymmetric Unit (2, 24)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	8	A:14-326 B:14-326 C:14-326 D:14-326 E:14-326 F:14-326 G:14-326 H:14-326
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	16	A:29-40 B:29-40 C:29-40 D:29-40 E:29-40 F:29-40 G:29-40 H:29-40 A:217-228 B:217-228 C:217-228 D:217-228 E:217-228 F:217-228 G:217-228 H:217-228

Biological Unit 1 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- B:14-326 - - - - - -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- B:29-40 - - - - - - - B:217-228 - - - - - -

Biological Unit 2 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- - C:14-326 - - - - -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- - C:29-40 - - - - - - - C:217-228 - - - - -

Biological Unit 3 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- - - D:14-326 - - - -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- - - D:29-40 - - - - - - - D:217-228 - - - -

Biological Unit 4 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- - - - E:14-326 - - -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- - - - E:29-40 - - - - - - - E:217-228 - - -

Biological Unit 5 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- - - - - F:14-326 - -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- - - - - F:29-40 - - - - - - - F:217-228 - -

Biological Unit 6 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- - - - - - G:14-326 -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- - - - - - G:29-40 - - - - - - - G:217-228 -

Biological Unit 7 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	- - - - - - - H:14-326
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	- - - - - - - H:29-40 - - - - - - - H:217-228

Biological Unit 8 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CARP1_CANPA	76-389	1	A:14-326 - - - - - - -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CARP1_CANPA	91-102 279-290	2	A:29-40 - - - - - - - A:217-228 - - - - - - -

(no "Exon" information available for 3FV3)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3a_ A: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3A01 A:1-175 Acid Proteases                                                                                                                                                 3fv3A02 A:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee...eeeeeeeeee......eeehhhhhhhhhhhhh.eeeeee..eeeeee........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee........eee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: A:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 A   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain B from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3b_ B: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3B01 B:1-175 Acid Proteases                                                                                                                                                 3fv3B02 B:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee.hhh....eeee.......eeeeeeeee..eeee...eeee......eeehhhhhhhhhhhhh.eeeeee..eeeeee........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee......eeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: B:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 B   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain C from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3c_ C: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3C01 C:1-175 Acid Proteases                                                                                                                                                 3fv3C02 C:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee..eeee...eeee......eeehhhhhhhhhhhhh.eeee.....eeeee........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee........eee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: C:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 C   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain D from PDB  Type:PROTEIN  Length:338
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3d_ D: automated matc hes                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 3fv3D01 D:1-175 Acid Prot eases                                                                                                                                                3fv3D02 D:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....e-eeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee..eeeeeeeeeee......eeehhhhhhhhhhhhh.eeee.....eeeee........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee........eee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: D:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 D   1 DSISLSLINEGPSYASKVSVGSNKQ-QTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20    | | 30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                   25 |                                                                                                                                                                                                                                                                                           313 |
                                                     27                                                                                                                                                                                                                                                                                             314

Chain E from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3e_ E: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3E01 E:1-175 Acid Proteases                                                                                                                                                 3fv3E02 E:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee..eeeeeeeeeee......eeehhhhhhhhhhhhh.eeeeee..eeeee.........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee......eeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: E:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 E   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain F from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3f_ F: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3F01 F:1-175 Acid Proteases                                                                                                                                                 3fv3F02 F:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee..eeee...eeee......eeehhhhhhhhhhhhh.eeee.....eeeee........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee.......eeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: F:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 F   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain G from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3g_ G: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3G01 G:1-175 Acid Proteases                                                                                                                                                 3fv3G02 G:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee..eeeeeeeeeee......eeehhhhhhhhhhhhh.eeeeee..eeeee.........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee.......eeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: G:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 G   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain H from PDB  Type:PROTEIN  Length:339
 aligned with CARP1_CANPA | P32951 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:340
                                    72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402
          CARP1_CANPA    63 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQPLTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAYYLLYNLDANTISIAQVKYTTDSSISAV 402
               SCOP domains d3fv3h_ H: automated matches                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3fv3H01 H:1-175 Acid Proteases                                                                                                                                                 3fv3H02 H:176-339 Acid Proteases                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee....eeeeeee....eeeeeeee.....eeeeeeeeee............hhhhh...eeeeeeeeee.....eeeeeeeeeeeee..eeeeeeeeeeeeee.....eee..hhhhh...............hhhhhhhhh......eeeee.......eeeeee.eee........eeee.......eeeeeeeee..eeeeeeeeeee......eeehhhhhhhhhhhhh.eeeeee..eeeee.........eeeeee....eeeee....eee.....eee.eee....eehhhhhh.ee-eeee....eeeeee........eee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: H:14-326 UniProt: 76-389                                                                                                                                                                                                                                                                               ------------- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fv3 H   1 DSISLSLINEGPSYASKVSVGSNKQQQTVIIDTGSSDFWVVDSNAQCGKGVDCKSSGTFTPSSSSSYKNLGAAFTIRYGDGSTSQGTWGKDTVTINGVSITGQQIADVTQTSVDQGILGIGYTSNEAVYDTSGRQTTPNYDNVPVTLKKQGKIRTNAYSLYLNSPSAETGTIIFGGVDNAKYSGKLVAEQVTSSQALTISLASVNLKGSSFSFGDGALLDSGTTLTYFPSDFAAQLADKAGARLVQVARDQYLYFIDCNTDTSGTTVFNFGNGAKITVPNTEYVYQNGDGTCLWGIQPSDDTILGDNFLRHAY-LLYNLDANTISIAQVKYTTDSSISAV 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310  | |  319       329       339
                                                                                                                                                                                                                                                                                                                                                  313 |
                                                                                                                                                                                                                                                                                                                                                    314

Chain I from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 I 501 xVVxAx 506
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain J from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 J 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain K from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 K 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain L from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 L 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain M from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 M 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain N from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 N 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain O from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 O 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Chain P from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 3fv3 P 501 xVVxAx 506
                            |  | |
                            |  | |
                          501-IVA|
                             504-STA
                               506-STA

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Acid proteases (1120)

Superfamily: Acid proteases (1120)

Family: automated matches (23)

Protein domain: automated matches (23)

Candida parapsilosis [TaxId: 5480] (2)

1a	d3fv3a_	A:
1b	d3fv3b_	B:
1c	d3fv3c_	C:
1d	d3fv3d_	D:
1e	d3fv3e_	E:
1f	d3fv3f_	F:
1g	d3fv3g_	G:
1h	d3fv3h_	H:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Cathepsin D, subunit A; domain 1 (745)

Homologous Superfamily: Acid Proteases (745)

Candida parapsilosis. Organism_taxid: 5480. Strain: p-69. (1)

1a	3fv3A02	A:176-339
1b	3fv3B02	B:176-339
1c	3fv3B01	B:1-175
1d	3fv3C01	C:1-175
1e	3fv3E01	E:1-175
1f	3fv3F01	F:1-175
1g	3fv3G01	G:1-175
1h	3fv3H01	H:1-175
1i	3fv3C02	C:176-339
1j	3fv3D02	D:176-339
1k	3fv3E02	E:176-339
1l	3fv3F02	F:176-339
1m	3fv3G02	G:176-339
1n	3fv3H02	H:176-339
1o	3fv3D01	D:1-175
1p	3fv3A01	A:1-175

(no "Pfam Domain" information available for 3FV3)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (CARP1_CANPA | P32951)

molecular function
	GO:0004190	aspartic-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IVA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		STA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]
		CC5	[ RasMol ]	+environment [ RasMol ]
		CC6	[ RasMol ]	+environment [ RasMol ]
		CC7	[ RasMol ]	+environment [ RasMol ]
		CC8	[ RasMol ]	+environment [ RasMol ]
		CC9	[ RasMol ]	+environment [ RasMol ]
		DC1	[ RasMol ]	+environment [ RasMol ]
		DC2	[ RasMol ]	+environment [ RasMol ]
		DC3	[ RasMol ]	+environment [ RasMol ]
		DC4	[ RasMol ]	+environment [ RasMol ]
		DC5	[ RasMol ]	+environment [ RasMol ]
		DC6	[ RasMol ]	+environment [ RasMol ]
		DC7	[ RasMol ]	+environment [ RasMol ]
		DC8	[ RasMol ]	+environment [ RasMol ]
		DC9	[ RasMol ]	+environment [ RasMol ]
		EC1	[ RasMol ]	+environment [ RasMol ]
		EC2	[ RasMol ]	+environment [ RasMol ]
		EC3	[ RasMol ]	+environment [ RasMol ]
		EC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Thr C:260 - Asp C:261	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]
		Biological Unit 7	[ Jena3D ]
		Biological Unit 8	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format \| Biol. Unit 7 PNG format \| Biol. Unit 8 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3fv3
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CARP1_CANPA \| P32951
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.23.24
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CARP1_CANPA \| P32951
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CARP1_CANPA \| P32951	:	3tne

(no "Related Entries Specified in the PDB File" available for 3FV3)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 64)

Sites (40, 40)

SS Bonds (16, 16)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 24)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 8)

CATH Domains (1, 16)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
