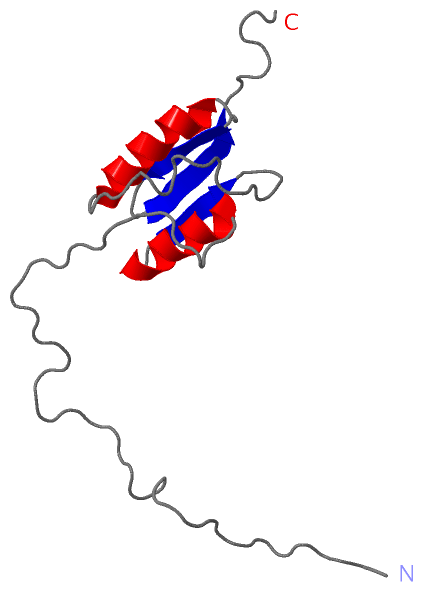

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE XANTHOMONAS VIRB7

Authors :  D. P. Souza, C. S. Farah, R. K. Salinas
Date :  15 Oct 10  (Deposition) - 01 Jun 11  (Release) - 01 Jun 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Type Iv Secretion System, Virb7, N0 Domain, Membrane Protein, Xanthomonas, Lipoprotein, Bacterial Outer Membrane, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. P. Souza, M. O. Andrade, C. E. Alvarez-Martinez, G. M. Arantes, C. S. Farah, R. K. Salinas
A Component Of The Xanthomonadaceae Type Iv Secretion Syste Combines A Virb7 Motif With A N0 Domain Found In Outer Membrane Transport Proteins.
Plos Pathog. V. 7 E1002 2011
PubMed-ID: 21589901  |  Reference-DOI: 10.1371/JOURNAL.PPAT.1002031

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)RP
    Expression System Taxid: 469008
    Expression System Vector: PET28A
    Fragment: VIRB7-XAC2622, UNP RESIDUES 24-139
    Gene: XAC2622
    Organism Common: CITRUS CANKER
    Organism Scientific: XANTHOMONAS AXONOPODIS PV. CITRI
    Organism Taxid: 190486
    Strain: 306

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2L4W)

(-) Sites  (0, 0)

(no "Site" information available for 2L4W)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2L4W)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2L4W)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2L4W)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2L4W)

(-) Exons   (0, 0)

(no "Exon" information available for 2L4W)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120
 aligned with Q8PJB3_XANAC | Q8PJB3 from UniProtKB/TrEMBL  Length:139

    Alignment length:120
                                    29        39        49        59        69        79        89        99       109       119       129       139
         Q8PJB3_XANAC    20 GACATKPAPDFGGRWKHVNHFDEAPTEIPLYTSYTYQATPMDGTLKTMLERWAADSNMQLSYNLPSDYTLIGPVSAISTTSVQQAATELSAVYAAQGVSVSVSANKLLVQPVPVSSGAKL 139
               SCOP domains ------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ----------------------TcpQ-2l4wA01 A:42-135                                                                         ---- Pfam domains
         Sec.struct. author ...........................................hhhhhhhhhhhhh..eeee..................hhhhhhhhhhhhhh...eeeee...eeeeee......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 2l4w A  20 GSHMTKPAPDFGGRWKHVNHFDEAPTEIPLYTSYTYQATPMDGTLKTMLERWAADSNMQLSYNLPSDYTLIGPVSAISTTSVQQAATELSAVYAAQGVSVSVSANKLLVQPVPVSSGAKL 139
                                    29        39        49        59        69        79        89        99       109       119       129       139
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2L4W)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2L4W)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: TcpQ] (1)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 2L4W)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2l4w)

  Sites
(no "Sites" information available for 2l4w)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2l4w)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2l4w
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8PJB3_XANAC | Q8PJB3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q8PJB3_XANAC | Q8PJB3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8PJB3_XANAC | Q8PJB3: 2n01 3ov5

(-) Related Entries Specified in the PDB File

3ov5 ENTRY CONTAINING THE X-RAY CRYSTAL STRUCTURE FOR THE XAC2622 GLOBULAR DOMAIN RELATED ID: 17257 RELATED DB: BMRB
