Title :   CRYSTAL STRUCTURE OF INTIMIN-TIR68 COMPLEX

Authors :   Y. Ma, F. Gao, D. -F. Li, G. F. Gao

Date :   12 Aug 08 (Deposition) - 18 Aug 09 (Release) - 18 Aug 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B,C,D,M,N

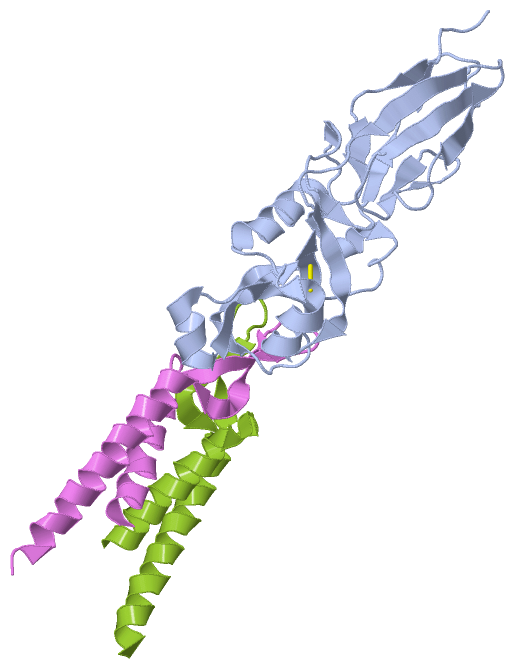

Biol. Unit 1: A,M,N  (1x)
Biol. Unit 2: B,C,D  (1x)

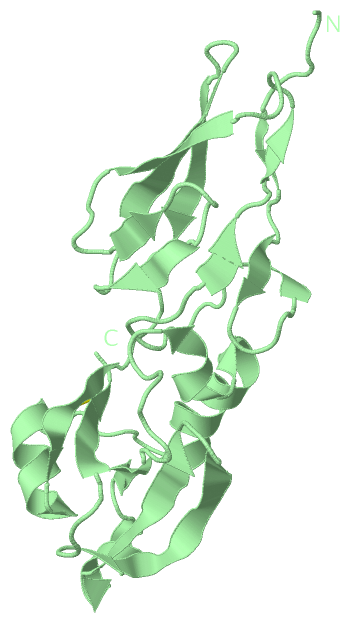

Biol. Unit 3: A  (1x)
Biol. Unit 4: B  (1x)
Biol. Unit 5: M,N  (1x)
Biol. Unit 6: C,D  (1x)

Keywords :   Protein-Protein Complex, Unique Intimin-Tir Trimer Intermediate, Cell Membrane, Cell Outer Membrane, Membrane, Transmembrane, Virulence, Receptor, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. Ma, Q. Zou, G. F. Gao
Structural Insight Into The Interaction Between Intimin And Tir Of Enterohaemorrhagic E Coli: Evidence For A Dynamic Sequential Clustering-Aggregating-Reticulating Model
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - INTIMIN
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET21A
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	D2-D3 DOMAIN, UNP RESIDUES 747-934
	Gene	:	INTIMIN ADHERENCE PROTEIN 747-934
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	83334
	Synonym	:	ATTACHING AND EFFACING PROTEIN, EAE PROTEIN, GAMMA-INTIMIN

Molecule 2 - PUTATIVE TRANSLOCATED INTIMIN RECEPTOR PROTEIN (TRANSLOCATED INTIMIN RECEPTOR TIR)
	Chains	:	M, N, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET21A
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	IBD DOMAIN, UNP RESIDUES 269-336
	Gene	:	TIR 269-336
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	83334

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	M	N
Biological Unit 1 (1x)	:	A				M	N
Biological Unit 2 (1x)	:		B	C	D
Biological Unit 3 (1x)	:	A
Biological Unit 4 (1x)	:		B
Biological Unit 5 (1x)	:					M	N
Biological Unit 6 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 2ZQK)

(no "Site" information available for 2ZQK)

Asymmetric Unit

No.	Residues
1	A:112	-	A:186
2	B:112	-	B:186

(no "Cis Peptide Bond" information available for 2ZQK)

(no "SAP(SNP)/Variant" information available for 2ZQK)

(no "PROSITE Motif" information available for 2ZQK)

(no "Exon" information available for 2ZQK)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:183
 aligned with EAE_ECO57 | P43261 from UniProtKB/Swiss-Prot  Length:934

    Alignment length:183
                                   761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931
            EAE_ECO57   752 FFDELKIDNKVDIIGNNVRGELPNIWLQYGQFKLKASGGDGTYSWYSENTSIATVDASGKVTLNGKGSVVIKATSGDKQTVSYTIKAPSYMIKVDKQAYYADAMSICKNLLPSTQTVLSDIYDSWGAANKYSHYSSMNSITAWIKQTSSEQRSGVSSTYNLITQNPLPGVNVNTPNVYAVCVE 934
               SCOP domains d2zqka1 A:6-94 automated matches                                                         d2zqka2 A:95-188 automated matches                                                             SCOP domains
               CATH domains 2zqkA01 A:6-95  [code=2.60.40.1080, no name defined]                                      2zqkA02 A:96-188 Mannose-Binding Protein A, subunit A                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....ee...eee.....ee.....ee...eee..ee.....eeeee.....eee....eeee.....eeeeeee....eeeeee.....eeeeeee.hhhhhhhhhh......hhhhhhhhhhhhhhhhh.........eeee..hhhhhhhheeeeee...eeeeeeee......eeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2zqk A   6 FFDELKIDNKVDIIGNNVRGELPNIWLQYGQFKLKASGGDGTYSWYSENTSIATVDASGKVTLNGKGSVVIKATSGDKQTVSYTIKAPSYMIKVDKQAYYADAMSICKNLLPSTQTVLSDIYDSWGAANKYSHYSSMNSITAWIKQTSSEQRSGVSSTYNLITQNPLPGVNVNTPNVYAVCVE 188
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185

Chain B from PDB  Type:PROTEIN  Length:184
 aligned with EAE_ECO57 | P43261 from UniProtKB/Swiss-Prot  Length:934

    Alignment length:184
                                   760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930
            EAE_ECO57   751 TFFDELKIDNKVDIIGNNVRGELPNIWLQYGQFKLKASGGDGTYSWYSENTSIATVDASGKVTLNGKGSVVIKATSGDKQTVSYTIKAPSYMIKVDKQAYYADAMSICKNLLPSTQTVLSDIYDSWGAANKYSHYSSMNSITAWIKQTSSEQRSGVSSTYNLITQNPLPGVNVNTPNVYAVCVE 934
               SCOP domains d2zqkb1 B:5-94 automated matches                                                          d2zqkb2 B:95-188 automated matches                                                             SCOP domains
               CATH domains 2zqkB01 B:5-95  [code=2.60.40.1080, no name defined]                                       2zqkB02 B:96-188 Mannose-Binding Protein A, subunit A                                         CATH domains
           Pfam domains (1) -------Big_2-2zqkB03 B:12-90                                                          --Intimin_C-2zqkB01 B:93-188                                                                       Pfam domains (1)
           Pfam domains (2) -------Big_2-2zqkB04 B:12-90                                                          --Intimin_C-2zqkB02 B:93-188                                                                       Pfam domains (2)
         Sec.struct. author ......ee...eee.....ee...........ee..ee.....eeeee.....eee.....eee.....eeeeeee....eeeeee.......eeeee.hhhhhhhhh.......hhhhhhhhhhh.hhhhh.........eeee..hhhhhhh.eeeeee...eeeeeeee......eeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2zqk B   5 TFFDELKIDNKVDIIGNNVRGELPNIWLQYGQFKLKASGGDGTYSWYSENTSIATVDASGKVTLNGKGSVVIKATSGDKQTVSYTIKAPSYMIKVDKQAYYADAMSICKNLLPSTQTVLSDIYDSWGAANKYSHYSSMNSITAWIKQTSSEQRSGVSSTYNLITQNPLPGVNVNTPNVYAVCVE 188
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184

Chain C from PDB  Type:PROTEIN  Length:64
 aligned with TIR_ECO57 | Q7DB77 from UniProtKB/Swiss-Prot  Length:558

    Alignment length:64
                                   282       292       302       312       322       332
            TIR_ECO57   273 SATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN 336
               SCOP domains ---------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh...eeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                 2zqk C   5 SATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN  68
                                    14        24        34        44        54        64

Chain D from PDB  Type:PROTEIN  Length:63
 aligned with TIR_ECO57 | Q7DB77 from UniProtKB/Swiss-Prot  Length:558

    Alignment length:63
                                   283       293       303       313       323       333
            TIR_ECO57   274 ATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN 336
               SCOP domains --------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.....eeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                 2zqk D   6 ATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN  68
                                    15        25        35        45        55        65

Chain M from PDB  Type:PROTEIN  Length:64
 aligned with TIR_ECO57 | Q7DB77 from UniProtKB/Swiss-Prot  Length:558

    Alignment length:64
                                   282       292       302       312       322       332
            TIR_ECO57   273 SATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN 336
               SCOP domains ---------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh.eeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                 2zqk M   5 SATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN  68
                                    14        24        34        44        54        64

Chain N from PDB  Type:PROTEIN  Length:63
 aligned with TIR_ECO57 | Q7DB77 from UniProtKB/Swiss-Prot  Length:558

    Alignment length:63
                                   283       293       303       313       323       333
            TIR_ECO57   274 ATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN 336
               SCOP domains --------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh...eeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                 2zqk N   6 ATETATRDQLTKEAFQNPDNQKVNIDELGNAIPSGVLKDDVVANIEEQAKAAGEEAKQQAIEN  68
                                    15        25        35        45        55        65

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Immunoglobulin-like beta-sandwich (7299)

Superfamily: Invasin/intimin cell-adhesion fragments (9)

Family: automated matches (5)

Protein domain: automated matches (5)

Escherichia coli [TaxId: 83334] (1)

1a	d2zqka1	A:6-94
1b	d2zqkb1	B:5-94

Class: Alpha and beta proteins (a+b) (23004)

Fold: C-type lectin-like (322)

Superfamily: C-type lectin-like (322)

Family: automated matches (88)

Protein domain: automated matches (88)

Escherichia coli [TaxId: 83334] (2)

2a	d2zqka2	A:95-188
2b	d2zqkb2	B:95-188

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: C_Lectin (98)

Family: Intimin_C (2)

Escherichia coli O157:H7 (2)

1a	Intimin_C-2zqkB01	B:93-188
1b	Intimin_C-2zqkB02	B:93-188

Clan: E-set (290)

Family: Big_2 (2)

Escherichia coli O157:H7 (2)

2a	Big_2-2zqkB03	B:12-90
2b	Big_2-2zqkB04	B:12-90

Asymmetric Unit(hide GO term definitions)

Chain A,B (EAE_ECO57 | P43261)

biological process
	GO:0007155	cell adhesion	The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0009279	cell outer membrane	A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain C,D,M,N (TIR_ECO57 | Q7DB77)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0033644	host cell membrane	Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
	GO:0020002	host cell plasma membrane	The plasma membrane surrounding a host cell.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2zqk)

	Sites
(no "Sites" information available for 2zqk)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2zqk)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2zqk
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	EAE_ECO57 \| P43261
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	TIR_ECO57 \| Q7DB77
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	EAE_ECO57 \| P43261
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	TIR_ECO57 \| Q7DB77
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	EAE_ECO57 \| P43261	:	2zwk 3ncw 3ncx 4e1s 5g26
	TIR_ECO57 \| Q7DB77	:	2zwk

2zwk	INTIMIN-TIR90 COMPLEX

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (2, 2)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 4)

CATH Domains (2, 4)

Pfam Domains (2, 4)

Gene Ontology (9, 12)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
