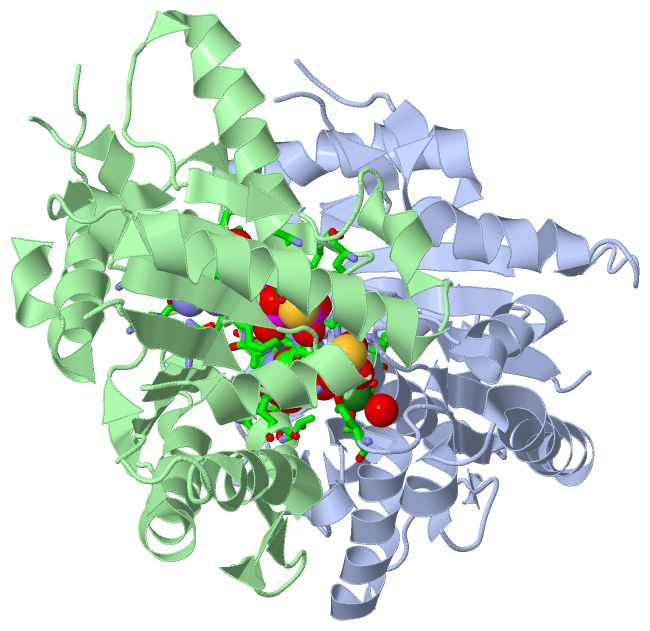

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  DIMER STRUCTURE OF THE BACTERIAL CELL DIVISION REGULATOR MIPZ

Authors :  K. A. Michie, J. Lowe
Date :  02 Jul 10  (Deposition) - 13 Jul 11  (Release) - 30 Jan 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Replication, Cell Division, Atpase, Waca (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Kiekebusch, K. A. Michie, L. O. Essen, J. Lowe, M. Thanbichler
Localized Dimerization And Nucleoid Binding Drive Gradient Formation By The Bacterial Cell Division Inhibitor Mipz.
Mol. Cell V. 46 245 2012
PubMed-ID: 22483621  |  Reference-DOI: 10.1016/J.MOLCEL.2012.03.004

(-) Compounds

Molecule 1 - MIPZ
    Atcc: 19089
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PHIS17
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Variant: AI
    Mutation: YES
    Organism Scientific: CAULOBACTER CRESCENTUS
    Organism Taxid: 155892
    Other Details: PCRED FROM GENOMIC DNA FROM ATCC 19089D. MUTATION CONSTRUCTED BY SPLICE-OVERLAP EXTENSION.
    Strain: CB15N
    Synonym: DIVISION PLANE POSITIONING ATPASE MIPZ

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name
1AGS2Ligand/IonPHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
2MG2Ligand/IonMAGNESIUM ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:19 , GLN A:45 , THR A:47 , AGS A:1272 , HOH A:2003 , HOH A:2027 , LYS B:13BINDING SITE FOR RESIDUE MG A1271
2AC2SOFTWAREGLY A:14 , GLY A:15 , ALA A:16 , GLY A:17 , LYS A:18 , SER A:19 , THR A:20 , GLN A:45 , ASN A:186 , ARG A:187 , ARG A:219 , ASP A:220 , ARG A:221 , TYR A:224 , ARG A:225 , MG A:1271 , HOH A:2027 , LYS B:13 , GLY B:14 , SER B:136 , VAL B:138 , ASP B:139BINDING SITE FOR RESIDUE AGS A1272
3AC3SOFTWARESER B:19 , GLN B:45 , THR B:47 , AGS B:1273 , HOH B:2004BINDING SITE FOR RESIDUE MG B1272
4AC4SOFTWARELYS A:13 , GLY A:14 , SER A:136 , VAL A:138 , ASP A:139 , GLY B:14 , GLY B:15 , ALA B:16 , GLY B:17 , LYS B:18 , SER B:19 , THR B:20 , GLN B:45 , ASN B:186 , ARG B:187 , ARG B:219 , ASP B:220 , ARG B:221 , TYR B:224 , ARG B:225 , MG B:1272 , HOH B:2004 , HOH B:2022BINDING SITE FOR RESIDUE AGS B1273

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2XJ9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2XJ9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2XJ9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2XJ9)

(-) Exons   (0, 0)

(no "Exon" information available for 2XJ9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:265
 aligned with Q9A6C9_CAUCR | Q9A6C9 from UniProtKB/TrEMBL  Length:278

    Alignment length:268
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262
         Q9A6C9_CAUCR     3 ETRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYS 270
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee.......hhhhhhhhhhhhhhh....eeeee.....hhhhhhhhhhhhhhhhhh......eee....hhhhhh..hhhhhhhhhhhhhhhhhhhh.eeeee.....hhhhhhhhhh..eeeeeee.hhhhhh..ee...--....eehhhhhhhhhhhhh..........eeeeeee.....-hhhhhhhhhhhhhhhhhhh.eee.....hhhhh.hhhhh.hhhhh..........hhhhhhhhhhhhhhhhh.hhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2xj9 A   3 ETRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLALRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDP--LELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATT-ARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYS 270
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142     | 152       162       172       182        |-|      202       212       222       232       242       252       262
                                                                                                                                                                           148  |                                     191 |
                                                                                                                                                                              151                                       193


Chain B from PDB  Type:PROTEIN  Length:265
 aligned with Q9A6C9_CAUCR | Q9A6C9 from UniProtKB/TrEMBL  Length:278

    Alignment length:269
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262
         Q9A6C9_CAUCR     3 ETRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSG 271
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee.......hhhhhhhhhhhhhhh....eeeee.....hhhhhhhhhhhhhhhhhh......eee....hhhhhh..hhhhhhhhhhhhhhhhhhhh.eeeee.....hhhhhhhhhh..eeeeeee.hhhhhhhheee......eeeehhhhhhhhhhhhh......--..eeeeeee.....hhhhhhhhhhhhhhhhhhhh.eee.....hhhhh.hhhhh.hhhhh...--....hhhhhhhhhhhhhhhhhh.hhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2xj9 B   3 ETRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLALRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQ--AMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQ--PVPVSLQHLAARQELRALMHSLGLSAYSG 271
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172  |  | 182       192       202       212       222       232       | -|      252       262
                                                                                                                                                                                                      175  |                                                           240  |
                                                                                                                                                                                                         178                                                              243
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2XJ9)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2XJ9)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2XJ9)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2XJ9)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    AGS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2xj9)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2xj9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9A6C9_CAUCR | Q9A6C9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9A6C9_CAUCR | Q9A6C9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2XJ9)

(-) Related Entries Specified in the PDB File

2xit CRYSTAL STRUCTURE OF MONOMERIC MIPZ
2xj4 STRUCTURE OF THE BACTERIAL CELL DIVISION REGULATOR PROTEIN MIPZ
