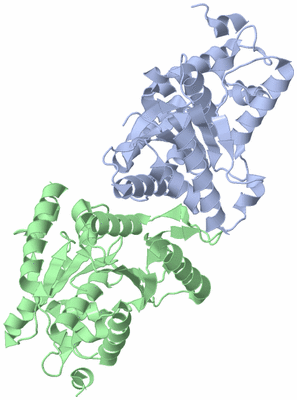

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MONOMERIC MIPZ

Authors :  D. Kiekebusch, K. A. Michie, L. O. Essen, J. Lowe, M. Thanbichler
Date :  30 Jun 10  (Deposition) - 13 Jul 11  (Release) - 30 May 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Replication, Atpase, Cell Division, Protein Localization (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Kiekebusch, K. A. Michie, L. O. Essen, J. Lowe, M. Thanbichler
Localized Dimerization And Nucleoid Binding Drive Gradient Formation By The Bacterial Cell Division Inhibitor Mipz.
Mol. Cell V. 46 245 2012
PubMed-ID: 22483621  |  Reference-DOI: 10.1016/J.MOLCEL.2012.03.004

(-) Compounds

Molecule 1 - MIPZ
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: ROSETTA2(DE3)
    Expression System Taxid: 562
    Expression System Variant: PLYSS
    Expression System Vector: PET21A
    Expression System Vector Type: PLASMID
    Organism Scientific: CAULOBACTER CRESCENTUS
    Organism Taxid: 155892
    Strain: CB15N
    Synonym: DIVISION PLANE POSITIONING ATPASE MIPZ

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2XIT)

(-) Sites  (0, 0)

(no "Site" information available for 2XIT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2XIT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2XIT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2XIT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2XIT)

(-) Exons   (0, 0)

(no "Exon" information available for 2XIT)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:277
 aligned with A0A0H3CA70_C | A0A0H3CA70 from UniProtKB/TrEMBL  Length:278

    Alignment length:282
                                                                                                                                                                                                                                                                                                         273 274 278
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271 |   | 278
         A0A0H3CA70_C     2 AETRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSGET---MLAAQ--   -
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee......hhhhhhhhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhh.......eee....hhhhhh..hhhhhhhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhh..eeeeeee.hhhhhhhhh..-----.....hhhhhhhhhhhhhhhhh......eeeeeee.....hhhhhhhhhhhhhhhhhhhh.eeee....hhhhhhhhhhh.hhhhh.........hhhhhhhhhhhhhhhhhh.hhhhh.....hhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2xit A   2 AETRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTV-----ELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSGETAVDKLAAALE 288
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141    |    -|      161       171       181       191       201       211       221       231       241       251       261       271 ||    286
                                                                                                                                                                          146   152                                                                                                                      273|
                                                                                                                                                                                                                                                                                                          279


Chain B from PDB  Type:PROTEIN  Length:279
 aligned with A0A0H3CA70_C | A0A0H3CA70 from UniProtKB/TrEMBL  Length:278

    Alignment length:279
                                                                                                                                                                                                                                                                                                          274
                                                                                                                                                                                                                                                                                                       273  | 278
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273  |   |
         A0A0H3CA70_C     4 TRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSGET--MLAAQ--   -
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee......hhhhhhhhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh......eee....hhhhhh..hhhhhhhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhh..eeeeeee.hhhhhhhhhee......eee.hhhhhhhhhhhhhhhhh......eeeeeee.....hhhhhhhhhhhhhhhhhhhh.eeee....hhhhhhhhhhh.hhhhh.........hhhhhhhhhhhhhhhhhh.hhhhh....hhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2xit B   4 TRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSGETVDKLAAALE 288
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273|
                                                                                                                                                                                                                                                                                                       273|
                                                                                                                                                                                                                                                                                                        280
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2XIT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2XIT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2XIT)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2XIT)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2xit)

  Sites
(no "Sites" information available for 2xit)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2xit)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2xit
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3CA70_C | A0A0H3CA70
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3CA70_C | A0A0H3CA70
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0A0H3CA70_C | A0A0H3CA70: 2xj4

(-) Related Entries Specified in the PDB File

2xj4 STRUCTURE OF THE BACTERIAL CELL DIVISION REGULATOR PROTEIN MIPZ
2xj9 DIMER STRUCTURE OF THE BACTERIAL CELL DIVISION REGULATOR MIPZ
