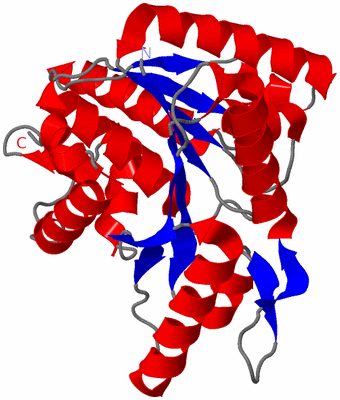

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE BACTERIAL CELL DIVISION REGULATOR PROTEIN MIPZ

Authors :  K. A. Michie, J. Lowe
Date :  02 Jul 10  (Deposition) - 13 Jul 11  (Release) - 30 May 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Replication, Cell Division, Atpase, Waca (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Kiekebusch, K. A. Michie, L. O. Essen, J. Lowe, M. Thanbichler
Localized Dimerization And Nucleoid Binding Drive Gradient Formation By The Bacterial Cell Division Inhibitor Mipz.
Mol. Cell V. 46 245 2012
PubMed-ID: 22483621  |  Reference-DOI: 10.1016/J.MOLCEL.2012.03.004

(-) Compounds

Molecule 1 - MIPZ
    Atcc: 19089
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PHIS17
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Variant: AI
    Organism Scientific: CAULOBACTER CRESCENTUS
    Organism Taxid: 155892
    Other Details: PCR OF GENOMIC DNA SUPPLIED BY ATCC (19089D)
    Strain: CB15N
    Synonym: DIVISION PLANE POSITIONING ATPASE MIPZ

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2XJ4)

(-) Sites  (0, 0)

(no "Site" information available for 2XJ4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2XJ4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2XJ4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2XJ4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2XJ4)

(-) Exons   (0, 0)

(no "Exon" information available for 2XJ4)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:270
 aligned with A0A0H3CA70_C | A0A0H3CA70 from UniProtKB/TrEMBL  Length:278

    Alignment length:270
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
         A0A0H3CA70_C     4 TRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSGET 273
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeee.......hhhhhhhhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh......eee....hhhhhh..hhhhhhhhhhhhhhhhhhhh.eeeee.....hhhhhhhhhh..eeeeeee.hhhhhh..eee......eeeehhhhhhhhhhhhhhhhhh.....eeeeeee.....hhhhhhhhhhhhhhhhhhhh.eeee....hhhhhhhhhhh.hhhhh............hhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2xj4 A   4 TRVIVVGNEKGGAGKSTIAVHLVTALLYGGAKVAVIDLDLRQRTSARFFENRRAWLDNKKIELPEPLALNLSDNDVALAERPEEEQVAGFEAAFARAMAECDFILIDTPGGDSAITRMAHGRADLVVTPMNDSFVDFDMLGTVDPVTLELTKPSLYSLTVWEGRKQRALSGQRQAMDWVVLRNRLATTEARNRKRLEDRLNALAKRVGFRIGPGLRDRVIYRELFPFGLTIADLSPQVRPVPVSLQHLAARQELRALMHSLGLSAYSGET 273
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2XJ4)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2XJ4)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2XJ4)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2XJ4)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2xj4)

  Sites
(no "Sites" information available for 2xj4)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2xj4)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2xj4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3CA70_C | A0A0H3CA70
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3CA70_C | A0A0H3CA70
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0A0H3CA70_C | A0A0H3CA70: 2xit

(-) Related Entries Specified in the PDB File

2xit CRYSTAL STRUCTURE OF MONOMERIC MIPZ
2xj9 DIMER STRUCTURE OF THE BACTERIAL CELL DIVISION REGULATOR MIPZ
