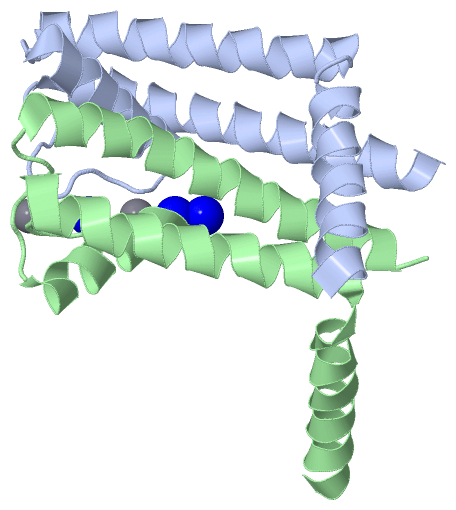

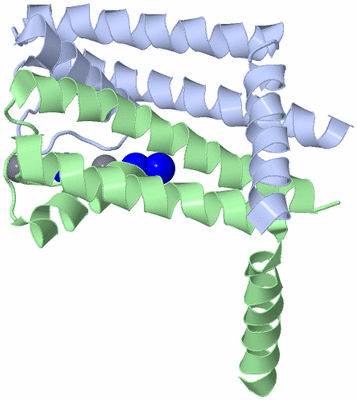

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

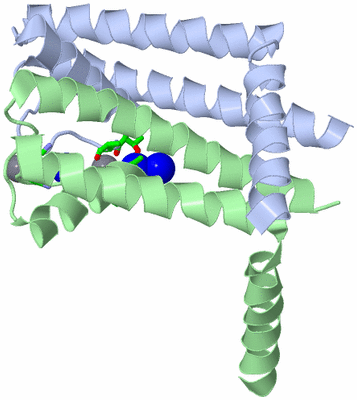

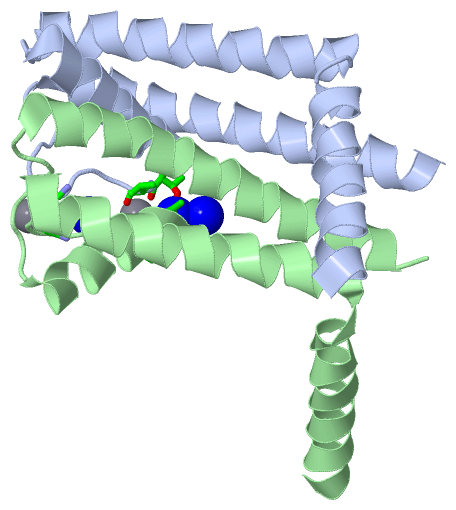

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

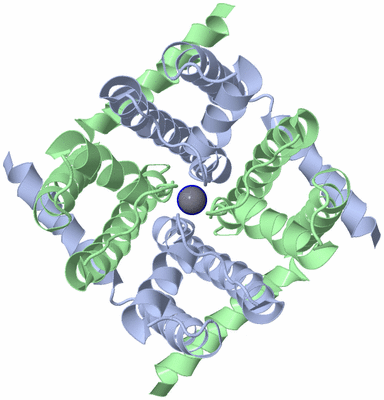

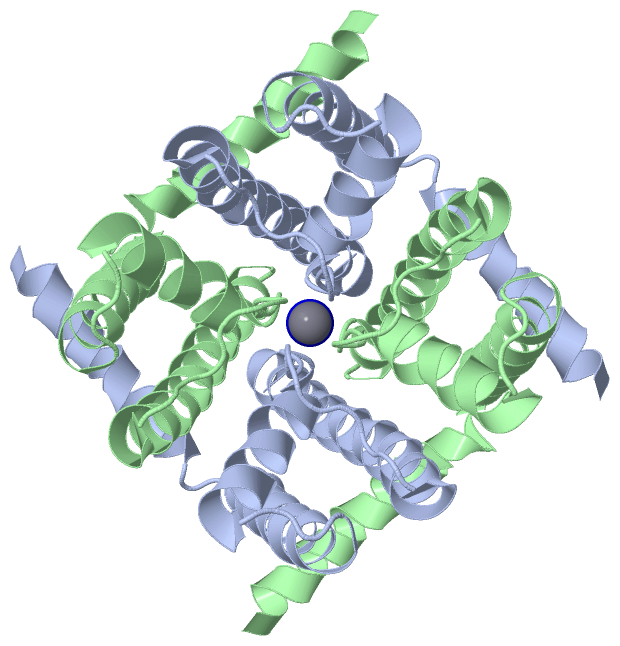

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

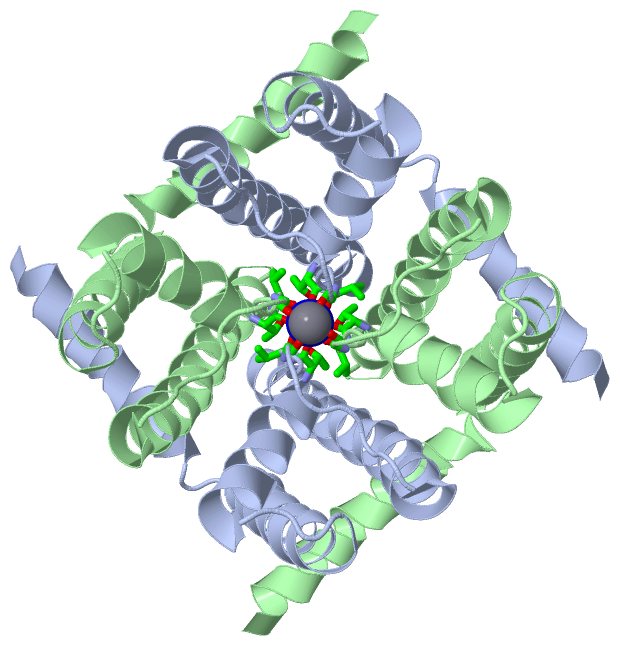

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NAK CHANNEL D66E MUTANT

Authors :  A. Alam, N. Shi, Y. Jiang
Date :  04 Jun 07  (Deposition) - 02 Oct 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Inverted Teepee, Helix Bundle, Tetramer, Central Cavity, Ion Binding, Metal Transport, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Alam, N. Shi, Y. Jiang
Structural Insight Into Ca2+ Specificity In Tetrameric Cation Channels.
Proc. Natl. Acad. Sci. Usa V. 104 15334 2007
PubMed-ID: 17878296  |  Reference-DOI: 10.1073/PNAS.0707324104

(-) Compounds

Molecule 1 - POTASSIUM CHANNEL PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PQE60
    Expression System Strain: XL1-BLUE
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: BACILLUS CEREUS
    Organism Taxid: 1396

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1CA2Ligand/IonCALCIUM ION
2NA3Ligand/IonSODIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2NA-1Ligand/IonSODIUM ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:63 , VAL A:64 , THR B:63 , VAL B:64BINDING SITE FOR RESIDUE CA A 115
2AC2SOFTWARETHR A:63 , NA A:117 , THR B:63BINDING SITE FOR RESIDUE NA A 116
3AC3SOFTWARENA A:116BINDING SITE FOR RESIDUE NA A 117
4AC4SOFTWAREGLY A:67 , GLY B:67BINDING SITE FOR RESIDUE CA A 118

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2Q6A)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2Q6A)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2Q6A)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2Q6A)

(-) Exons   (0, 0)

(no "Exon" information available for 2Q6A)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with Q81HW2_BACCR | Q81HW2 from UniProtKB/TrEMBL  Length:114

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         Q81HW2_BACCR     1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGDGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQL 104
               SCOP domains -------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2q6aA00 A:1-104  [code=1.10.287.70, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2q6a A   1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGEGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQL 104
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:103
 aligned with Q81HW2_BACCR | Q81HW2 from UniProtKB/TrEMBL  Length:114

    Alignment length:103
                                    10        20        30        40        50        60        70        80        90       100
         Q81HW2_BACCR     1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGDGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQ 103
               SCOP domains ------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2q6aB00 B:1-103  [code=1.10.287.70, no name defined]                                                    CATH domains
           Pfam domains (1) ----------------------------Ion_trans_2-2q6aB01 B:29-103                                                Pfam domains (1)
           Pfam domains (2) ----------------------------Ion_trans_2-2q6aB02 B:29-103                                                Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 2q6a B   1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGEGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQ 103
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2Q6A)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: Ion_channel (150)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q81HW2_BACCR | Q81HW2)
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
