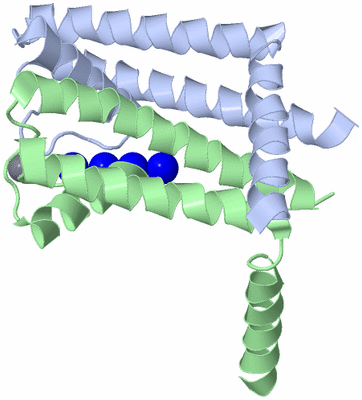

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

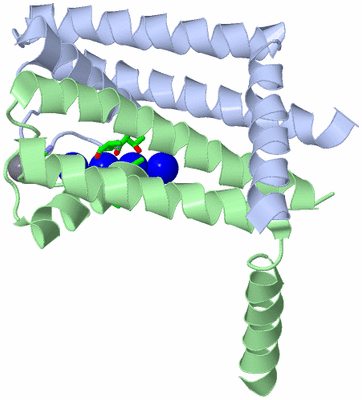

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

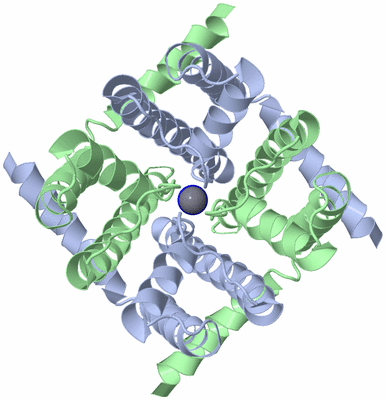

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  NA+ COMPLEX OF THE NAK CHANNEL

Authors :  N. Shi, S. Ye, A. Alam, L. Chen, Y. Jiang
Date :  28 Jul 05  (Deposition) - 07 Feb 06  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Inverted Teepee, Helix Bundle, Tetramer, Central Cavity, Ion Binding, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Shi, S. Ye, A. Alam, L. Chen, Y. Jiang
Atomic Structure Of A Na+- And K+-Conducting Channel.
Nature V. 440 570 2006
PubMed-ID: 16467789  |  Reference-DOI: 10.1038/NATURE04508

(-) Compounds

Molecule 1 - POTASSIUM CHANNEL PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PQE 60
    Expression System Strain: XL-1 BLUE
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: BACILLUS CEREUS
    Organism Taxid: 1396

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION
2NA4Ligand/IonSODIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2NA-1Ligand/IonSODIUM ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:63 , VAL A:64 , THR B:63 , VAL B:64BINDING SITE FOR RESIDUE NA A 111
2AC2SOFTWARETHR A:63 , THR B:63BINDING SITE FOR RESIDUE NA A 112
3AC3SOFTWAREGLY A:67 , GLY B:67BINDING SITE FOR RESIDUE CA A 114

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AHY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AHY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AHY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AHY)

(-) Exons   (0, 0)

(no "Exon" information available for 2AHY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with Q81HW2_BACCR | Q81HW2 from UniProtKB/TrEMBL  Length:114

    Alignment length:104
                                    10        20        30        40        50        60        70        80        90       100
         Q81HW2_BACCR     1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGDGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQL 104
               SCOP domains -------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2ahyA00 A:1-104  [code=1.10.287.70, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2ahy A   1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGDGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQL 104
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:103
 aligned with Q81HW2_BACCR | Q81HW2 from UniProtKB/TrEMBL  Length:114

    Alignment length:103
                                    10        20        30        40        50        60        70        80        90       100
         Q81HW2_BACCR     1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGDGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQ 103
               SCOP domains ------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2ahyB00 B:1-103  [code=1.10.287.70, no name defined]                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 2ahy B   1 MLSFLLTLKRMLRACLRAWKDKEFQVLFVLTILTLISGTIFYSTVEGLRPIDALYFSVVTLTTVGDGNFSPQTDFGKIFTILYIFIGIGLVFGFIHKLAVNVQ 103
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2AHY)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AHY)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q81HW2_BACCR | Q81HW2)
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ahy)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

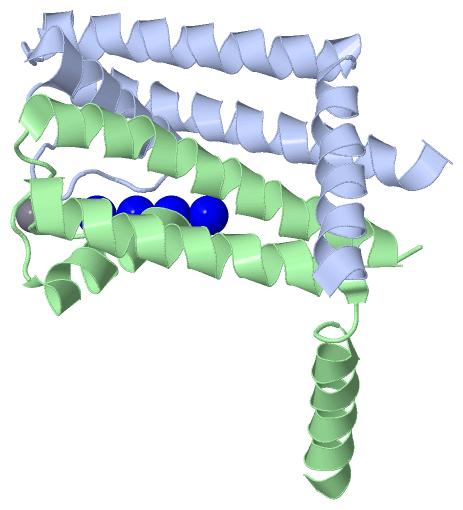

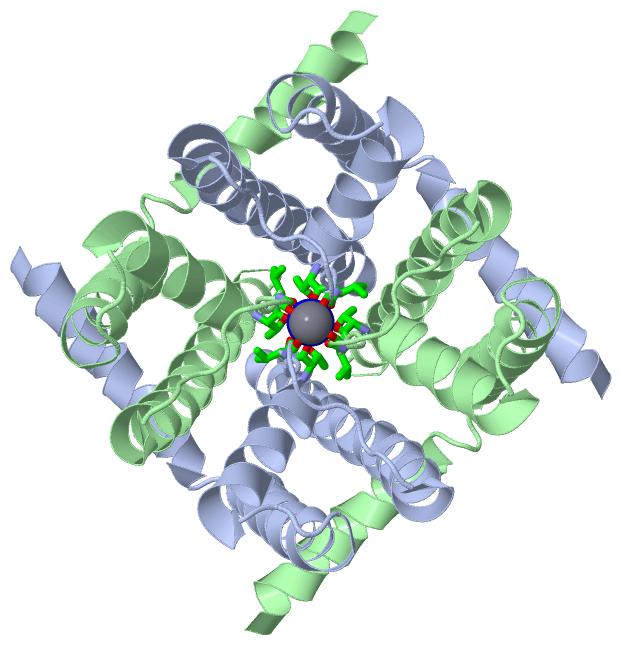

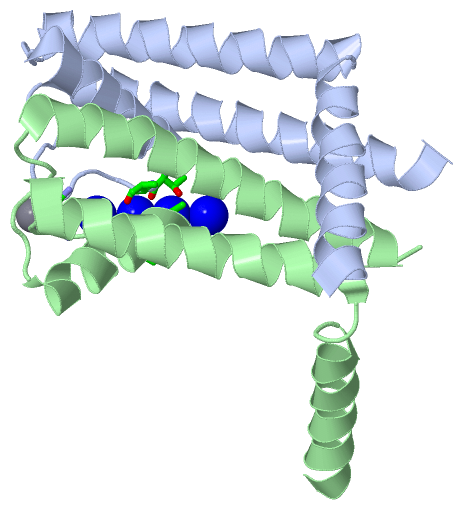

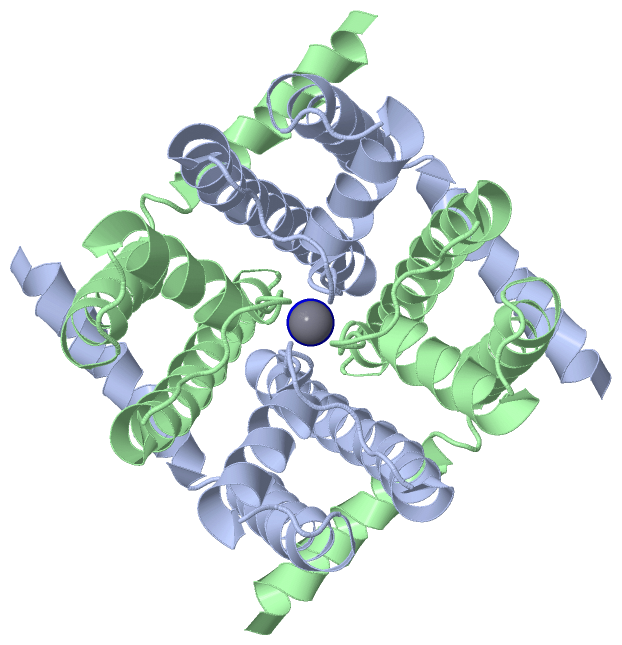

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
