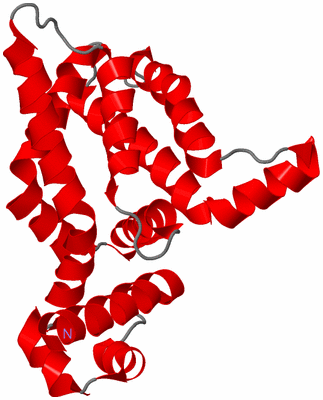

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

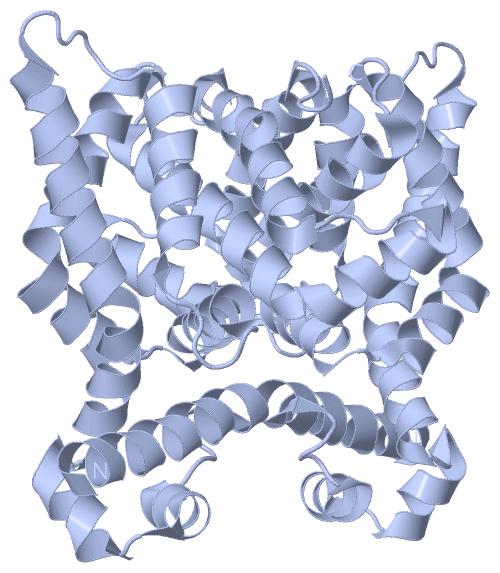

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF TRANSCRIPTIONAL REGULATOR PA3006

Authors :  V. V. Lunin, T. Skarina, O. Onopriyenko, Y. Kim, A. Joachimiak, A. M. Edw A. Savchenko, Midwest Center For Structural Genomics (Mcsg)
Date :  09 Dec 05  (Deposition) - 20 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Pa3006, Apc5893, Transcriptional Regulator, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. V. Lunin, T. Skarina, O. Onopriyenko, Y. Kim, A. Joachimiak, A. M. Edwards, A. Savchenko
The Crystal Structure Of Transcriptional Regulator Pa3006
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PROBABLE TRANSCRIPTIONAL REGULATOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: MODIFIED PET15B
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2FBQ)

(-) Sites  (0, 0)

(no "Site" information available for 2FBQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FBQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2FBQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FBQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2FBQ)

(-) Exons   (0, 0)

(no "Exon" information available for 2FBQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:213
 aligned with Q9HZJ9_PSEAE | Q9HZJ9 from UniProtKB/TrEMBL  Length:233

    Alignment length:213
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
         Q9HZJ9_PSEAE     2 AQSETVERILDAAEQLFAEKGFAETSLRLITSKAGVNLAAVNYHFGSKKALIQAVFSRFLGPFCASLEKELDRRQAKPEAQHATLEDLLHLLVSQAMAVKPRSGNDLSIFMRLLGLAFSQSQGHLRKYLEEVYGKVFRRYMLLVNEAAPKLPPIELFWRVHFMLGAAAFSMSGIKALRAMAETDFGVNTSTEQVMHLMVPFFAAGMRAESGID 214
               SCOP domains d2fbqa1 A:2-80 Transcriptional regulator PsrA                                  d2fbqa2 A:81-214 Transcriptional regulator PsrA                                                                                        SCOP domains
               CATH domains 2fbqA00 A:2-214 Tetracycline Repressor, domain 2                                                                                                                                                                      CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fbq A   2 AQSETVERILDAAEQLFAEKGFAETSLRLITSKAGVNLAAVNYHFGSKKALIQAVFSRFLGPFCASLEKELDRRQAKPEAQHATLEDLLHLLVSQAMAVKPRSGNDLSIFMRLLGLAFSQSQGHLRKYLEEVYGKVFRRYMLLVNEAAPKLPPIELFWRVHFMLGAAAFSMSGIKALRAMAETDFGVNTSTEQVMHLMVPFFAAGMRAESGID 214
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FBQ)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q9HZJ9_PSEAE | Q9HZJ9)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0044212    transcription regulatory region DNA binding    Interacting selectively and non-covalently with a DNA region that regulates the transcription of a region of DNA, which may be a gene, cistron, or operon. Binding may occur as a sequence specific interaction or as an interaction observed only once a factor has been recruited to the DNA by other factors.
biological process
    GO:0050714    positive regulation of protein secretion    Any process that activates or increases the frequency, rate or extent of the controlled release of a protein from a cell.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
