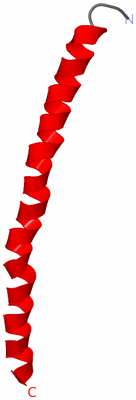

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

(-) Description

Title :  MOLECULAR STRUCTURE OF FD FILAMENTOUS BACTERIOPHAGE REFINED WITH RESPECT TO X-RAY FIBRE DIFFRACTION AND SOLID-STATE NMR DATA

Authors :  D. A. Marvin, L. C. Welsh, M. F. Symmons, W. R. P. Scott, S. K. Straus
Date :  08 Sep 05  (Deposition) - 14 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  SOLID-STATE NMR
Resolution :  NOT APPLICABLE
Chains :  Asym. Unit :  A
Keywords :  Viral Protein, Filamentous Bacteriophage, Alpha-Helix, Membrane Proteins, Structural Protein, Transmembrane, Helical Virus (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. A. Marvin, L. C. Welsh, M. F. Symmons, W. R. P. Scott, S. K. Straus
Molecular Structure Of Fd (F1, M13) Filamentous Bacteriophage Refined With Respect To X-Ray Fibre Diffraction And Solid-State Nmr Data Supports Specific Models Of Phage Assembly At The Bacterial Membrane.
J. Mol. Biol. V. 355 294 2006
PubMed-ID: 16300790  |  Reference-DOI: 10.1016/J.JMB.2005.10.048
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - COAT PROTEIN B
    Atcc: 15669-B2
    Chains: A
    Engineered: YES
    Mutation: YES
    Organism Scientific: ENTEROBACTERIA PHAGE FD
    Organism Taxid: 10864
    Other Details: H. HOFFMANN-BERLING Z. NATURFORSCH. SECT. B BIOSCI. 18: 876, 1963
    Synonym: FD GENE 8 COAT PROTEIN, MAJOR COAT PROTEIN

 Structural Features

(-) Chains, Units


Asymmetric Unit :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2C0X)

(-) Sites  (0, 0)

(no "Site" information available for 2C0X)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2C0X)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2C0X)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2C0X)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2C0X)

(-) Exons   (0, 0)

(no "Exon" information available for 2C0X)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:50
 aligned with CAPSD_BPFD | P69539 from UniProtKB/Swiss-Prot  Length:73

    Alignment length:50
                                    33        43        53        63        73
            CAPSD_BPFD   24 AEGDDPAKAAFDSLQASATEYIGYAWAMVVVIVGATIGIKLFKKFTSKAS 73
               SCOP domains -------------------------------------------------- SCOP domains
               CATH domains 2c0xA00 A:1-50  [code=1.20.5.80, no name defined]  CATH domains
               Pfam domains -------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------- Transcript
                  2c0x A  1 AEGDDPAKAAFDSLQASATEMIGYAWAMVVVIVGATIGIKLFKKFTSKAS 50
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2C0X)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2C0X)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (CAPSD_BPFD | P69539)
cellular component
    GO:0019029    helical viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles; the subunits are arranged to form a protein helix with the genetic material contained within. Tobacco mosaic virus has such a capsid structure.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2c0x)

  Sites
(no "Sites" information available for 2c0x)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2c0x)

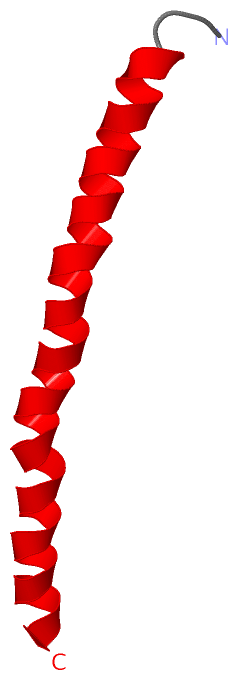

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2c0x
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAPSD_BPFD | P69539
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CAPSD_BPFD | P69539
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAPSD_BPFD | P69539: 1fdm 1ifd 1ifi 1ifj 1mzt 2c0w 2hi5

(-) Related Entries Specified in the PDB File

2c0w MOLECULAR STRUCTURE OF FD FILAMENTOUS BACTERIOPHAGE REFINED WITH RESPECT TO X-RAY FIBRE DIFFRACTION
