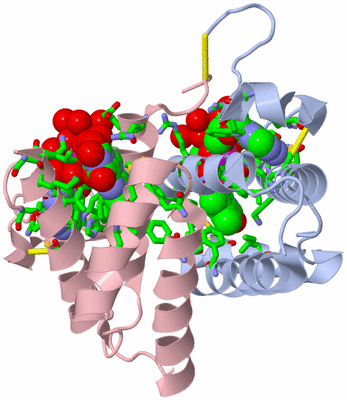

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   THE CRYSTAL STRUCTURE OF AUGMENTER OF LIVER REGENERATION: A MAMMALIAN FAD DEPENDENT SULFHYDRYL OXIDASE

Authors :   J. P. Rose, C. -K. Wu, B. -C. Wang

Date :   07 Mar 03 (Deposition) - 15 Apr 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,C  (1x)
Biol. Unit 2: B,D  (1x)

Keywords :   Sulfhydryl Oxidase, Liver Regeneration, Alr, Helix-Turn-Helix, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. -K. Wu, T. A. Dailey, H. A. Dailey, B. -C. Wang, J. P. Rose
The Refined Crystal Structure Of Augmenter Of Liver Regeneration
Int. Union Cryst. (Meeting) V. 1 293 1999
PubMed: search | Reference-DOI: 10.1109/ACC.1999.782787
(for further references see the PDB file header)

Molecule 1 - AUGMENTER OF LIVER REGENERATION
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	PET16
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector Type	:	PLASMID
	Gene	:	ALR
	Organism Common	:	NORWAY RAT
	Organism Scientific	:	RATTUS NORVEGICUS
	Organism Taxid	:	10116
	Synonym	:	ALR

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A		C
Biological Unit 2 (1x)	:		B		D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	FAD	4	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	FAD	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	FAD	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:19 , GLU A:20 , GLY A:23 , ARG A:24 , TRP A:27 , HIS A:31 , PHE A:56 , TYR A:60 , CYS A:65 , ILE A:69 , CYS A:91 , HIS A:94 , ASN A:95 , VAL A:97 , ASN A:98 , LYS A:100 , LEU A:101 , LYS A:103 , PHE A:106 , ARG A:114 , TRP A:115 , HOH A:131 , HOH A:148 , HOH A:150 , HOH A:165 , HOH A:195 , HOH A:201 , HOH A:203 , HOH A:252 , HOH A:266	BINDING SITE FOR RESIDUE FAD A 126
2	AC2	SOFTWARE	ARG B:19 , GLU B:20 , GLY B:23 , ARG B:24 , TRP B:27 , HIS B:31 , PHE B:56 , TYR B:60 , CYS B:65 , CYS B:91 , HIS B:94 , ASN B:95 , VAL B:97 , ASN B:98 , LYS B:100 , LEU B:101 , LYS B:103 , PHE B:106 , ARG B:114 , TRP B:115 , HOH B:135 , HOH B:152 , HOH B:167 , HOH B:174 , HOH B:192 , HOH B:198 , HOH B:215 , HOH B:232 , HOH B:276	BINDING SITE FOR RESIDUE FAD B 126
3	AC3	SOFTWARE	ARG C:19 , GLU C:20 , GLY C:23 , ARG C:24 , TRP C:27 , HIS C:31 , PHE C:56 , TYR C:60 , CYS C:65 , ILE C:69 , CYS C:91 , HIS C:94 , ASN C:95 , VAL C:97 , ASN C:98 , LYS C:100 , LEU C:101 , LYS C:103 , PHE C:106 , ARG C:114 , TRP C:115 , HOH C:139 , HOH C:162 , HOH C:179 , HOH C:185 , HOH C:189 , HOH C:233 , HOH C:263 , HOH C:274	BINDING SITE FOR RESIDUE FAD C 126
4	AC4	SOFTWARE	ARG D:19 , GLU D:20 , GLY D:23 , ARG D:24 , TRP D:27 , HIS D:31 , PHE D:56 , TYR D:60 , CYS D:65 , ASP D:68 , ILE D:69 , CYS D:91 , HIS D:94 , ASN D:95 , VAL D:97 , ASN D:98 , LYS D:100 , LEU D:101 , LYS D:103 , PHE D:106 , ARG D:114 , TRP D:115 , HOH D:144 , HOH D:148 , HOH D:159 , HOH D:162 , HOH D:164 , HOH D:183 , HOH D:187 , HOH D:193 , HOH D:261 , HOH D:269	BINDING SITE FOR RESIDUE FAD D 126
5	CTA	AUTHOR	CYS A:62 , CYS A:65 , FAD A:126	PUTATIVE CATALYTIC SITE
6	CTB	AUTHOR	CYS B:62 , CYS B:65 , FAD B:126	PUTATIVE CATALYTIC SITE
7	CTC	AUTHOR	CYS C:62 , CYS C:65 , FAD C:126	PUTATIVE CATALYTIC SITE
8	CTD	AUTHOR	CYS D:62 , CYS D:65 , FAD D:126	PUTATIVE CATALYTIC SITE

Asymmetric Unit

No.	Residues
1	A:15	-	C:124
2	A:62	-	A:65
3	A:91	-	A:108
4	A:124	-	C:15
5	B:15	-	D:124
6	B:62	-	B:65
7	B:91	-	B:108
8	B:124	-	D:15
9	C:62	-	C:65
10	C:91	-	C:108
11	D:62	-	D:65
12	D:91	-	D:108

(no "Cis Peptide Bond" information available for 1OQC)

(no "SAP(SNP)/Variant" information available for 1OQC)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ERV_ALR	PS51324	ERV/ALR sulfhydryl oxidase domain profile.	ALR_RAT	88-188	4	A:15-115 B:15-115 C:15-115 D:15-115

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ERV_ALR	PS51324	ERV/ALR sulfhydryl oxidase domain profile.	ALR_RAT	88-188	2	A:15-115 - C:15-115 -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ERV_ALR	PS51324	ERV/ALR sulfhydryl oxidase domain profile.	ALR_RAT	88-188	2	- B:15-115 - D:15-115

Asymmetric Unit (2, 8)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	ENSRNOT00000017917	1	ENSRNOE00000127312	chr10:13948665-13948348	318	ALR_RAT	1-79	79	0	-	-
1.2	ENSRNOT00000017917	2	ENSRNOE00000127401	chr10:13947976-13947780	197	ALR_RAT	80-145	66	4	A:13-72 B:14-72 C:13-72 D:13-72	60 59 60 60
1.3	ENSRNOT00000017917	3	ENSRNOE00000127645	chr10:13947020-13946311	710	ALR_RAT	145-198	54	4	A:72-124 B:72-124 C:72-124 D:72-124	53 53 53 53

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:112
 aligned with ALR_RAT | Q63042 from UniProtKB/Swiss-Prot  Length:198

    Alignment length:112
                                    95       105       115       125       135       145       155       165       175       185       195
              ALR_RAT    86 EDCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 197
               SCOP domains d1oqca_ A: Augmenter of liver regeneration                                                                       SCOP domains
               CATH domains 1oqcA00 A:13-124  [code=1.20.120.310, no name defined]                                                           CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --ERV_ALR  PDB: A:15-115 UniProt: 88-188                                                               --------- PROSITE
           Transcript 1 (1) Exon 1.2  PDB: A:13-72 UniProt: 80-145 [INCOMPLETE]         ---------------------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------------Exon 1.3  PDB: A:72-124 UniProt: 145-198 [INCOMPLETE] Transcript 1 (2)
                 1oqc A  13 EDCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 124
                                    22        32        42        52        62        72        82        92       102       112       122

Chain B from PDB  Type:PROTEIN  Length:111
 aligned with ALR_RAT | Q63042 from UniProtKB/Swiss-Prot  Length:198

    Alignment length:111
                                    96       106       116       126       136       146       156       166       176       186       196
              ALR_RAT    87 DCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 197
               SCOP domains d1oqcb_ B: Augmenter of liver regeneration                                                                      SCOP domains
               CATH domains 1oqcB00 B:14-124  [code=1.20.120.310, no name defined]                                                          CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -ERV_ALR  PDB: B:15-115 UniProt: 88-188                                                               --------- PROSITE
           Transcript 1 (1) Exon 1.2  PDB: B:14-72 UniProt: 80-145 [INCOMPLETE]        ---------------------------------------------------- Transcript 1 (1)
           Transcript 1 (2) ----------------------------------------------------------Exon 1.3  PDB: B:72-124 UniProt: 145-198 [INCOMPLETE] Transcript 1 (2)
                 1oqc B  14 DCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 124
                                    23        33        43        53        63        73        83        93       103       113       123

Chain C from PDB  Type:PROTEIN  Length:112
 aligned with ALR_RAT | Q63042 from UniProtKB/Swiss-Prot  Length:198

    Alignment length:112
                                    95       105       115       125       135       145       155       165       175       185       195
              ALR_RAT    86 EDCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 197
               SCOP domains d1oqcc_ C: Augmenter of liver regeneration                                                                       SCOP domains
               CATH domains 1oqcC00 C:13-124  [code=1.20.120.310, no name defined]                                                           CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --ERV_ALR  PDB: C:15-115 UniProt: 88-188                                                               --------- PROSITE
           Transcript 1 (1) Exon 1.2  PDB: C:13-72 UniProt: 80-145 [INCOMPLETE]         ---------------------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------------Exon 1.3  PDB: C:72-124 UniProt: 145-198 [INCOMPLETE] Transcript 1 (2)
                 1oqc C  13 EDCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 124
                                    22        32        42        52        62        72        82        92       102       112       122

Chain D from PDB  Type:PROTEIN  Length:112
 aligned with ALR_RAT | Q63042 from UniProtKB/Swiss-Prot  Length:198

    Alignment length:112
                                    95       105       115       125       135       145       155       165       175       185       195
              ALR_RAT    86 EDCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 197
               SCOP domains d1oqcd_ D: Augmenter of liver regeneration                                                                       SCOP domains
               CATH domains 1oqcD00 D:13-124  [code=1.20.120.310, no name defined]                                                           CATH domains
           Pfam domains (1) -----------Evr1_Alr-1oqcD01 D:24-117                                                                     ------- Pfam domains (1)
           Pfam domains (2) -----------Evr1_Alr-1oqcD02 D:24-117                                                                     ------- Pfam domains (2)
           Pfam domains (3) -----------Evr1_Alr-1oqcD03 D:24-117                                                                     ------- Pfam domains (3)
           Pfam domains (4) -----------Evr1_Alr-1oqcD04 D:24-117                                                                     ------- Pfam domains (4)
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --ERV_ALR  PDB: D:15-115 UniProt: 88-188                                                               --------- PROSITE
           Transcript 1 (1) Exon 1.2  PDB: D:13-72 UniProt: 80-145 [INCOMPLETE]         ---------------------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------------Exon 1.3  PDB: D:72-124 UniProt: 145-198 [INCOMPLETE] Transcript 1 (2)
                 1oqc D  13 EDCPQDREELGRNTWAFLHTLAAYYPDMPTPEQQQDMAQFIHIFSKFYPCEECAEDIRKRIDRSQPDTSTRVSFSQWLCRLHNEVNRKLGKPDFDCSRVDERWRDGWKDGSC 124
                                    22        32        42        52        62        72        82        92       102       112       122

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Four-helical up-and-down bundle (308)

Superfamily: FAD-dependent thiol oxidase (15)

Family: FAD-dependent thiol oxidase (10)

Protein domain: Augmenter of liver regeneration (7)

Norway rat (Rattus norvegicus) [TaxId: 10116] (1)

1a	d1oqca_	A:
1b	d1oqcb_	B:
1c	d1oqcc_	C:
1d	d1oqcd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Four Helix Bundle (Hemerythrin (Met), subunit A) (300)

Homologous Superfamily: [code=1.20.120.310, no name defined] (4)

Norway rat (Rattus norvegicus) (1)

1a	1oqcB00	B:14-124
1b	1oqcA00	A:13-124
1c	1oqcC00	C:13-124
1d	1oqcD00	D:13-124

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: Evr1_Alr] (7)

Family: Evr1_Alr (7)

Rattus norvegicus (Rat) (1)

1a	Evr1_Alr-1oqcD01	D:24-117
1b	Evr1_Alr-1oqcD02	D:24-117
1c	Evr1_Alr-1oqcD03	D:24-117
1d	Evr1_Alr-1oqcD04	D:24-117

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (ALR_RAT | Q63042)

molecular function
	GO:0050660	flavin adenine dinucleotide binding	Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
	GO:0016971	flavin-linked sulfhydryl oxidase activity	Catalysis of the formation of disulfide bridges.
	GO:0008083	growth factor activity	The function that stimulates a cell to grow or proliferate. Most growth factors have other actions besides the induction of cell growth or proliferation.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0015035	protein disulfide oxidoreductase activity	Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
	GO:0016972	thiol oxidase activity	Catalysis of the reaction: 4 R'C(R)SH + O2 = 2 R'C(R)S-S(R)CR' + 2 H2O.
biological process
	GO:0072717	cellular response to actinomycin D	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an actinomycin D stimulus.
	GO:0071222	cellular response to lipopolysaccharide	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lipopolysaccharide stimulus; lipopolysaccharide is a major component of the cell wall of gram-negative bacteria.
	GO:0097237	cellular response to toxic substance	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a toxic stimulus.
	GO:0071356	cellular response to tumor necrosis factor	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a tumor necrosis factor stimulus.
	GO:0097421	liver regeneration	The regrowth of lost or destroyed liver.
	GO:0043066	negative regulation of apoptotic process	Any process that stops, prevents, or reduces the frequency, rate or extent of cell death by apoptotic process.
	GO:0045953	negative regulation of natural killer cell mediated cytotoxicity	Any process that stops, prevents, or reduces the rate of natural killer mediated cytotoxicity.
	GO:1903204	negative regulation of oxidative stress-induced neuron death	Any process that stops, prevents or reduces the frequency, rate or extent of oxidative stress-induced neuron death.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:2000573	positive regulation of DNA biosynthetic process	Any process that activates or increases the frequency, rate or extent of DNA biosynthetic process.
	GO:0032496	response to lipopolysaccharide	Any process that results in a change in state or activity of an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lipopolysaccharide stimulus; lipopolysaccharide is a major component of the cell wall of gram-negative bacteria.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
	GO:0005758	mitochondrial intermembrane space	The region between the inner and outer lipid bilayers of the mitochondrial envelope.
	GO:0005739	mitochondrion	A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FAD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		CTA	[ RasMol ]	+environment [ RasMol ]
		CTB	[ RasMol ]	+environment [ RasMol ]
		CTC	[ RasMol ]	+environment [ RasMol ]
		CTD	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1oqc)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1oqc
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	ALR_RAT \| Q63042
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	ALR_RAT \| Q63042
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	ALR_RAT \| Q63042	:	3r7c

(no "Related Entries Specified in the PDB File" available for 1OQC)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 4)

Sites (8, 8)

SS Bonds (12, 12)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 4)

Exons (2, 8)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (22, 22)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
