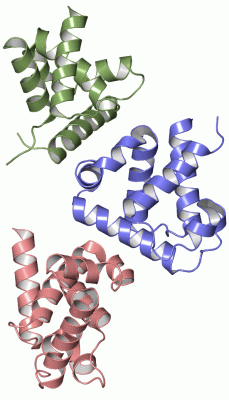

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF TRANS-ACTIVATION DOMAIN OF THE SPORULATION RESPONSE REGULATOR, SPO0A

Authors :  R. J. Lewis, S. Krzywda, A. J. Wilkinson
Date :  17 Jul 00  (Deposition) - 08 Nov 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Response Regulator, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. J. Lewis, S. Krzywda, J. A. Brannigan, J. P. Turkenburg, K. Muchova, E. J. Dodson, I. Barak, A. J. Wilkinson
The Trans-Activation Domain Of The Sporulation Response Regulator Spo0A Revealed By X-Ray Crystallography.
Mol. Microbiol. V. 38 198 2000
PubMed-ID: 11069648  |  Reference-DOI: 10.1046/J.1365-2958.2000.02134.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SPO0A
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: C-TERMINAL DOMAIN
    Organism Scientific: GEOBACILLUS STEAROTHERMOPHILUS
    Organism Taxid: 1422
    Synonym: SPORULATION RESPONSE REGULATOR

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1FC3)

(-) Sites  (0, 0)

(no "Site" information available for 1FC3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1FC3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1FC3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1FC3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1FC3)

(-) Exons   (0, 0)

(no "Exon" information available for 1FC3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:119
 aligned with SP0A_GEOSE | P52934 from UniProtKB/Swiss-Prot  Length:259

    Alignment length:119
                                   149       159       169       179       189       199       209       219       229       239       249
           SP0A_GEOSE   140 NKPKNLDASITSIIHEIGVPAHIKGYLYLREAIAMVYHDIELLGSITKVLYPDIAKKYNTTASRVERAIRHAIEVAWSRGNLESISSLFGYTVSVSKAKPTNSEFIAMVADKLRLEHKA 258
               SCOP domains d1fc3a_ A: Spo0A                                                                                                        SCOP domains
               CATH domains 1fc3A00 A:140-258 'winged helix' repressor DNA binding domain                                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhh.....hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 1fc3 A 140 NKPKNLDASITSIIHEIGVPAHIKGYLYLREAIAMVYHDIELLGSITKVLYPDIAKKYNTTASRVERAIRHAIEVAWSRGNLESISSLFGYTVSVSKAKPTNSEFIAMVADKLRLEHKA 258
                                   149       159       169       179       189       199       209       219       229       239       249


Chain B from PDB  Type:PROTEIN  Length:101
 aligned with SP0A_GEOSE | P52934 from UniProtKB/Swiss-Prot  Length:259

    Alignment length:115
                                   150       160       170       180       190       200       210       220       230       240       250
           SP0A_GEOSE   141 KPKNLDASITSIIHEIGVPAHIKGYLYLREAIAMVYHDIELLGSITKVLYPDIAKKYNTTASRVERAIRHAIEVAWSRGNLESISSLFGYTVSVSKAKPTNSEFIAMVADKLRLE 255
               SCOP domains d1fc3b_ B: Spo0A                                                                                                    SCOP domains
               CATH domains 1fc3B00 B:141-255 'winged helix' repressor DNA binding domain                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..--------------....hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 1fc3 B 141 KPKNLDASITSIIHEIGVPAHIKGYLYLREAIAMVYHDIELLGSITKVLYPDIAKKYNTTASRVERAIRHAIEVAWSRGNL--------------KAKPTNSEFIAMVADKLRLE 255
                                   150       160       170       180       190       200       210       220|        -     | 240       250
                                                                                                          221            236


Chain C from PDB  Type:PROTEIN  Length:116
 aligned with SP0A_GEOSE | P52934 from UniProtKB/Swiss-Prot  Length:259

    Alignment length:116
                                   149       159       169       179       189       199       209       219       229       239       249
           SP0A_GEOSE   140 NKPKNLDASITSIIHEIGVPAHIKGYLYLREAIAMVYHDIELLGSITKVLYPDIAKKYNTTASRVERAIRHAIEVAWSRGNLESISSLFGYTVSVSKAKPTNSEFIAMVADKLRLE 255
               SCOP domains d1fc3c_ C: Spo0A                                                                                                     SCOP domains
               CATH domains 1fc3C00 C:140-255 'winged helix' repressor DNA binding domain                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhh.....hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1fc3 C 140 NKPKNLDASITSIIHEIGVPAHIKGYLYLREAIAMVYHDIELLGSITKVLYPDIAKKYNTTASRVERAIRHAIEVAWSRGNLESISSLFGYTVSVSKAKPTNSEFIAMVADKLRLE 255
                                   149       159       169       179       189       199       209       219       229       239       249
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1FC3)

(-) Gene Ontology  (12, 12)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (SP0A_GEOSE | P52934)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0051606    detection of stimulus    The series of events in which a stimulus is received by a cell or organism and converted into a molecular signal.
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0043937    regulation of sporulation    Any process that modulates the frequency, rate or extent of sporulation, the process whose specific outcome is the progression of a spore over time, from its initiation to the mature structure.
    GO:0042173    regulation of sporulation resulting in formation of a cellular spore    Any process that modulates the frequency, rate or extent of spore formation.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1fc3)

  Sites
(no "Sites" information available for 1fc3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fc3)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1fc3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SP0A_GEOSE | P52934
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SP0A_GEOSE | P52934
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SP0A_GEOSE | P52934: 1dz3 1qmp

(-) Related Entries Specified in the PDB File

1dz3 1DZ3 IS THE RECEIVER DOMAIN OF THE SPORULATION RESPONSE REGULATOR SPO0A
1qmp 1QMP IS THE PHOSPHORYLATED ASPARTATE IN THE CRYSTAL STRUCTURE OF THE RECEIVER DOMAIN OF THE SPORULATION RESPONSE REGULATOR, SPO0A
