1W6Y - JenaLib

Title :   CRYSTAL STRUCTURE OF A MUTANT W92A IN KETOSTEROID ISOMERASE (KSI) FROM PSEUDOMONAS PUTIDA BIOTYPE B

Authors :   Y. S. Yun, G. H. Nam, Y. -G. Kim, B. -H. Oh, K. Y. Choi

Date :   25 Aug 04 (Deposition) - 14 Apr 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Isomerase, Solvent-Exposed, Hydrophobic Cluster, Conformational Stability, Ketosteroid Isomerase, Coneshell, Closed Barrel, Curved B-Sheet (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. S. Yun, G. H. Nam, Y. -G. Kim, B. -H. Oh, K. Y. Choi
Small Exterior Hydrophobic Cluster Contributes To Conformational Stability And Steroid Binding In Ketosteroid Isomerase From Pseudomonas Putida Biotype B
Febs J. V. 272 1999 2005
PubMed-ID: 15819891 | Reference-DOI: 10.1111/J.1742-4658.2005.04627.X

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 4)

Sites (4, 4)

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	TYR A:16 , ASP A:40 , PHE A:86 , MET A:90 , ASN A:93 , LEU A:99 , ASP A:103 , MET A:116 , TRP A:120	BINDING SITE FOR RESIDUE EQU A 201
2	AC2	SOFTWARE	PRO A:4 , THR A:5 , ALA A:6 , HIS A:78 , HOH A:2050	BINDING SITE FOR RESIDUE BME A 501
3	AC3	SOFTWARE	PHE A:42 , CYS A:81 , VAL A:104 , ARG A:106 , TYR A:119	BINDING SITE FOR RESIDUE BME A 601
4	AC4	SOFTWARE	ALA A:68 , CYS A:69 , ARG A:87 , GLU A:89	BINDING SITE FOR RESIDUE BME A 701

SS Bonds (0, 0)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:126
 aligned with SDIS_PSEPU | P07445 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:127
                                    11        21        31        41        51        61        71        81        91       101       111       121
           SDIS_PSEPU     2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVEDPFGQPPIHGREQIAAFYRQGLGGGKVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIDVMRFDEHGRIQTMQAYWSEVNLSVR 128
               SCOP domains d1w6ya1 A:2-128 Delta-5-3-ketosteroid isomerase, steroid delta -isomerase, KSI                                                  SCOP domains
               CATH domains 1w6yA00 A:2-128  [code=3.10.450.50, no name defined]                                                                            CATH domains
               Pfam domains ------NTF2-1w6yA01 A:8-127                                                                                                    - Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhheeeeeeee.......eehhhhhhhhhhhhhh.-................eeeeeeeeeeee..eeeeeeeeeeeee.....eeeeeee.hhh.ee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w6y A   2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVEDPFGQPPIHGREQIAAFYRQGLGG-KVRACLTGPVRASHNGCGAMPFRVEMVANGQPCALDVIDVMRFDEHGRIQTMQAYWSEVNLSVR 128
                                    11        21        31        41        51        61 | |    71        81        91       101       111       121
                                                                                        63 |
                                                                                          65

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (1, 1)

Gene Ontology (4, 4)

Asymmetric Unit(hide GO term definitions)

Chain A (SDIS_PSEPU | P07445)

molecular function
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0004769	steroid delta-isomerase activity	Catalysis of the reaction: a 3-oxo-delta(5)-steroid = a 3-oxo-delta(4)-steroid.
biological process
	GO:0006629	lipid metabolic process	The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
	GO:0008202	steroid metabolic process	The chemical reactions and pathways involving steroids, compounds with a 1,2,cyclopentanoperhydrophenanthrene nucleus.

Visualization

Interactive Views

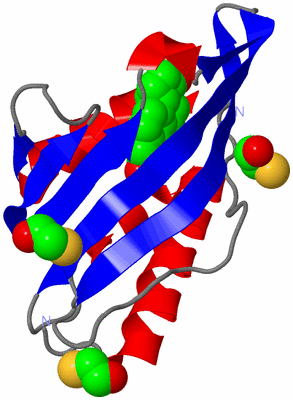

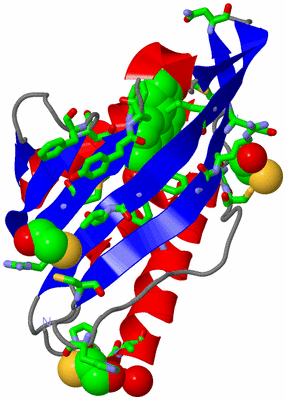

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BME	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		EQU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Asp A:40 - Pro A:41	[ RasMol ]

Biological Unit
	Complete Structure

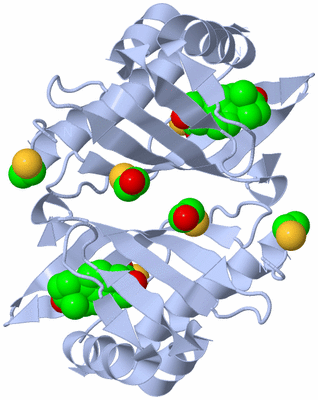

		Biological Unit 1	[ Jena3D ]

Still Images

Jmol

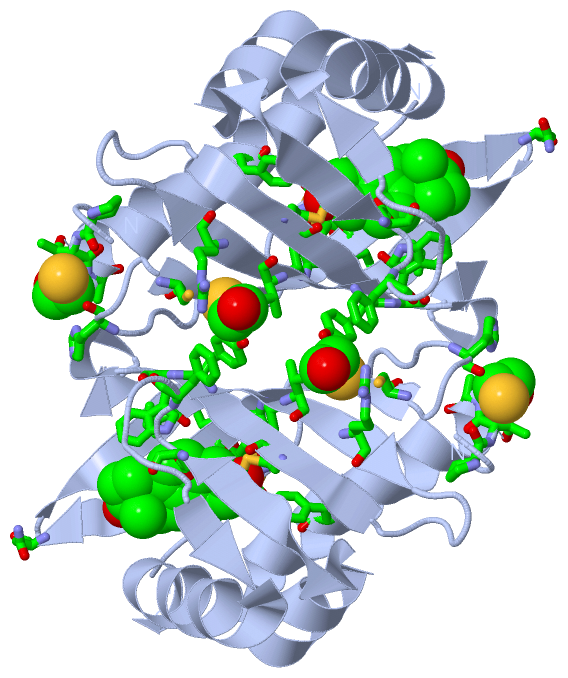

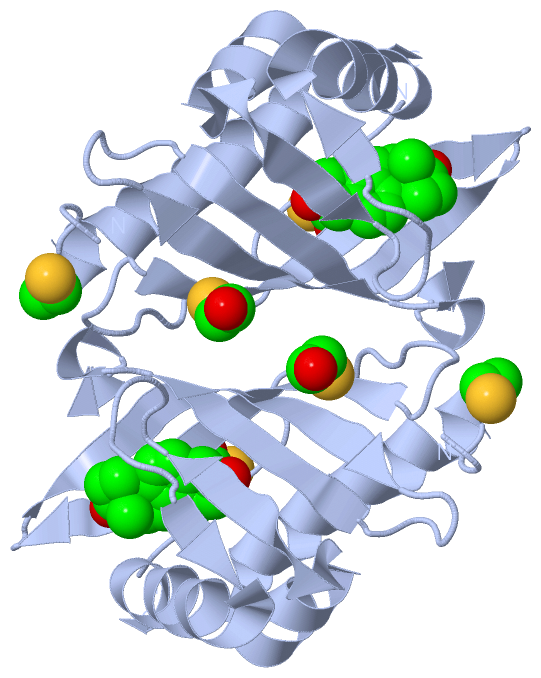

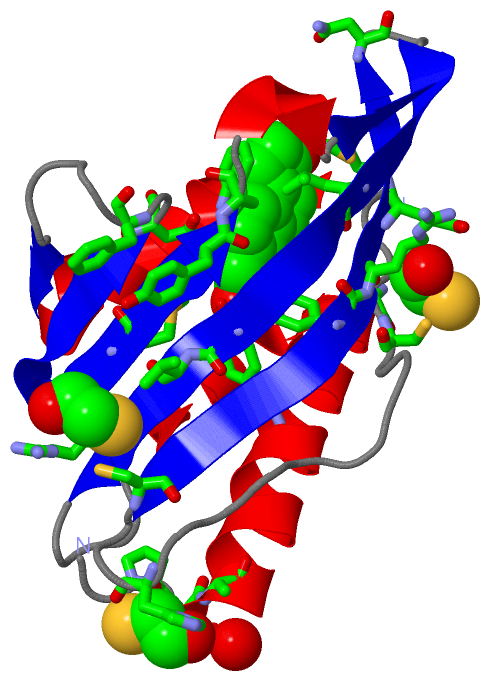

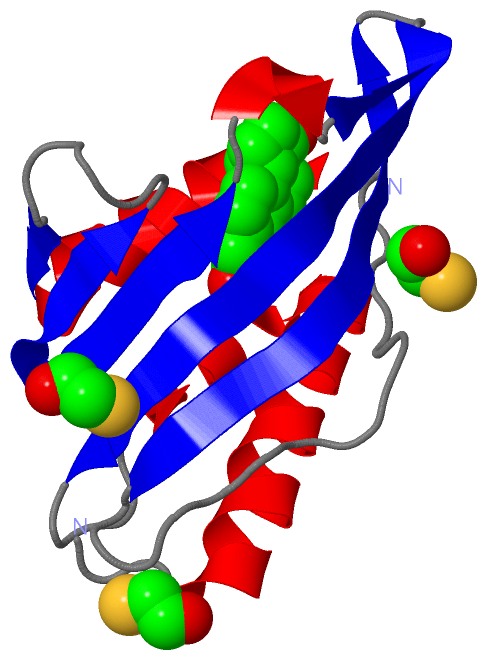

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1w6y
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	SDIS_PSEPU \| P07445
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	5.3.3.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	SDIS_PSEPU \| P07445
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File

1c7h	CRYSTAL STRUCTURE OF A MUTANT R75A IN KETOSTEROID ISOMERASE FROM PSEDOMONAS PUTIDA BIOTYPE B
1cqs	CRYSTAL STRUCTURE OF D103E MUTANT WITH EQUILENINEOF KSI INPSEUDOMONAS PUTIDA
1dmm	CRYSTAL STRUCTURES OF MUTANT ENZYMES Y57F OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B
1dmn	CRYSTAL STRUCTURE OF MUTANT ENZYME Y32F/Y57F OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B
1dmq	CRYSTAL STRUCTURE OF MUTANT ENZYME Y32F OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B
1e3r	CRYSTAL STRUCTURE OF KETOSTEROID ISOMERASE MUTANT D40N (D38N TI NUMBERING) FROM PSEUDOMONAS PUTIDA COMPLEXED WITH ANDROSTEN- 3BETA-OL-17-ONE
1e3v	CRYSTAL STRUCTURE OF KETOSTEROID ISOMERASE FROM PSEDOMONAS PUTIDA COMPLEXED WITH DEOXYCHOLATE
1e97	CRYSTAL STRUCTURE OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA ; TRIPLE MUTANT Y16F/ Y32F/Y57F
1ea2	PSEUDOREVERSION OF THE CATALYTIC ACTIVITY OF Y14F BY THE ADDITIONAL TYROSIN- TO - PHENYLALANINE SUBSTITUTION(S) IN THE HYDROGEN BOND NETWORK OF %D5-3-KETOSTEROID ISOMERASE FROM PHEUDOMONAS PUTIDA BIOTYPE B
1gs3	HIGH RESOLUTION CRYSTAL STRUCTURE OF PI DELTA-5-3-KETOSTEROID ISOMERASE MUTANTS Y30F /Y55F/Y115F/D38N (Y32F/Y57F/Y119F/D40N, PI NUMBERING)COMPLEXED WITH EQUILENIN AT 2. 1 A RESOLUTION
1k41	CRYSTAL STRUCTURE OF KSI Y57S MUTANT
1ogx	HIGH RESOLUTION CRYSTAL STRUCTURE OF KETOSTEROID ISOMERASE MUTANT D40N(D38N, TI NUMBERING) COMPLEXED WITH EQUILENIN AT 2.0 A RESOLUTION.
1oh0	CRYSTAL STRUCTURE OF KETOSTEROID ISOMERASE COMPLEXED WITH EQUILENIN
1oho	CRYSTAL STRUCTURE OF KETOSTEROID ISOMERASE Y16F/D40N MUTANT COMPLEXED WITH EQUILENIN
1opy	KSI
1vzz	CRYSTAL STRUCTURE OF MUTANT ENZYME Y32F/ D103L OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B
1w00	CRYSTAL STRUCTURE OF MUTANT ENZYME Y32F OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B
1w01	CRYSTAL STRUCTURES OF MUTANT ENZYMES Y57F/ D103L OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B
1w02	CRYSTAL STRUCTURE OF MUTANT ENZYME Y16F/ D103L OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B

Description
