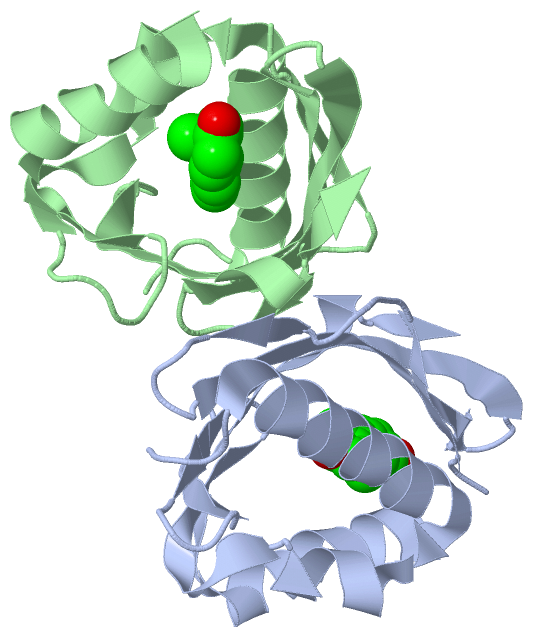

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

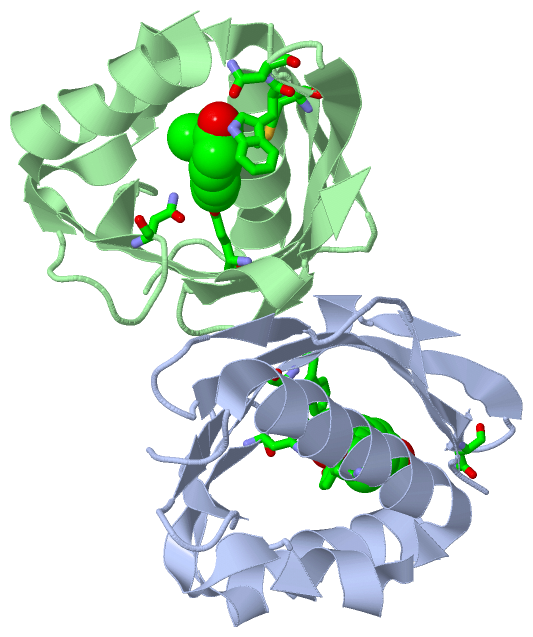

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF D103E MUTANT WITH EQUILENINEOF KSI IN PSEUDOMONAS PUTIDA

Authors :  G. Choi, N. C. Ha, S. W. Kim, D. H. Kim, S. Park, B. H. Oh, K. Y. Choi
Date :  11 Aug 99  (Deposition) - 17 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Ksi, Equilenin, Putida Lbhb, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Choi, N. C. Ha, S. W. Kim, D. H. Kim, S. Park, B. H. Oh, K. Y. Choi
Asp-99 Donates A Hydrogen Bond Not To Tyr-14 But To The Steroid Directly In The Catalytic Mechanism Of Delta 5-3-Ketosteroid Isomerase From Pseudomonas Putida Biotype B
Biochemistry V. 39 903 2000
PubMed-ID: 10653633  |  Reference-DOI: 10.1021/BI991579K
(for further references see the PDB file header)

(-) Compounds

Molecule 1
    Chains: A, B
    EC Number: 5.3.3.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: KSI MUTANT
    Mutation: YES
    Organism Scientific: PSEUDOMONAS PUTIDA
    Organism Taxid: 303

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1EQU2Ligand/IonEQUILENIN

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:16 , ASN A:40 , GLU A:103 , TRP A:120 , TRP B:292 , ASN B:293BINDING SITE FOR RESIDUE EQU A 801
2AC2SOFTWAREASN A:93 , TYR B:216 , ASN B:240 , MET B:290 , GLU B:303BINDING SITE FOR RESIDUE EQU B 802

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1CQS)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Asn A:40 -Pro A:41
2Asn B:240 -Pro B:241

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1CQS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1CQS)

(-) Exons   (0, 0)

(no "Exon" information available for 1CQS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:124
 aligned with SDIS_PSEPU | P07445 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:126
                                    11        21        31        41        51        61        71        81        91       101       111       121
           SDIS_PSEPU     2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVEDPFGQPPIHGREQIAAFYRQGLGGGKVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIDVMRFDEHGRIQTMQAYWSEVNLSV 127
               SCOP domains d1cqsa_ A: Delta-5-3-ketosteroid isomerase, steroid delta-iso  merase, KSI                                                     SCOP domains
               CATH domains 1cqsA00 A:2-127  [code=3.10.450.50, no name defined]                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeeee.......eehhhhhhhhhhhhhh--..eeee....ee....eeeeeeeeeeee..eeeeeeeeeeeee.....eeeeeee.hhh.ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1cqs A   2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVENPFGQPPIHGREQIAAFYRQGLG--KVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIEVMRFDEHGRIQTMQAYWSEVNLSV 127
                                    11        21        31        41        51        61|  |    71        81        91       101       111       121
                                                                                       62 65


Chain B from PDB  Type:PROTEIN  Length:124
 aligned with SDIS_PSEPU | P07445 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:126
                                    11        21        31        41        51        61        71        81        91       101       111       121
           SDIS_PSEPU     2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVEDPFGQPPIHGREQIAAFYRQGLGGGKVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIDVMRFDEHGRIQTMQAYWSEVNLSV 127
               SCOP domains d1cqsb_ B: Delta-5-3-ketosteroid isomerase, steroid delta-iso  merase, KSI                                                     SCOP domains
               CATH domains 1cqsB00 B:202-327  [code=3.10.450.50, no name defined]                                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhheeeeeeee.......eehhhhhhhhhhhhhh--..eeee....ee....eeeeeeeeeeee..eeeeeeeeeeeee.....eeeeeee.hhh.ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1cqs B 202 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVENPFGQPPIHGREQIAAFYRQGLG--KVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIEVMRFDEHGRIQTMQAYWSEVNLSV 327
                                   211       221       231       241       251       261|  |   271       281       291       301       311       321
                                                                                      262  |
                                                                                         265
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CQS)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (SDIS_PSEPU | P07445)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0004769    steroid delta-isomerase activity    Catalysis of the reaction: a 3-oxo-delta(5)-steroid = a 3-oxo-delta(4)-steroid.
biological process
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
    GO:0008202    steroid metabolic process    The chemical reactions and pathways involving steroids, compounds with a 1,2,cyclopentanoperhydrophenanthrene nucleus.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    EQU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:40 - Pro A:41   [ RasMol ]
    Asn B:240 - Pro B:241   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1cqs
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SDIS_PSEPU | P07445
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.3.3.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SDIS_PSEPU | P07445
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SDIS_PSEPU | P07445: 1c7h 1dmm 1dmn 1dmq 1e3r 1e3v 1e97 1ea2 1gs3 1k41 1ogx 1oh0 1oho 1opy 1vzz 1w00 1w01 1w02 1w6y 2inx 2pzv 3cpo 3fzw 3ipt 3ows 3owu 3owy 3ox9 3oxa 3rgr 3sed 3t8n 3vgn 3vsy 4cdl 4k1u 4k1v 5ai1 5d81 5d82 5d83 5g2g 5kp1 5kp3 5kp4

(-) Related Entries Specified in the PDB File

1opy WILD TYPE ENZYME STRUCTURE
