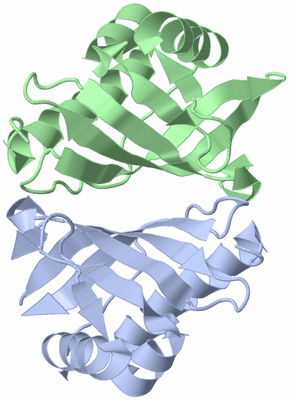

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MUTANT ENZYME Y32F/D103L OF KETOSTEROID ISOMERASE FROM PSEUDOMONAS PUTIDA BIOTYPE B

Authors :  D. S. Jang, H. J. Cha, K. Y. Choi
Date :  30 May 04  (Deposition) - 08 Jul 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Isomerase, Coneshell, Closed Barrel, Curved B-Sheet (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. S. Jang, H. J. Cha, S. S. Cha, B. H. Hong, N. C. Ha, J. Y. Lee, B. H. Oh, H. S. Lee, K. Y. Choi
Structural Double-Mutant Cycle Analysis Of A Hydrogen Bond Network In Ketosteroid Isomerase From Pseudomonas Putida Biotype B.
Biochem. J. V. 382 967 2004
PubMed-ID: 15228388  |  Reference-DOI: 10.1042/BJ20031871
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - STEROID DELTA-ISOMERASE
    Chains: A, B
    EC Number: 5.3.3.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PKK223-3
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: PSEUDOMONAS PUTIDA
    Organism Taxid: 303
    Synonym: DELTA-5-3-KETOSTEROID ISOMERASE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1VZZ)

(-) Sites  (0, 0)

(no "Site" information available for 1VZZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1VZZ)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Asp A:40 -Pro A:41
2Asp B:40 -Pro B:41

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1VZZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1VZZ)

(-) Exons   (0, 0)

(no "Exon" information available for 1VZZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120
 aligned with SDIS_PSEPU | P07445 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:126
                                    11        21        31        41        51        61        71        81        91       101       111       121
           SDIS_PSEPU     2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVEDPFGQPPIHGREQIAAFYRQGLGGGKVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIDVMRFDEHGRIQTMQAYWSEVNLSV 127
               SCOP domains d1vzza_ A: Delta-5-3-ketosteroid isomerase, steroid delta-iso  merase, KSI                                                     SCOP domains
               CATH domains 1vzzA00 A:2-127  [code=3.10.450.50, no name defined]                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhheeeeeeee.......eehhhhhhhhhhhhhh--................eeeeeeeeee.----.eeeeeeeeeee.....eeeeeee.hhh.ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vzz A   2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMFADDATVEDPFGQPPIHGREQIAAFYRQGLG--KVRACLTGPVRASHNGCGAMPFRVEMV----PCALDVILVMRFDEHGRIQTMQAYWSEVNLSV 127
                                    11        21        31        41        51        61|  |    71        81        91    |  101       111       121
                                                                                       62 65                        91   96


Chain B from PDB  Type:PROTEIN  Length:124
 aligned with SDIS_PSEPU | P07445 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:126
                                    11        21        31        41        51        61        71        81        91       101       111       121
           SDIS_PSEPU     2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMYADDATVEDPFGQPPIHGREQIAAFYRQGLGGGKVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVIDVMRFDEHGRIQTMQAYWSEVNLSV 127
               SCOP domains d1vzzb_ B: Delta-5-3-ketosteroid isomerase, steroid delta-iso  merase, KSI                                                     SCOP domains
               CATH domains 1vzzB00 B:2-127  [code=3.10.450.50, no name defined]                                                                           CATH domains
           Pfam domains (1) ------NTF2-1vzzB01 B:8-127                                                                                                     Pfam domains (1)
           Pfam domains (2) ------NTF2-1vzzB02 B:8-127                                                                                                     Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhheeeeeeee.......eehhhhhhhhhhhhhh--................eeeeeeeeeeee..eeeeeeeeeeeee.....eeeeeee.hhh.ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1vzz B   2 NLPTAQEVQGLMARYIELVDVGDIEAIVQMFADDATVEDPFGQPPIHGREQIAAFYRQGLG--KVRACLTGPVRASHNGCGAMPFRVEMVWNGQPCALDVILVMRFDEHGRIQTMQAYWSEVNLSV 127
                                    11        21        31        41        51        61|  |    71        81        91       101       111       121
                                                                                       62 65
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: NTF2 (66)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (SDIS_PSEPU | P07445)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0004769    steroid delta-isomerase activity    Catalysis of the reaction: a 3-oxo-delta(5)-steroid = a 3-oxo-delta(4)-steroid.
biological process
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
    GO:0008202    steroid metabolic process    The chemical reactions and pathways involving steroids, compounds with a 1,2,cyclopentanoperhydrophenanthrene nucleus.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1vzz)

  Sites
(no "Sites" information available for 1vzz)

  Cis Peptide Bonds
    Asp A:40 - Pro A:41   [ RasMol ]
    Asp B:40 - Pro B:41   [ RasMol ]

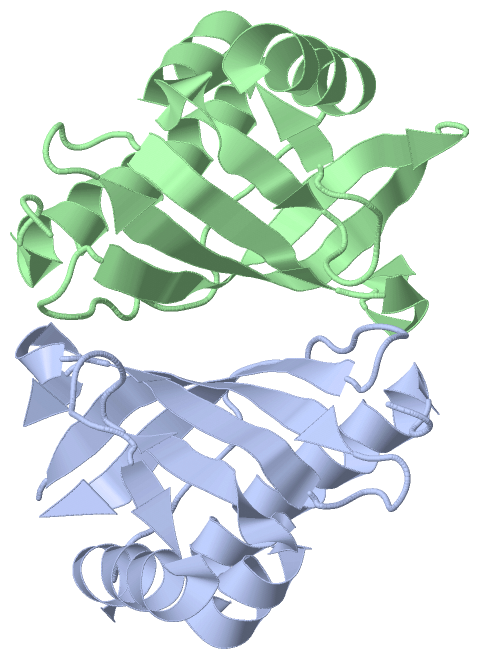

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1vzz
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SDIS_PSEPU | P07445
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.3.3.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SDIS_PSEPU | P07445
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
