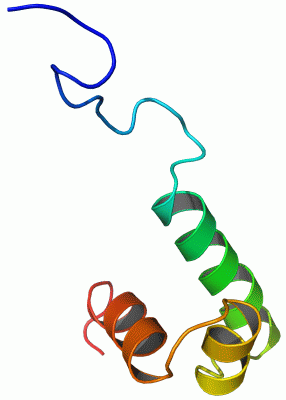

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

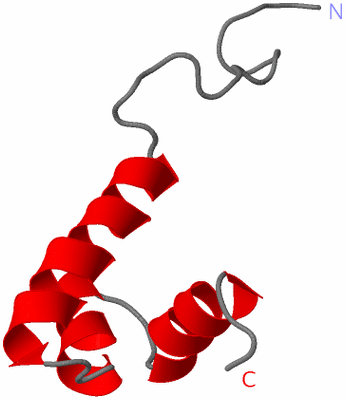

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

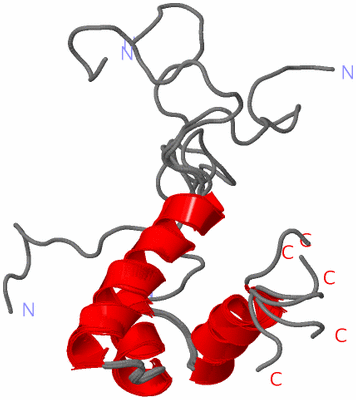

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE AND DNA BINDING OF THE EFFECTOR DOMAIN FROM THE GLOBAL REGULATOR PRRA(REGA) FROM R. SPHAEROIDES: INSIGHTS INTO DNA BINDING SPECIFICITY

Authors :  C. Laguri, M. K. Phillips-Jones, M. P. Williamson
Date :  28 Aug 03  (Deposition) - 21 Nov 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (5x)
Keywords :  Dna-Binding Protein, Response Regulator, Dna Binding Domain, Helix-Turn-Helix, Nmr, Sensory Transduction, Phosphorylation, Transcription Regulation, Dna-Binding, Activator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Laguri, M. K. Phillips-Jones, M. P. Williamson
Solution Structure And Dna Binding Of The Effector Domain From The Global Regulator Prra(Rega) From Rhodobacter Sphaeroides: Insights Into Dna Binding Specificity
Nucleic Acids Res. V. 31 6778 2003
PubMed-ID: 14627811  |  Reference-DOI: 10.1093/NAR/GKG891

(-) Compounds

Molecule 1 - PHOTOSYNTHETIC APPARATUS REGULATORY PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET14B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: DNA BINDING DOMAIN, RESIDUES 125-184
    Organism Scientific: RHODOBACTER SPHAEROIDES
    Organism Taxid: 1063
    Synonym: REGA, REGA PROTEIN, RESPONSE REGULATOR, PRRA

 Structural Features

(-) Chains, Units


NMR Structure (5x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1UMQ)

(-) Sites  (0, 0)

(no "Site" information available for 1UMQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UMQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UMQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UMQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UMQ)

(-) Exons   (0, 0)

(no "Exon" information available for 1UMQ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:60
 aligned with REGA_RHOS4 | Q53228 from UniProtKB/Swiss-Prot  Length:184

    Alignment length:60
                                   134       144       154       164       174       184
           REGA_RHOS4   125 LAKGESLPPPPENPMSADRVRWEHIQRIYEMCDRNVSETARRLNMHRRTLQRILAKRSPR 184
               SCOP domains d1umqa_ A:                                                   SCOP domains
               CATH domains 1umqA00 A:22-81 Homeodomain-like                             CATH domains
               Pfam domains ------------------------------------------------------------ Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhh...hhhhhhhh...hhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------ Transcript
                 1umq A  22 LAKGESLPPPPENPMSADRVRWEHIQRIYEMCDRNVSETARRLNMHRRTLQRILAKRSPR  81
                                    31        41        51        61        71        81
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1UMQ)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (REGA_RHOS4 | Q53228)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1umq)

  Sites
(no "Sites" information available for 1umq)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1umq)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

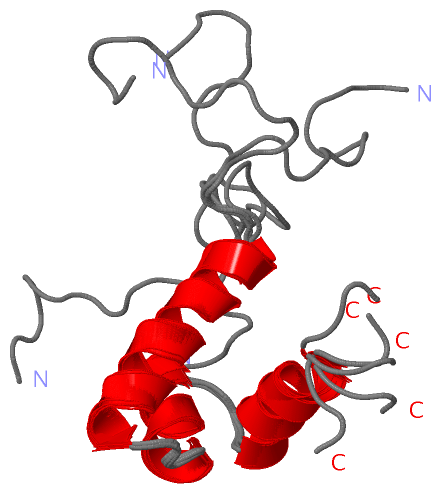

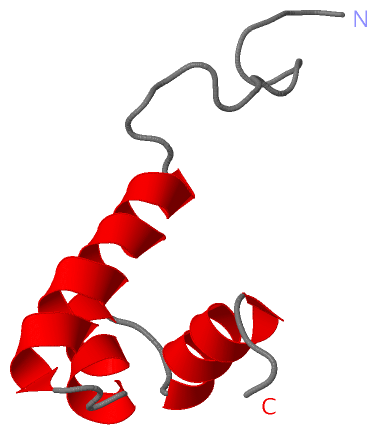

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
