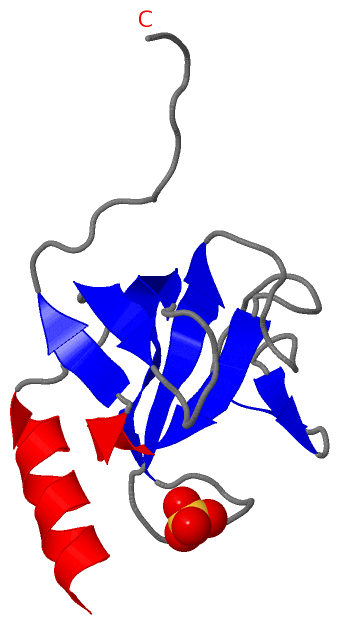

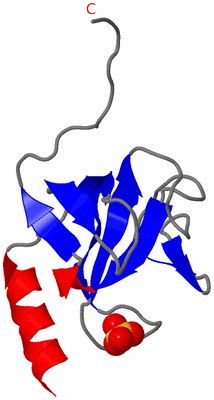

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

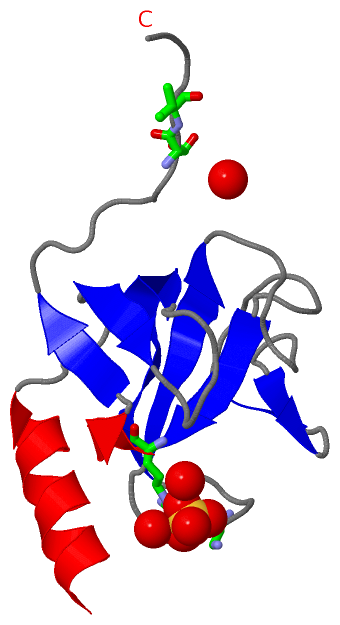

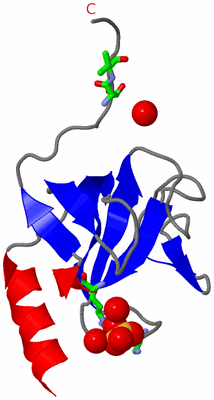

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURAL GENOMICS OF CAENORHABDITIS ELEGANS: CAP-GLY DOMAIN OF F53F4.3

Authors :  S. Li, J. Finley, Z. J. Liu, S. H. Qiu, C. H. Luan, M. Carson, J. Tsao, D. Johnson, G. Lin, J. Zhao, W. Thomas, L. A. Nagy, B. Sha, L. J. Delucas, D. Richardson, J. Richardson, B. C. Wang, M. Luo, Southeast Collaboratory For Structural Genomics (Secsg)
Date :  15 Jun 04  (Deposition) - 27 Jul 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.77
Chains :  Asym./Biol. Unit :  A
Keywords :  Cap-Gly Domain, Cytoskeleton, Tubulin, Structural Genomics, Psi, Protein Structure Initiative, Southeast Collaboratory For Structural Genomics, Secsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Li, J. Finley, Z. J. Liu, S. H. Qiu, C. H. Luan, M. Carson, J. Tsao, D. Johnson, G. Lin, J. Zhao, W. Thomas, L. A. Nagy, B. Sha, L. J. Delucas, B. C. Wang, M. Luo
Crystal Structure Of The Cytoskeleton-Associated Protein Glycine-Rich (Cap-Gly) Domain
J. Biol. Chem. V. 277 48596 2002
PubMed-ID: 12221106  |  Reference-DOI: 10.1074/JBC.M208512200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN F53F4.3 IN CHROMOSOME V
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PDEST 17.1
    Fragment: CAP-GLY DOMAIN
    Gene: F53F4.3
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:175 , ARG A:212 , SER A:225 , ILE A:226 , HOH A:571 , HOH A:574 , HOH A:601BINDING SITE FOR RESIDUE SO4 A 490

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TOV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TOV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TOV)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CAP_GLY_1PS00845 CAP-Gly domain signature.TBCB_CAEEL170-201  1A:170-201
2CAP_GLY_2PS50245 CAP-Gly domain profile.TBCB_CAEEL170-212  1A:170-212

(-) Exons   (0, 0)

(no "Exon" information available for 1TOV)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:98
 aligned with TBCB_CAEEL | Q20728 from UniProtKB/Swiss-Prot  Length:229

    Alignment length:98
                                   141       151       161       171       181       191       201       211       221
           TBCB_CAEEL   132 ENESDKLNEEAAKNIMVGNRCEVTVGAQMARRGEVAYVGATKFKEGVWVGVKYDEPVGKNDGSVAGVRYFDCDPKYGGFVRPVDVKVGDFPELSIDEI 229
               SCOP domains d1tova_ A: Cytoskeleton-associated protein F53F4.3                                                 SCOP domains
               CATH domains 1tovA00 A:132-229  [code=2.30.30.190, no name defined]                                             CATH domains
               Pfam domains ----------------CAP_GLY-1tovA01 A:148-217                                             ------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhh......eeee.......eeeeeeeee........eeeeee.........ee..ee........eeeehhh.eee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------CAP_GLY_2  PDB: A:170-212 UniProt: 170-212 ----------------- PROSITE (1)
                PROSITE (2) --------------------------------------CAP_GLY_1  PDB: A:170-201       ---------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1tov A 132 ENESDKLNEEAAKNIMVGNRCEVTVGAQMARRGEVAYVGATKFKEGVWVGVKYDEPVGKNDGSVAGVRYFDCDPKYGGFVRPVDVKVGDFPELSIDEI 229
                                   141       151       161       171       181       191       201       211       221
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: CAP_GLY] (11)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (TBCB_CAEEL | Q20728)
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005874    microtubule    Any of the long, generally straight, hollow tubes of internal diameter 12-15 nm and external diameter 24 nm found in a wide variety of eukaryotic cells; each consists (usually) of 13 protofilaments of polymeric tubulin, staggered in such a manner that the tubulin monomers are arranged in a helical pattern on the microtubular surface, and with the alpha/beta axes of the tubulin subunits parallel to the long axis of the tubule; exist in equilibrium with pool of tubulin monomers and can be rapidly assembled or disassembled in response to physiological stimuli; concerned with force generation, e.g. in the spindle.
