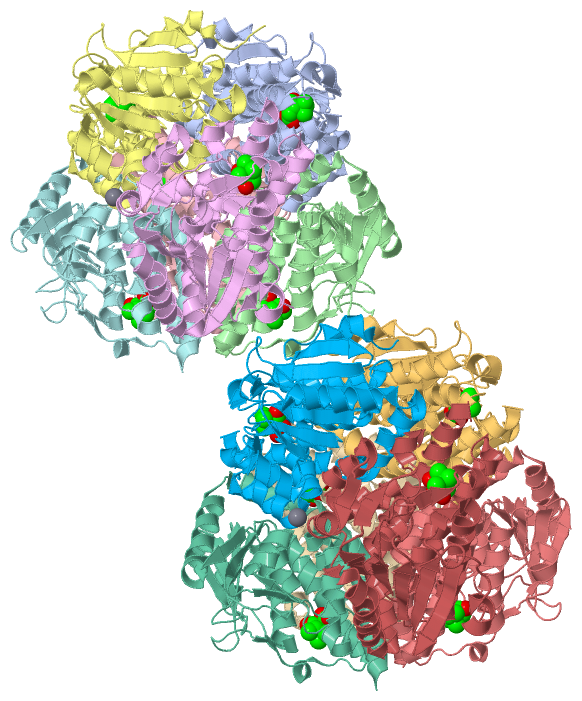

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

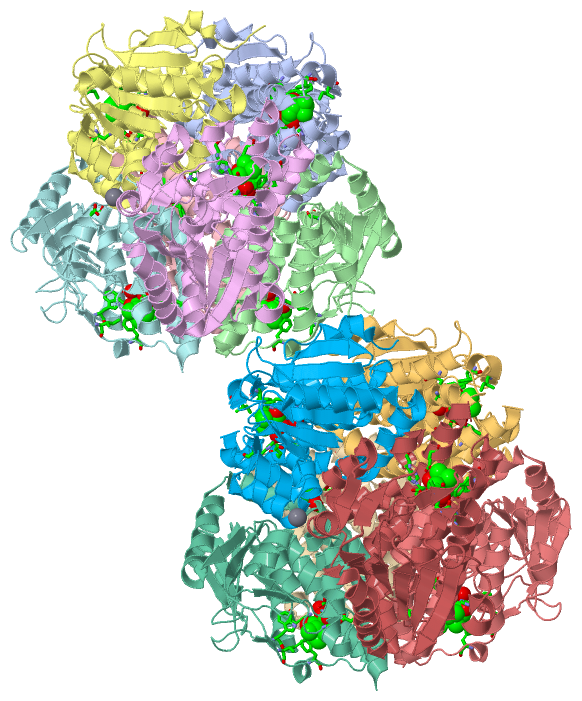

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

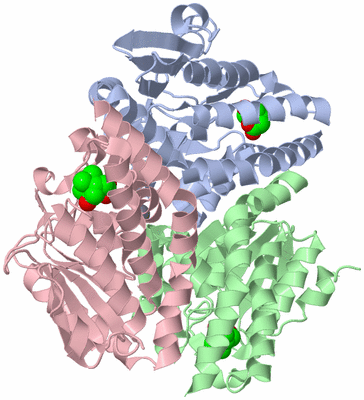

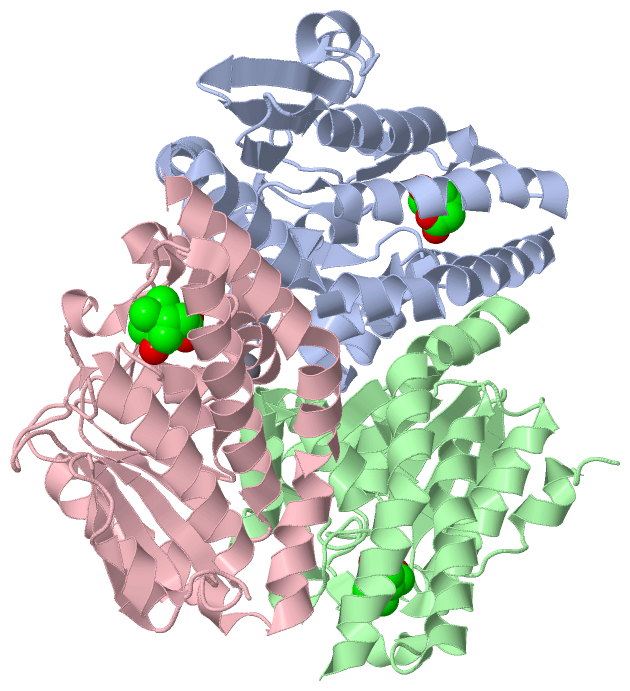

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

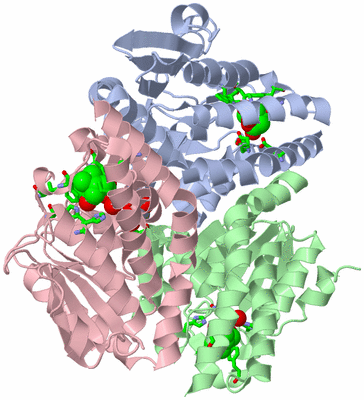

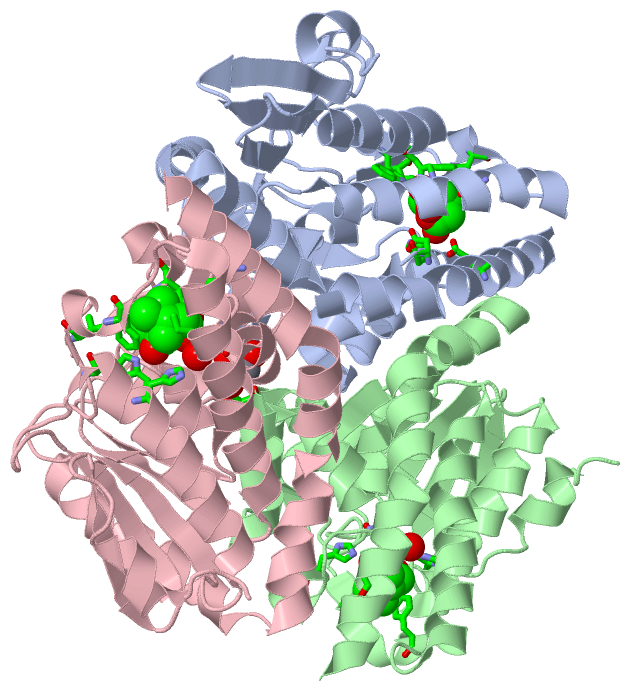

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

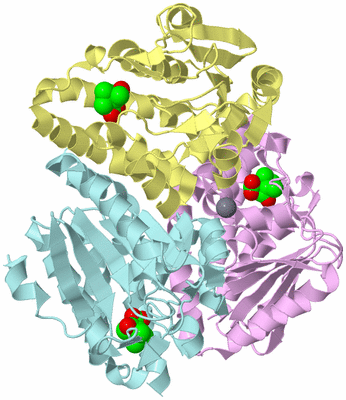

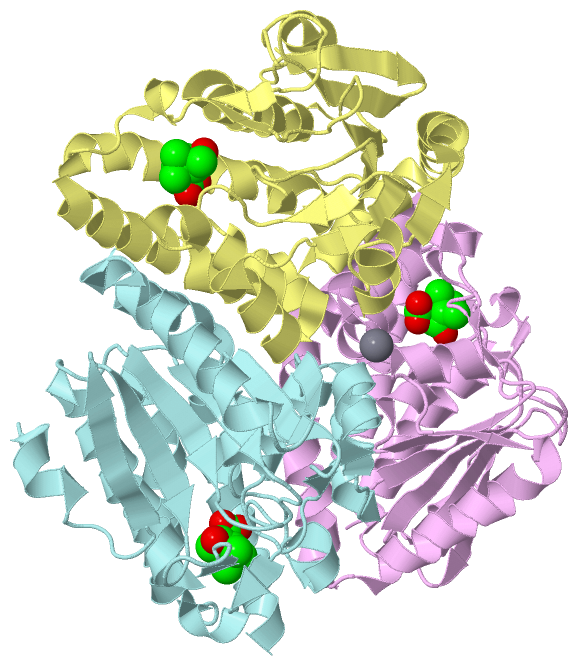

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

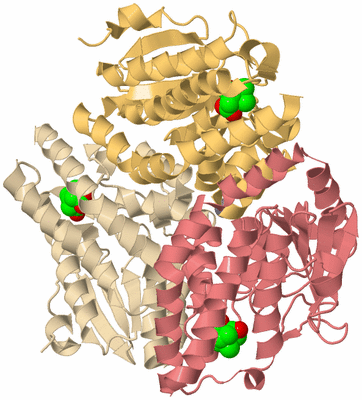

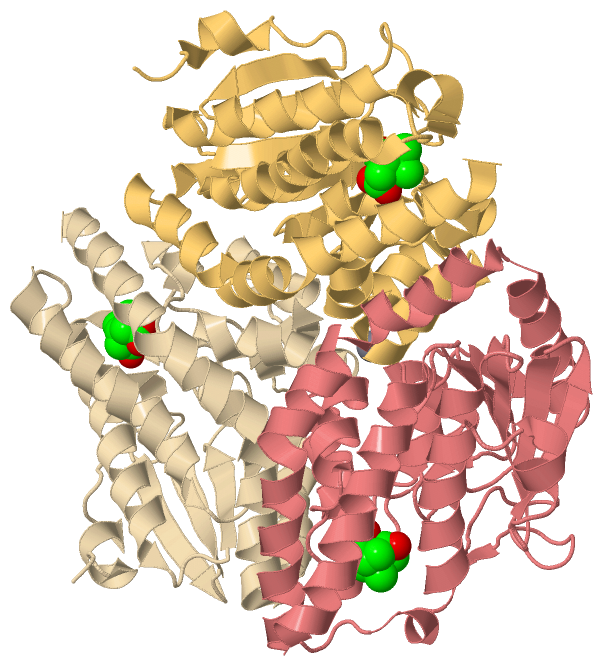

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

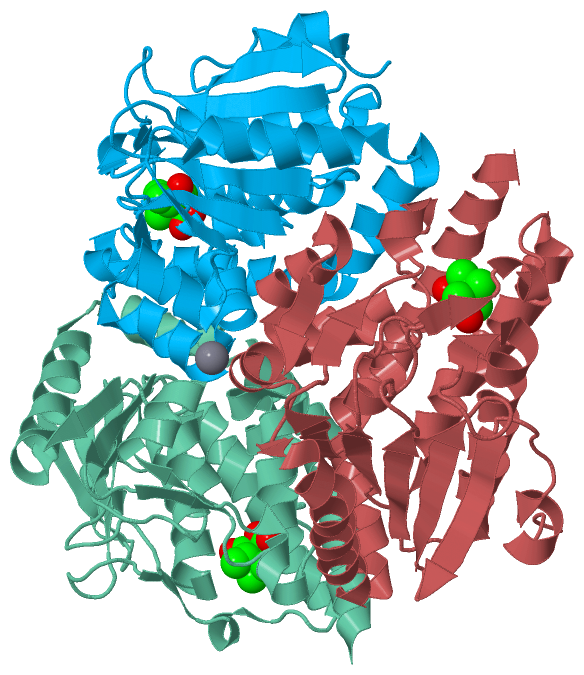

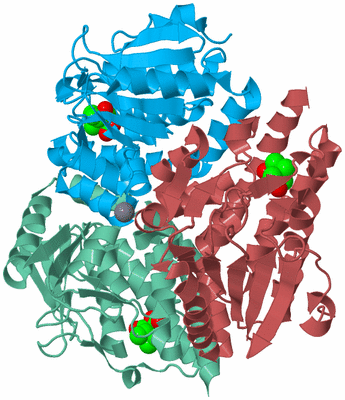

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

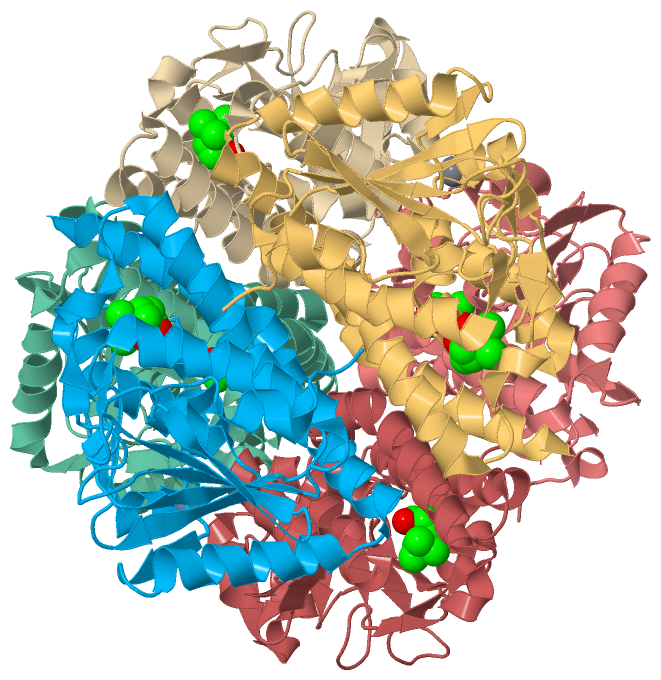

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

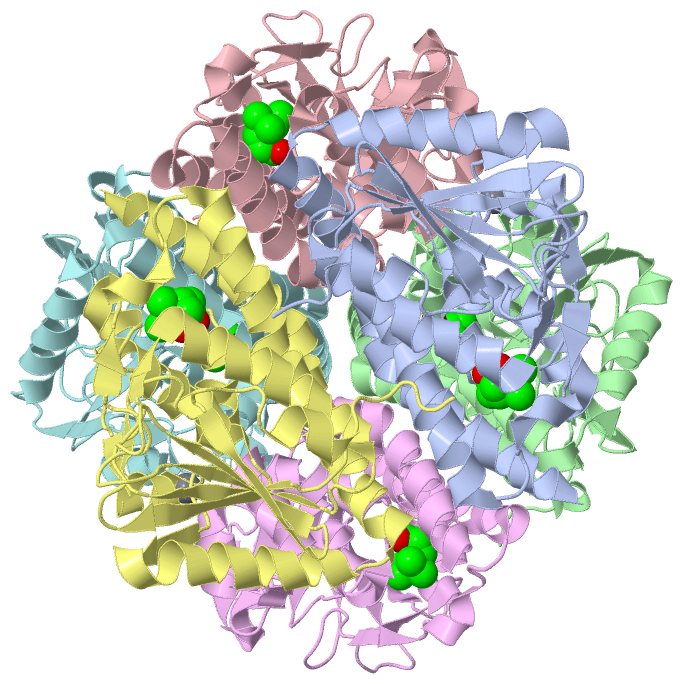

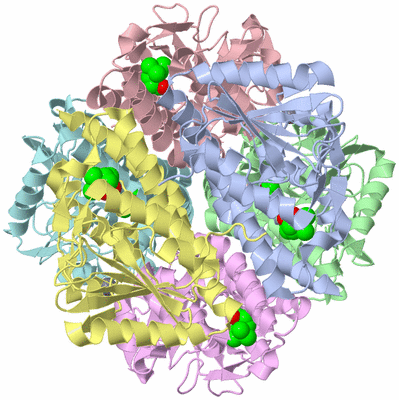

Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE ANALYSIS OF THE 6-OXO CAMPHOR HYDROLASE HIS122ALA MUTANT BOUND TO ITS NATURAL PRODUCT (2S,4S)-ALPHA-CAMPHOLINIC ACID

Authors :  P. M. Leonard, G. Grogan
Date :  06 Apr 04  (Deposition) - 29 Jun 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B,C  (1x)
Biol. Unit 2:  D,E,F  (1x)
Biol. Unit 3:  G,H,I  (1x)
Biol. Unit 4:  J,K,L  (1x)
Biol. Unit 5:  G,H,I,J,K,L  (1x)
Biol. Unit 6:  A,B,C,D,E,F  (1x)
Keywords :  Enzyme-Product Complex, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. M. Leonard, G. Grogan
Structure Of 6-Oxo Camphor Hydrolase H122A Mutant Bound To Its Natural Product, (2S, 4S)-Alpha-Campholinic Acid: Mutant Structure Suggests An Atypical Mode Of Transition State Binding For A Crotonase Homolog.
J. Biol. Chem. V. 279 31312 2004
PubMed-ID: 15138275  |  Reference-DOI: 10.1074/JBC.M403514200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 6-OXOCAMPHOR HYDROLASE
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-26B (NOVAGEN)
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: CAMK
    Mutation: YES
    Organism Scientific: RHODOCOCCUS SP. NCIMB 9784
    Organism Taxid: 157732

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): ABC
Biological Unit 2 (1x):    DEF
Biological Unit 3 (1x):       GHI
Biological Unit 4 (1x):          JKL
Biological Unit 5 (1x):       GHIJKL
Biological Unit 6 (1x): ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 16)

Asymmetric Unit (2, 16)
No.NameCountTypeFull Name
1CA4Ligand/IonCALCIUM ION
2CAX12Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CAX3Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CAX3Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE
Biological Unit 3 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CAX3Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE
Biological Unit 4 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CAX3Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE
Biological Unit 5 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CAX6Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE
Biological Unit 6 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CAX6Ligand/Ion(2S,4S)-4-(2,2-DIHYDROXYETHYL)-2,3,3-TRIMETHYLCYCLOPENTANONE

(-) Sites  (16, 16)

Asymmetric Unit (16, 16)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREHOH A:5058 , HOH A:5059 , ASP B:186 , HOH B:5092 , HOH B:5108 , HOH C:5039 , HOH C:5077BINDING SITE FOR RESIDUE CA B 2001
02AC2SOFTWAREHOH D:5090 , HOH E:5022 , HOH E:5074 , HOH E:5152 , ASP F:186 , HOH F:5112 , HOH F:5132BINDING SITE FOR RESIDUE CA F 2002
03AC3SOFTWAREHOH G:5045 , HOH G:5129 , HOH H:5116 , HOH I:5057 , HOH I:5066 , HOH I:5069BINDING SITE FOR RESIDUE CA I 2003
04AC4SOFTWAREHOH J:5051 , HOH J:5102 , HOH J:5111 , HOH K:5065 , HOH K:5066 , HOH L:5143BINDING SITE FOR RESIDUE CA K 2004
05AC5SOFTWARETRP A:40 , HIS A:45 , ILE A:77 , PHE A:82 , ILE A:93 , HIS A:145 , ASP A:154 , GLU A:244 , HOH A:5007BINDING SITE FOR RESIDUE CAX A 5001
06AC6SOFTWARETRP B:40 , HIS B:45 , ILE B:77 , PHE B:82 , HIS B:145 , ASP B:154 , GLU B:244 , HOH B:5032BINDING SITE FOR RESIDUE CAX B 5002
07AC7SOFTWARETRP C:40 , HIS C:45 , ILE C:77 , PHE C:82 , ILE C:93 , HIS C:145 , ASP C:154 , GLU C:244 , HOH C:5034BINDING SITE FOR RESIDUE CAX C 5003
08AC8SOFTWARETRP D:40 , HIS D:45 , ILE D:77 , PHE D:82 , ILE D:93 , HIS D:145 , ASP D:154 , GLU D:244 , HOH D:5021BINDING SITE FOR RESIDUE CAX D 5004
09AC9SOFTWARETRP E:40 , HIS E:45 , ILE E:77 , PHE E:82 , ILE E:93 , HIS E:145 , ASP E:154 , GLU E:244 , HOH E:5036BINDING SITE FOR RESIDUE CAX E 5005
10BC1SOFTWARETRP F:40 , HIS F:45 , ILE F:77 , PHE F:82 , ILE F:93 , HIS F:145 , ASP F:154 , GLU F:244 , HOH F:5034 , HOH F:5087BINDING SITE FOR RESIDUE CAX F 5006
11BC2SOFTWARETRP G:40 , HIS G:45 , ILE G:77 , PHE G:82 , ILE G:93 , HIS G:145 , ASP G:154 , GLU G:244 , HOH G:5052BINDING SITE FOR RESIDUE CAX G 5007
12BC3SOFTWARETRP H:40 , HIS H:45 , ILE H:77 , PHE H:82 , ILE H:93 , HIS H:145 , ASP H:154 , GLU H:244 , HOH H:5026 , HOH H:5035BINDING SITE FOR RESIDUE CAX H 5008
13BC4SOFTWARETRP I:40 , HIS I:45 , ILE I:77 , PHE I:82 , ILE I:93 , HIS I:145 , ASP I:154 , GLU I:244 , HOH I:5027BINDING SITE FOR RESIDUE CAX I 5009
14BC5SOFTWARETRP J:40 , HIS J:45 , ILE J:77 , PHE J:82 , ILE J:93 , HIS J:145 , ASP J:154 , GLU J:244 , HOH J:5024BINDING SITE FOR RESIDUE CAX J 5010
15BC6SOFTWARETRP K:40 , HIS K:45 , ILE K:77 , PHE K:82 , ILE K:93 , HIS K:145 , ASP K:154 , GLU K:244 , HOH K:5044BINDING SITE FOR RESIDUE CAX K 5011
16BC7SOFTWARETRP L:40 , HIS L:45 , ILE L:77 , PHE L:82 , ILE L:93 , HIS L:145 , ASP L:154 , GLU L:244 , HOH L:5066BINDING SITE FOR RESIDUE CAX L 5012

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SZO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SZO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SZO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SZO)

(-) Exons   (0, 0)

(no "Exon" information available for 1SZO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:249
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:249
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szoa_ A: 6-oxo camphor hydrolase                                                                                                                                                                                                                        SCOP domains
               CATH domains 1szoA00 A:4-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                  CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...eee...hhhhh.....hhhhhhhhhhhhhhhhhhhhh..eeehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo A   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain B from PDB  Type:PROTEIN  Length:248
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:248
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
               SCOP domains d1szob_ B: 6-oxo camphor hydrolase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1szoB00 B:4-251 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo B   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain C from PDB  Type:PROTEIN  Length:248
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:248
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
               SCOP domains d1szoc_ C: 6-oxo camphor hydrolase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1szoC00 C:4-251 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...eee...hhhhh.....hhhhhhhhhhhhhhhhhhhhh..eeehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo C   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain D from PDB  Type:PROTEIN  Length:251
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:251
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           CAMK_RHOSO     2 KQLATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szod_ D: 6-oxo camphor hydrolase                                                                                                                                                                                                                          SCOP domains
               CATH domains 1szoD00 D:2-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                    CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhh....eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo D   2 KQLATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251


Chain E from PDB  Type:PROTEIN  Length:248
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:248
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
               SCOP domains d1szoe_ E: 6-oxo camphor hydrolase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1szoE00 E:4-251 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo E   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain F from PDB  Type:PROTEIN  Length:248
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:248
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
           CAMK_RHOSO     5 ATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szof_ F: 6-oxo camphor hydrolase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1szoF00 F:5-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eee...hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo F   5 ATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244


Chain G from PDB  Type:PROTEIN  Length:249
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:249
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szog_ G: 6-oxo camphor hydrolase                                                                                                                                                                                                                        SCOP domains
               CATH domains 1szoG00 G:4-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                  CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eee...hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo G   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain H from PDB  Type:PROTEIN  Length:248
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:248
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
               SCOP domains d1szoh_ H: 6-oxo camphor hydrolase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1szoH00 H:4-251 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eee...hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo H   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDL 251
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain I from PDB  Type:PROTEIN  Length:249
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:249
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szoi_ I: 6-oxo camphor hydrolase                                                                                                                                                                                                                        SCOP domains
               CATH domains 1szoI00 I:4-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                  CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...ee....hhhhh.....hhhhhhhhhhhhhhhhhhhhh...eehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo I   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain J from PDB  Type:PROTEIN  Length:249
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:249
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szoj_ J: 6-oxo camphor hydrolase                                                                                                                                                                                                                        SCOP domains
               CATH domains 1szoJ00 J:4-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                  CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...eee...hhhhh.....hhhhhhhhhhhhhhhhhhhhh..eeehhhhhhh....eee...hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo J   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain K from PDB  Type:PROTEIN  Length:249
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:249
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
           CAMK_RHOSO     4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szok_ K: 6-oxo camphor hydrolase                                                                                                                                                                                                                        SCOP domains
               CATH domains 1szoK00 K:4-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                  CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...eee...hhhhh.....hhhhhhhhhhhhhhhhhhhhh..eeehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo K   4 LATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243


Chain L from PDB  Type:PROTEIN  Length:248
 aligned with CAMK_RHOSO | Q93TU6 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:248
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
           CAMK_RHOSO     5 ATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNHPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
               SCOP domains d1szol_ L: 6-oxo camphor hydrolase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1szoL00 L:5-252 2-enoyl-CoA Hydratase; Chain A, domain 1                                                                                                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhh.....eeeeee..eeeeee.......eehhhhhhhhhhhhhhhhhh....eeeee........ee.hhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhh..eeeee...eee...hhhhh.....hhhhhhhhhhhhhhhhhhhhh..eeehhhhhhh....eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1szo L   5 ATPFQEYSQKYENIRLERDGGVLLVTVHTEGKSLVWTSTAHDELAYCFHDIACDRENKVVILTGTGPSFCNEIDFTSFNLGTPHDWDEIIFEGQRLLNNLLSIEVPVIAAVNGPVTNAPEIPVMSDIVLAAESATFQDGPHFPSGIVPGDGAHVVWPHVLGSNRGRYFLLTGQELDARTALDYGAVNEVLSEQELLPRAWELARGIAEKPLLARRYARKVLTRQLRRVMEADLSLGLAHEALAAIDLG 252
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 12)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 12)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1SZO)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L   (CAMK_RHOSO | Q93TU6)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016823    hydrolase activity, acting on acid carbon-carbon bonds, in ketonic substances    Catalysis of the hydrolysis of any acid carbon-carbon bond in a ketonic substance, a substance containing a keto (C=O) group.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CAX  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1szo)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1szo
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAMK_RHOSO | Q93TU6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CAMK_RHOSO | Q93TU6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAMK_RHOSO | Q93TU6: 1o8u

(-) Related Entries Specified in the PDB File

1dub ENOYL-COA HYDRATASE
1o8u 6-OXO CAMPHOR HYDROLASE
