1RR7 - JenaLib

Title :   CRYSTAL STRUCTURE OF THE MIDDLE OPERON REGULATOR PROTEIN OF BACTERIOPHAGE MU

Authors :   M. Kumaraswami, M. M. Howe, H. W. Park

Date :   08 Dec 03 (Deposition) - 17 Aug 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.20

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)
Biol. Unit 2: A  (2x)

Keywords :   Mor, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Kumaraswami, M. M. Howe, H. W. Park
Crystal Structure Of The Mor Protein Of Bacteriophage Mu, A Member Of The Mor/C Family Of Transcription Activators.
J. Biol. Chem. V. 279 16581 2004
PubMed-ID: 14729670 | Reference-DOI: 10.1074/JBC.M313555200

Compounds

Molecule 1 - MIDDLE OPERON REGULATOR
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PACYC184
	Expression System Strain	:	JM109(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	MIDDLE OPERON REGULATOR PROTEIN
	Gene	:	MOR
	Organism Scientific	:	ENTEROBACTERIA PHAGE MU
	Organism Taxid	:	10677
	Synonym	:	PROTEIN MOR, PROTEIN E17

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:94
 aligned with MOR_BPMU | P23848 from UniProtKB/Swiss-Prot  Length:129

    Alignment length:94
                                    36        46        56        66        76        86        96       106       116
             MOR_BPMU    27 RFPALLAELNDLLRGELSRLGVDPAHSLEIVVAICKHLGGGQVYIPRGQALDSLIRDLRIWNDFNGRNVSELTTRYGVTFNTVYKAIRRMRRLK 120
               SCOP domains d1rr7a_ A: Middle operon regulator, Mor                                                        SCOP domains
               CATH domains ----------------------------------------------1rr7A02 A:73-120 Homeodomain-like                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                 1rr7 A  27 RFPALLAELNDLLRGELSRLGVDPAHSLEIVVAICKHLGGGQVYIPRGQALDSLIRDLRIWNDFNGRNVSELTTRYGVTFNTVYKAIRRMRRLK 120
                                    36        46        56        66        76        86        96       106       116

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (4, 4)

Asymmetric Unit(hide GO term definitions)

Chain A (MOR_BPMU | P23848)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0030430	host cell cytoplasm	The cytoplasm of a host cell.

Visualization

Interactive Views

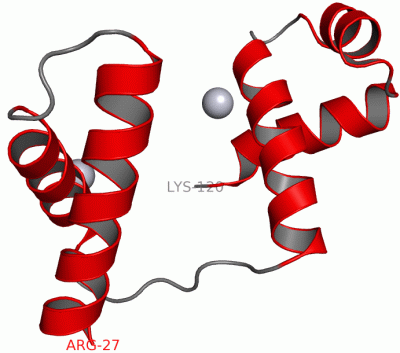

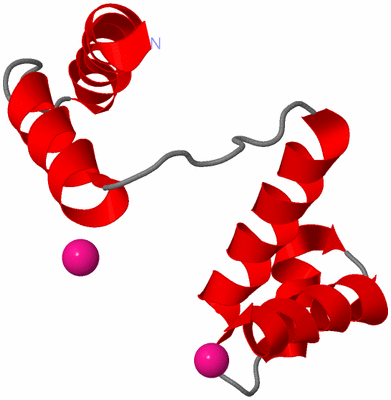

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1rr7)

Biological Units
	Complete Structure

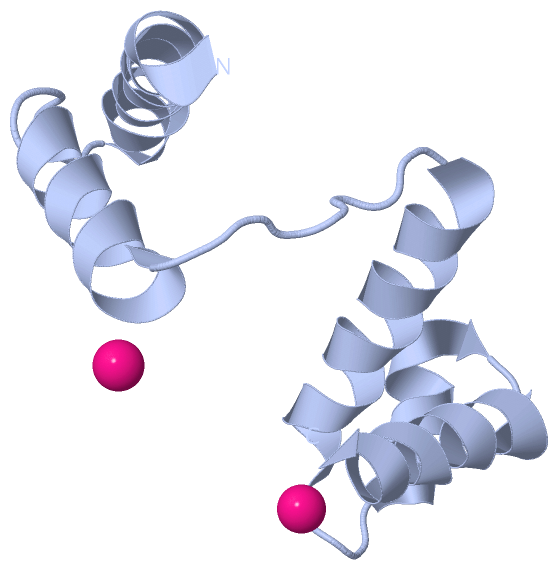

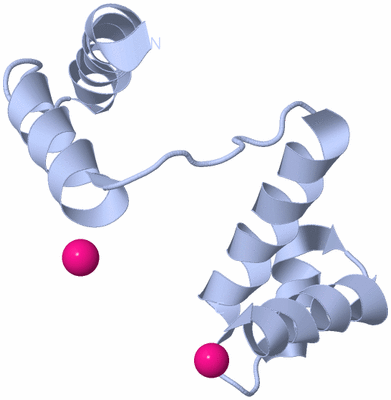

		Biological Unit 1	[ Jena3D ]

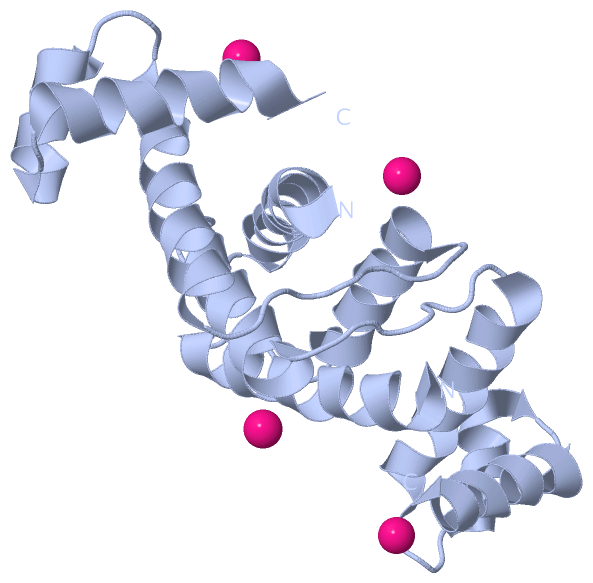

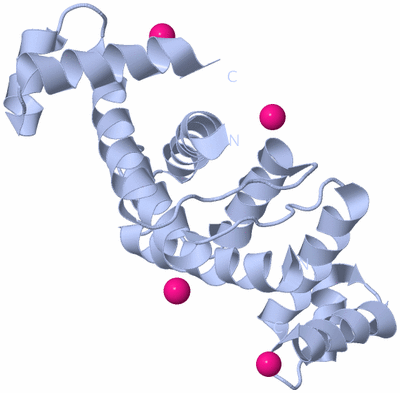

		Biological Unit 2	[ Jena3D ]

Still Images

Jmol

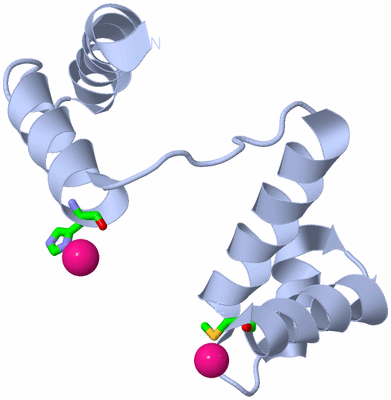

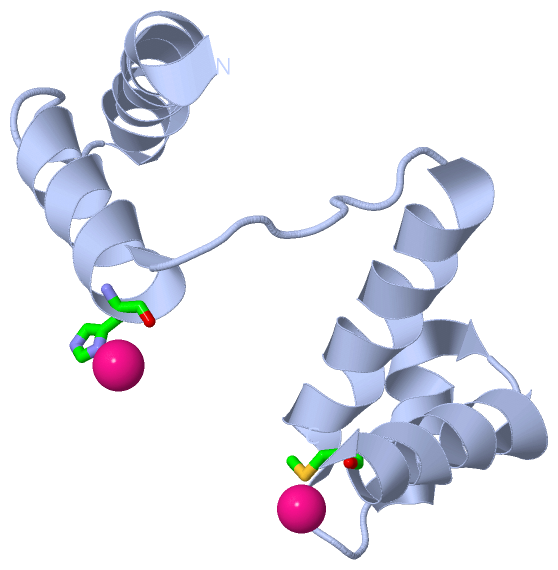

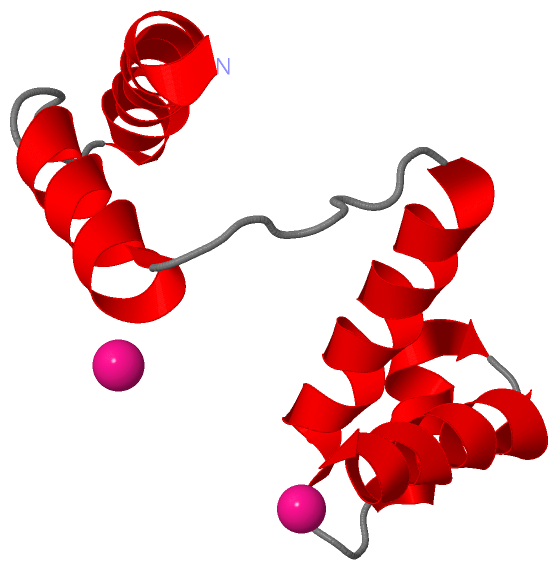

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
