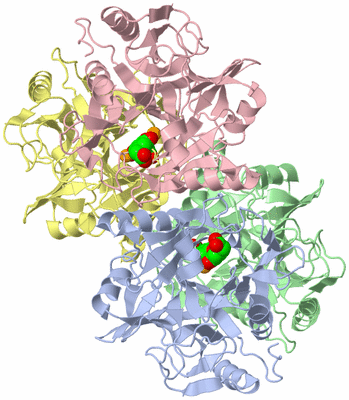

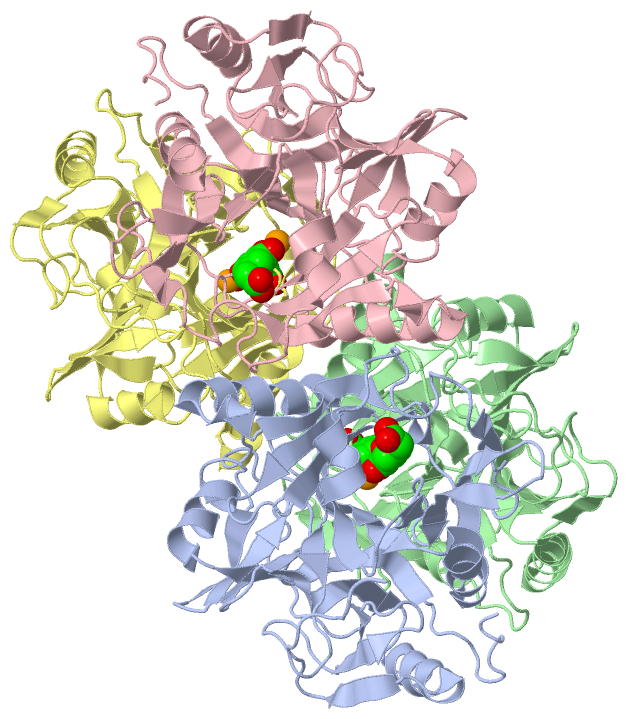

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

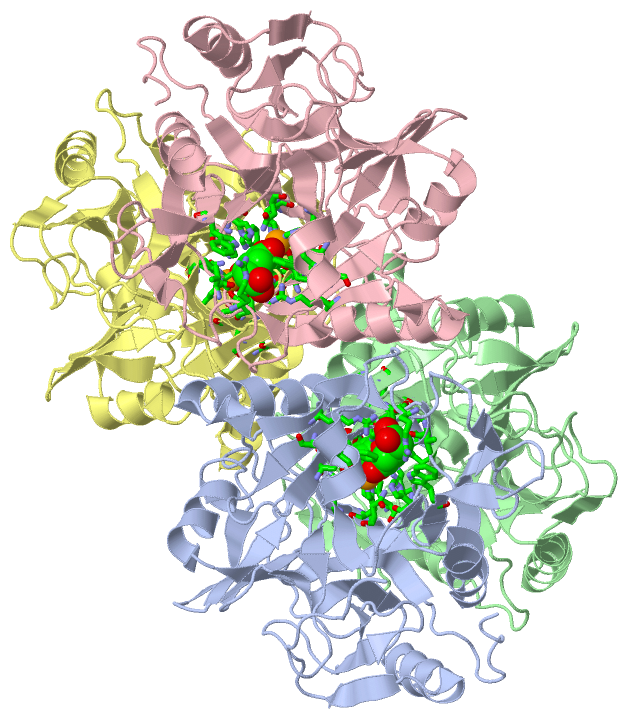

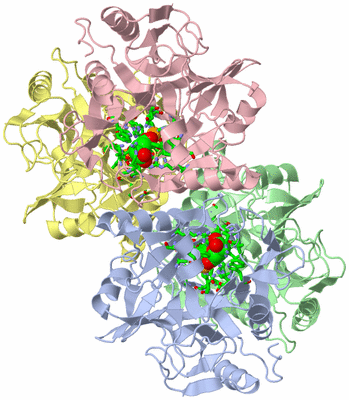

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ANEROBIC SUBSTRATE COMPLEX OF HOMOPROTOCATECHUATE 2,3-DIOXYGENASE FROM BREVIBACTERIUM FUSCUM. (COMPLEX WITH 3,4-DIHYDROXYPHENYLACETATE)

Authors :  M. W. Vetting, L. P. Wackett, L. Que, J. D. Lipscomb, D. H. Ohlendorf
Date :  15 Jul 03  (Deposition) - 29 Jul 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Extradiol Dioxygenase, Substrate Complex, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. W. Vetting, L. P. Wackett, L. Que, J. D. Lipscomb, D. H. Ohlendorf
Crystallographic Comparison Of Manganese- And Iron-Dependent Homoprotocatechuate 2, 3-Dioxygenases.
J. Bacteriol. V. 186 1945 2004
PubMed-ID: 15028678  |  Reference-DOI: 10.1128/JB.186.7.1945-1958.2004
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HOMOPROTOCATECHUATE 2,3-DIOXYGENASE
    Chains: A, B, C, D
    EC Number: 1.13.11.15
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: BREVIBACTERIUM FUSCUM
    Organism Taxid: 47914
    Synonym: 3,4-DIHYDROXYPHENYLACETATE 2,3-DIOXYGENASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 8)

Asymmetric/Biological Unit (2, 8)
No.NameCountTypeFull Name
1DHY4Ligand/Ion2-(3,4-DIHYDROXYPHENYL)ACETIC ACID
2FE4Ligand/IonFE (III) ION

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:155 , HIS A:214 , GLU A:267 , DHY A:999BINDING SITE FOR RESIDUE FE A 500
2AC2SOFTWAREHIS B:155 , HIS B:214 , GLU B:267 , DHY B:999BINDING SITE FOR RESIDUE FE B 500
3AC3SOFTWAREHIS C:155 , HIS C:214 , GLU C:267 , DHY C:999BINDING SITE FOR RESIDUE FE C 500
4AC4SOFTWAREHIS D:155 , HIS D:214 , GLU D:267 , DHY D:999BINDING SITE FOR RESIDUE FE D 500
5AC5SOFTWAREHIS A:155 , ASN A:157 , TRP A:192 , HIS A:200 , HIS A:214 , ARG A:243 , HIS A:248 , VAL A:250 , SER A:251 , TYR A:257 , GLU A:267 , TYR A:269 , ARG A:293 , TRP A:304 , FE A:500BINDING SITE FOR RESIDUE DHY A 999
6AC6SOFTWAREHIS B:155 , TRP B:192 , HIS B:200 , HIS B:214 , ARG B:243 , HIS B:248 , VAL B:250 , SER B:251 , TYR B:257 , GLU B:267 , ARG B:293 , TRP B:304 , FE B:500BINDING SITE FOR RESIDUE DHY B 999
7AC7SOFTWAREHIS C:155 , ASN C:157 , TRP C:192 , HIS C:200 , HIS C:214 , ARG C:243 , HIS C:248 , VAL C:250 , SER C:251 , TYR C:257 , GLU C:267 , TYR C:269 , ARG C:293 , TRP C:304 , FE C:500BINDING SITE FOR RESIDUE DHY C 999
8AC8SOFTWAREHIS D:155 , ASN D:157 , TRP D:192 , HIS D:200 , HIS D:214 , ARG D:243 , HIS D:248 , VAL D:250 , SER D:251 , TYR D:257 , GLU D:267 , TYR D:269 , ARG D:293 , TRP D:304 , FE D:500BINDING SITE FOR RESIDUE DHY D 999

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Q0C)

(-) Cis Peptide Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1Gly A:209 -Pro A:210
2Gly A:244 -Pro A:245
3Gly B:209 -Pro B:210
4Gly B:244 -Pro B:245
5Gly C:209 -Pro C:210
6Gly C:244 -Pro C:245
7Gly D:209 -Pro D:210
8Gly D:244 -Pro D:245

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Q0C)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Q0C)

(-) Exons   (0, 0)

(no "Exon" information available for 1Q0C)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:319
 aligned with Q45135_9MICO | Q45135 from UniProtKB/TrEMBL  Length:365

    Alignment length:319
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313
         Q45135_9MICO     4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
               SCOP domains d1q0ca1 A:4-147 Homoprotocatechuate 2,3-dioxygenase                                                                                             d1q0ca2 A:148-322 Homoprotocatechuate 2,3-dioxygenase                                                                                                                           SCOP domains
               CATH domains 1q0cA01 A:4-138 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                        -----------1q0cA02 A:150-311 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                                 ----------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeeeeeee.hhhhhhhhhh.....eeeee...eeeee.........eeeee....eeeeeeeee..hhhhhhhhhhhhhh..eeeee..........eeeee.....eeeee......................eeeeeeeee.hhhhhhhhhhhh..eeeeeee.....eeeeeee.......eeeee....eeeeeeee..hhhhhhhhhhhhhhh.hhh.eeeeeee.hhhh.eeeeee.....eeeeee............eeee..............hhhhhhh.ee............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q0c A   4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313


Chain B from PDB  Type:PROTEIN  Length:319
 aligned with Q45135_9MICO | Q45135 from UniProtKB/TrEMBL  Length:365

    Alignment length:319
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313
         Q45135_9MICO     4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
               SCOP domains d1q0cb1 B:4-147 Homoprotocatechuate 2,3-dioxygenase                                                                                             d1q0cb2 B:148-322 Homoprotocatechuate 2,3-dioxygenase                                                                                                                           SCOP domains
               CATH domains 1q0cB01 B:4-138 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                        -----------1q0cB02 B:150-311 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                                 ----------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeeeeeee.hhhhhhhhhhh....eeeee...eeeee.........eeeee....eeeeeeeee.hhhhhhhhhhhhhhh...eeee..........eeeee.....eeeee......................eeeeeeeee.hhhhhhhhhhhh..eeeeeee.....eeeeeee.......eeeee....eeeeeeee..hhhhhhhhhhhhhhh.hhh.eeeeeee......eeeeee.....eeeeee............eeee..............hhhhhhh.ee............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q0c B   4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313


Chain C from PDB  Type:PROTEIN  Length:319
 aligned with Q45135_9MICO | Q45135 from UniProtKB/TrEMBL  Length:365

    Alignment length:319
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313
         Q45135_9MICO     4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
               SCOP domains d1q0cc1 C:4-147 Homoprotocatechuate 2,3-dioxygenase                                                                                             d1q0cc2 C:148-322 Homoprotocatechuate 2,3-dioxygenase                                                                                                                           SCOP domains
               CATH domains 1q0cC01 C:4-138 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                        -----------1q0cC02 C:150-311 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                                 ----------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeeeeeee.hhhhhhhhhh.....eeeee...eeeee.........eeeee....eeeeeeeee..hhhhhhhhhhhhhh...eeee..........eeeee.....eeeee......................eeeeeeeee.hhhhhhhhhhhh..eeeeeee.....eeeeeee.......eeeee....eeeeeeee..hhhhhhhhhhhhhhh.hhh.eeeeeee......eeeeee.....eeeeee............eeee..............hhhhhhh............... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q0c C   4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313


Chain D from PDB  Type:PROTEIN  Length:319
 aligned with Q45135_9MICO | Q45135 from UniProtKB/TrEMBL  Length:365

    Alignment length:319
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313
         Q45135_9MICO     4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
               SCOP domains d1q0cd1 D:4-147 Homoprotocatechuate 2,3-dioxygenase                                                                                             d1q0cd2 D:148-322 Homoprotocatechuate 2,3-dioxygenase                                                                                                                           SCOP domains
               CATH domains 1q0cD01 D:4-138 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                        -----------1q0cD02 D:150-311 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                                 ----------- CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD01 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD02 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (2)
           Pfam domains (3) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD03 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (3)
           Pfam domains (4) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD04 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (4)
           Pfam domains (5) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD05 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (5)
           Pfam domains (6) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD06 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (6)
           Pfam domains (7) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD07 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (7)
           Pfam domains (8) ----------------------------------------------------------------------------------------------------------------------------------------------------Glyoxalase-1q0cD08 D:152-268                                                                                         ------------------------------------------------------ Pfam domains (8)
         Sec.struct. author ...........eeeeeeeeeee.hhhhhhhhhh.....eeeee...eeeee.........eeeee....eeeeeeeee..hhhhhhhhhhhhhh...eeee..........eeeee.....eeeee......................eeeeeeeee.hhhhhhhhhhhh..eeeeeee.....eeeeeee.......eeeee....eeeeeeee..hhhhhhhhhhhhhhh.hhh.eeeeeee.hhhh.eeeeee.....eeeeee............eeee..............hhhhhhh.ee............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q0c D   4 EIPKPVAPAPDILRCAYAELVVTDLAKSRNFYVDVLGLHVSYEDENQIYLRSFEEFIHHNLVLTKGPVAALKAMAFRVRTPEDVDKAEAYYQELGCRTERRKDGFVKGIGDALRVEDPLGFPYEFFFETTHVERLHMRYDLYSAGELVRLDHFNQVTPDVPRGRKYLEDLGFRVTEDIQDDEGTTYAAWMHRKGTVHDTALTGGNGPRLHHVAFSTHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDNHRIEIYTQDYYTGDPDNPTITWNVHDNQRRDWWGNPVVPSWYTEASKVLDLDGNVQEII 322
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Clan: Glyoxalase (58)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (Q45135_9MICO | Q45135)
molecular function
    GO:0051213    dioxygenase activity    Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
