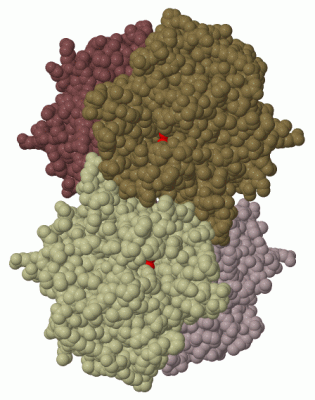

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

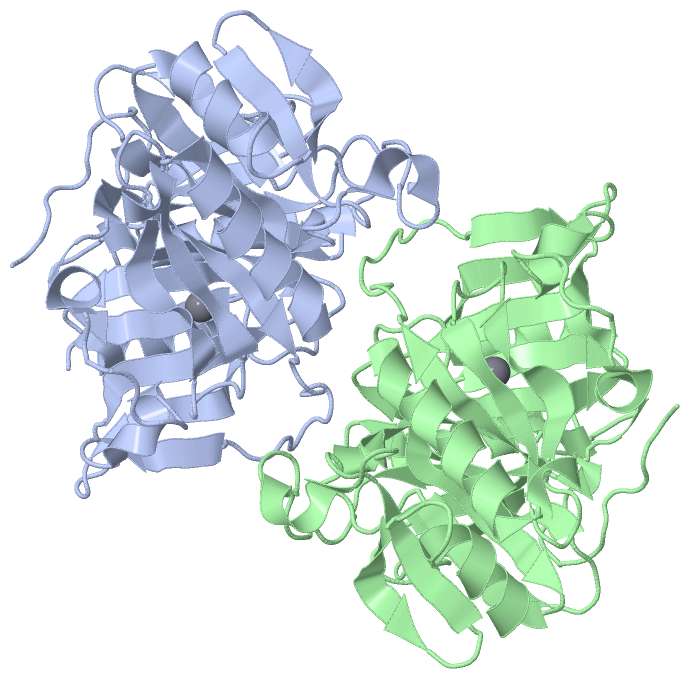

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

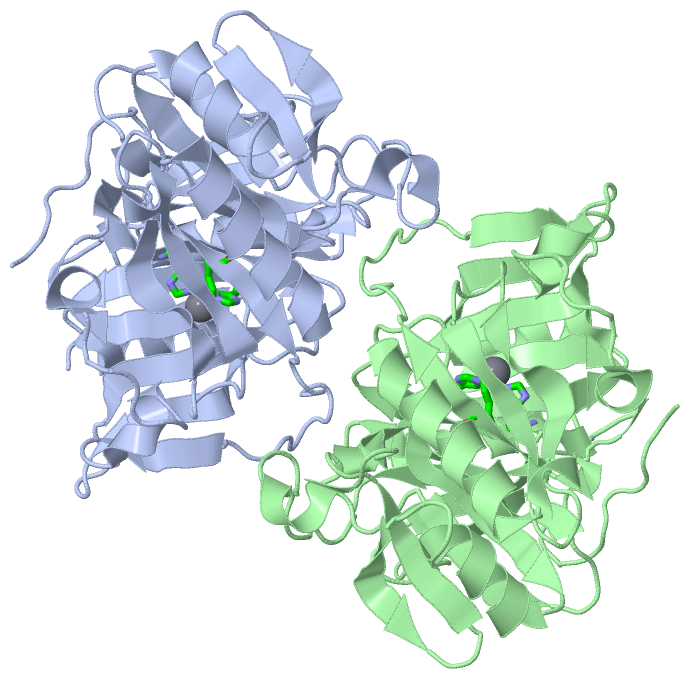

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

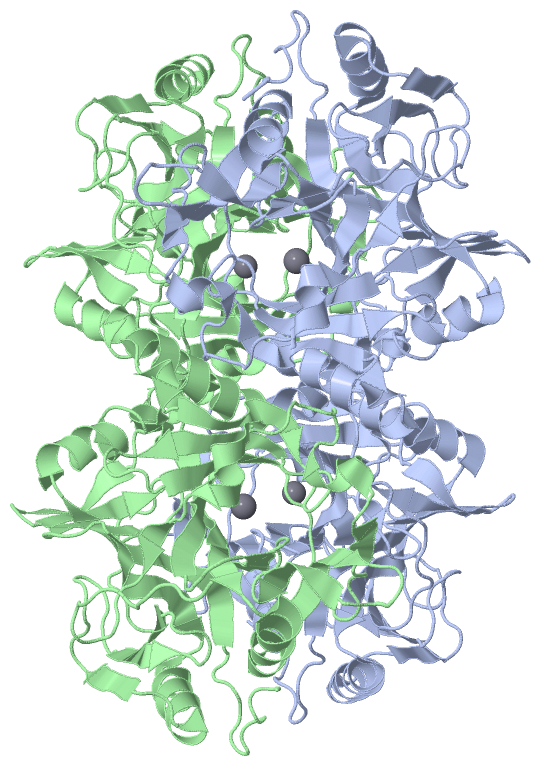

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

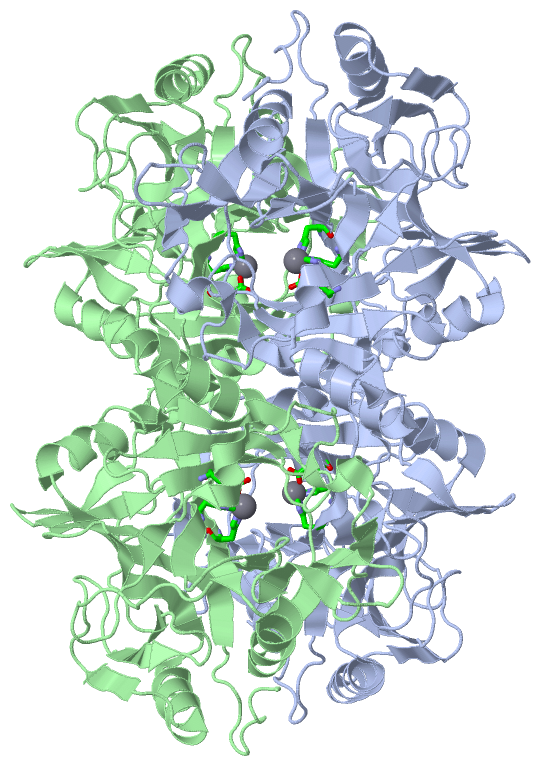

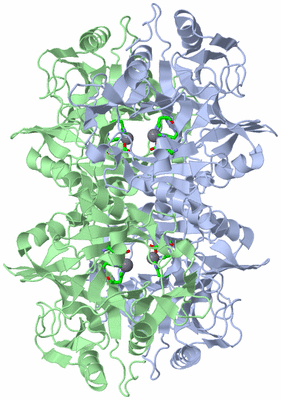

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HOMOPROTOCATECHUATE 2,3-DIOXYGENASE FROM ARTHROBACTER GLOBIFORMIS (NATIVE, LOW TEMPERATURE)

Authors :  M. W. Vetting, J. D. Lipscomb, L. P. Wackett, L. Que Jr. , D. H. Ohlendorf
Date :  19 May 00  (Deposition) - 10 Jun 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Dioxygenase, Extradiol, Manganese, Biodegradation, Aromatic, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. W. Vetting, L. P. Wackett, L. Que Jr. , J. D. Lipscomb, D. H. Ohlendor
Crystallographic Comparison Of Manganese- And Iron-Dependen Homoprotocatechuate 2, 3-Dioxygenases.
J. Bacteriol. V. 186 1945 2004
PubMed-ID: 15028678  |  Reference-DOI: 10.1128/JB.186.7.1945-1958.2004
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HOMOPROTOCATECHUATE 2,3-DIOXYGENASE
    Chains: A, B
    EC Number: 1.13.11.15
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ARTHROBACTER GLOBIFORMIS
    Organism Taxid: 1665
    Strain: CM-2
    Synonym: 3,4-DIHYDROXYPHENYLACETATE 2,3-DIOXYGENASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1MN2Ligand/IonMANGANESE (II) ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1MN-1Ligand/IonMANGANESE (II) ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:155 , HIS A:214 , GLU A:267 , HOH A:1271 , HOH A:1272BINDING SITE FOR RESIDUE MN A 500
2AC2SOFTWAREHIS B:155 , HIS B:214 , GLU B:267 , HOH B:1273 , HOH B:1274BINDING SITE FOR RESIDUE MN B 500

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1F1U)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Gly A:209 -Pro A:210
2Gly A:244 -Pro A:245
3Gly B:209 -Pro B:210
4Gly B:244 -Pro B:245

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1F1U)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1F1U)

(-) Exons   (0, 0)

(no "Exon" information available for 1F1U)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:322
 aligned with Q44048_ARTGO | Q44048 from UniProtKB/TrEMBL  Length:343

    Alignment length:322
                                                                                                                                                                                                                                                                            243
                                                                                                                                                                                                                                                                          242 |
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241| |    250       260       270       280       290       300       310       320
         Q44048_ARTGO     2 TNFVPTPSVPAPDIVRCAYMEIVVTDLAKSREFYVDVLGLHVTEEDENTIYLRSLEEFIHHNLVLRQGPIAAVAAFAYRVKSPAEVDAAEAYYKELGCRTERRKEGFTKGIGDSVRVEDPLGFPYEFFYETEHVERLTQRYDLYSAGELVRLDHFNQVTPDVPRGRAYLEDLGFRVSEDIKDSDGVTYAAWMHRKQTVHDTALTGGNGPRMHHVAFATHEKHNIIQICDKMRPCASATGSN-GPRPAPVSNAFYLYILDPDGHRIEIYTQDYYTGDPDNPTITWDVHDNQRRDWWGNPVVPSWYTEASLVLDLDGNPQPVIV 322
               SCOP domains d1f1ua1 A:2-147 Homoprotocatechuate 2,3-dioxygenase                                                                                               d1f1ua2 A:148-323 Homoprotocatechuate 2,3-dioxygenase                                                                                                                            SCOP domains
               CATH domains --1f1uA01 A:4-151 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                     1f1uA02 A:152-310 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                              ------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeeeeeeeee.hhhhhhhhhh.....eeeee...eeeee.........eeeee....eeeeeeeee.hhhhhhhhhhhhhhh...eeee..........eeeee.....eeeee...........hhhhh......eeeeeeeee.hhhhhhhhhhhh..eeeeeee.....eeeeeee.......eeeee....eeeeeeee..hhhhhhhhhhhhhhh.hhh.eeeeeee......eeeeee.....eeeeee............eeee..hhhhh.......hhhhhh..ee............. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f1u A   2 TNFVPTPSVPAPDIVRCAYMEIVVTDLAKSREFYVDVLGLHVTEEDENTIYLRSLEEFIHHNLVLRQGPIAAVAAFAYRVKSPAEVDAAEAYYKELGCRTERRKEGFTKGIGDSVRVEDPLGFPYEFFYETEHVERLTQRYDLYSAGELVRLDHFNQVTPDVPRGRAYLEDLGFRVSEDIKDSDGVTYAAWMHRKQTVHDTALTGGNGPRMHHVAFATHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDGHRIEIYTQDYYTGDPDNPTITWDVHDNQRRDWWGNPVVPSWYTEASLVLDLDGNPQPVIV 323
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321


Chain B from PDB  Type:PROTEIN  Length:321
 aligned with Q44048_ARTGO | Q44048 from UniProtKB/TrEMBL  Length:343

    Alignment length:321
                                                                                                                                                                                                                                                                           243
                                                                                                                                                                                                                                                                         242 |
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242 |     251       261       271       281       291       301       311       321
         Q44048_ARTGO     3 NFVPTPSVPAPDIVRCAYMEIVVTDLAKSREFYVDVLGLHVTEEDENTIYLRSLEEFIHHNLVLRQGPIAAVAAFAYRVKSPAEVDAAEAYYKELGCRTERRKEGFTKGIGDSVRVEDPLGFPYEFFYETEHVERLTQRYDLYSAGELVRLDHFNQVTPDVPRGRAYLEDLGFRVSEDIKDSDGVTYAAWMHRKQTVHDTALTGGNGPRMHHVAFATHEKHNIIQICDKMRPCASATGSN-GPRPAPVSNAFYLYILDPDGHRIEIYTQDYYTGDPDNPTITWDVHDNQRRDWWGNPVVPSWYTEASLVLDLDGNPQPVIV 322
               SCOP domains d1f1ub1 B:3-147 Homoprotocatechuate 2,3-dioxygenase                                                                                              d1f1ub2 B:148-323 Homoprotocatechuate 2,3-dioxygenase                                                                                                                            SCOP domains
               CATH domains -1f1uB01 B:4-151 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                     1f1uB02 B:152-310 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                              ------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............eeeeeeeeeee.hhhhhhhhhh.....eeeee...eeeee.........eeeee....eeeeeeeee.hhhhhhhhhhhhhhh...eeee..........eeeee.....eeeee...........hhhhh....eeeeeeeeeee.hhhhhhhhhhhh..eeeeeee.....eeeeeee.......eeeee....eeeeeeeee.hhhhhhhhhhhhhhh.hhh.eeeeeee......eeeeee.....eeeeee............eeee..hhhhh.......hhhhhh..ee............. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f1u B   3 NFVPTPSVPAPDIVRCAYMEIVVTDLAKSREFYVDVLGLHVTEEDENTIYLRSLEEFIHHNLVLRQGPIAAVAAFAYRVKSPAEVDAAEAYYKELGCRTERRKEGFTKGIGDSVRVEDPLGFPYEFFYETEHVERLTQRYDLYSAGELVRLDHFNQVTPDVPRGRAYLEDLGFRVSEDIKDSDGVTYAAWMHRKQTVHDTALTGGNGPRMHHVAFATHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDGHRIEIYTQDYYTGDPDNPTITWDVHDNQRRDWWGNPVVPSWYTEASLVLDLDGNPQPVIV 323
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1F1U)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q44048_ARTGO | Q44048)
molecular function
    GO:0051213    dioxygenase activity    Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly A:209 - Pro A:210   [ RasMol ]
    Gly A:244 - Pro A:245   [ RasMol ]
    Gly B:209 - Pro B:210   [ RasMol ]
    Gly B:244 - Pro B:245   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1f1u
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q44048_ARTGO | Q44048
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  1.13.11.15
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q44048_ARTGO | Q44048
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q44048_ARTGO | Q44048: 1f1r 1f1v

(-) Related Entries Specified in the PDB File

1f1r SAME PROTEIN REFINED AGAINST A DATA SET COLLECTED AT ROOM TEMPERATURE AND TO A LOWER RESOLUTION.
1f1v SAME PROTEIN, SAME SOURCE, COMPLEXED WITH 3,4- DIHYDROXYPHENYLACETATE
1f1x SAME PROTEIN FROM BREVIBACTERIUM FUSCUM, C-TERMINAL REMOVED WITH TRYPSIN
1f1y SAME PROTEIN FROM BREVIBACTERIUM FUSCUM, C-TERMINAL NOT REMOVED WITH TRYPSIN
