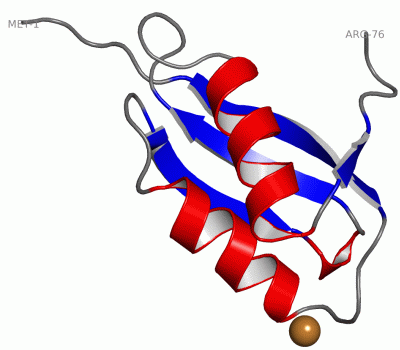

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

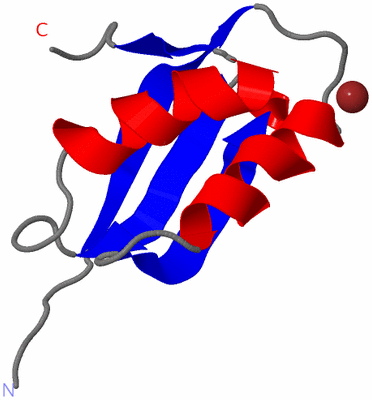

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

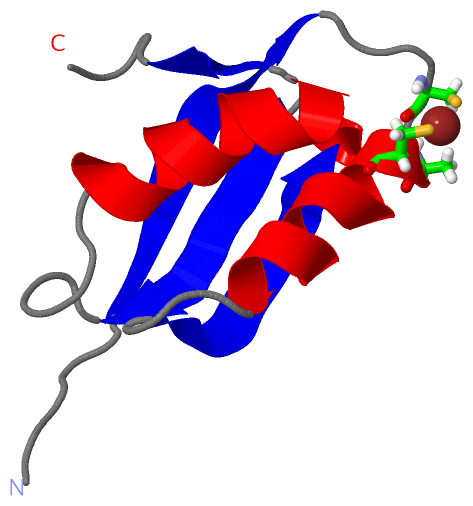

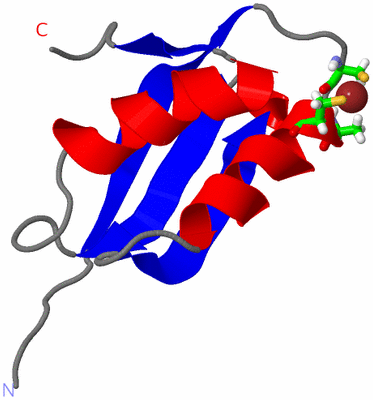

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

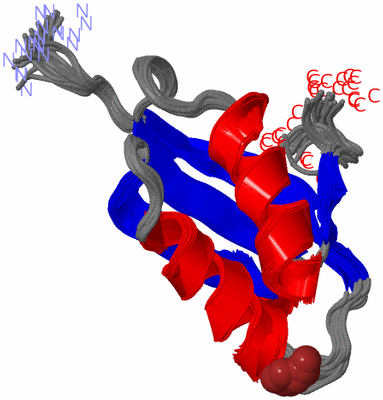

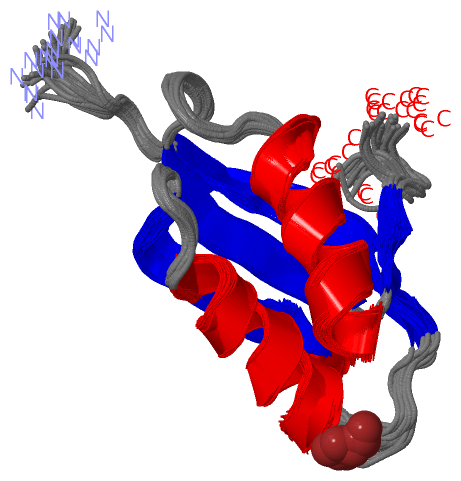

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF COPPER-S46V COPA FROM BACILLUS SUBTILIS

Authors :  L. Banci, I. Bertini, S. Ciofi-Baffoni, L. Gonnelli, X. C. Su, Structural Proteomics In Europe (Spine)
Date :  07 Mar 03  (Deposition) - 16 Sep 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (30x)
Keywords :  P-Type Atpase, Mutation, Nmr, Folding, Copper Complex, , Structural Proteomics In Europe, Spine, Structural Genomics, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Banci, I. Bertini, S. Ciofi-Baffoni, L. Gonnelli, X. C. Su
A Core Mutation Affecting The Folding Properties Of A Soluble Domain Of The Atpase Protein Copa From Bacillus Subtilis
J. Mol. Biol. V. 331 473 2003
PubMed-ID: 12888353  |  Reference-DOI: 10.1016/S0022-2836(03)00769-1
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - POTENTIAL COPPER-TRANSPORTING ATPASE
    Chains: A
    EC Number: 3.6.3.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLSAMID
    Fragment: COPPER FORM OF N-TERMINAL S46V OF COPA
    Gene: YVGX
    Mutation: YES
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units


NMR Structure (30x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1CU1Ligand/IonCOPPER (II) ION

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:17 , ALA A:19 , CYS A:20BINDING SITE FOR RESIDUE CU A 77

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1OQ6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1OQ6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1OQ6)

(-) PROSITE Motifs  (2, 3)

NMR Structure (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HMA_2PS50846 Heavy-metal-associated domain profile.COPA_BACSU6-72
74-140		  2A:7-72
A:73-75
2HMA_1PS01047 Heavy-metal-associated domain.COPA_BACSU11-40
79-108		  2A:12-41
A:73-75

(-) Exons   (0, 0)

(no "Exon" information available for 1OQ6)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76
 aligned with COPA_BACSU | O32220 from UniProtKB/Swiss-Prot  Length:802

    Alignment length:83
                             1
                             |       9        19        29        39        49        59        69        79
            COPA_BACSU    - -MSEQKEIAMQVSGMTCAACAARIEKGLKRMPGVTDANVNLATETSNVIYDPAETGTAAIQEKIEKLGYHVVTEKAEFDIEGM 82
               SCOP domains d1oq6a_ A: Potential copper-translocating P-type ATPase CopA (YvgX)                 SCOP domains
               CATH domains 1oq6A00 A:1-76  [code=3.30.70.100, no name defined]                                 CATH domains
               Pfam domains --------HMA-1oq6A01 A:9-70                                            ------------- Pfam domains
         Sec.struct. author .....eeeeeeee.....hhhhhhhhhhh....eeeeeeehhh.eeeeee......hhhhhhhhhhhh.eee-------.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ------HMA_2  PDB: A:7-72 UniProt: 6-72                                   -HMA_2     PROSITE (1)
                PROSITE (2) -----------HMA_1  PDB: A:12-41           --------------------------------------HMA_ PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------- Transcript
                  1oq6 A  1 MLSEQKEIAMQVSGMTCAACAARIEKGLKRMPGVTDANVNLATETVNVIYDPAETGTAAIQEKIEKLGYHVV-------IEGR 76
                                    10        20        30        40        50        60        70 |      73
                                                                                                  72      73
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: HMA] (41)

(-) Gene Ontology  (20, 20)

NMR Structure(hide GO term definitions)
Chain A   (COPA_BACSU | O32220)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0019829    cation-transporting ATPase activity    Catalysis of the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: ATP + H2O + cation(out) = ADP + phosphate + cation(in).
    GO:0005507    copper ion binding    Interacting selectively and non-covalently with copper (Cu) ions.
    GO:0043682    copper-transporting ATPase activity    Catalysis of the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: ATP + H2O + Cu2+ = ADP + phosphate + Cu2+, directly driving the transport of the copper ions across a membrane.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0098655    cation transmembrane transport    A process in which a cation is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0006812    cation transport    The directed movement of cations, atoms or small molecules with a net positive charge, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0035434    copper ion transmembrane transport    The directed movement of copper cation across a membrane.
    GO:0006825    copper ion transport    The directed movement of copper (Cu) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0030001    metal ion transport    The directed movement of metal ions, any metal ion with an electric charge, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1oq6)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - model 1, sites PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1oq6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  COPA_BACSU | O32220
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.6.3.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  COPA_BACSU | O32220
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        COPA_BACSU | O32220: 1jww 1kqk 1opz 1oq3 1p6t 2rml 2voy

(-) Related Entries Specified in the PDB File

1opz THE APO FORM RELATED ID: CIRMMP05 RELATED DB: TARGETDB
1oq3 THE APO FORM
