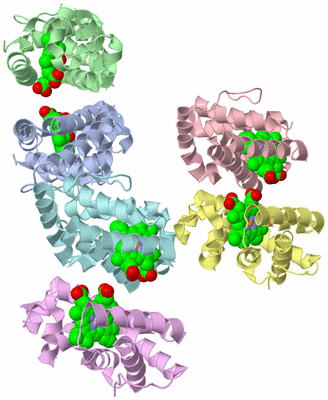

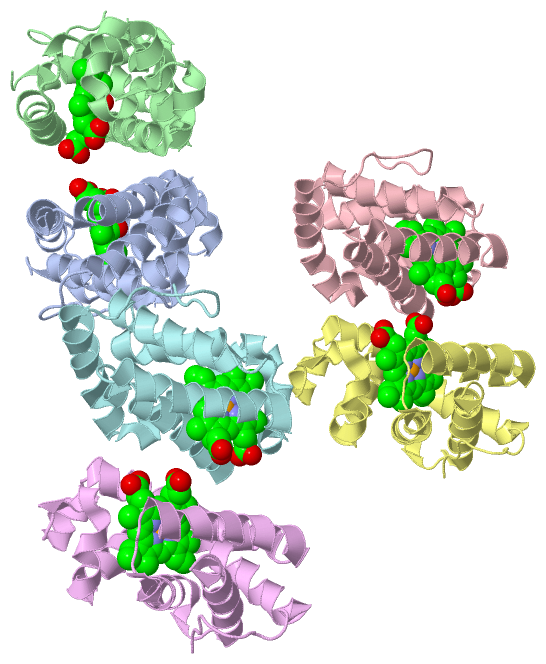

Asymmetric Unit (Jmol Viewer)

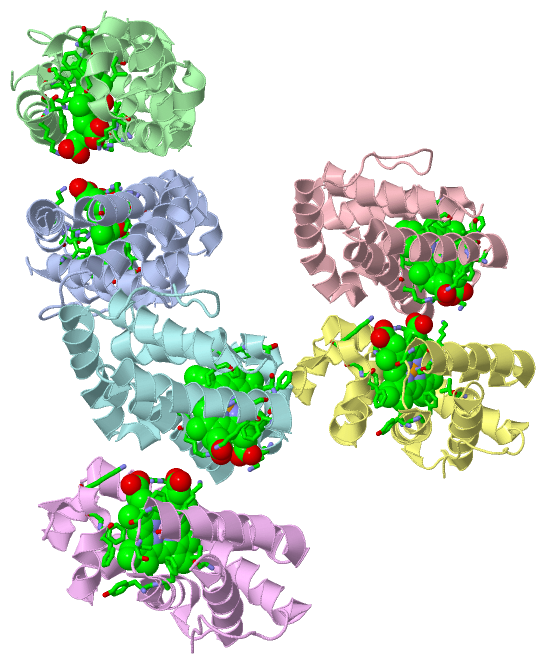

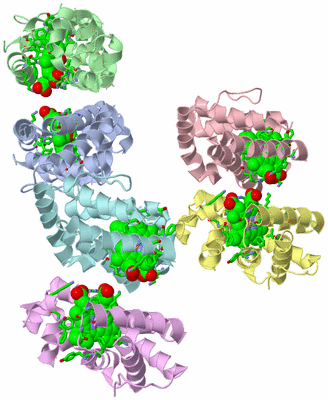

Asym. Unit - sites (Jmol Viewer)

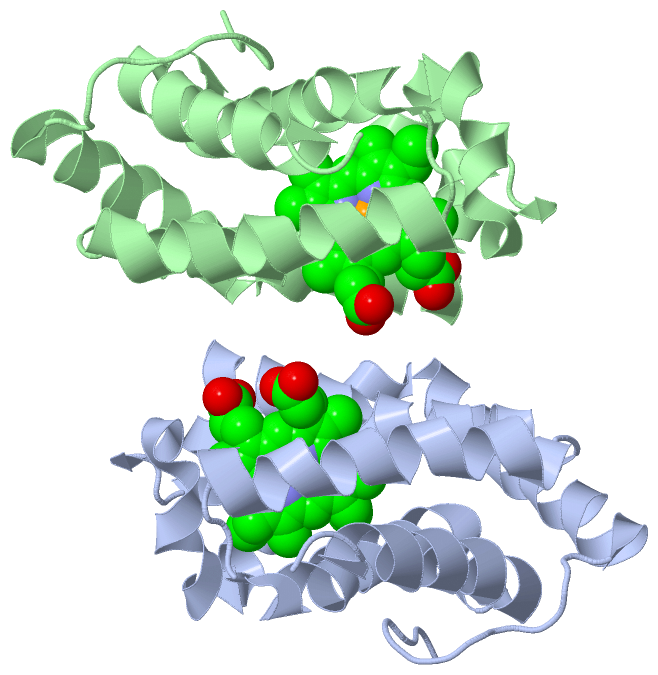

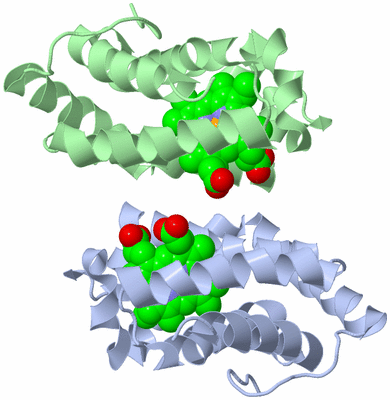

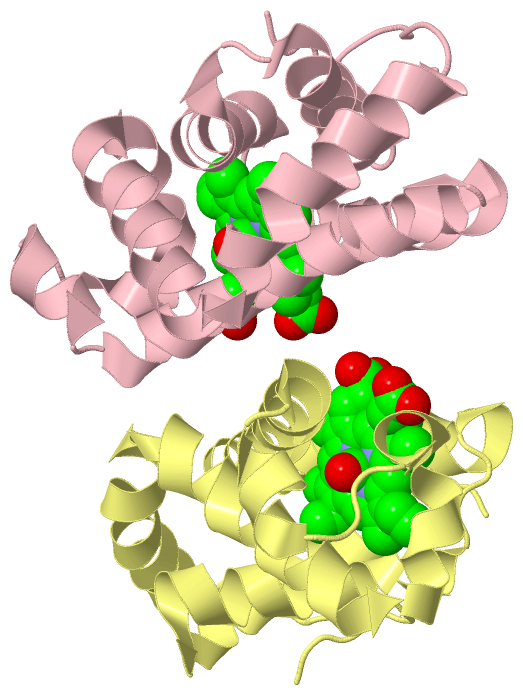

Biological Unit 1 (Jmol Viewer)

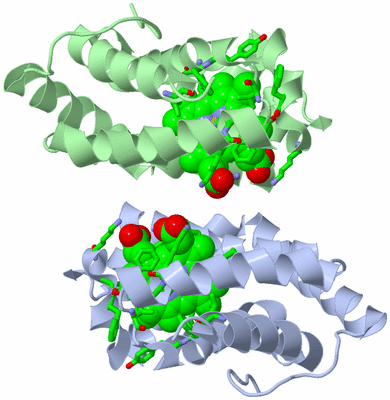

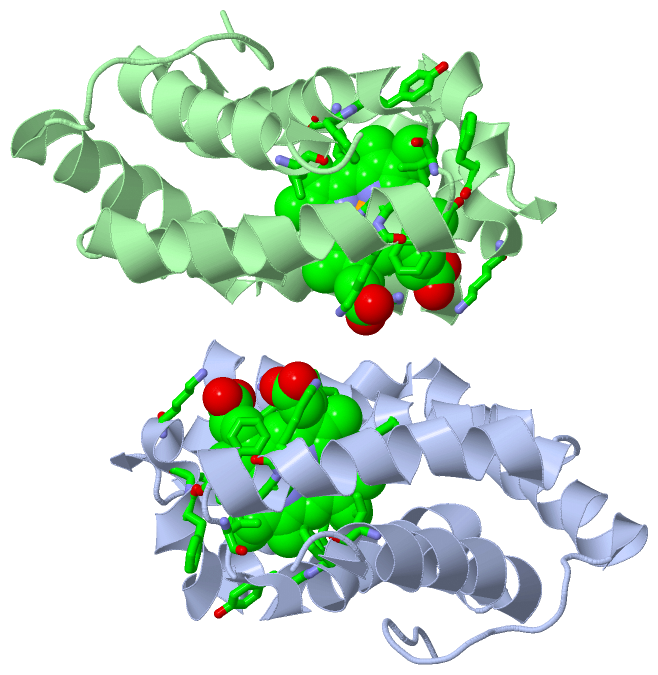

Biol. Unit 1 - sites (Jmol Viewer)

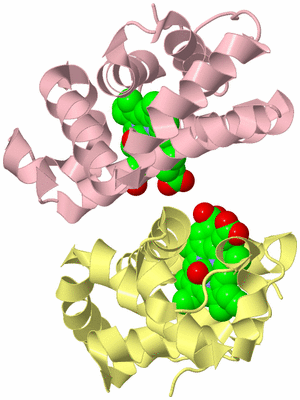

Biological Unit 2 (Jmol Viewer)

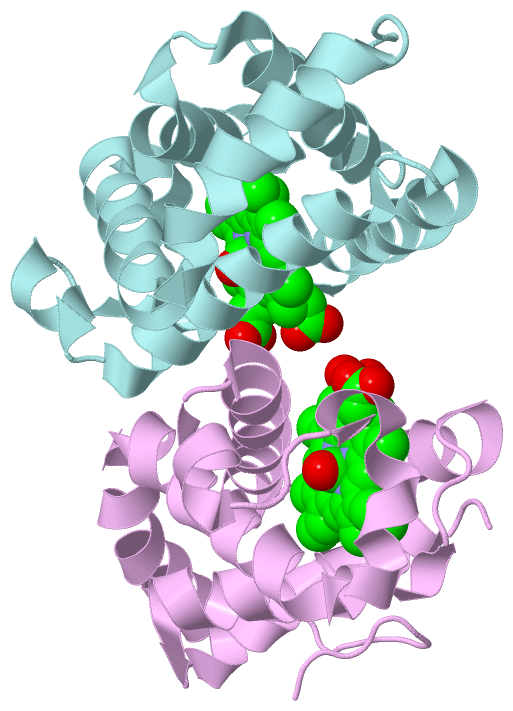

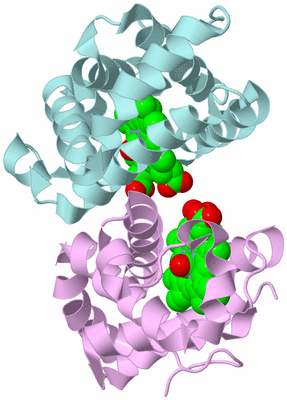

Biological Unit 3 (Jmol Viewer)

Title :   2.9 ANGSTROM CRYSTAL STRUCTURE OF LAMPREY HEMOGLOBIN THAT HAS BEEN EXPOSED TO CARBON MONOXIDE.

Authors :   H. A. Heaslet, W. E. Royer Jr.

Date :   15 Jun 00 (Deposition) - 28 Jun 00 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.90

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)
Biol. Unit 3: E,F  (1x)

Keywords :   Crystalline Ligand Transitions, Hemoglobin, Heme, Lamprey, Oxygen Storage/Transport Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. A. Heaslet, W. E. Royer Jr.
Crystalline Ligand Transitions In Lamprey Hemoglobin. Structural Evidence For The Regulation Of Oxygen Affinity.
J. Biol. Chem. V. 276 26230 2001
PubMed-ID: 11340069 | Reference-DOI: 10.1074/JBC.M101391200
(for further references see the PDB file header)

Molecule 1 - HEMOGLOBIN V
	Chains	:	A, B, C, D, E, F
	Organism Common	:	SEA LAMPREY
	Organism Scientific	:	PETROMYZON MARINUS
	Organism Taxid	:	7757

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D
Biological Unit 3 (1x)	:					E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 12)

No.	Name	Count	Type	Full Name
1	CMO	6	Ligand/Ion	CARBON MONOXIDE
2	HEM	6	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 1 (2, 4)

No.	Name	Count	Type	Full Name
1	CMO	2	Ligand/Ion	CARBON MONOXIDE
2	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 2 (2, 4)

No.	Name	Count	Type	Full Name
1	CMO	2	Ligand/Ion	CARBON MONOXIDE
2	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 3 (2, 4)

No.	Name	Count	Type	Full Name
1	CMO	2	Ligand/Ion	CARBON MONOXIDE
2	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	PHE A:51 , PHE A:52 , LYS A:54 , HIS A:73 , ARG A:76 , ALA A:80 , LYS A:104 , HIS A:105 , PHE A:109 , VAL A:111 , TYR A:115 , PHE A:116 , LEU A:119 , LEU A:145 , CMO A:151	BINDING SITE FOR RESIDUE HEM A 150
02	AC2	SOFTWARE	HIS A:73 , ILE A:77 , HEM A:150	BINDING SITE FOR RESIDUE CMO A 151
03	AC3	SOFTWARE	PHE B:51 , LYS B:54 , HIS B:73 , ARG B:76 , LYS B:104 , HIS B:105 , PHE B:109 , VAL B:111 , TYR B:115 , PHE B:116 , LEU B:119 , LEU B:145 , CMO B:151	BINDING SITE FOR RESIDUE HEM B 150
04	AC4	SOFTWARE	HIS B:73 , ILE B:77 , HEM B:150	BINDING SITE FOR RESIDUE CMO B 151
05	AC5	SOFTWARE	PHE C:51 , PHE C:52 , LYS C:54 , HIS C:73 , ARG C:76 , ILE C:77 , LEU C:101 , LYS C:104 , HIS C:105 , PHE C:109 , VAL C:111 , TYR C:115 , PHE C:116 , LEU C:145 , CMO C:151	BINDING SITE FOR RESIDUE HEM C 150
06	AC6	SOFTWARE	HIS C:73 , ILE C:77 , HEM C:150	BINDING SITE FOR RESIDUE CMO C 151
07	AC7	SOFTWARE	PHE D:51 , PHE D:52 , LYS D:54 , HIS D:73 , ARG D:76 , ALA D:80 , LYS D:104 , HIS D:105 , PHE D:109 , TYR D:115 , PHE D:116 , LEU D:119 , LEU D:145 , CMO D:151	BINDING SITE FOR RESIDUE HEM D 150
08	AC8	SOFTWARE	HIS D:73 , ILE D:77 , HEM D:150	BINDING SITE FOR RESIDUE CMO D 151
09	AC9	SOFTWARE	PHE E:51 , PHE E:52 , LYS E:54 , HIS E:73 , ARG E:76 , LYS E:104 , HIS E:105 , PHE E:109 , VAL E:111 , TYR E:115 , PHE E:116 , LEU E:119 , LEU E:145 , CMO E:151	BINDING SITE FOR RESIDUE HEM E 150
10	BC1	SOFTWARE	HIS E:73 , ILE E:77 , HEM E:150	BINDING SITE FOR RESIDUE CMO E 151
11	BC2	SOFTWARE	PHE F:51 , PHE F:52 , LYS F:54 , HIS F:73 , ARG F:76 , ILE F:77 , LYS F:104 , HIS F:105 , PHE F:109 , VAL F:111 , TYR F:115 , PHE F:116 , LEU F:145 , CMO F:151	BINDING SITE FOR RESIDUE HEM F 150
12	BC3	SOFTWARE	HIS F:73 , ILE F:77 , HEM F:150	BINDING SITE FOR RESIDUE CMO F 151

(no "SS Bond" information available for 1F5P)

(no "Cis Peptide Bond" information available for 1F5P)

Asymmetric Unit (1, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_GLB5_PETMA_001 *	T	30	N	GLB5_PETMA	---	---	A/B/C/D/E/F	T	29	N
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (1, 2)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_GLB5_PETMA_001 *	T	30	N	GLB5_PETMA	---	---	A/B	T	29	N
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (1, 2)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_GLB5_PETMA_001 *	T	30	N	GLB5_PETMA	---	---	C/D	T	29	N
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 3 (1, 2)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_GLB5_PETMA_001 *	T	30	N	GLB5_PETMA	---	---	E/F	T	29	N
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB5_PETMA	10-150	6	A:9-149 B:9-149 C:9-149 D:9-149 E:9-149 F:9-149

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB5_PETMA	10-150	2	A:9-149 B:9-149 - - - -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB5_PETMA	10-150	2	- - C:9-149 D:9-149 - -

Biological Unit 3 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	GLB5_PETMA	10-150	2	- - - - E:9-149 F:9-149

(no "Exon" information available for 1F5P)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:149
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1f5pa_ A: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1f5pA00 A:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------N------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: A:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f5p A   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain B from PDB  Type:PROTEIN  Length:149
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1f5pb_ B: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1f5pB00 B:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------N------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: B:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f5p B   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain C from PDB  Type:PROTEIN  Length:149
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1f5pc_ C: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1f5pC00 C:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------N------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: C:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f5p C   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain D from PDB  Type:PROTEIN  Length:149
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1f5pd_ D: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1f5pD00 D:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------N------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: D:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f5p D   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain E from PDB  Type:PROTEIN  Length:149
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1f5pe_ E: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1f5pE00 E:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------N------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: E:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f5p E   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain F from PDB  Type:PROTEIN  Length:149
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d1f5pf_ F: Lamprey globin                                                                                                                             SCOP domains
               CATH domains 1f5pF00 F:1-149 Globins                                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------N------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: F:9-149 UniProt: 10-150                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f5p F   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Globin-like (1351)

Superfamily: Globin-like (1308)

Family: Globins (1157)

Protein domain: Lamprey globin (5)

Sea lamprey (Petromyzon marinus) [TaxId: 7757] (4)

1a	d1f5pa_	A:
1b	d1f5pb_	B:
1c	d1f5pc_	C:
1d	d1f5pd_	D:
1e	d1f5pe_	E:
1f	d1f5pf_	F:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Globin-like (786)

Homologous Superfamily: Globins (743)

Sea lamprey (Petromyzon marinus) (4)

1a	1f5pA00	A:1-149
1b	1f5pB00	B:1-149
1c	1f5pC00	C:1-149
1d	1f5pD00	D:1-149
1e	1f5pE00	E:1-149
1f	1f5pF00	F:1-149

(no "Pfam Domain" information available for 1F5P)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (GLB5_PETMA | P02208)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CMO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1f5p)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1f5p
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GLB5_PETMA \| P02208
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GLB5_PETMA \| P02208
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	GLB5_PETMA \| P02208	:	1f5o 2lhb 3lhb

1f5o	2.9 ANGSTROM CRYSTAL STRUCTURE OF DEOXYGENATED LAMPREY HEMOGLOBIN V IN THE SPACE GROUP P2(1)2(1)2(1)
2lhb	REFINEMENT OF A MOLECULAR MODEL FOR LAMPREY HEMOGLOBIN FROM PETROMYZON MARINUS.
3lhb	2.7 ANGSTROM CRYSTAL STRUCTURE OF DEOXYGENTATED LAMPREY HEMOGLOBIN V IN THE SPACE GROUP P2(1) WITH TWELVE MONOMERS IN THE ASSYMETRIC UNIT.

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 12)

Sites (12, 12)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (1, 6)

PROSITE Motifs (1, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
