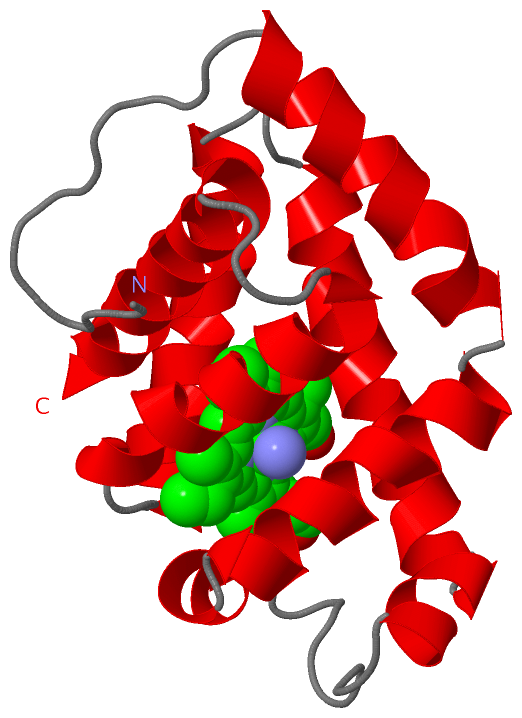

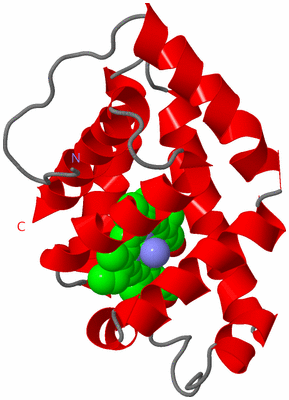

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

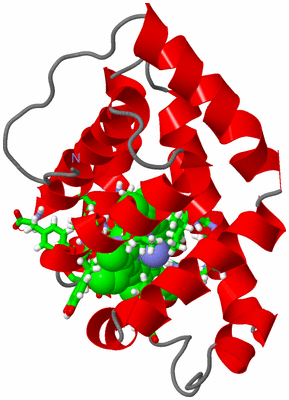

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  REFINEMENT OF A MOLECULAR MODEL FOR LAMPREY HEMOGLOBIN FROM PETROMYZON MARINUS

Authors :  R. B. Honzatko, W. A. Hendrickson, W. E. Love
Date :  16 Aug 85  (Deposition) - 21 Jan 86  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Oxygen Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. B. Honzatko, W. A. Hendrickson, W. E. Love
Refinement Of A Molecular Model For Lamprey Hemoglobin From Petromyzon Marinus.
J. Mol. Biol. V. 184 147 1985
PubMed-ID: 4032476  |  Reference-DOI: 10.1016/0022-2836(85)90049-X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HEMOGLOBIN V (CYANO MET)
    Chains: A
    Engineered: YES
    Organism Common: SEA LAMPREY
    Organism Scientific: PETROMYZON MARINUS
    Organism Taxid: 7757

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1CYN1Ligand/IonCYANIDE ION
2HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1HEMUNKNOWNPHE A:52 , HIS A:73 , ARG A:76 , ILE A:77 , LEU A:101 , SER A:102 , LYS A:104 , HIS A:105 , ALA A:106 , PHE A:109 , VAL A:111 , TYR A:115 , PHE A:116 , LEU A:119 , TYR A:149 , HEM A:151NULL

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2LHB)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2LHB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 1)

Asymmetric/Biological Unit (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_GLB5_PETMA_001 *T30NGLB5_PETMA  ---  ---AT29N
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLOBINPS01033 Globin family profile.GLB5_PETMA10-150  1A:9-149

(-) Exons   (0, 0)

(no "Exon" information available for 2LHB)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:150
 aligned with GLB5_PETMA | P02208 from UniProtKB/Swiss-Prot  Length:150

    Alignment length:150
                                                         31
                                                       30 |
                                    11        21        |-|       40        50        60        70        80        90       100       110       120       130       140       150
           GLB5_PETMA     2 PIVDTGSVAPLSAAEKTKIRSAWAPVYST-YETSGVDILVKFFTSTPAAQEFFPKFKGLTTADQLKKSADVRWHAERIINAVNDAVASMDDTEKMSMKLRDLSGKHAKSFQVDPQYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 150
               SCOP domains d2lhba_ A: Lamprey globin                                                                                                                              SCOP domains
               CATH domains 2lhbA00 A:1-149 Globins                                                                                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ............hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhh.........hhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------GLOBIN  PDB: A:9-149 UniProt: 10-150                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2lhb A   1 PIVDTGSVAPLSAAEKTKIRSAWAPVYSTDYETSGVDILVKFFTSTPAAQEFFPKFKGLTTADELKKSADVRWHAERIINAVDDAVASMDDTEKMSMKLRNLSGKHAKSFQVDPEYFKVLAAVIADTVAAGDAGFEKLMSMICILLRSAY 149
                                    10        20        29        39        49        59        69        79        89        99       109       119       129       139       149
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2LHB)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GLB5_PETMA | P02208)
molecular function
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0019825    oxygen binding    Interacting selectively and non-covalently with oxygen (O2).
    GO:0005344    oxygen transporter activity    Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
    GO:0015671    oxygen transport    The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
