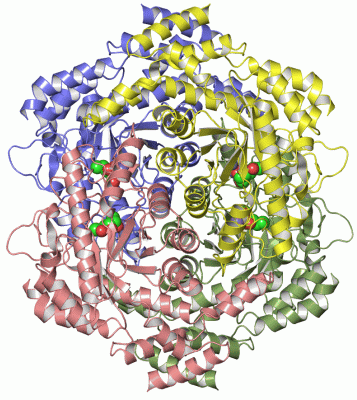

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

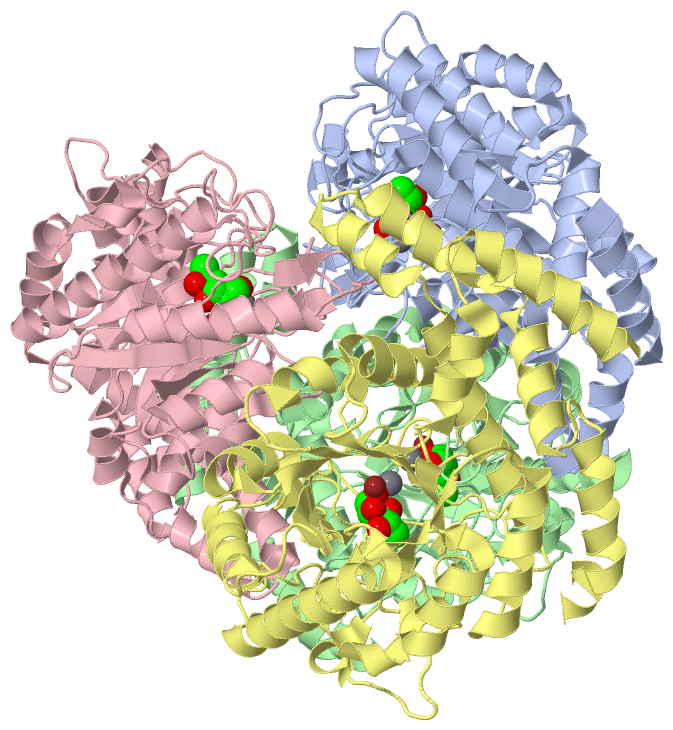

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

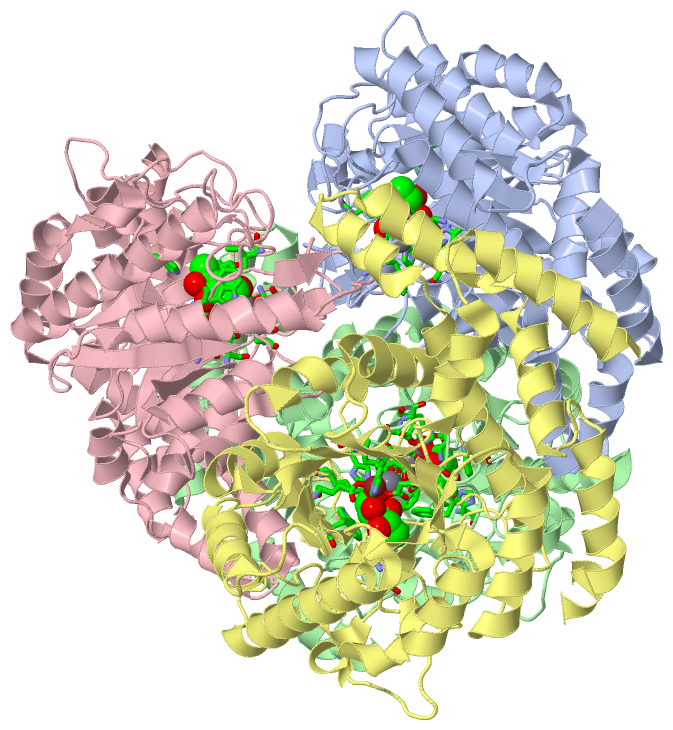

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  L-RHAMNOSE ISOMERASE

Authors :  I. P. Korndorfer, W. D. Fessner, B. W. Matthews
Date :  13 Nov 99  (Deposition) - 09 Aug 00  (Release) - 22 Dec 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  (Beta8/Alpha8) Barrel, Tim Barrel, Hydride Shift, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. P. Korndorfer, W. D. Fessner, B. W. Matthews
The Structure Of Rhamnose Isomerase From Escherichia Coli And Its Relation With Xylose Isomerase Illustrates A Change Between Inter And Intra-Subunit Complementation During Evolution.
J. Mol. Biol. V. 300 917 2000
PubMed-ID: 10891278  |  Reference-DOI: 10.1006/JMBI.2000.3896

(-) Compounds

Molecule 1 - L-RHAMNOSE ISOMERASE
    Chains: A, B, C, D
    EC Number: 5.3.1.14
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B(+)
    Expression System Taxid: 562
    Expression System Variant: PIK61
    Expression System Vector Type: PLASMID
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 12)

Asymmetric/Biological Unit (3, 12)
No.NameCountTypeFull Name
1MN4Ligand/IonMANGANESE (II) ION
2RNS4Ligand/IonL-RHAMNOSE
3ZN4Ligand/IonZINC ION

(-) Sites  (12, 12)

Asymmetric Unit (12, 12)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREILE A:67 , HIS A:103 , TRP A:193 , GLU A:234 , LYS A:236 , HIS A:270 , ASP A:302 , ASP A:334 , PHE A:336 , ZN A:450 , MN A:451BINDING SITE FOR RESIDUE RNS A 1462
02AC2SOFTWAREILE B:67 , HIS B:103 , TRP B:193 , GLU B:234 , LYS B:236 , ASP B:267 , HIS B:270 , ASP B:302 , ASP B:334 , PHE B:336 , ZN B:450 , MN B:451BINDING SITE FOR RESIDUE RNS B 2462
03AC3SOFTWAREILE C:67 , HIS C:103 , TRP C:193 , GLU C:234 , LYS C:236 , HIS C:270 , ASP C:302 , ASP C:334 , PHE C:336 , ZN C:450 , MN C:451BINDING SITE FOR RESIDUE RNS C 3462
04AC4SOFTWAREILE D:67 , HIS D:103 , TRP D:193 , GLU D:234 , LYS D:236 , ASP D:267 , HIS D:270 , ASP D:302 , ASP D:334 , PHE D:336 , ZN D:450 , MN D:451BINDING SITE FOR RESIDUE RNS D 4462
05AC5SOFTWAREGLU A:234 , ASP A:267 , HIS A:294 , ASP A:334 , RNS A:1462BINDING SITE FOR RESIDUE ZN A 450
06AC6SOFTWAREHIS A:270 , ASP A:302 , ASP A:304 , RNS A:1462BINDING SITE FOR RESIDUE MN A 451
07AC7SOFTWAREGLU B:234 , ASP B:267 , HIS B:294 , ASP B:334 , RNS B:2462BINDING SITE FOR RESIDUE ZN B 450
08AC8SOFTWAREHIS B:270 , ASP B:302 , ASP B:304 , RNS B:2462BINDING SITE FOR RESIDUE MN B 451
09AC9SOFTWAREGLU C:234 , ASP C:267 , HIS C:294 , ASP C:334 , RNS C:3462BINDING SITE FOR RESIDUE ZN C 450
10BC1SOFTWAREHIS C:270 , ASP C:302 , ASP C:304 , RNS C:3462BINDING SITE FOR RESIDUE MN C 451
11BC2SOFTWAREGLU D:234 , ASP D:267 , HIS D:294 , ASP D:334 , RNS D:4462BINDING SITE FOR RESIDUE ZN D 450
12BC3SOFTWAREHIS D:270 , ASP D:302 , ASP D:304 , RNS D:4462BINDING SITE FOR RESIDUE MN D 451

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1DE6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1DE6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DE6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1DE6)

(-) Exons   (0, 0)

(no "Exon" information available for 1DE6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:416
 aligned with RHAA_ECOLI | P32170 from UniProtKB/Swiss-Prot  Length:419

    Alignment length:416
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412
           RHAA_ECOLI     3 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAAGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 418
               SCOP domains d1de6a_ A: L-rhamnose isomerase                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1de6A00 A:11-426 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh...hhhhhhhhhh...eeee.hhh............................hhhhhhhhhhhhhhh....eeeeee.hhh......hhhhhhhhhhhhhhhhhhhh..eeeee.....hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee....ee......hhhhhhhhhhhhhhhhh.......eeeeee..........ee..hhhhhhhhhhhhh.eeeee........hhhhhhhhhh.....eeeee..............hhhhhhhhhhhhhh.....eeeee.......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1de6 A  11 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAPGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 426
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420


Chain B from PDB  Type:PROTEIN  Length:416
 aligned with RHAA_ECOLI | P32170 from UniProtKB/Swiss-Prot  Length:419

    Alignment length:416
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412
           RHAA_ECOLI     3 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAAGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 418
               SCOP domains d1de6b_ B: L-rhamnose isomerase                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1de6B00 B:11-426 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh...hhhhhhhhhh...eeee.hhhh...........................hhhhhhhhhhhhhh.....eeeeee.hhh......hhhhhhhhhhhhhhhhhhhhh.eeeee.....hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee....ee......hhhhhhhhhhhhhhhh........eeeeee..........ee..hhhhhhhhhhhhh.eeeee........hhhhhhhhhh.....eeeee..............hhhhhhhhhhhhhh.....eeeee.......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1de6 B  11 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAPGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 426
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420


Chain C from PDB  Type:PROTEIN  Length:416
 aligned with RHAA_ECOLI | P32170 from UniProtKB/Swiss-Prot  Length:419

    Alignment length:416
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412
           RHAA_ECOLI     3 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAAGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 418
               SCOP domains d1de6c_ C: L-rhamnose isomerase                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1de6C00 C:11-426 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh...hhhhhhhhhh...eeee.hhhh...........................hhhhhhhhhhhhhh.....eeeeee.hhh......hhhhhhhhhhhhhhhhhhhhh.eeeee..................hhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee....ee......hhhhhhhhhhhhhhhhh.......eeeeee..........ee..hhhhhhhhhhhhh.eeeee........hhhhhhhhhh.....eeeee..............hhhhhhhhhhhhhhh....eeeee.......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1de6 C  11 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAPGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 426
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420


Chain D from PDB  Type:PROTEIN  Length:416
 aligned with RHAA_ECOLI | P32170 from UniProtKB/Swiss-Prot  Length:419

    Alignment length:416
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412
           RHAA_ECOLI     3 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAAGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 418
               SCOP domains d1de6d_ D: L-rhamnose isomerase                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1de6D00 D:11-426 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh...hhhhhhhhhh...eeee.hhh............................hhhhhhhhhhhhhhh....eeeeee.hhh......hhhhhhhhhhhhhhhhhhhhh.eeeee.....hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee....ee.......hhhhhhhhhhhhhhh........eeeeee..........ee..hhhhhhhhhhhhh.eeeee........hhhhhhhhhh.....eeeee..............hhhhhhhhhhhhhh.....eeeee.......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1de6 D  11 TQLEQAWELAKQRFAAVGIDVEEALRQLDRLPVSMHCWQGDDVSGFENPEGSLTGGIQATGNYPGKARNASELRADLEQAMRLIPGPKRLNLHAIYLESDTPVSRDQIKPEHFKNWVEWAKANQLGLDFNPSCFSHPLSADGFTLSHADDSIRQFWIDHCKASRRVSAYFGEQLGTPSVMNIWIPDGMKDITVDRLAPRQRLLAALDEVISEKLNPAHHIDAVESKLFGIGAESYTVGSNEFYMGYATSRQTALCLDAGHFHPTEVISDKISAAMLYVPQLLLHVSRPVRWDSDHVVLLDDETQAIASEIVRHDLFDRVHIGLDFFDASINRIAAWVIGTRNMKKALLRALLEPTAELRKLEAPGDYTARLALLEEQKSLPWQAVWEMYCQRHDTPAGSEWLESVRAYEKEILSRR 426
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DE6)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (RHAA_ECOLI | P32170)
molecular function
    GO:0008740    L-rhamnose isomerase activity    Catalysis of the reaction: L-rhamnose = L-rhamnulose.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0030145    manganese ion binding    Interacting selectively and non-covalently with manganese (Mn) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0019324    L-lyxose metabolic process    The chemical reactions and pathways involving L-lyxose, the L-enantiomer of aldopentose lyxo-pentose, the C-2 epimer of xylose.
    GO:0019301    rhamnose catabolic process    The chemical reactions and pathways resulting in the breakdown of rhamnose, the hexose 6-deoxy-L-mannose.
    GO:0019299    rhamnose metabolic process    The chemical reactions and pathways involving rhamnose, the hexose 6-deoxy-L-mannose. Rhamnose occurs commonly as a compound of plant glycosides, in polysaccharides of gums and mucilages, and in bacterial polysaccharides. It is also a component of some plant cell wall polysaccharides and frequently acts as the sugar components of flavonoids.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
