1C02 - JenaLib

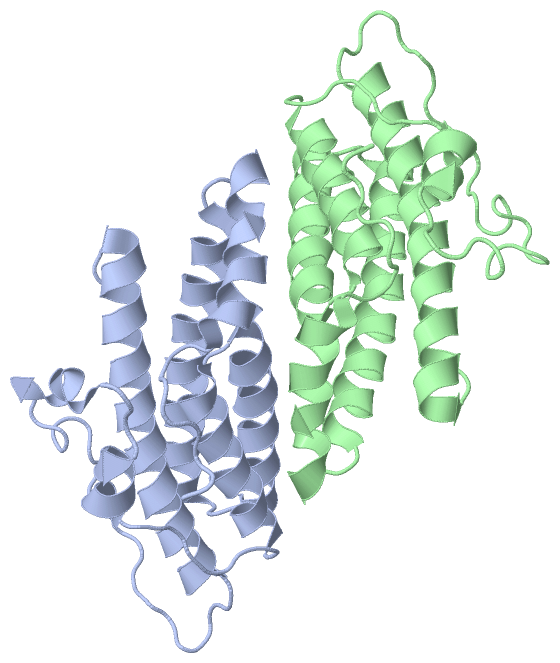

Asym./Biol. Unit (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF YEAST YPD1P

Authors :   H. K. Song, J. Y. Lee, M. G. Lee, S. W. Suh

Date :   14 Jul 99 (Deposition) - 15 Jan 00 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym./Biol. Unit : A,B

Keywords :   Helix-Bundle, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. K. Song, J. Y. Lee, M. G. Lee, J. Moon, K. Min, J. K. Yang, S. W. Suh
Insights Into Eukaryotic Multistep Phosphorelay Signal Transduction Revealed By The Crystal Structure Of Ypd1P From Saccharomyces Cerevisiae.
J. Mol. Biol. V. 293 753 1999
PubMed-ID: 10543964 | Reference-DOI: 10.1006/JMBI.1999.3215
(for further references see the PDB file header)

Molecule 1 - PHOSPHOTRANSFERASE YPD1P
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET22B
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1C02)

(no "Site" information available for 1C02)

(no "SS Bond" information available for 1C02)

(no "Cis Peptide Bond" information available for 1C02)

(no "SAP(SNP)/Variant" information available for 1C02)

Asymmetric/Biological Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HPT	PS50894	Histidine-containing phosphotransfer (HPt) domain profile.	YPD1_YEAST	24-129	2	A:24-129 B:24-129

Asymmetric/Biological Unit (1, 2)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	YDL235C	1	YDL235C.1	IV:33918-33415	504	YPD1_YEAST	1-167	167	2	A:2-167 B:2-167	166 166

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:166
 aligned with YPD1_YEAST | Q07688 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:166
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161
           YPD1_YEAST     2 STIPSEIINWTILNEIISMDDDDSDFSKGLIIQFIDQAQTTFAQMQRQLDGEKNLTELDNLGHFLKGSSAALGLQRIAWVCERIQNLGRKMEHFFPNKTELVNTLSDKSIINGINIDEDDEEIKIQVDDKDENSIYLILIAKALNQSRLEFKLARIELSKYYNTNL 167
               SCOP domains d1c02a_ A: Phosphorelay protein ypd1                                                                                                                                   SCOP domains
               CATH domains 1c02A00 A:2-167  [code=1.20.120.160, no name defined]                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhh...hhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------HPT  PDB: A:24-129 UniProt: 24-129                                                                        -------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:2-167 UniProt: 1-167 [INCOMPLETE]                                                                                                                     Transcript 1
                 1c02 A   2 STIPSEIINWTILNEIISMDDDDSDFSKGLIIQFIDQAQTTFAQMQRQLDGEKNLTELDNLGHFLKGSSAALGLQRIAWVCERIQNLGRKMQHFFPNKTELVNTLSDKSIINGINIDEDDEEIKIQVDDKDENSIYLILIAKALNQSRLEFKLARIELSKYYNTNL 167
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161

Chain B from PDB  Type:PROTEIN  Length:166
 aligned with YPD1_YEAST | Q07688 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:166
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161
           YPD1_YEAST     2 STIPSEIINWTILNEIISMDDDDSDFSKGLIIQFIDQAQTTFAQMQRQLDGEKNLTELDNLGHFLKGSSAALGLQRIAWVCERIQNLGRKMEHFFPNKTELVNTLSDKSIINGINIDEDDEEIKIQVDDKDENSIYLILIAKALNQSRLEFKLARIELSKYYNTNL 167
               SCOP domains d1c02b_ B: Phosphorelay protein ypd1                                                                                                                                   SCOP domains
               CATH domains 1c02B00 B:2-167  [code=1.20.120.160, no name defined]                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhh.............................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------HPT  PDB: B:24-129 UniProt: 24-129                                                                        -------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: B:2-167 UniProt: 1-167 [INCOMPLETE]                                                                                                                     Transcript 1
                 1c02 B   2 STIPSEIINWTILNEIISMDDDDSDFSKGLIIQFIDQAQTTFAQMQRQLDGEKNLTELDNLGHFLKGSSAALGLQRIAWVCERIQNLGRKMQHFFPNKTELVNTLSDKSIINGINIDEDDEEIKIQVDDKDENSIYLILIAKALNQSRLEFKLARIELSKYYNTNL 167
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Four-helical up-and-down bundle (308)

Superfamily: Histidine-containing phosphotransfer domain, HPT domain (21)

Family: Phosphorelay protein-like (9)

Protein domain: Phosphorelay protein ypd1 (6)

Baker's yeast (Saccharomyces cerevisiae) [TaxId: 4932] (6)

1a	d1c02a_	A:
1b	d1c02b_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Four Helix Bundle (Hemerythrin (Met), subunit A) (300)

Homologous Superfamily: [code=1.20.120.160, no name defined] (15)

Baker's yeast (Saccharomyces cerevisiae) (6)

1a	1c02A00	A:2-167
1b	1c02B00	B:2-167

(no "Pfam Domain" information available for 1C02)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (YPD1_YEAST | Q07688)

molecular function
	GO:0009927	histidine phosphotransfer kinase activity	Serves as a phospho-His intermediate enabling the transfer of phospho group between a hybrid kinase and a response regulator.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0043424	protein histidine kinase binding	Interacting selectively and non-covalently with protein histidine kinase.
	GO:0004871	signal transducer activity	Conveys a signal across a cell to trigger a change in cell function or state. A signal is a physical entity or change in state that is used to transfer information in order to trigger a response.
	GO:0016772	transferase activity, transferring phosphorus-containing groups	Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to another (acceptor).
biological process
	GO:0007234	osmosensory signaling via phosphorelay pathway	A series of molecular signals generated in response to osmotic change, as mediated through a phosphorelay system.
	GO:0000160	phosphorelay signal transduction system	A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1c02)

	Sites
(no "Sites" information available for 1c02)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1c02)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1c02
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	YPD1_YEAST \| Q07688
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	YPD1_YEAST \| Q07688
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	YPD1_YEAST \| Q07688	:	1c03 1oxb 1oxk 1qsp 2r25 5kbx
