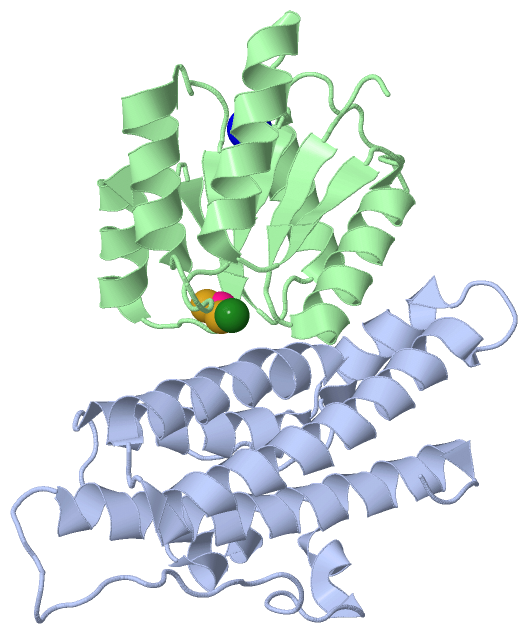

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

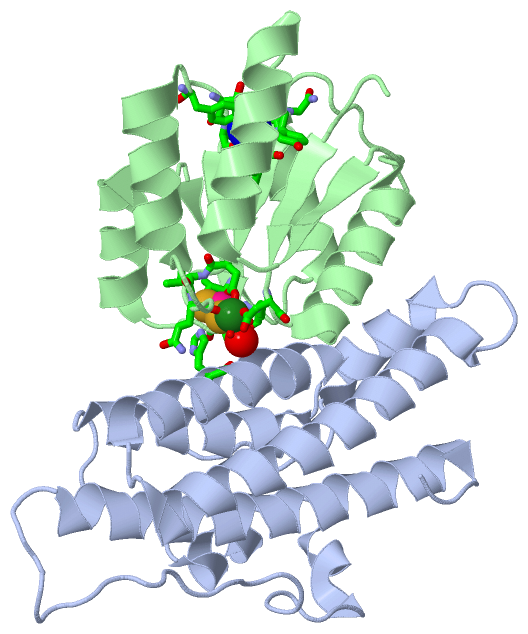

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  COMPLEX OF YPD1 AND SLN1-R1 WITH BOUND MG2+ AND BEF3-

Authors :  D. M. Copeland, X. Zhao, A. S. Soares, A. H. West
Date :  24 Aug 07  (Deposition) - 15 Jan 08  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Alpha5-Beta5, Response Regulator, Four Helix Bundle, Histidine Phosphotransfer (Hpt) Protein, Histidine Kinase (Hk), Cytoplasm, Nucleus, Phosphorylation, Two-Component Regulatory System, Glycoprotein, Magnesium, Membrane, Metal- Binding, Transferase, Transmembrane, Signaling Protein/Transferase Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  X. Zhao, D. M. Copeland, A. S. Soares, A. H. West
Crystal Structure Of A Complex Between The Phosphorelay Protein Ypd1 And The Response Regulator Domain Of Sln1 Bound To A Phosphoryl Analog
J. Mol. Biol. V. 375 1141 2008
PubMed-ID: 18076904  |  Reference-DOI: 10.1016/J.JMB.2007.11.045
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PHOSPHORELAY INTERMEDIATE PROTEIN YPD1
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneYPD1
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE
    Organism Taxid4932
    SynonymHISTIDINE-CONTAINING PHOSPHOTRANSFER PROTEIN YPD1, TYROSINE PHOSPHATASE-DEPENDENT PROTEIN 1

Molecule 2 - OSMOSENSING HISTIDINE PROTEIN KINASE SLN1
    ChainsB
    EC Number2.7.13.3
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentUNP RESIDUES 1086-1218
    GeneSLN1, YPD2
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE
    Organism Taxid4932
    SynonymOSMOLARITY TWO-COMPONENT SYSTEM PROTEIN SLN1, TYROSINE PHOSPHATASE-DEPENDENT PROTEIN 2

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
1BEF1Ligand/IonBERYLLIUM TRIFLUORIDE ION
2MG1Ligand/IonMAGNESIUM ION
3NA1Ligand/IonSODIUM ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREBEF B:2 , HOH B:159 , HOH B:160 , ASP B:1095 , ASP B:1144 , GLN B:1146BINDING SITE FOR RESIDUE MG B 1
2AC2SOFTWARETYR B:1138 , ASN B:1139 , MET B:1140 , ILE B:1141 , TYR B:1165 , SER B:1167 , PRO B:1168BINDING SITE FOR RESIDUE NA B 5
3AC3SOFTWAREHIS A:64 , HOH A:184 , MG B:1 , HOH B:159 , HOH B:160 , ASP B:1144 , VAL B:1145 , GLN B:1146 , THR B:1173 , ALA B:1174 , LYS B:1195BINDING SITE FOR RESIDUE BEF B 2

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2R25)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Val A:128 -Asp A:129
2Lys B:1195 -Pro B:1196
3Lys B:1216 -Lys B:1217

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2R25)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HPTPS50894 Histidine-containing phosphotransfer (HPt) domain profile.YPD1_YEAST24-129  1A:24-129
2RESPONSE_REGULATORYPS50110 Response regulatory domain profile.SLN1_YEAST1089-1210  1B:1089-1210

(-) Exons   (2, 2)

Asymmetric/Biological Unit (2, 2)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YDL235C1YDL235C.1IV:33918-33415504YPD1_YEAST1-1671671A:2-167166

2.1YIL147C1YIL147C.1IX:73453-697913663SLN1_YEAST1-122012201B:1086-1218133

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:166
 aligned with YPD1_YEAST | Q07688 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:166
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161
          YPD1_YEAST      2 STIPSEIINWTILNEIISMDDDDSDFSKGLIIQFIDQAQTTFAQMQRQLDGEKNLTELDNLGHFLKGSSAALGLQRIAWVCERIQNLGRKMEHFFPNKTELVNTLSDKSIINGINIDEDDEEIKIQVDDKDENSIYLILIAKALNQSRLEFKLARIELSKYYNTNL  167
               SCOP domains d2r25a_ A: Phosphorelay protein ypd1                                                                                                                                   SCOP domains
               CATH domains 2r25A00 A:2-167  [code=1.20.120.160, no name defined]                                                                                                                  CATH domains
               Pfam domains ----------------------------Hpt-2r25A01 A:30-107                                                          ------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhh...hhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------HPT  PDB: A:24-129 UniProt: 24-129                                                                        -------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:2-167 UniProt: 1-167 [INCOMPLETE]                                                                                                                     Transcript 1
                2r25 A    2 STIPSEIINWTILNEIISMDDDDSDFSKGLIIQFIDQAQTTFAQMQRQLDGEKNLTELDNLGHFLKGSSAALGLQRIAWVCERIQNLGRKMEHFFPNKTELVNTLSDKSIINGINIDEDDEEIKIQVDDKDENSIYLILIAKALNQSRLEFKLARIELSKYYNTNL  167
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161

Chain B from PDB  Type:PROTEIN  Length:133
 aligned with SLN1_YEAST | P39928 from UniProtKB/Swiss-Prot  Length:1220

    Alignment length:133
                                  1095      1105      1115      1125      1135      1145      1155      1165      1175      1185      1195      1205      1215
          SLN1_YEAST   1086 TSVKILVVEDNHVNQEVIKRMLNLEGIENIELACDGQEAFDKVKELTSKGENYNMIFMDVQMPKVDGLLSTKMIRRDLGYTSPIVALTAFADDSNIKECLESGMNGFLSKPIKRPKLKTILTEFCAAYQGKKN 1218
               SCOP domains d2r25b_ B: automated matches                                                                                                          SCOP domains
               CATH domains 2r25B00 B:1086-1218  [code=3.40.50.2300, no name defined]                                                                             CATH domains
               Pfam domains ----Response_reg-2r25B01 B:1090-1207                                                                                      ----------- Pfam domains
         Sec.struct. author ....eeee..hhhhhhhhhhhhhhh....eeee.hhhhhhhhhhhhhhhh....eeee.......hhhhhhhhhhhhh.....eeeee...hhhhhhhhhhh...eeee...hhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---RESPONSE_REGULATORY  PDB: B:1089-1210 UniProt: 1089-1210                                                                  -------- PROSITE
               Transcript 2 Exon 2.1  PDB: B:1086-1218 UniProt: 1-1220 [INCOMPLETE]                                                                               Transcript 2
                2r25 B 1086 TSVKILVVEDNHVNQEVIKRMLNLEGIENIELACDGQEAFDKVKELTSKGENYNMIFMDVQMPKVDGLLSTKMIRRDLGYTSPIVALTAFADDSNIKECLESGMNGFLSKPIKRPKLKTILTEFCAAYQGKKN 1218
                                  1095      1105      1115      1125      1135      1145      1155      1165      1175      1185      1195      1205      1215

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Clan: CheY (97)

(-) Gene Ontology  (29, 35)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (YPD1_YEAST | Q07688)
molecular function
    GO:0009927    histidine phosphotransfer kinase activity    Serves as a phospho-His intermediate enabling the transfer of phospho group between a hybrid kinase and a response regulator.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0043424    protein histidine kinase binding    Interacting selectively and non-covalently with protein histidine kinase.
    GO:0004871    signal transducer activity    Conveys a signal across a cell to trigger a change in cell function or state. A signal is a physical entity or change in state that is used to transfer information in order to trigger a response.
    GO:0016772    transferase activity, transferring phosphorus-containing groups    Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to another (acceptor).
biological process
    GO:0007234    osmosensory signaling via phosphorelay pathway    A series of molecular signals generated in response to osmotic change, as mediated through a phosphorelay system.
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain B   (SLN1_YEAST | P39928)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0009927    histidine phosphotransfer kinase activity    Serves as a phospho-His intermediate enabling the transfer of phospho group between a hybrid kinase and a response regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005034    osmosensor activity    Sensing extracellular osmolarity to initiate a change in cell activity, and spanning the membrane of the cell.
    GO:0000156    phosphorelay response regulator activity    Responds to a phosphorelay sensor to initiate a change in cell state or activity. The activity of the response regulator is regulated by transfer of a phosphate from a histidine residue in the sensor, to an aspartate residue in the response regulator. Many but not all response regulators act as transcriptional regulators to elicit a response.
    GO:0000155    phosphorelay sensor kinase activity    Catalysis of the phosphorylation of a histidine residue in response to detection of an extracellular signal such as a chemical ligand or change in environment, to initiate a change in cell state or activity. The two-component sensor is a histidine kinase that autophosphorylates a histidine residue in its active site. The phosphate is then transferred to an aspartate residue in a downstream response regulator, to trigger a response.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004673    protein histidine kinase activity    Catalysis of the reaction: ATP + protein L-histidine = ADP + protein phospho-L-histidine.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016772    transferase activity, transferring phosphorus-containing groups    Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to another (acceptor).
biological process
    GO:0006469    negative regulation of protein kinase activity    Any process that stops, prevents, or reduces the frequency, rate or extent of protein kinase activity.
    GO:0007234    osmosensory signaling via phosphorelay pathway    A series of molecular signals generated in response to osmotic change, as mediated through a phosphorelay system.
    GO:0018106    peptidyl-histidine phosphorylation    The phosphorylation of peptidyl-histidine to form peptidyl-1'-phospho-L-histidine (otherwise known as tau-phosphohistidine, tele-phosphohistidine) or peptidyl-3'-phospho-L-histidine (otherwise known as pi-phosphohistidine, pros-phosphohistidine).
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0046777    protein autophosphorylation    The phosphorylation by a protein of one or more of its own amino acid residues (cis-autophosphorylation), or residues on an identical protein (trans-autophosphorylation).
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0023014    signal transduction by protein phosphorylation    A process in which the transfer of one or more phosphate groups to a substrate transmits a signal to the phosphorylated substrate.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BEF  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys B:1195 - Pro B:1196   [ RasMol ]
    Lys B:1216 - Lys B:1217   [ RasMol ]
    Val A:128 - Asp A:129   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2r25
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SLN1_YEAST | P39928
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  YPD1_YEAST | Q07688
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.13.3
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  SLN1_YEAST | P39928
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  YPD1_YEAST | Q07688
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SLN1_YEAST | P399281oxb 1oxk
        YPD1_YEAST | Q076881c02 1c03 1oxb 1oxk 1qsp 5kbx

(-) Related Entries Specified in the PDB File

1oxb 1oxk 1qsp
