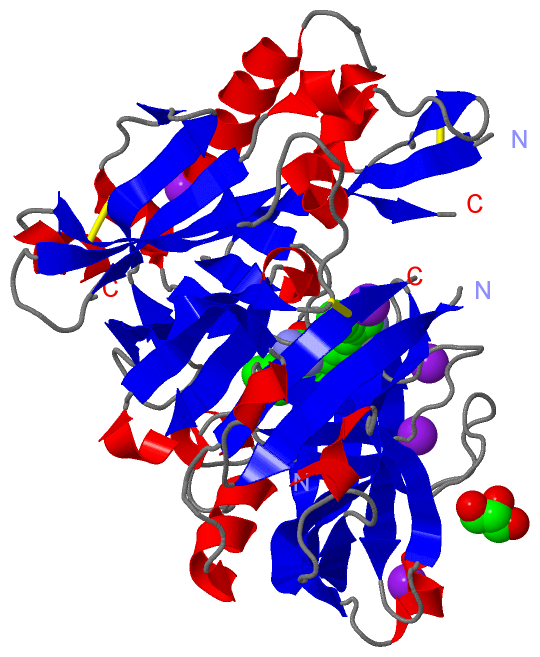

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

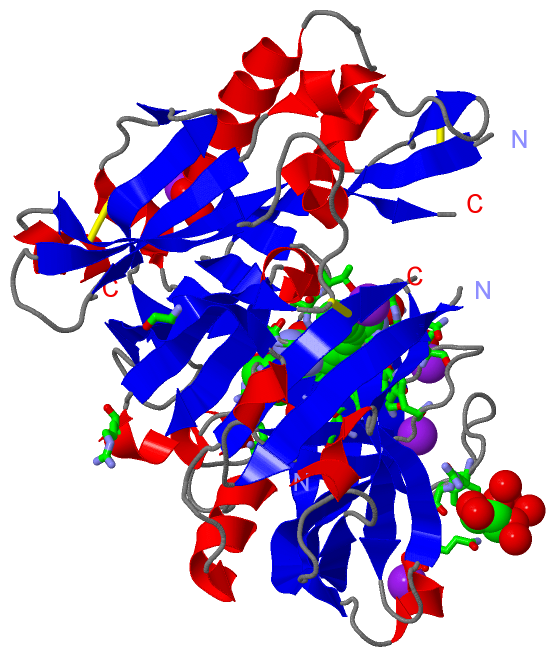

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BACE1 IN COMPLEX WITH 2-AMINOOXAZOLINE-3-AZAXANTHENE COMPOUND 12

Authors :  D. A. Whittington, A. M. Long, E. A. Sickmier
Date :  24 Feb 17  (Deposition) - 17 May 17  (Release) - 17 May 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Aspartic Protease, Alzheimers Disease, App, Amyloid Precursor Protein, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. D. Low, M. D. Bartberger, K. Chen, Y. Cheng, M. R. Fielden, V. Gore, D. Hickman, Q. Liu, E. A. Sickmier, H. M. Vargas, J. Werner, R. D. White, D. A. Whittington, S. Wood, A. E. Minatti
Development Of 2-Aminooxazoline 3-Azaxanthene Beta-Amyloid Cleaving Enzyme (Bace) Inhibitors With Improved Selectivity Against Cathepsin D
Medchemcomm 2017
PubMed: search  |  Reference-DOI: 10.1039/C7MD00106A

(-) Compounds

Molecule 1 - BETA-SECRETASE 1
    Chains: A
    EC Number: 3.4.23.46
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 43-453
    Gene: BACE1, BACE, KIAA1149
    Mutation: YES
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: ASPARTYL PROTEASE 2,ASP 2,BETA-SITE AMYLOID PRECURSOR PROTEIN CLEAVING ENZYME 1,BETA-SITE APP CLEAVING ENZYME 1,MEMAPSIN-2, MEMBRANE-ASSOCIATED ASPARTIC PROTEASE 2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 7)

Asymmetric/Biological Unit (3, 7)
No.NameCountTypeFull Name
18QV1Ligand/Ion(5S)-3-(3,6-DIHYDRO-2H-PYRAN-4-YL)-7-[5-(PROP-1-YN-1-YL)PYRIDIN-3-YL]-5'H-SPIRO[1-BENZOPYRANO[2,3-C]PYRIDINE-5,4'-[1,3]OXAZOL]-2'-AMINE
2GOL1Ligand/IonGLYCEROL
3IOD5Ligand/IonIODIDE ION

(-) Sites  (7, 7)

Asymmetric Unit (7, 7)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:105binding site for residue IOD A 401
2AC2SOFTWARELYS A:107 , HOH A:509binding site for residue IOD A 402
3AC3SOFTWAREHOH A:781 , HOH A:848binding site for residue IOD A 403
4AC4SOFTWAREARG A:349binding site for residue IOD A 404
5AC5SOFTWAREGLY A:11binding site for residue IOD A 405
6AC6SOFTWAREGLY A:11 , GLN A:12 , GLY A:13 , LEU A:30 , ASP A:32 , GLY A:34 , SER A:35 , VAL A:69 , TYR A:71 , PHE A:108 , ILE A:110 , TRP A:115 , ILE A:118 , ARG A:128 , ASP A:228 , SER A:229 , GLY A:230 , THR A:231 , THR A:232 , HOH A:526 , HOH A:646 , HOH A:683binding site for residue 8QV A 406
7AC7SOFTWAREARG A:50 , TYR A:51 , GLN A:53 , SER A:187 , HOH A:506 , HOH A:516 , HOH A:522 , HOH A:548 , HOH A:557binding site for residue GOL A 407

(-) SS Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1A:155 -A:359
2A:217 -A:382
3A:269 -A:319

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Ser A:22 -Pro A:23
2Arg A:128 -Pro A:129
3Tyr A:222 -Asp A:223
4Gly A:372 -Pro A:373

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5UYU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5UYU)

(-) Exons   (0, 0)

(no "Exon" information available for 5UYU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:370

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh..eeee....eeeeeee....eeeeeeee.....eeee...........hhhhh...eeeeeeeeeee..eeeeeeeeeeeee.......eeeeeeeeeeeee..........eeee..hhhhh.......hhhhhhhhhh.....eeeeeee..eeeeeeee...hhh.eeeeeeeee.......ee.eeeeee..ee...hhhhhhh..eee......eeeehhhhhhhhhhhhhhh.....hhhhhh....eee.....hhhhh..eeeeee.....eeeeeeehhhhheee..eeeee.eeee...eeehhhhhh.eeeeeehhh.eeeeeee...........eeeeeee..hhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5uyu A  -1 FVEMVDNLRGKSGQGYYVEMTVGSPPQTLNILVDTGSSNFAVGAAPHPFLHRYYQRQLSSTYRDLRKGVYVPYTQGKWEGELGTDLVSIPHGPNVTVRANIAAITESDKFFINGSNWEGILGLAYAEIARPDDSLEPFFDSLVKQTHVPNLFSLQLCGAASVGGSMIIGGIDHSLYTGSLWYTPIRREWYYEVIIVRVEINGQDLKMDCKEYNYDKSIVDSGTTNLRLPKKVFEAAVKSIKAASSTEKFPDGFWLGEQLVCWQAGTTPWNIFPVISLYLMGEVTNQSFRITILPQQYLRPVDDCYKFAISQSSTGTVMGAVIMEGFYVVFDRARKRIGFAVSACHVHDEFRTAAVEGPFVTLDMEDCGYN 385
                                     8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308||     325       335       345       355       365       375       385
                                                                                                                                                                                        157|                                                                                                                                          309|
                                                                                                                                                                                         168                                                                                                                                           317
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
