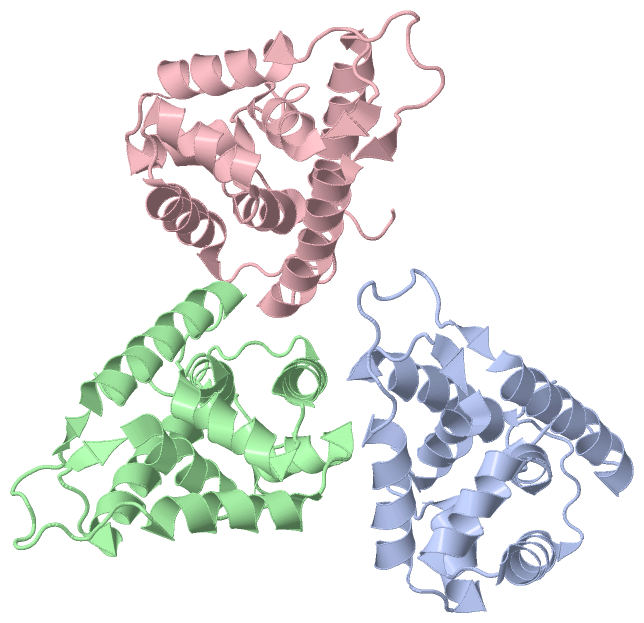

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

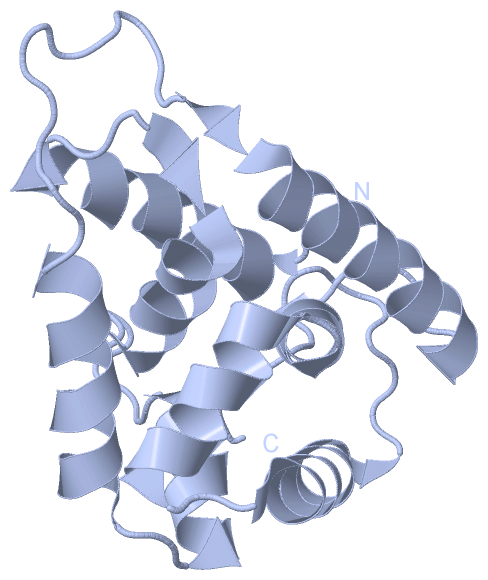

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE HSP104 N-TERMINAL DOMAIN FROM SACCHAROMYCES CEREVISIAE

Authors :  P. Wang, J. Li, B. Sha
Date :  30 Nov 16  (Deposition) - 19 Apr 17  (Release) - 19 Apr 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.54
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Saccharomyces Cerevisiae, Hsp104, N-Terminal Domain, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Wang, J. Li, C. Weaver, A. Lucius, B. Sha
Crystal Structures Of Hsp104 N-Terminal Domains From Saccharomyces Cerevisiae And Candida Albicans Suggest The Mechanism For The Function Of Hsp104 In Dissolving Prions.
Acta Crystallogr D Struct V. 73 365 2017 Biol
PubMed-ID: 28375147  |  Reference-DOI: 10.1107/S2059798317002662

(-) Compounds

Molecule 1 - HEAT SHOCK PROTEIN 104
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Gene: HSP104, YLL026W, L0948
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid: 559292
    Strain: ATCC 204508 / S288C
    Synonym: PROTEIN AGGREGATION-REMODELING FACTOR HSP104

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5U2U)

(-) Sites  (0, 0)

(no "Site" information available for 5U2U)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5U2U)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Gln A:80 -Pro A:81
2Gln B:80 -Pro B:81
3Gln C:80 -Pro C:81

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5U2U)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5U2U)

(-) Exons   (0, 0)

(no "Exon" information available for 5U2U)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:157

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhh...eehhhhhhhhhh........hhhhhhhhhh..hhhhhhhhhhhhhh............eehhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5u2u A   6 QFTERALTILTLAQKLASDHQHPQLQPIHILAAFIETPEDGSVPYLQNLIEKGRYDYDLFKKVVNRNLVRIPQQQPAPAEITPSYALGKVLQDAAKIQKQQKDSFIAQDHILFALFNDSSIQQIFKEAQVDIEAIKQQALELRGNTRIDSRGADTNT 162
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155


Chain B from PDB  Type:PROTEIN  Length:156

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhh...eehhhhhhhhhh....hhhhhhhhhh..hhhhhhhhhhhhhh............eehhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5u2u B   3 DQTQFTERALTILTLAQKLASDHQHPQLQPIHILAAFIETSVPYLQNLIEKGRYDYDLFKKVVNRNLVRIPQQQPAPAEITPSYALGKVLQDAAKIQKQQKDSFIAQDHILFALFNDSSIQQIFKEAQVDIEAIKQQALELRGNTRIDSRGADTNT 162
                                    12        22        32        42|       56        66        76        86        96       106       116       126       136       146       156
                                                                  42|
                                                                   47


Chain C from PDB  Type:PROTEIN  Length:163

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhh....eehhhhhhhhhh........hhhhhhhhhh..hhhhhhhhhhhhhhh...........eehhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhh................. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5u2u C   4 QTQFTERALTILTLAQKLASDHQHPQLQPIHILAAFIETPEDGSVPYLQNLIEKGRYDYDLFKKVVNRNLVRIPQQQPAPAEITPSYALGKVLQDAAKIQKQQKDSFIAQDHILFALFNDSSIQQIFKEAQVDIEAIKQQALELRGNTRIDSRGADTNTPLEY 166
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5U2U)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5U2U)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5U2U)

(-) Gene Ontology  (18, 18)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5u2u)

  Sites
(no "Sites" information available for 5u2u)

  Cis Peptide Bonds
    Gln A:80 - Pro A:81   [ RasMol ]
    Gln B:80 - Pro B:81   [ RasMol ]
    Gln C:80 - Pro C:81   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5u2u
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HS104_YEAST | P31539
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HS104_YEAST | P31539
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HS104_YEAST | P31539: 5kne 5vjh 5vy8 5vya

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5U2U)
