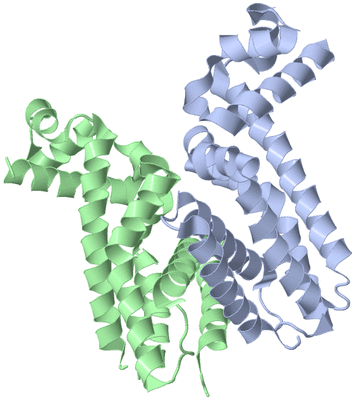

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  UNLIGANDED FORM OF THE MYCOBACTERIUM TUBERCULOSIS REPRESSOR ETHR2

Authors :  R. Wintjens, A. Wohlkonig
Date :  06 Feb 17  (Deposition) - 26 Apr 17  (Release) - 26 Apr 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Repressor, Ethr, Dna Binding Protein, Tetr Protein Family. (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Blondiaux, M. Moune, M. Desroses, R. Frita, M. Flipo, V. Mathys, K. Soetaert, M. Kiass, V. Delorme, K. Djaout, V. Trebosc, C. Kemmer, R. Wintjens, A. Wohlkonig, R. Antoine, L. Huot, D. Hot, M. Coscolla, J. Feldmann, S. Gagneux, C. Locht, P. Brodin, M. Gitzinger, B. Deprez, N. Willand, A. R. Baulard
Reversion Of Antibiotic Resistance In Mycobacterium Tuberculosis By Spiroisoxazoline Smart-420.
Science V. 355 1206 2017
PubMed-ID: 28302858  |  Reference-DOI: 10.1126/SCIENCE.AAG1006
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROBABLE TRANSCRIPTIONAL REGULATORY PROTEIN
    Atcc: 25618
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: GOLD PLYSS AG
    Expression System Vector: PET15B
    Expression System Vector Type: PLASMID
    Gene: RV0078, LH57_00450
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS H37RV
    Organism Taxid: 83332
    Other Details: PURIFICATION TAG: RESIDUE 1-20
    Synonym: TETR FAMILY TRANSCRIPTIONAL REGULATOR,TRANSCRIPTIONAL REGULATORY PROTEIN ETHR2

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5N1I)

(-) Sites  (0, 0)

(no "Site" information available for 5N1I)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5N1I)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5N1I)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5N1I)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5N1I)

(-) Exons   (0, 0)

(no "Exon" information available for 5N1I)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:190

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5n1i A  12 SAATREALITGARKLWGLRGYAEVGTPEIATEAGVTRGAMYHQFADKAALFRDVVEVVEQDVMARMATLVAASGAATPADAIRAAVDAWLEVSGDPEVRQLILLDAPVVLGWAGFRDVAQRYSLGMTEQLITEAIRAGQLARQPVRPLAQVLIGALDEAAMFIATADDPKRARRETRQVLRRLIDGMLNG 201
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain B from PDB  Type:PROTEIN  Length:188

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5n1i B  12 SAATREALITGARKLWGLRGYAEVGTPEIATEAGVTRGAMYHQFADKAALFRDVVEVVEQDVMARMATLVAASGTPADAIRAAVDAWLEVSGDPEVRQLILLDAPVVLGWAGFRDVAQRYSLGMTEQLITEAIRAGQLARQPVRPLAQVLIGALDEAAMFIATADDPKRARRETRQVLRRLIDGMLNG 201
                                    21        31        41        51        61        71        81   ||   93       103       113       123       133       143       153       163       173       183       193
                                                                                                    85|
                                                                                                     88
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5N1I)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5N1I)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5N1I)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5n1i)

  Sites
(no "Sites" information available for 5n1i)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5n1i)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5n1i
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O53623_MYCTU | O53623
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O53623_MYCTU | O53623
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        O53623_MYCTU | O53623: 5icj 5n1c 5n7o

(-) Related Entries Specified in the PDB File

5icj 5ICJ CONTAINS THE SAME PROTEIN COMPLEXED WITH THE LIGAND SMART-420
5n1c 5N1C IS THE IODINATED FORM OF THE SAME PROTEIN
