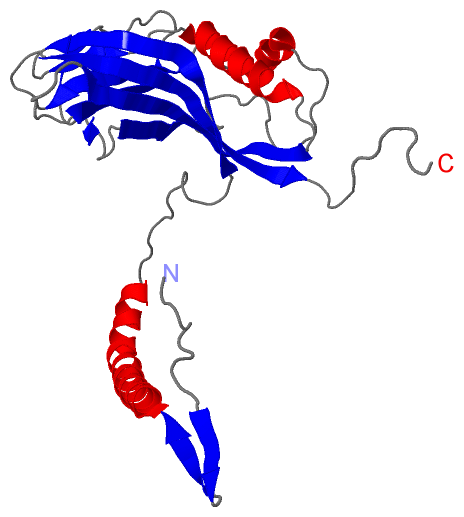

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

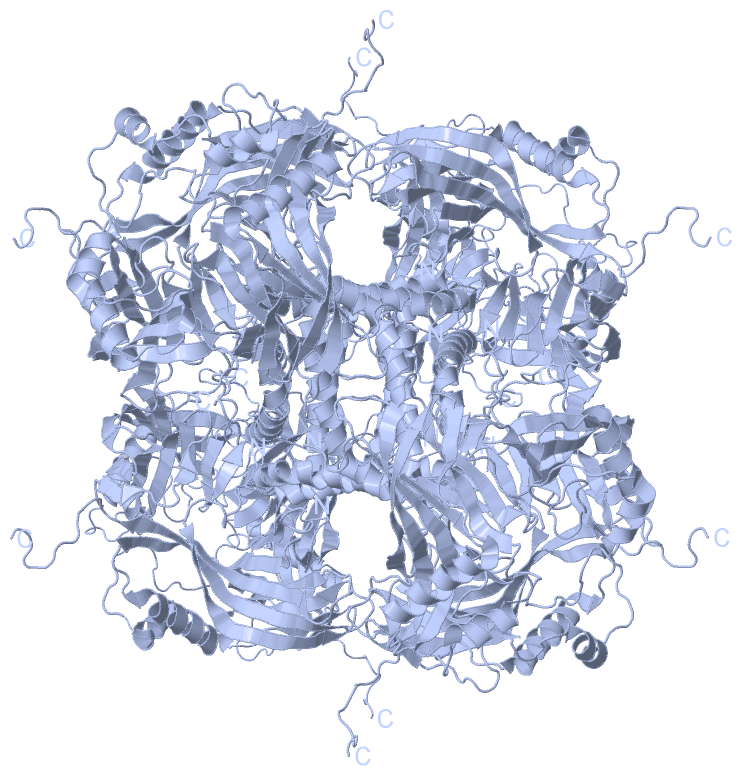

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  SFX STRUCTURE OF CYDIA POMONELLA GRANULOVIRUS USING A DOUBLE FLOW-FOCUSING NOZZLE

Authors :  D. Oberthuer, H. Chapman, K. Doerner, P. L. Xavier
Date :  13 Dec 16  (Deposition) - 29 Mar 17  (Release) - 29 Mar 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.56
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (12x)
Keywords :  Sfx, Granulovirus, In Vivo Crystals, Nanocrystals, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Oberthuer, J. Knoska, M. O. Wiedorn, K. R. Beyerlein, D. A. Bushnell E. G. Kovaleva, M. Heymann, L. Gumprecht, R. A. Kirian, A. Barty, V. Mariani, A. Tolstikova, L. Adriano, S. Awel, M. Barthelmess, K. Dorner, P. L. Xavier, O. Yefanov, D. R. James, G. Nelson, D. Wang, G. Calvey, Y. Chen, A. Schmidt, M. Szczepek, S. Frielingsdorf, O. Lenz E. Snell, P. J. Robinson, B. Sarler, G. Belsak, M. Macek, F. Wilde, A. Aquila, S. Boutet, M. Liang, M. S. Hunter, P. Scheerer, J. D. Lipscomb, U. Weierstall, R. D. Kornberg, J. C. Spence, L. Pollack H. N. Chapman, S. Bajt
Double-Flow Focused Liquid Injector For Efficient Serial Femtosecond Crystallography.
Sci Rep V. 7 44628 2017
PubMed-ID: 28300169  |  Reference-DOI: 10.1038/SREP44628

(-) Compounds

Molecule 1 - GRANULIN
    Chains: A
    Organism Scientific: CYDIA POMONELLA GRANULOSIS VIRUS (ISOLATE MEXICO/1963)
    Organism Taxid: 654905
    Synonym: MATRIX PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (12x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5MND)

(-) Sites  (0, 0)

(no "Site" information available for 5MND)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:135 -A:135

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Phe A:110 -Pro A:111
2Gly A:245 -Pro A:246

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5MND)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5MND)

(-) Exons   (0, 0)

(no "Exon" information available for 5MND)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:243

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeee..eeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............eeeeeeeeeeeeee...eeee....hhhhhhhhhhhhhhhhhh....eeeeeeeeeeeeeee........eeeeeeee.........eee....ee.....eeeee...................hhhhhhhhh.....eeeeeeeee.....eeeeeeeeeeeeeeee............ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5mnd A   6 SLRYSRHDGTSCVIDNHHLKSLGAVLNDVRRKKDRIREAEYEPIIDIADQYMVTEDPFRGPGKNVRITLFKEIRRVHPDTMKLVCNWSGKEFLRETWTRFISEEFPITTDQEIMDLWFELQLRPMHPNRCYKFTMQYALGAHPDYVAHDVIRQQDPYYVGPNNIERINLSKKGFAFPLTCLQSVYNDNFERFFDDVLWPYFYRPLVYVGTTSAEIEEIMIEVSLLFKIKEFAPDVPLFTGPAY 248
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5MND)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5MND)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5MND)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5mnd)

  Sites
(no "Sites" information available for 5mnd)

  Cis Peptide Bonds
    Gly A:245 - Pro A:246   [ RasMol ]
    Phe A:110 - Pro A:111   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5mnd
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GRAN_GVCPM | P87577
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GRAN_GVCPM | P87577
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GRAN_GVCPM | P87577: 5g0z 5g3x

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5MND)
