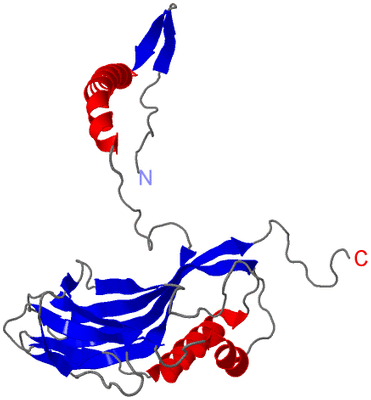

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

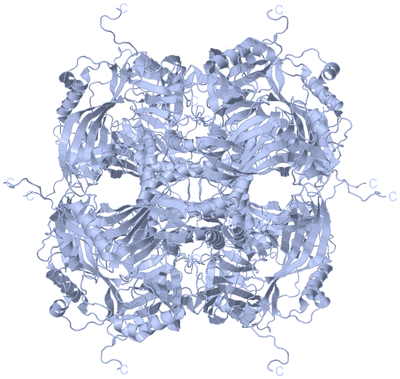

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF NATIVE GRANULOVIRUS POLYHEDRIN DETERMINED USING AN X-RAY FREE-ELECTRON LASER

Authors :  C. Gati, R. D. Bunker, D. Oberthur, P. Metcalf, C. Henry
Date :  23 Mar 16  (Deposition) - 22 Feb 17  (Release) - 15 Mar 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (12x)
Keywords :  Structural Protein, Fel, Native Crystals, Nano Crystallography, Serial Crystallography (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Gati, D. Oberthuer, O. Yefanov, R. D. Bunker, F. Stellato, E. Chiu, S. M. Yeh, A. Aquila, S. Basu, R. Bean, K. R. Beyerlein, S. Botha, S. Boutet, D. P. Deponte, R. B. Doak, R. Fromme, L. Galli, I. Grotjohann D. R. James, C. Kupitz, L. Lomb, M. Messerschmidt, K. Nass, K. Rendek, R. L. Shoeman, D. Wang, U. Weierstall, T. A. White, G. J. Williams, N. A. Zatsepin, P. Fromme, J. C. Spence, K. N. Goldie, J. A. Jehle, P. Metcalf, A. Barty, H. N. Chapman
Atomic Structure Of Granulin Determined From Native Nanocrystalline Granulovirus Using An X-Ray Free-Electron Laser.
Proc. Natl. Acad. Sci. V. 114 2247 2017 U. S. A.
PubMed-ID: 28202732  |  Reference-DOI: 10.1073/PNAS.1609243114

(-) Compounds

Molecule 1 - GRANULIN
    Chains: A
    Organism Common: CPGV
    Organism Scientific: CYDIA POMONELLA GRANULOVIRUS
    Organism Taxid: 28289
    Synonym: MATRIX PROTEIN, GRANULOVIRUS POLYHEDRIN

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (12x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5G0Z)

(-) Sites  (0, 0)

(no "Site" information available for 5G0Z)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:135 -A:135

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Phe A:110 -Pro A:111
2Gly A:245 -Pro A:246

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5G0Z)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5G0Z)

(-) Exons   (0, 0)

(no "Exon" information available for 5G0Z)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:243

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeee..eeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............eeeeeeeeeeeeee...eeee....hhhhhhhhhhhhhhhhhh....eeeeeeeeeeeeeee........eeeeeeee.........eee....ee.....eeeeee..................hhhhhhhhh.....eeeeeeeee.....eeeeeeeeeeeeeeee............ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5g0z A   6 SLRYSRHDGTSCVIDNHHLKSLGAVLNDVRRKKDRIREAEYEPIIDIADQYMVTEDPFRGPGKNVRITLFKEIRRVHPDTMKLVCNWSGKEFLRETWTRFISEEFPITTDQEIMDLWFELQLRPMHPNRCYKFTMQYALGAHPDYVAHDVIRQQDPYYVGPNNIERINLSKKGFAFPLTCLQSVYNDNFERFFDDVLWPYFYRPLVYVGTTSAEIEEIMIEVSLLFKIKEFAPDVPLFTGPAY 248
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5G0Z)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5G0Z)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5G0Z)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5g0z)

  Sites
(no "Sites" information available for 5g0z)

  Cis Peptide Bonds
    Gly A:245 - Pro A:246   [ RasMol ]
    Phe A:110 - Pro A:111   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

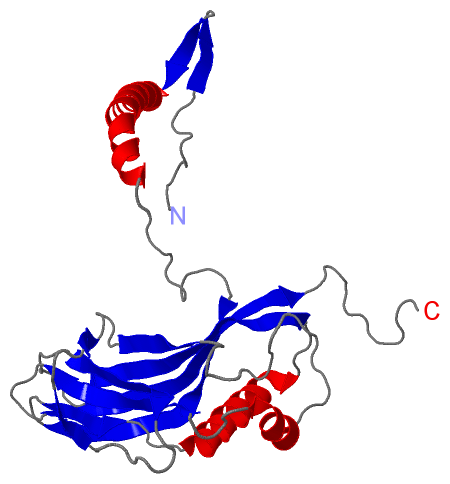

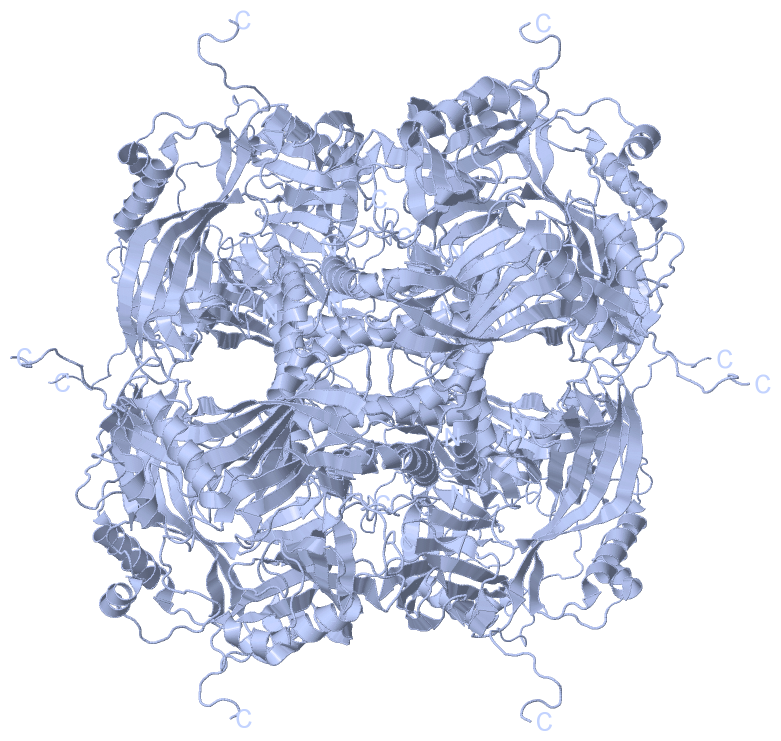

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
