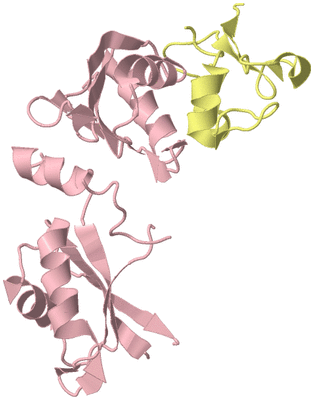

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF YEAST HSH49P IN COMPLEX WITH CUS1P BINDING DOMAIN.

Authors :  A. M. Van Roon, E. Obayashi, B. Sposito, C. Oubridge, K. Nagai
Date :  24 Aug 16  (Deposition) - 12 Apr 17  (Release) - 24 May 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B,C,D,F,H
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  F,H  (1x)
Keywords :  Splicing, U2 Snrnp, Sf3B Complex, Rna Binding Domain (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. M. Van Roon, C. Oubridge, E. Obayashi, B. Sposito, A. J. Newman, B. Seraphin, K. Nagai
Crystal Structure Of U2 Snrnp Sf3B Components: Hsh49P In Complex With Cus1P-Binding Domain.
Rna V. 23 968 2017
PubMed-ID: 28348170  |  Reference-DOI: 10.1261/RNA.059378.116

(-) Compounds

Molecule 1 - PROTEIN HSH49
    Chains: A, C, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Gene: HSH49, YOR319W, O6142
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid: 559292
    Other Details: GGS SEQUENCE AT THE N-TERMINUS IS NON-NATURAL AND LEFT OVER FROM TEV-PROTEASE CLEAVAGE SITE
    Strain: ATCC 204508 / S288C

Molecule 2 - COLD SENSITIVE U2 SNRNA SUPPRESSOR 1
    Chains: B, D, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Gene: CUS1, YMR240C, YM9408.02C
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid: 559292
    Other Details: HSH49P BINDING DOMAIN OF CUS1P BETWEEN RESIDUES 290- 368
    Strain: ATCC 204508 / S288C

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDFH
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     FH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5LSB)

(-) Sites  (0, 0)

(no "Site" information available for 5LSB)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5LSB)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5LSB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5LSB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5LSB)

(-) Exons   (0, 0)

(no "Exon" information available for 5LSB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:176

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee......hhhhhhhhhh....eeeee..ee....ee...eeeee.hhhhhhhhhhhhh...ee..ee.eeee...eeeeee......hhhhhhhhhhh........eeeee..eeeeeeee.hhhhhhhhhhhhh.eee..eeeeeee...........hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5lsb A   8 GNTVYVGNIDPRITKEQLYELFIQINPVLRIKYPKDKVLQAYQGYAFIEFYNQGDAQYAIKIMNNTVRLYDRLIKVRQVPIAKLFIKNLADSIDSDQLVKIFNKFGKLIREPEIFYLSKLKCAYVYFEDFEKADLAIKSLNNQLVANNRITVDYAFKNGKGNAKYGDDVDRLLNKE 205
                                    17        27        37        47        57        67        77       106       116       126       136       148       158       168       178      |189       199
                                                                                                         86|                                   144|                                   185|
                                                                                                         106                                    147                                    187


Chain B from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhh........hhhhhhhhh.......eee.....hhhhh.....eee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                 5lsb B 289 SRPGRISQELRAIMNLPEGQLPPWCMKMKDIGLPTGYPDLKIAGLNWDITNLKGDVYGKIIP 350
                                   298       308       318       328       338       348


Chain C from PDB  Type:PROTEIN  Length:176

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee......hhhhhhhhhh....eeeee..ee....ee...eeeee.hhhhhhhhhhhhh...ee..ee.eeee...eeeeee......hhhhhhhhhhh........eeeee..eeeeeeee.hhhhhhhhhhhhh..ee..ee.eeee...........hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5lsb C   8 GNTVYVGNIDPRITKEQLYELFIQINPVLRIKYPKDKVLQAYQGYAFIEFYNQGDAQYAIKIMNNTVRLYDRLIKVRQVPIAKLFIKNLADSIDSDQLVKIFNKFGKLIREPEIFYLSKLKCAYVYFEDFEKADLAIKSLNNQLVANNRITVDYAFKNGKGNAKYGDDVDRLLNKE 205
                                    17        27        37        47        57        67        77       106       116       126       136       148       158       168       178      |189       199
                                                                                                         86|                                   144|                                   185|
                                                                                                         106                                    147                                    187


Chain D from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhh........hhhhhhhhh.......eee.....hhhhh.....eee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                 5lsb D 289 SRPGRISQELRAIMNLPEGQLPPWCMKMKDIGLPTGYPDLKIAGLNWDITNLKGDVYGKIIP 350
                                   298       308       318       328       338       348


Chain F from PDB  Type:PROTEIN  Length:174

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee......hhhhhhhhhh....eeeee..ee....ee...eeeee.hhhhhhhhhhhhh...ee..ee.eeee...eeeeee......hhhhhhhhhhh........eeeee..eeeeeeee.hhhhhhhhhhhhh.eee..eeeeeee.....hhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5lsb F   8 GNTVYVGNIDPRITKEQLYELFIQINPVLRIKYPKDKVLQAYQGYAFIEFYNQGDAQYAIKIMNNTVRLYDRLIKVRQVPIAKLFIKNLADSIDSDQLVKIFNKFGKLIREPEIFYLSKLKCAYVYFEDFEKADLAIKSLNNQLVANNRITVDYAFKKGNAKYGDDVDRLLNKE 205
                                    17        27        37        47        57        67        77       106       116       126       136       148       158       168       178      |191       201
                                                                                                         86|                                   144|                                   185|
                                                                                                         106                                    147                                    189


Chain H from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhh........hhhhhhhhh.......eee.....hhhhh.....eee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                 5lsb H 289 SRPGRISQELRAIMNLPEGQLPPWCMKMKDIGLPTGYPDLKIAGLNWDITNLKGDVYGKIIP 350
                                   298       308       318       328       338       348
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5LSB)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5LSB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5LSB)

(-) Gene Ontology  (14, 21)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5lsb)

  Sites
(no "Sites" information available for 5lsb)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5lsb)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5lsb
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CUS1_YEAST | Q02554
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  HSH49_YEAST | Q99181
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CUS1_YEAST | Q02554
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HSH49_YEAST | Q99181
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CUS1_YEAST | Q02554: 5gm6 5lsl
        HSH49_YEAST | Q99181: 5gm6 5lsl

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5LSB)
