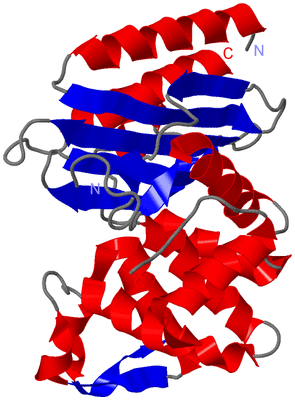

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE CLASS A BETA-LACTAMASE PENL-TTR11 CONTAINING 20 RESIDUES INSERTION IN OMEGA-LOOP

Authors :  J. M. Choi, H. Yi, H. S. Kim, S. H. Lee
Date :  10 Jul 16  (Deposition) - 15 Feb 17  (Release) - 15 Feb 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta0Lactamase, Penl-Ttr11, Omega-Loop, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Yi, J. M. Choi, J. Hwang, F. Prati, T. P. Cao, S. H. Lee, H. S. Kim
High Adaptability Of The Omega Loop Underlies The Substrate-Spectrum-Extension Evolution Of A Class A Beta-Lactamase, Penl
Sci Rep V. 6 36527 2016
PubMed-ID: 27827433  |  Reference-DOI: 10.1038/SREP36527

(-) Compounds

Molecule 1 - BETA-LACTAMASE
    Chains: A
    EC Number: 3.5.2.6
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET28A(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 31-294
    Gene: BLA, DR63_4327
    Organism Scientific: BURKHOLDERIA THAILANDENSIS
    Organism Taxid: 271848
    Strain: ATCC 700388 / DSM 13276 / CIP 106301 / E264

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5GLC)

(-) Sites  (0, 0)

(no "Site" information available for 5GLC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5GLC)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5GLC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5GLC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5GLC)

(-) Exons   (0, 0)

(no "Exon" information available for 5GLC)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:259

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh...eeeeeeeee.....eeee.....ee...hhhhhhhhhhhhhh..hhhhhh.eeeehhhhh.....hhhhhheeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...............eehhhhhhhhhhhhhh....hhhhhhhhhhhhhh......hhhhhh....eeeeeeeee...eeeeeeeee......eeeeeeeee.......hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5glc A  22 GSHMRNVAAEQQLRELESTFDGRLGFVALDTATGARIAHRADERFPFCSTFKTMLSAAVLARSAGDAALLQRRIPYAKRDLVRYSPITEKHVGAGMTVAELCAATLQYSDNTAANLLIALLGGPQAVTAYARSIGDATFRLDLPGDERDTTTPAAMAASVRRLLVGDALGTAQRAQLNAWMLGNKTGDARIRAGVPAGWRVADKTGTGDYGTGNDIGVAYPPDRAPIVFVVYTTMRSRNAQARDDVIASAARIAARAFV 311
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161 ||    200       210       220       230       240       250       261       271||     282       292       302
                                                                                                                                                                       163|                                                              258|         272|
                                                                                                                                                                        193                                                               260          274
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5GLC)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5GLC)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5GLC)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5glc)

  Sites
(no "Sites" information available for 5glc)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5glc)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
