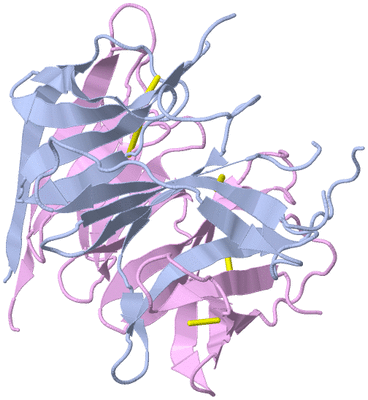

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PFCYRPA

Authors :  P. Favuzza, G. Pluschke, M. G. Rudolph
Date :  26 Nov 15  (Deposition) - 07 Dec 16  (Release) - 26 Apr 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.51
Chains :  Asym. Unit :  A,B,E,G
Biol. Unit 1:  A,E  (1x)
Biol. Unit 2:  B,G  (1x)
Keywords :  Malaria Inhibitory Antibody, Fab, Immune System, Cyrpa (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Favuzza, E. Guffart, M. Tamborrini, B. Scherer, A. M. Dreyer, A. C. Rufer, J. Erny, J. Hoernschemeyer, R. Thoma, G. Schmid, B. Gsell, A. Lamelas, J. Benz, C. Joseph, H. Matile, G. Pluschke, M. G. Rudolph
Structure Of The Malaria Vaccine Candidate Antigen Cyrpa An Its Complex With A Parasite Invasion Inhibitory Antibody.
Elife V. 6 2017
PubMed-ID: 28195038  |  Reference-DOI: 10.7554/ELIFE.20383

(-) Compounds

Molecule 1 - CYSTEINE-RICH PROTECTIVE ANTIGEN
    Chains: A
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Common: HUMAN
    Expression System Taxid: 9606
    Gene: PF3D7_0423800
    Organism Scientific: PLASMODIUM FALCIPARUM (ISOLATE 3D7)
    Organism Taxid: 36329
    Strain: ISOLATE 3D7

Molecule 2 - CYSTEINE-RICH PROTECTIVE ANTIGEN
    Chains: E
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Common: HUMAN
    Expression System Taxid: 9606
    Gene: PF3D7_0423800
    Organism Scientific: PLASMODIUM FALCIPARUM (ISOLATE 3D7)
    Organism Taxid: 36329
    Strain: ISOLATE 3D7

Molecule 3 - CYSTEINE-RICH PROTECTIVE ANTIGEN
    Chains: B
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Common: HUMAN
    Expression System Taxid: 9606
    Gene: PF3D7_0423800
    Organism Scientific: PLASMODIUM FALCIPARUM
    Organism Taxid: 36329
    Strain: ISOLATE 3D7

Molecule 4 - CYSTEINE-RICH PROTECTIVE ANTIGEN
    Chains: G
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Common: HUMAN
    Expression System Taxid: 9606
    Gene: PF3D7_0423800
    Organism Scientific: PLASMODIUM FALCIPARUM (ISOLATE 3D7)
    Organism Taxid: 36329
    Strain: ISOLATE 3D7

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABEG
Biological Unit 1 (1x): A E
Biological Unit 2 (1x):  B G

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5EZN)

(-) Sites  (0, 0)

(no "Site" information available for 5EZN)

(-) SS Bonds  (10, 10)

Asymmetric Unit
No.Residues
1A:48 -A:64
2A:119 -A:133
3A:180 -E:198
4B:48 -B:64
5B:119 -B:133
6B:180 -G:198
7E:258 -E:268
8E:303 -E:327
9G:258 -G:268
10G:303 -G:327

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5EZN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5EZN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5EZN)

(-) Exons   (0, 0)

(no "Exon" information available for 5EZN)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:148

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee.........eeee..eeeeeeee....eeeeeeee..eeeeeee...........eeeeee....eeeeee.......eeeeeeee..........eee............eee..ee....eeeeeeee...... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ezn A  32 HVFIRTELSFIKNNVPCIRDMFFIYKRELYNICLDDDETHIYVQKKVKDSWITLNDLFKETDLTGRPHIFAYVDVEEIIILLCEDEEKKDMTCHRFYSNDGKEYQNSEITISDYILKDKLLSSYVSLPLKIENREYFLICGVSPYKFK 188
                                    41        51        61     || 76        86        96       106       116      |130       140       150       160       170       180
                                                              67|                                               123|
                                                               73                                                128


Chain B from PDB  Type:PROTEIN  Length:153

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee.........eeee..eeeeeeee.........eeeeeeee..eeeeeee.hhhh......eeeeee....eeeeee.........eeeeeeee......eeeeeee............eee..ee....eeeeeeee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ezn B  32 HVFIRTELSFIKNNVPCIRDMFFIYKRELYNICLDDLKGEEDETHIYVQKKVKDSWITLNDLFKETDLTGRPHIFAYVDVEEIIILLCEDDENRKKDMTCHRFYSNDGKEYQNSEITISDYILKDKLLSSYVSLPLKIENREYFLICGVSPYK 192
                                    41        51        61        71        81        91       101       111       121 ||    133       143       153       163       173       183 ||
                                                                                                                     123|                                                        185|
                                                                                                                      126                                                         192


Chain E from PDB  Type:PROTEIN  Length:170

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee........eeeeee.........eeeeeeeee..eeeeeeee........eeeeeeeee....eeeeee........eeeeeee....eeeeee.......eeeee...eeeee...............eeee....eeeeee.....eeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ezn E 193 KDDILCMASHDKGETWGTKIVIKYDNYKLGVQYFFLRPYISKNDLSFHFYVGDNINNVKNVNFIECTHEKDLEFVCSNRDFLKDNKVLQDVSTLNDEYIVSYGNDNNFAECYIFFNNENSILIKPEKYGQTTAGCYGGTFVKIDEQRTLFIYSSSQGIYNIHTIYYANYE 362
                                   202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362


Chain G from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee........eeeeee........eeeeeeeeee..eeeeeeeee.......eeeeeeeeeee..eeeeee........eeeeeeee..eeeeeee.......eeeee...eeeee...........eeee....eeeeeee....eeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ezn G 193 KDDILCMASHDKGETWGTKIVIKYDNYKLGVQYFFLRPYISKNDLSFHFYVGDNINNVKNVNFIECTHEKDLEFVCSNRDFLKDNKVLQDVSTLNDEYIVSYGNDNNFAECYIFFNNENSILIKPEKTAGCYGGTFVKIDEQRTLFIYSSSQGIYNIHTIYYANYE 362
                                   202       212       222       232       242       252       262       272       282       292       302       312      |326       336       346       356
                                                                                                                                                        319|
                                                                                                                                                         324
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5EZN)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5EZN)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5EZN)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5ezn)

  Sites
(no "Sites" information available for 5ezn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5ezn)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5ezn
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8IFM8_PLAF7 | Q8IFM8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q8IFM8_PLAF7 | Q8IFM8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8IFM8_PLAF7 | Q8IFM8: 5ezo 5tih 5tik
