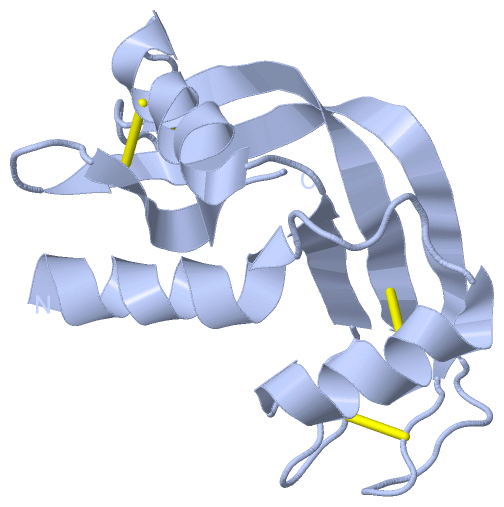

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PORCINE RNASE 4 D80A MUTANT

Authors :  S. Liang, K. R. Acharya
Date :  25 Sep 15  (Deposition) - 20 Jan 16  (Release) - 16 Mar 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Hydrolase, Rna Degradation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Liang, K. R. Acharya
Structural Basis Of Substrate Specificity In Porcine Rnase 4.
Febs J. V. 283 912 2016
PubMed-ID: 26748441  |  Reference-DOI: 10.1111/FEBS.13646

(-) Compounds

Molecule 1 - RIBONUCLEASE 4
    Chains: A, B, C, D
    EC Number: 3.1.27.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Common: PIG
    Organism Scientific: SUS SCROFA
    Organism Taxid: 9823
    Synonym: RNASE 4, RIBONUCLEASE PL3

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5ARJ)

(-) Sites  (0, 0)

(no "Site" information available for 5ARJ)

(-) SS Bonds  (16, 16)

Asymmetric Unit
No.Residues
1A:25 -A:81
2A:39 -A:92
3A:57 -A:107
4A:64 -A:71
5B:25 -B:81
6B:39 -B:92
7B:57 -B:107
8B:64 -B:71
9C:25 -C:81
10C:39 -C:92
11C:57 -C:107
12C:64 -C:71
13D:25 -D:81
14D:39 -D:92
15D:57 -D:107
16D:64 -D:71

(-) Cis Peptide Bonds  (8, 8)

Asymmetric Unit
No.Residues
1Ala A:89 -Pro A:90
2Asn A:110 -Pro A:111
3Ala B:89 -Pro B:90
4Asn B:110 -Pro B:111
5Ala C:89 -Pro C:90
6Asn C:110 -Pro C:111
7Ala D:89 -Pro D:90
8Asn D:110 -Pro D:111

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5ARJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5ARJ)

(-) Exons   (0, 0)

(no "Exon" information available for 5ARJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120

               SCOP domains ------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhh.......hhhhhhhhhhhh.........eeeee..hhhhhhhhhhh...........eeeeeeeeeeeee..........eeeeeeeeeeeeeee....eeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 5arj A   0 MQDRMYQRFLRQHVDPDATGGNDAYCNLMMQRRKMTSHYCKRFNTFIHEDIWNIRSICSTSNIQCKNGQMNCHEGVVKVTACRETGSSRAPNCRYRAMASTRRVVIACEGNPEVPVHFDK 119
                                     9        19        29        39        49        59        69        79        89        99       109       119


Chain B from PDB  Type:PROTEIN  Length:119

               SCOP domains ----------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh.......hhhhhhhhhhhh.........eeeee..hhhhhhhhhhh...........eeeeeeeeeeeee..........eeeeeeeeeeeeeee....eeeeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 5arj B   1 QDRMYQRFLRQHVDPDATGGNDAYCNLMMQRRKMTSHYCKRFNTFIHEDIWNIRSICSTSNIQCKNGQMNCHEGVVKVTACRETGSSRAPNCRYRAMASTRRVVIACEGNPEVPVHFDK 119
                                    10        20        30        40        50        60        70        80        90       100       110


Chain C from PDB  Type:PROTEIN  Length:121

               SCOP domains ------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh.......hhhhhhhhhhhh.........eeeee..hhhhhhhhhhh...........eeeeeeeeeeeee..........eeeeeeeeeeeeeee....eeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 5arj C  -1 KMQDRMYQRFLRQHVDPDATGGNDAYCNLMMQRRKMTSHYCKRFNTFIHEDIWNIRSICSTSNIQCKNGQMNCHEGVVKVTACRETGSSRAPNCRYRAMASTRRVVIACEGNPEVPVHFDK 119
                                     8        18        28        38        48        58        68        78        88        98       108       118


Chain D from PDB  Type:PROTEIN  Length:121

               SCOP domains ------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh.......hhhhhhhhhhhh.........eeeee..hhhhhhhhhhh...........eeeeeeeeeeeee..........eeeeeeeeeeeeeee....eeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 5arj D  -1 KMQDRMYQRFLRQHVDPDATGGNDAYCNLMMQRRKMTSHYCKRFNTFIHEDIWNIRSICSTSNIQCKNGQMNCHEGVVKVTACRETGSSRAPNCRYRAMASTRRVVIACEGNPEVPVHFDK 119
                                     8        18        28        38        48        58        68        78        88        98       108       118
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5ARJ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5ARJ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5ARJ)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5arj)

  Sites
(no "Sites" information available for 5arj)

  Cis Peptide Bonds
    Ala A:89 - Pro A:90   [ RasMol ]
    Ala B:89 - Pro B:90   [ RasMol ]
    Ala C:89 - Pro C:90   [ RasMol ]
    Ala D:89 - Pro D:90   [ RasMol ]
    Asn A:110 - Pro A:111   [ RasMol ]
    Asn B:110 - Pro B:111   [ RasMol ]
    Asn C:110 - Pro C:111   [ RasMol ]
    Asn D:110 - Pro D:111   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5arj
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RNAS4_PIG | P15468
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.27.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RNAS4_PIG | P15468
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RNAS4_PIG | P15468: 5ar6 5ark 5arl

(-) Related Entries Specified in the PDB File

5ar6 CRYSTAL STRUCTURE OF PORCINE RNASE 4
5ark CRYSTAL STRUCTURE OF PORCINE RNASE 4 IN COMPLEX WITH DUMP
5arl CRYSTAL STRUCTURE OF PORCINE RNASE 4 D80A MUTANT IN COMPLEX WITH DCMP
