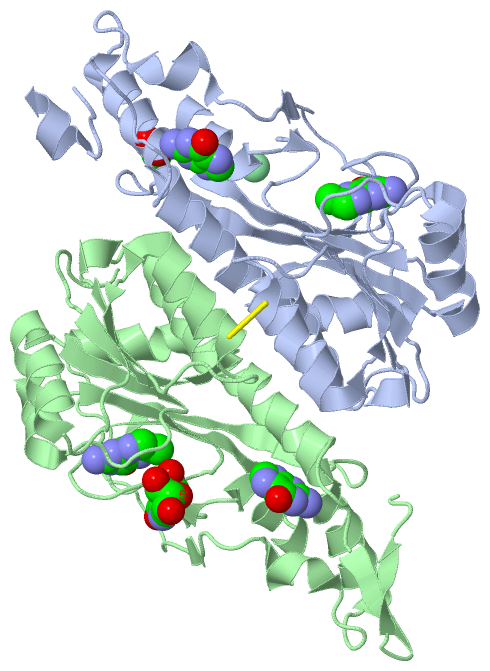

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE WBKC FORMYL TRANSFERASE FROM BRUCELLA MELITENSIS

Authors :  A. S. Riegert, D. P. Chantigian, J. B. Thoden, H. M. Holden
Date :  26 May 17  (Deposition) - 05 Jul 17  (Release) - 05 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  N-Formyltransferase, Deoxysugar, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. S. Riegert, D. P. Chantigian, J. B. Thoden, P. A. Tipton, H. M. Holden
Biochemical Characterization Of Wbkc, An N-Formyltransferas From Brucella Melitensis.
Biochemistry 2017
PubMed-ID: 28636341  |  Reference-DOI: 10.1021/ACS.BIOCHEM.7B00494

(-) Compounds

Molecule 1 - GDP-MANNOSE 4,6-DEHYDRATASE / GDP-4-AMINO-4,6-DIDEOXY-D- MANNOSE FORMYLTRANSFERASE
    Chains: A, B
    EC Number: 2.1.2.-, 4.2.1.47
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: ROSETTA2(DE3)
    Expression System Taxid: 562
    Gene: BMEI1418
    Mutation: YES
    Organism Scientific: BRUCELLA MELITENSIS BIOTYPE 1 (STRAIN 16M / ATCC 23456 / NCTC 10094)
    Organism Taxid: 224914
    Strain: 16M / ATCC 23456 / NCTC 10094

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 7)

Asymmetric/Biological Unit (4, 7)
No.NameCountTypeFull Name
1B622Ligand/Ion(6R)-2-AMINO-6-METHYL-5,6,7,8-TETRAHYDROPTERIDIN-4(3H)-ONE
2CL1Ligand/IonCHLORIDE ION
3EDO1Ligand/Ion1,2-ETHANEDIOL
4GMP3Ligand/IonGUANOSINE

(-) Sites  (7, 7)

Asymmetric Unit (7, 7)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:87 , SER A:89 , LEU A:90 , ILE A:91 , LEU A:96 , ASN A:105 , HIS A:136 , MET A:138 , ASP A:139 , ASN A:141 , PHE A:142 , ASP A:143 , HOH A:409 , HOH A:457 , HOH A:463 , HOH A:482binding site for residue B62 A 301
2AC2SOFTWAREGLU A:128 , VAL A:155 , GLU A:156 , GLU A:157 , ARG A:220 , ARG A:223 , HOH A:415binding site for residue EDO A 302
3AC3SOFTWARELEU A:110 , THR A:131binding site for residue CL A 303
4AC4SOFTWAREMET A:225 , PHE A:227 , PHE A:230 , PRO A:231 , HOH A:407 , HOH A:439binding site for residue GMP A 304
5AC5SOFTWARESER B:89 , LEU B:90 , ILE B:91 , ASN B:105 , HIS B:136 , MET B:138 , ASP B:139 , ASN B:141 , PHE B:142 , ASP B:143 , HOH B:415 , HOH B:433 , HOH B:457 , HOH B:476binding site for residue B62 B 301
6AC6SOFTWAREARG A:212 , ARG B:88 , GLY B:116 , THR B:117 , PHE B:142 , ASP B:143 , ARG B:201 , HOH B:471 , HOH B:511binding site for residue GMP B 302
7AC7SOFTWARELEU B:203 , MET B:225 , PHE B:230 , PRO B:231 , HOH B:477binding site for residue GMP B 303

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:47 -B:47

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Leu A:111 -Pro A:112
2Pro A:228 -Pro A:229
3Leu B:111 -Pro B:112
4Pro B:228 -Pro B:229

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5VYR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5VYR)

(-) Exons   (0, 0)

(no "Exon" information available for 5VYR)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:244

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeehhhhhhhhhhhhhhh..hhh.eeee.......hhhhhhhhhhhh.eee.....hhhhhhhhhhhh..eeeee......hhhhhh.....eeeee.......ee.hhhhhhhhh...eeeeeee..........eeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhh...........ee...hhhhhh.....hhhhhhhhhhhhh.............hhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5vyr A   2 AIAPNTRVLVAGYGLPAEFCVTTLIGMGVEIDKIAVATHREDNRNCGLHSMLRLRNIQFTTAAANSEEFYEFGANFAPDMIISMHYRSLIPGRFLKLAKKGSVNLHPSLLPAYRGTNSVAWVIINGESETGFSYHRMDENFDTGAILLQERISVEETDTAFSLFHRQIARAMLRLEEVILKLDQGDPGFAQLGEASYYARELPFGGVIDPRWSEVQIDRFIRAMFFPPFPPAVLYYVPSIDIYR 251
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231   ||  247
                                                                                                                                                                                                                                                                   235|
                                                                                                                                                                                                                                                                    242


Chain B from PDB  Type:PROTEIN  Length:245

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeehhhhhhhhhhhhhhh..hhh.eeee.......hhhhhhhhhhhh.eee.....hhhhhhhhhhhh..eeeee......hhhhhhh....eeeee.......ee.hhhhhhhhh...eeeeeee..........eeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhh............ee...hhhhhh.....hhhhhhhhhhhhh.......eeee..eeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5vyr B   2 AIAPNTRVLVAGYGLPAEFCVTTLIGMGVEIDKIAVATHREDNRNCGLHSMLRLRNIQFTTAAANSEEFYEFGANFAPDMIISMHYRSLIPGRFLKLAKKGSVNLHPSLLPAYRGTNSVAWVIINGESETGFSYHRMDENFDTGAILLQERISVEETDTAFSLFHRQIARAMLRLEEVILKLDQGDPGFAQLGEASYYARELPFGGVIDPRWSEVQIDRFIRAMFFPPFPPAVLKIDGKVYYVPS 246
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5VYR)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5VYR)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5VYR)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    B62  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GMP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Leu A:111 - Pro A:112   [ RasMol ]
    Leu B:111 - Pro B:112   [ RasMol ]
    Pro A:228 - Pro A:229   [ RasMol ]
    Pro B:228 - Pro B:229   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5vyr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  F8WJP6_BRUME | F8WJP6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.1.2.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc
  4.2.1.47
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  F8WJP6_BRUME | F8WJP6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        F8WJP6_BRUME | F8WJP6: 5vys 5vyt 5vyu

(-) Related Entries Specified in the PDB File

5vyq 5vys 5vyt 5vyu
