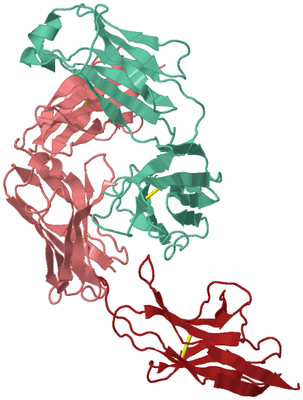

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  PD-1 IN COMPLEX WITH NIVOLUMAB FAB

Authors :  Y. S. Heo
Date :  16 Jun 16  (Deposition) - 09 Nov 16  (Release) - 16 Nov 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.30
Chains :  Asym. Unit :  A,B,H,L,Y,Z
Biol. Unit 1:  A,B,Y  (1x)
Biol. Unit 2:  H,L,Z  (1x)
Keywords :  Antibody, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Y. Lee, H. T. Lee, W. Shin, J. Chae, J. Choi, S. H. Kim, H. Lim, T. Won Heo, K. Y. Park, Y. J. Lee, S. E. Ryu, J. Y. Son, J. U. Lee, Y. S. Heo
Structural Basis Of Checkpoint Blockade By Monoclonal Antibodies In Cancer Immunotherapy
Nat Commun V. 7 13354 2016
PubMed-ID: 27796306  |  Reference-DOI: 10.1038/NCOMMS13354

(-) Compounds

Molecule 1 - HEAVY CHAIN
    Chains: A, H
    Engineered: YES
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synthetic: YES

Molecule 2 - LIGHT CHAIN
    Chains: B, L
    Engineered: YES
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synthetic: YES

Molecule 3 - PROGRAMMED CELL DEATH PROTEIN 1
    Chains: Y, Z
    Engineered: YES
    Expression System: ESCHERICHIA COLI-PICHIA PASTORIS SHUTTLE VECTOR PPPARG4
    Expression System Taxid: 1182032
    Fragment: UNP RESIDUES 26-150
    Gene: PDCD1, PD1
    Mutation: YES
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: HPD-1

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABHLYZ
Biological Unit 1 (1x): AB  Y
Biological Unit 2 (1x):   HL Z

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5GGR)

(-) Sites  (0, 0)

(no "Site" information available for 5GGR)

(-) SS Bonds  (7, 7)

Asymmetric Unit
No.Residues
1A:22 -A:96
2B:23 -B:88
3B:134 -B:194
4H:22 -H:96
5H:140 -H:196
6L:23 -L:88
7Z:54 -Z:123

(-) Cis Peptide Bonds  (14, 14)

Asymmetric Unit
No.Residues
1Phe A:146 -Pro A:147
2Glu A:148 -Pro A:149
3Ser B:7 -Pro B:8
4Trp B:94 -Pro B:95
5Tyr B:140 -Pro B:141
6Phe H:146 -Pro H:147
7Glu H:148 -Pro H:149
8Ser L:7 -Pro L:8
9Trp L:94 -Pro L:95
10Tyr L:140 -Pro L:141
11Ser Y:38 -Pro Y:39
12Phe Y:82 -Pro Y:83
13Ser Z:38 -Pro Z:39
14Phe Z:82 -Pro Z:83

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5GGR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5GGR)

(-) Exons   (0, 0)

(no "Exon" information available for 5GGR)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:209

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee...eee.....eeeeeeee........eeeeee.....eeeeeee......eee.hhhh..eeeeee....eeeeee...hhhhheeeeeee........eeeee........eeeee.......eeeeeeeeeee.....eeee........eee...ee.....eeeeeeeeee.hhh....eeeeeee....eeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ggr A   2 VQLVESGGGVVQPGRSLRLDCKASGITFSNSGMHWVRQAPGKGLEWVAVIWYDGSKRYYADSVKGRFTISRDNSKNTLFLQMNSLRAEDTAVYYCATNDDYWGQGTLVTVSSASTKGPSVFPLAPSSSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEP 213
                                    11        21        31        41        51        61        71        81        91       101       111       121      |134       144       154       164       174       184       194       204
                                                                                                                                                        128|
                                                                                                                                                         132


Chain B from PDB  Type:PROTEIN  Length:212

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee.......eeeeee......eeeee............eeeeee..eeeeee...hhhhh.eeeeee......ee...eeeee.......eeeee..hhhhhhhheeeeeeeeeee....eeeeeee......................eeeeeeeeeehhhhhh..eeeeeeee......eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ggr B   1 EIVLTQSPATLSLSPGERATLSCRASQSVSSYLAWYQQKPGQAPRLLIYDASNRATGIPARFSGSGSGTDFTLTISSLEPEDFAVYYCQQSSNWPRTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain H from PDB  Type:PROTEIN  Length:207

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...ee....eeeeeeeee.........eeeee.....eeeeeeee..eeeeee........eeeee....eeeeeee..hhhhheeee...........eeeee........eeeee.....eeeeeeeeeee.....eeee........eee...ee.....eeeeeeeeee.hhhh...eeeeeee....eeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ggr H   2 VQLVESGGGVVQPGRSLRLDCKASGITFSNSGMHWVRQAPGKGLEWVAVIWYDGSKRYYADSVKGRFTISRDNSKNTLFLQMNSLRAEDTAVYYCATNDDYWGQGTLVTVSSASTKGPSVFPLAPSSGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEP 213
                                    11        21        31        41        51        61        71        81        91       101       111       121      |136       146       156       166       176       186       196       206
                                                                                                                                                        128|
                                                                                                                                                         134


Chain L from PDB  Type:PROTEIN  Length:212

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee........eeeee......eeeee............eeeeee..eeeeee...hhhhh.eeeee............eeeee.......eeeee....hhhhhh...eeeeeeee.....eeeeee........eeeee.........eeeeeee..hhhhhh....eeeeee.......eee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ggr L   1 EIVLTQSPATLSLSPGERATLSCRASQSVSSYLAWYQQKPGQAPRLLIYDASNRATGIPARFSGSGSGTDFTLTISSLEPEDFAVYYCQQSSNWPRTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain Y from PDB  Type:PROTEIN  Length:118

               SCOP domains ---------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeee....eeeeee.......eeeeeee.....eeeeee.............eeee.....eeeeee........eeeeeeeee......eee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 5ggr Y  27 SPDRPWNPPTFSPALLVVTEGDNATFTCSFSNTSESFVLNWYRMSPQTDKLAAFPEDRSQPGQDSRFRVTQLPNGRDFHMSVVRARRNDSGTYLCGAISLAPKAQIKESLRAELRVTE 146
                                    36        46        56        66     || 78        88        98       108       118       128       138
                                                                        72|
                                                                         75


Chain Z from PDB  Type:PROTEIN  Length:117

               SCOP domains --------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eee..eeeee....eeeeee.......eeeeeee....eeeeee............eeeee.....eeeeee.........eeeeeeee......eee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------- Transcript
                 5ggr Z  27 SPDRPWNPPTFSPALLVVTEGDNATFTCSFSNTSESFVLNWYRMSQTDKLAAFPEDRSQPGQDSRFRVTQLPNGRDFHMSVVRARRNDSGTYLCGAISLAPKAQIKESLRAELRVTE 146
                                    36        46        56        66    ||  79        89        99       109       119       129       139
                                                                       71|
                                                                        75
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5GGR)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5GGR)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5GGR)

(-) Gene Ontology  (16, 16)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5ggr)

  Sites
(no "Sites" information available for 5ggr)

  Cis Peptide Bonds
    Glu A:148 - Pro A:149   [ RasMol ]
    Glu H:148 - Pro H:149   [ RasMol ]
    Phe A:146 - Pro A:147   [ RasMol ]
    Phe H:146 - Pro H:147   [ RasMol ]
    Phe Y:82 - Pro Y:83   [ RasMol ]
    Phe Z:82 - Pro Z:83   [ RasMol ]
    Ser B:7 - Pro B:8   [ RasMol ]
    Ser L:7 - Pro L:8   [ RasMol ]
    Ser Y:38 - Pro Y:39   [ RasMol ]
    Ser Z:38 - Pro Z:39   [ RasMol ]
    Trp B:94 - Pro B:95   [ RasMol ]
    Trp L:94 - Pro L:95   [ RasMol ]
    Tyr B:140 - Pro B:141   [ RasMol ]
    Tyr L:140 - Pro L:141   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5ggr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PDCD1_HUMAN | Q15116
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PDCD1_HUMAN | Q15116
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PDCD1_HUMAN | Q15116: 2m2d 3rrq 4zqk 5b8c 5ggs 5ius 5jxe 5wt9

(-) Related Entries Specified in the PDB File

5ggq 5ggs 5ggt 5ggu 5ggv
