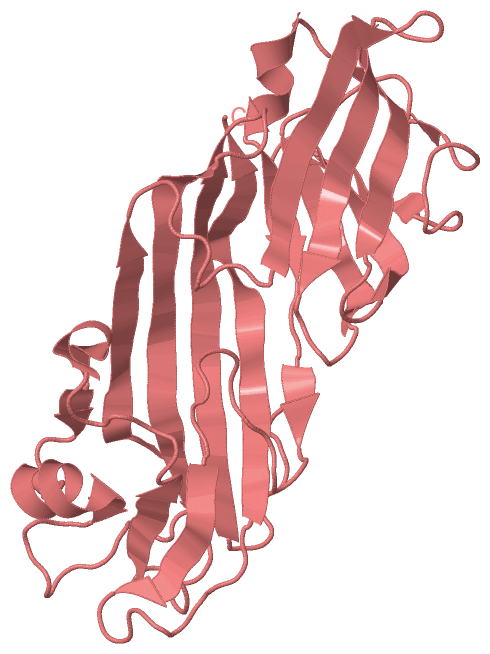

Image Biological Unit 8
Biological Unit 8  (Jmol Viewer)

(-) Description

Title :  YEAST DELTA-COP-I MU-HOMOLOGY DOMAIN

Authors :  R. J. Suckling, P. R. Evans, D. J. Owen
Date :  14 Oct 15  (Deposition) - 11 Nov 15  (Release) - 02 Dec 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  E  (1x)
Biol. Unit 6:  F  (1x)
Biol. Unit 7:  G  (1x)
Biol. Unit 8:  H  (1x)
Keywords :  Structural Protein, Cop-I, Vesicle Coat Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. J. Suckling, P. P. Poon, S. M. Travis, I. V. Majoul, F. M. Hughson, P. R. Evans, R. Duden, D. J. Owen
Structural Basis For The Binding Of Tryptophan-Based Motifs By Delta-Cop.
Proc. Natl. Acad. Sci. Usa V. 112 14242 2015
PubMed-ID: 26578768  |  Reference-DOI: 10.1073/PNAS.1506186112

(-) Compounds

Molecule 1 - COATOMER SUBUNIT DELTA
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: MU-HOMOLOGY DOMAIN, RESIDUES 282-546
    Gene: RET2, H834_YJM1574F00127
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932
    Synonym: DELTA-COAT PROTEIN, DELTA-COP, RET2P

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D
Biological Unit 5 (1x):     E
Biological Unit 6 (1x):      F
Biological Unit 7 (1x):       G
Biological Unit 8 (1x):        H

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1CA2Ligand/IonCALCIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 3 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 4 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 5 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 6 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 7 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
Biological Unit 8 (0, 0)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:518 , HOH A:2055 , HOH A:2056 , HOH A:2058 , ASP B:525BINDING SITE FOR RESIDUE CA A 601
2AC2SOFTWAREASP B:444 , ILE B:445 , HOH B:2040 , HOH B:2041 , ASP C:324 , ASP C:326BINDING SITE FOR RESIDUE CA B 601

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5FK0)

(-) Cis Peptide Bonds  (8, 8)

Asymmetric Unit
No.Residues
1Tyr A:494 -Pro A:495
2Tyr B:494 -Pro B:495
3Tyr C:494 -Pro C:495
4Tyr D:494 -Pro D:495
5Tyr E:494 -Pro E:495
6Tyr F:494 -Pro F:495
7Tyr G:494 -Pro G:495
8Tyr H:494 -Pro H:495

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5FK0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5FK0)

(-) Exons   (0, 0)

(no "Exon" information available for 5FK0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.......eeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee.eeee............eeeeee......ee..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 A 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain B from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.......eeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee.........eeeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee.eeee............eeeeee..........eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 B 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain C from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.......eeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee.eeee............eeeeee..........eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 C 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain D from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.hhhhhheeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee...ee............eeeeee......ee..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 D 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain E from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.......eeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee.eeee............eeeeee..........eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 E 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain F from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.hhhhhheeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee.eeee............eeeeee..........eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 F 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain G from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.......eeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee.eeee............eeeeee..........eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 G 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543


Chain H from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeeeeee.....eeeeeeeeeeeeee.......eeeee.......hhhhh.ee....hhhhhhhhhee...............eeeeeeeeee.........eeeeeeeee.....eeeeeeeeee.....eeeeeeee........ee..........eeee......eeeeeeee....eeeeeeeee..hhhhhh.eeee...ee............eeeeee..........eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fk0 H 284 DVPENNGILISIKEVINAEFSRDGTIHSSELKGVLELRINDHDLSHSNLKLADSIDVRDKSFQFKTHPNIDKQSFLSTKLISLRDKSKAFPANDQSLGVLRWRKVAPAEDDSLIPLTLTTWVSPSESQQGFDVIIEYESVLETELADVIFTIPVFPQEPVDINTESSTCSDAEVVNMDQEMGTSIKISKIAANDAGALAFTIEAPYEDALYPMTVSFQESTRDKLAKSFTGMAIQSVVMANDHDQELPYDVITSLKSDEYLVQ 546
                                   293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5FK0)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5FK0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5FK0)

(-) Gene Ontology  (16, 16)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Tyr A:494 - Pro A:495   [ RasMol ]
    Tyr B:494 - Pro B:495   [ RasMol ]
    Tyr C:494 - Pro C:495   [ RasMol ]
    Tyr D:494 - Pro D:495   [ RasMol ]
    Tyr E:494 - Pro E:495   [ RasMol ]
    Tyr F:494 - Pro F:495   [ RasMol ]
    Tyr G:494 - Pro G:495   [ RasMol ]
    Tyr H:494 - Pro H:495   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]
    Biological Unit 8  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format | Biol. Unit 7 PNG format | Biol. Unit 8 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5fk0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  COPD_YEAST | P43621
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  COPD_YEAST | P43621
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        COPD_YEAST | P43621: 5fjw 5fjx 5fjz

(-) Related Entries Specified in the PDB File

5fjw YEAST DELTA-COP-I MU-HOMOLOGY DOMAIN COMPLEXED WITH DSL1 WXWXSEM PEPTIDE
5fjx YEAST DELTA-COP-I MU-HOMOLOGY DOMAIN COMPLEXED WITH GCS1 WXXF PEPTIDE
5fjz YEAST DELTA-COP-I MU-HOMOLOGY DOMAIN COMPLEXED WITH DSL1 WXWXV PEPTIDE
