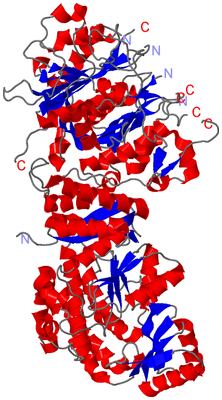

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CONDENSING DI-DOMAIN (KS-AT) OF A MYCOCEROSIC ACID SYNTHASE-LIKE (MAS-LIKE) PKS

Authors :  R. P. Jakob, D. A. Herbst, F. Zaehringer, T. Maier
Date :  27 May 15  (Deposition) - 09 Mar 16  (Release) - 28 Dec 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Polyketide, Ketosynthase, Acyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. A. Herbst, R. P. Jakob, F. Zahringer, T. Maier
Mycocerosic Acid Synthase Exemplifies The Architecture Of Reducing Polyketide Synthases.
Nature V. 531 533 2016
PubMed-ID: 26976449  |  Reference-DOI: 10.1038/NATURE16993

(-) Compounds

Molecule 1 - MYCOCEROSIC ACID SYNTHASE
    Chains: A
    EC Number: 2.3.1.111
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PNIC28-BSA4
    Expression System Taxid: 469008
    Expression System Variant: PRIL
    Expression System Vector Type: PLASMID
    Gene: MSMEG_4727, LJ00_23385
    Organism Scientific: MYCOBACTERIUM SMEGMATIS (STRAIN ATCC 700084 / MC(2)155)
    Organism Taxid: 246196
    Strain: ATCC 700084 / MC(2)155

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5BP1)

(-) Sites  (0, 0)

(no "Site" information available for 5BP1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5BP1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5BP1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5BP1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5BP1)

(-) Exons   (0, 0)

(no "Exon" information available for 5BP1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:817

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeee......hhhhhhhhhhhh....ee......ee.......ee.hhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhh...eeeeeee......hhhhhhhhhhhh....eeeee......hhhhhhhhhhhhh....eeeeeeee...........................eeeeeeeeehhhhhhhh....eeeeeeeeee......hhhhhhhhhhhhh.hhh.eeeee........hhhhhhhhhhhhh......eee.hhhhhh.hhhhhhhhhhhhhhhhhhh.ee.........hhhhhh...........ee.........eeeeeee....eeeeeeeee..........eeeeeee.hhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhh.....eeeeeee.hhhhhhhhhhhhhh.....ee.........eeee..........hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhh........hhhhhhhhhhhhhhhhhhh......eeee..hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhhh....eeeeeeee..eeeeeehhhhhhhhhhhhhh....eeee.......hhhhhhhhhhhhhhh...........ee.............hhhhhhhhhhh..hhhhhhhhhhhh...eeee......hhhhhhhhhhhh....eeee...........hhhhhhhhhhhh...hhhhhh...............ee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5bp1 A   4 NCVAPVAIIGMACRLPGAINSPQQLWEALLRGDDFVTEIPTGRKWGAFLDDPAAFDPEFFGITEREAAAIDPQHRLLLETAWEAVEHSGLNPAGLAGSATGVFMGLTHNTSFSLASGRIAYALGVHGPAITVDTACSSSLSAIHMACRSLHDGESDVALAGGVSVLLEGMLSPTGHCHAFDTAADGFVSAEGCVVLTLKRLDDAVADGDRILAVIRGTATNQDGSADAQAKVYRMALKAAGVEPGTVGLVEAHGTGTPVGDPLEFSSLAEVYGTDGPCALGSIKTNFGHTQSAAGALGVMKAVLALQHNVIPQNLHFTRLPDQMAEIETGLFVPETITPWPVREGQPRRAAVSAYGLSGTNVHAVLEQAPESPKAGNALVFPVSASSADALRSTAQHLADWLLRSGDGNGRGPAIDLGDLAYTLARRRGFRAARSAVLAGDRGTLVEGLRQIADGEAMPQQAVTNDDRGPVWVFSGQGSQWASMGAELLDREPAFAAAIAELEPLIAAESDFSVTEALTASETVTGIDRVQPTIFAVQVALAAAMRSHGVVPGAVIGHSMGEVAASVVSGALSLEDGVKVICRRTRLMTRIAGSGAMAMVELPAQQVLSELASRGVDDVVLSVVASPQSTVVGGATASVRELIEMWESRGVMAREIAVDVASHSPQVDPILDDLIEALADLDPAEPEIPYYSATLYDPRDYADYDAYYWADNLRHTVRFSAAVQAALEDGHRVFAELSPHPLLTHPVEQTARSLDMPLAVFAAMRRQQEMPHGLLGFVADLHSAGAAVDFSVLYPTGRLLDAPLPAWTHSTLLLDRE 887
                                    13        23        33        43  ||    72        82        92       102       112       122       152       162       172       182       192       202       222       232       242       252       262       272   ||  290       300       310       320       330       340       350       360       370       380       390       400       410       420       430  ||   450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800       810       820       830       840       850       860       870       880
                                                                     46|                                                              131|                                                       210|                                                    276|                                                                                                                                                 433|
                                                                      66                                                               152                                                        221                                                     285                                                                                                                                                  444
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5BP1)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5BP1)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5BP1)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5bp1)

  Sites
(no "Sites" information available for 5bp1)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5bp1)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5bp1
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PKS5_MYCS2 | A0R1E8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.3.1.111
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PKS5_MYCS2 | A0R1E8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PKS5_MYCS2 | A0R1E8: 5bp2 5bp3 5bp4

(-) Related Entries Specified in the PDB File

5bp2 5bp3 5bp4
