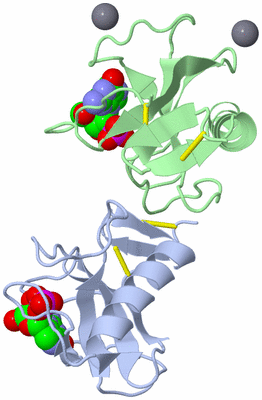

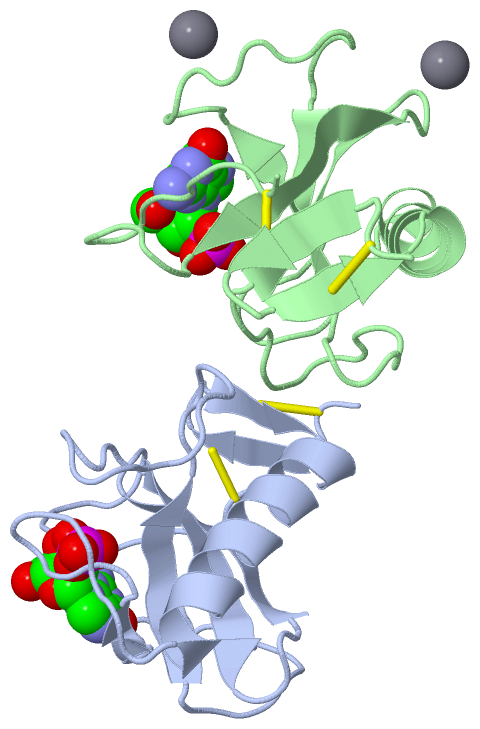

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

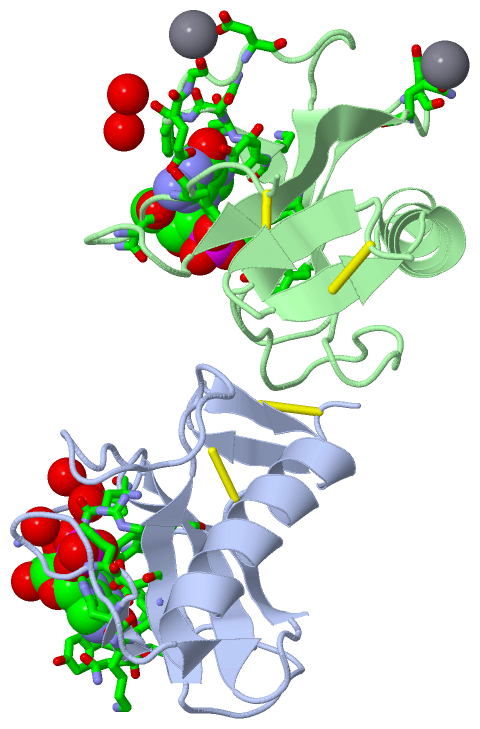

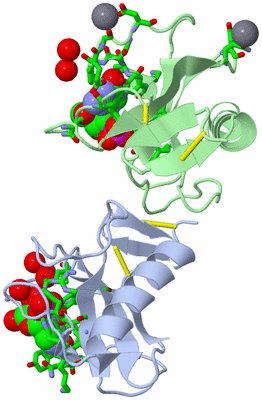

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

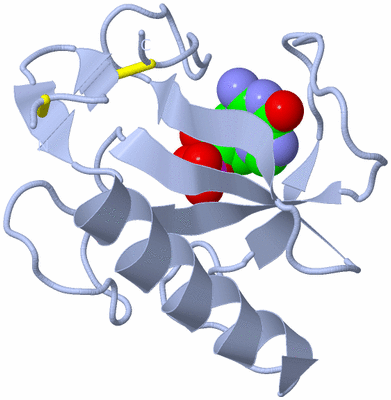

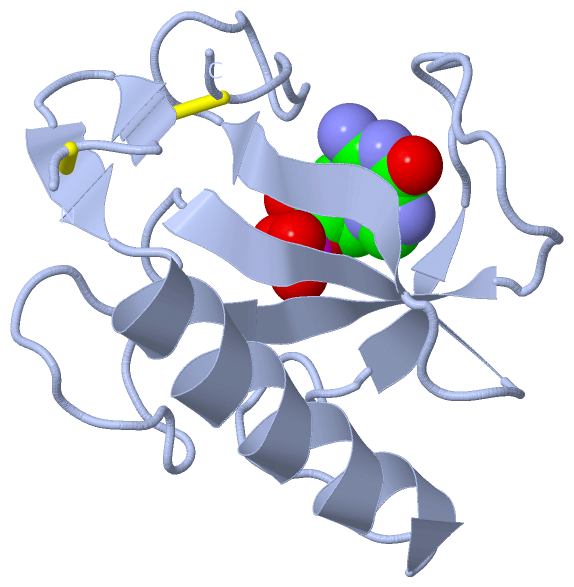

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

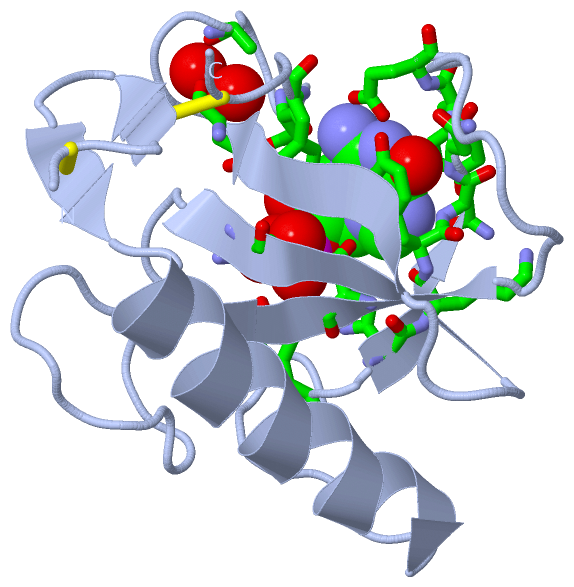

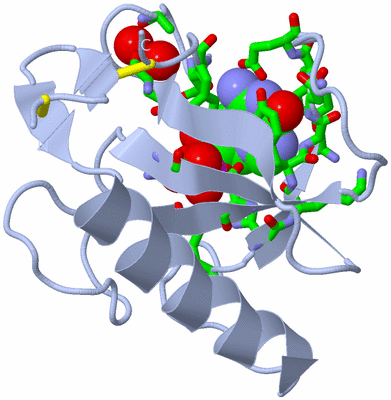

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

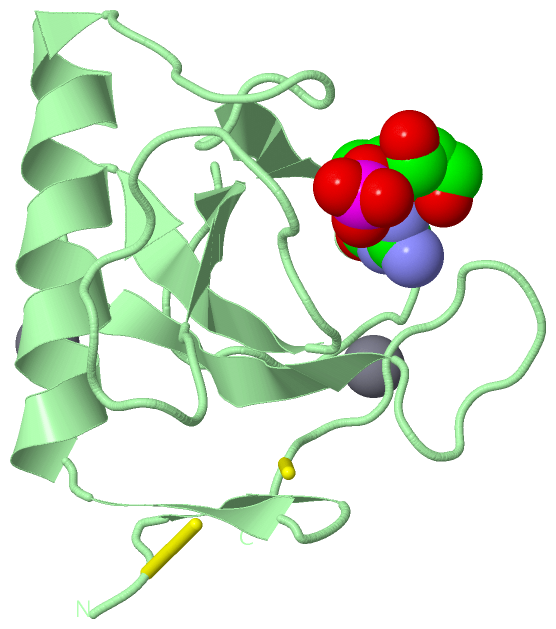

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

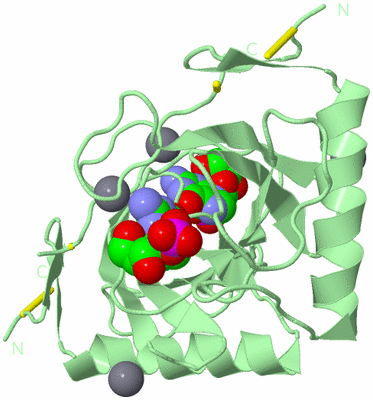

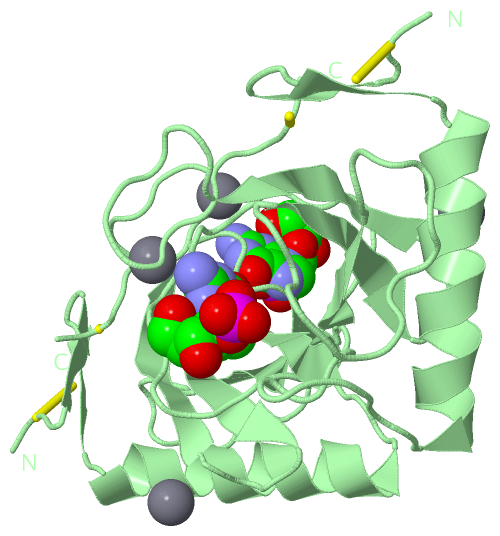

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  DISECTING HISTIDINE INTERACTIONS IN RIBONUCLEASE T1 USING ASN AND GLN MUTATIONS

Authors :  J. Doumen, J. Steyaert
Date :  30 Jun 97  (Deposition) - 31 Dec 97  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  B  (2x)
Keywords :  Endonuclease, Ribonuclease T1, Mutation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. De Vos, J. Doumen, U. Langhorst, J. Steyaert
Dissecting Histidine Interactions Of Ribonuclease T1 With Asparagine And Glutamine Replacements: Analysis Of Double Mutant Cycles At One Position.
J. Mol. Biol. V. 275 651 1998
PubMed-ID: 9466938  |  Reference-DOI: 10.1006/JMBI.1997.1480
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIBONUCLEASE T1
    Chains: A, B
    EC Number: 3.1.27.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: SYNTHETIC GENE
    Expression System Plasmid: PMC5-RT1
    Expression System Taxid: 562
    Gene: SYNTHETIC GENE
    Mutation: YES
    Organism Scientific: ASPERGILLUS ORYZAE
    Organism Taxid: 5062
    Synonym: RNASE T1

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (2x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric Unit (2, 4)
No.NameCountTypeFull Name
12GP2Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA2Ligand/IonCALCIUM ION
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
12GP1Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
12GP1Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
12GP2Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:92 , ALA A:95 , HOH A:108 , HOH A:119 , GLN B:85 , HOH B:626BINDING SITE FOR RESIDUE CA B 501
2AC2SOFTWARETYR B:45 , GLY B:47 , ASP B:49 , HOH B:644 , HOH B:671BINDING SITE FOR RESIDUE CA B 601
3AC3SOFTWARETYR A:38 , HIS A:40 , LYS A:41 , TYR A:42 , ASN A:43 , ASN A:44 , TYR A:45 , GLU A:46 , GLU A:58 , ARG A:77 , GLN A:92 , ASN A:98 , PHE A:100 , HOH A:132 , ASN B:83BINDING SITE FOR RESIDUE 2GP A 105
4AC4SOFTWARETYR B:38 , HIS B:40 , LYS B:41 , TYR B:42 , ASN B:43 , ASN B:44 , TYR B:45 , GLU B:46 , GLU B:58 , ASN B:98 , PHE B:100BINDING SITE FOR RESIDUE 2GP B 306
5CATUNKNOWNGLN A:92 , GLU A:58 , HIS A:40 , TYR A:38 , PHE A:100CATALYTIC SITE.

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:2 -A:10
2A:6 -A:103
3B:2 -B:10
4B:6 -B:103

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Tyr A:38 -Pro A:39
2Ser A:54 -Pro A:55
3Tyr B:38 -Pro B:39
4Ser B:54 -Pro B:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5BIR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5BIR)

(-) Exons   (0, 0)

(no "Exon" information available for 5BIR)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104

               SCOP domains d5bira_ A: RNase T1                                                                                      SCOP domains
               CATH domains 5birA00 A:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee..eee.hhhhhhhhhhhhhhhh...........eee.............eeeee...............eeeeee....eeeeee............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 5bir A   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITQTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:104

               SCOP domains d5birb_ B: RNase T1                                                                                      SCOP domains
               CATH domains 5birB00 B:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee..eee.hhhhhhhhhhhhhhhhh..........eee.............eeeee...............eeeeee....eeeeee............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 5bir B   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITQTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5BIR)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    2GP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    CAT  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:54 - Pro A:55   [ RasMol ]
    Ser B:54 - Pro B:55   [ RasMol ]
    Tyr A:38 - Pro A:39   [ RasMol ]
    Tyr B:38 - Pro B:39   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
