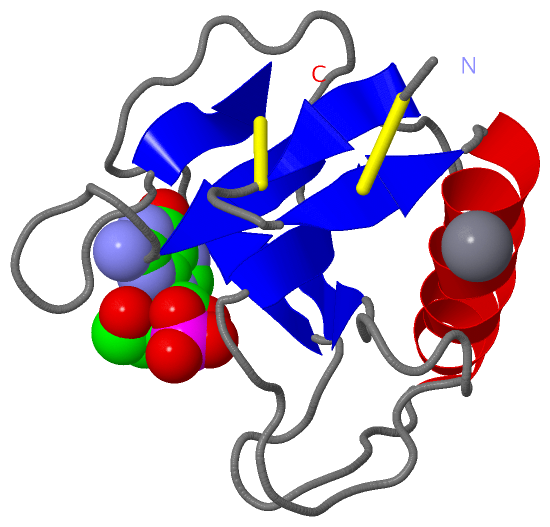

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

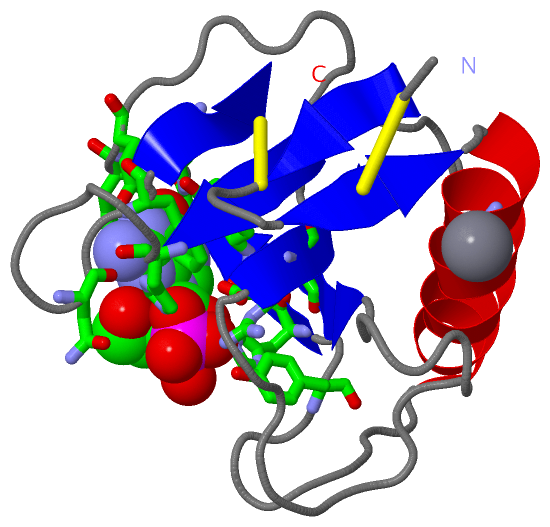

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF RNASE T1 COMPLEXED WITH THE PRODUCT NUCLEOTIDE 3'-GMP. STRUCTURAL EVIDENCE FOR DIRECT INTERACTION OF HISTIDINE 40 AND GLUTAMIC ACID 58 WITH THE 2'-HYDROXYL GROUP OF RIBOSE

Authors :  K. Gohda, K. -I. Oka, K. -I. Tomita, T. Hakoshima
Date :  29 Mar 94  (Deposition) - 20 Dec 94  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase(Endoribonuclease) (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Gohda, K. Oka, K. Tomita, T. Hakoshima
Crystal Structure Of Rnase T1 Complexed With The Product Nucleotide 3'-Gmp. Structural Evidence For Direct Interaction Of Histidine 40 And Glutamic Acid 58 With The 2'-Hydroxyl Group Of The Ribose.
J. Biol. Chem. V. 269 17531 1994
PubMed-ID: 7912696
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIBONUCLEASE T1
    ChainsA
    EC Number3.1.27.3
    EngineeredYES
    Organism ScientificASPERGILLUS ORYZAE
    Organism Taxid5062

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
13GP1Ligand/IonGUANOSINE-3'-MONOPHOSPHATE
2CA1Ligand/IonCALCIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:15 , HOH A:204 , HOH A:214 , HOH A:216 , HOH A:239BINDING SITE FOR RESIDUE CA A 106
2AC2SOFTWARETYR A:38 , HIS A:40 , LYS A:41 , TYR A:42 , ASN A:43 , ASN A:44 , TYR A:45 , GLU A:46 , GLU A:58 , ARG A:77 , HIS A:92 , ASN A:98 , PHE A:100 , HOH A:278BINDING SITE FOR RESIDUE 3GP A 105

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:2 -A:10
2A:6 -A:103

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Tyr A:38 -Pro A:39
2Ser A:54 -Pro A:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RLS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1RLS)

(-) Exons   (0, 0)

(no "Exon" information available for 1RLS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with RNT1_ASPOR | P00651 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    36        46        56        66        76        86        96       106       116       126
           RNT1_ASPOR    27 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 130
               SCOP domains d1rlsa_ A: RNase T1                                                                                      SCOP domains
               CATH domains 1rlsA00 A:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains ----------------Ribonuclease-1rlsA01 A:17-103                                                          - Pfam domains
         Sec.struct. author ..eee...eee.hhhhhhhhhhhhhhhhh..........eee..............eeee...............eeeee........eee.........eee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1rls A   1 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit

(-) Gene Ontology  (13, 13)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RNT1_ASPOR | P00651)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0046589    ribonuclease T1 activity    Catalysis of the endonucleolytic cleavage to nucleoside 3'-phosphates and 3'-phosphooligonucleotides ending in Gp with 2',3'-cyclic phosphate intermediates.
    GO:0004540    ribonuclease activity    Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
    GO:0090501    RNA phosphodiester bond hydrolysis    The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0030428    cell septum    A structure composed of peptidoglycan and often chitin in addition to other materials. It usually forms perpendicular to the long axis of a cell or hypha and grows centripetally from the cell wall to the center of the cell and often functions in the compartmentalization of a cell into two daughter cells.
    GO:0001411    hyphal tip    The end, or tip, of a fungal hypha, where polarized growth occurs during hyphal elongation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    3GP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:54 - Pro A:55   [ RasMol ]
    Tyr A:38 - Pro A:39   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1rls
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RNT1_ASPOR | P00651
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.27.3
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  RNT1_ASPOR | P00651
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RNT1_ASPOR | P006511b2m 1bir 1bu4 1bvi 1ch0 1det 1fys 1fzu 1g02 1gsp 1hyf 1hz1 1i0v 1i0x 1i2e 1i2f 1i2g 1i3f 1i3i 1iyy 1lov 1low 1loy 1lra 1q9e 1rga 1rgc 1rgk 1rgl 1rhl 1rn1 1rn4 1rnt 1trp 1trq 1tto 1ygw 2aad 2aae 2bir 2bu4 2gsp 2hoh 2rnt 3bir 3bu4 3gsp 3hoh 3rnt 3syu 3urp 4bir 4bu4 4gsp 4hoh 4odk 4rnt 5bir 5bu4 5gsp 5hoh 5rnt 6gsp 6rnt 7gsp 7rnt 8rnt 9rnt
