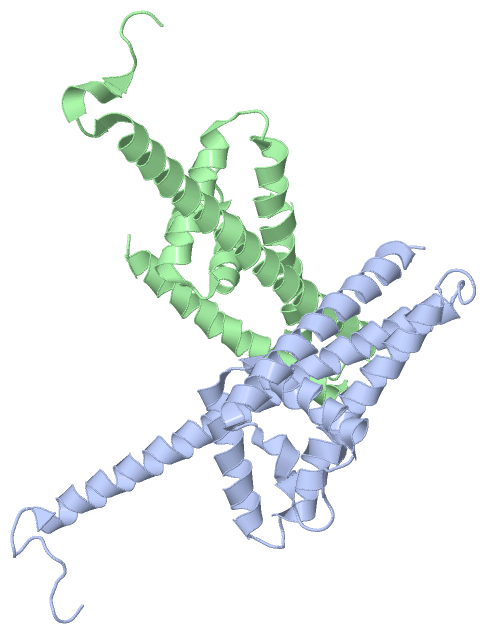

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

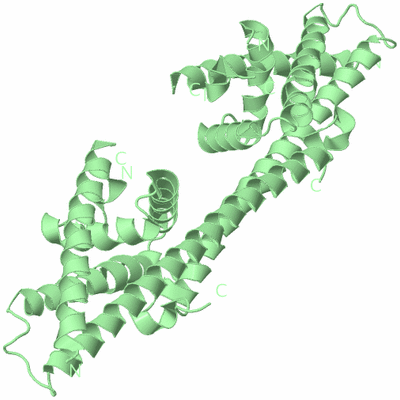

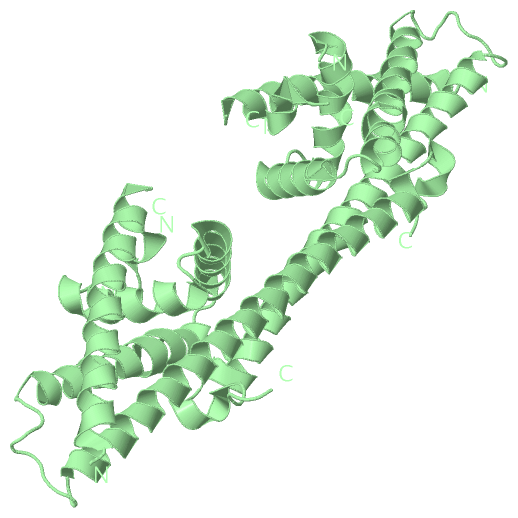

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

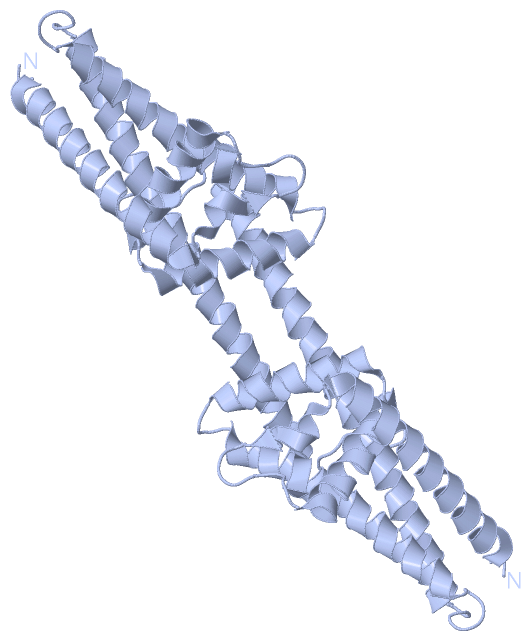

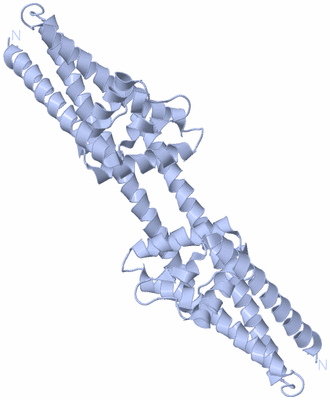

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BBA68 OR BBCRASP-1 FROM BORRELIA BURGDORFERI STRAIN B31

Authors :  K. Brangulis, E. Bertulis, I. Petrovskis, A. Kazaks, K. Tars
Date :  25 May 15  (Deposition) - 10 Jun 15  (Release) - 10 Jun 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.30
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  B  (2x)
Biol. Unit 2:  A  (2x)
Keywords :  Immune System, Lyme Disease, Lipoprotein, Outer Surface Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Brangulis, I. Petrovskis, A. Kazaks, K. Tars
Crystal Structure Of Bba68 Or Bbcrasp-1 From Borrelia Burgdorferi Strain B31
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - COMPLEMENT REGULATOR ACQUIRING PROTEIN 1
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PETM-11
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 65-251
    Organism Scientific: BORRELIA BURGDORFERI
    Organism Taxid: 224326
    Strain: B31
    Synonym: BBA68 OR BBCRASP-1

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x):  B
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5A2U)

(-) Sites  (0, 0)

(no "Site" information available for 5A2U)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5A2U)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Thr A:12 -Ile A:13
2Thr B:12 -Ile B:13

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5A2U)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5A2U)

(-) Exons   (0, 0)

(no "Exon" information available for 5A2U)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:181

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh........hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5a2u A  12 TIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPAFY 192
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191


Chain B from PDB  Type:PROTEIN  Length:174

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh...hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5a2u B  12 TIASELKAIGKELEDQKKEENIQIAKIAKEKDFLSTFKIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPAFY 192
                                    21        31        41||     |58        68        78        88        98       108       118       128       138       148       158       168       178       188
                                                         42|    50|
                                                          44     57
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5A2U)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5A2U)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5A2U)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5A2U)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5a2u)

  Sites
(no "Sites" information available for 5a2u)

  Cis Peptide Bonds
    Thr A:12 - Ile A:13   [ RasMol ]
    Thr B:12 - Ile B:13   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5a2u
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O50957_BORBU | O50957
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  Q66ZA0_BORBG | Q66ZA0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O50957_BORBU | O50957
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q66ZA0_BORBG | Q66ZA0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        O50957_BORBU | O50957: 4bl4
UniProtKB/TrEMBL
        O50957_BORBU | O50957: 1w33 1w3z

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5A2U)
