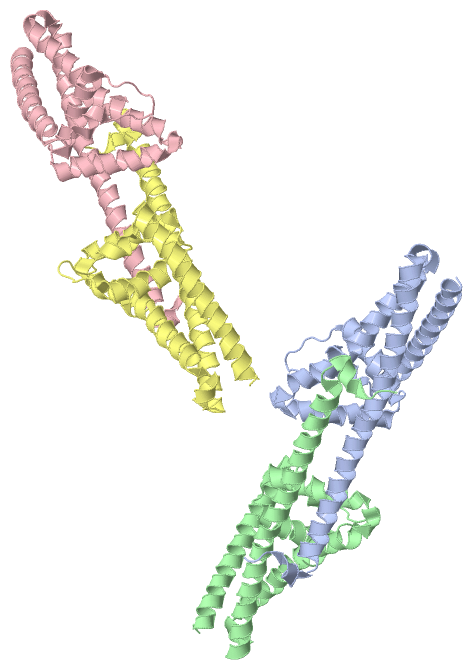

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

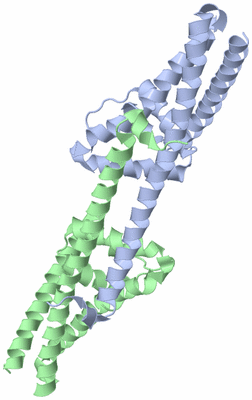

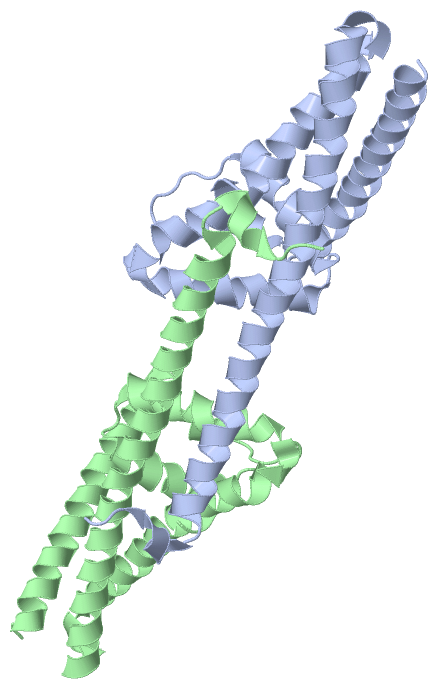

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

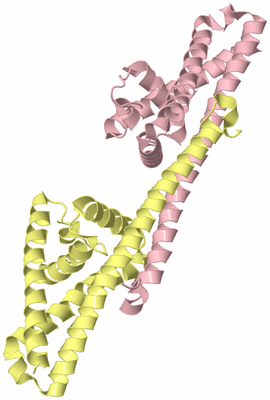

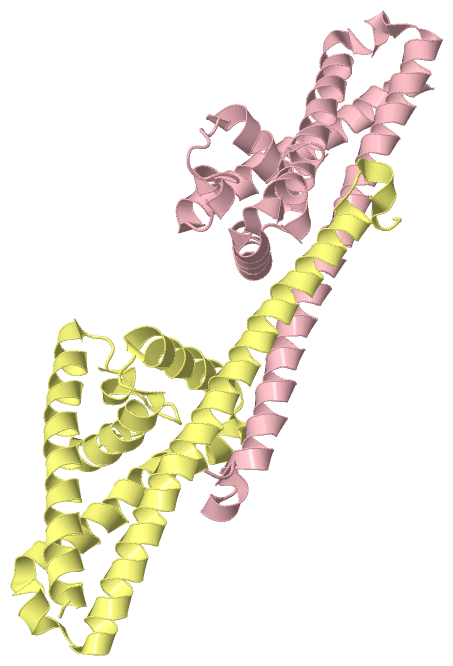

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  FURTHER STRUCTURAL INSIGHTS INTO THE BINDING OF COMPLEMENT FACTOR H BY COMPLEMENT REGULATOR ACQUIRING SURFACE PROTEIN 1, CSPA (BBCRASP-1), OF BORRELIA BURGDORFERI.

Authors :  J. J. E. Caesar, R. Wallich, P. Kraiczy, P. F. Zipfel, S. M. Lea
Date :  01 May 13  (Deposition) - 05 Jun 13  (Release) - 12 Jun 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  4.06
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. J. E. Caesar, R. Wallich, P. Kraiczy, P. F. Zipfel, S. M. Lea
Further Structural Insights Into The Binding Of Complement Factor H By Complement Regulator-Acquiring Surface Protein 1 (Cspa) Of Borrelia Burgdorferi.
Acta Crystallogr. , Sect. F V. 69 629 2013
PubMed-ID: 23722839  |  Reference-DOI: 10.1107/S1744309113012748

(-) Compounds

Molecule 1 - COMPLEMENT REGULATOR-ACQUIRING SURFACE PROTEIN 1 (CRASP-1)
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PGEX
    Expression System Vector Type: PLASMID
    Fragment: EXTRACELLULAR DOMAIN, RESIDUES 70-250
    Organism Common: LYME DISEASE SPIROCHETE
    Organism Scientific: BORRELIA BURGDORFERI
    Organism Taxid: 445985
    Other Details: COMPLEMENT FACTOR H BINDING DIMER
    Strain: ZS7
    Synonym: CSPA

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4BL4)

(-) Sites  (0, 0)

(no "Site" information available for 4BL4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4BL4)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Glu A:70 -Thr A:71
2Glu B:70 -Thr B:71
3Glu C:70 -Thr C:71
4Glu D:70 -Thr D:71

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4BL4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4BL4)

(-) Exons   (0, 0)

(no "Exon" information available for 4BL4)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:180
 aligned with A0A0H3BZN5_B | A0A0H3BZN5 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         A0A0H3BZN5_B    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSKHYNIIGRLIYHISWSIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 A  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain A from PDB  Type:PROTEIN  Length:180
 aligned with O50957_BORBU | O50957 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         O50957_BORBU    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 A  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain B from PDB  Type:PROTEIN  Length:180
 aligned with A0A0H3BZN5_B | A0A0H3BZN5 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         A0A0H3BZN5_B    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSKHYNIIGRLIYHISWSIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 B  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain B from PDB  Type:PROTEIN  Length:180
 aligned with O50957_BORBU | O50957 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         O50957_BORBU    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 B  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain C from PDB  Type:PROTEIN  Length:180
 aligned with A0A0H3BZN5_B | A0A0H3BZN5 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         A0A0H3BZN5_B    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSKHYNIIGRLIYHISWSIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 C  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain C from PDB  Type:PROTEIN  Length:180
 aligned with O50957_BORBU | O50957 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         O50957_BORBU    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 C  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain D from PDB  Type:PROTEIN  Length:180
 aligned with A0A0H3BZN5_B | A0A0H3BZN5 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         A0A0H3BZN5_B    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSKHYNIIGRLIYHISWSIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 D  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain D from PDB  Type:PROTEIN  Length:180
 aligned with O50957_BORBU | O50957 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         O50957_BORBU    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bl4 D  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4BL4)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4BL4)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4BL4)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4BL4)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4bl4)

  Sites
(no "Sites" information available for 4bl4)

  Cis Peptide Bonds
    Glu A:70 - Thr A:71   [ RasMol ]
    Glu B:70 - Thr B:71   [ RasMol ]
    Glu C:70 - Thr C:71   [ RasMol ]
    Glu D:70 - Thr D:71   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4bl4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3BZN5_B | A0A0H3BZN5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  O50957_BORBU | O50957
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3BZN5_B | A0A0H3BZN5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  O50957_BORBU | O50957
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O50957_BORBU | O50957: 1w33 1w3z 5a2u

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4BL4)
