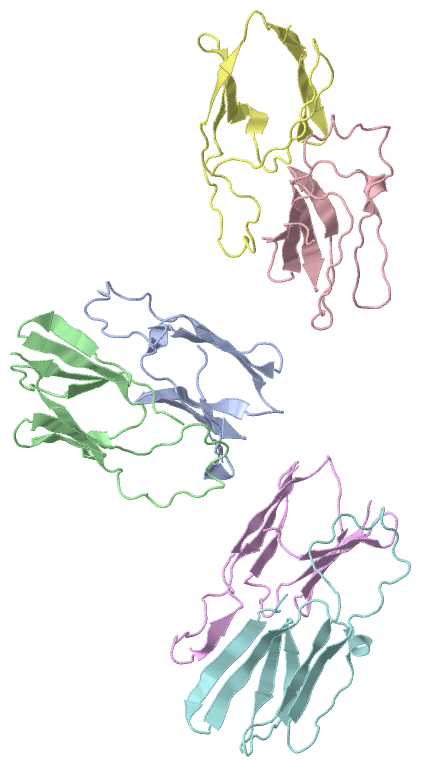

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

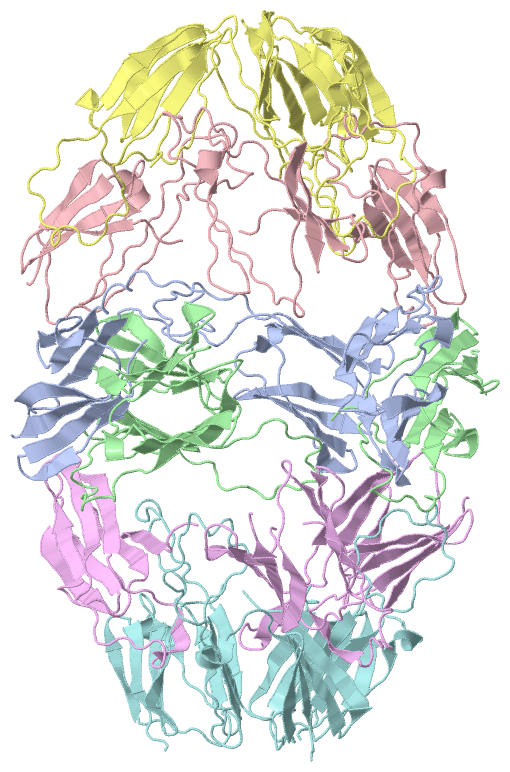

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  SMALL HEAT SHOCK PROTEIN AGSA FROM SALMONELLA TYPHIMURIUM: TRUNCATIONS AT N- AND C- TERMINI

Authors :  N. Mani, K. Suguna
Date :  29 Apr 15  (Deposition) - 20 Apr 16  (Release) - 20 Apr 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  7.50
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B,C,D,E,F  (3x)
Keywords :  Small Heat Shock Protein, Chaperone, Oligomer, Crystallin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Mani, S. Bhandari, R. Moreno, L. Hu, B. V. Prasad, K. Suguna
Multiple Oligomeric Structures Of A Bacterial Small Heat Shock Protein
Sci Rep V. 6 24019 2016
PubMed-ID: 27053150  |  Reference-DOI: 10.1038/SREP24019

(-) Compounds

Molecule 1 - AGGREGATION SUPPRESSING PROTEIN
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Fragment: UNP RESIDUES 12-147
    Gene: AGSA
    Organism Scientific: SALMONELLA ENTERICA SUBSP. ENTERICA SEROVAR TYPHIMURIUM
    Organism Taxid: 90371
    Strain: LT2

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (3x): ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ZJD)

(-) Sites  (0, 0)

(no "Site" information available for 4ZJD)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ZJD)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Glu A:112 -His A:113
2Glu B:112 -His B:113
3Glu C:112 -His C:113
4Glu D:112 -His D:113
5Glu E:112 -His E:113
6Glu F:112 -His F:113

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZJD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZJD)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZJD)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee..eee..eeeeee.....hhh.eeee....eeeeee......................eeeeee.....eeeeeeee..eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zjd A  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQ 132
                                    49        59        69        79        89        99       109       119       129


Chain B from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeee..eeeeeee....hhh.eeeee...eeeeee.......................eeeee..........eee..eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zjd B  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQ 132
                                    49        59        69        79        89        99       109       119       129


Chain C from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eee......eeeeee.....hhhhh.................................................eeeee..eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zjd C  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQ 132
                                    49        59        69        79        89        99       109       119       129


Chain D from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........................hhh.eeee....eeeeee........................eeee.....eeeeeeee..eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zjd D  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQ 132
                                    49        59        69        79        89        99       109       119       129


Chain E from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.....eeeee.........eeee....eeeeee............eeee......eeeeee.......eeeeee..eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zjd E  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQ 132
                                    49        59        69        79        89        99       109       119       129


Chain F from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeee..eeeeeee....hhhhh........eeeee......................eeeee.........eeeee..eeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zjd F  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQ 132
                                    49        59        69        79        89        99       109       119       129
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZJD)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZJD)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZJD)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4zjd)

  Sites
(no "Sites" information available for 4zjd)

  Cis Peptide Bonds
    Glu A:112 - His A:113   [ RasMol ]
    Glu B:112 - His B:113   [ RasMol ]
    Glu C:112 - His C:113   [ RasMol ]
    Glu D:112 - His D:113   [ RasMol ]
    Glu E:112 - His E:113   [ RasMol ]
    Glu F:112 - His F:113   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
